1. Product Overview
This manual provides essential information for the safe and effective use of your Kulatiom 8000mAh 40V Lithium Battery. This high-capacity battery is designed as a reliable replacement for various Ryobi 40V power tools and chargers, offering extended runtime and robust safety features.
Key Features
- Battery Type: Lithium-ion
- Voltage: 40V
- Capacity: 8000mAh (8.0Ah)
- LED Indicator: Integrated LED lights display the remaining power and charging status.
- Compatibility: Designed as a replacement for Ryobi 40V battery part numbers including OP4050A, OP4015, OP4026, OP40201, OP40261, OP4030, OP40301, OP4040, OP40401, OP4050, OP40501, and OP40601.

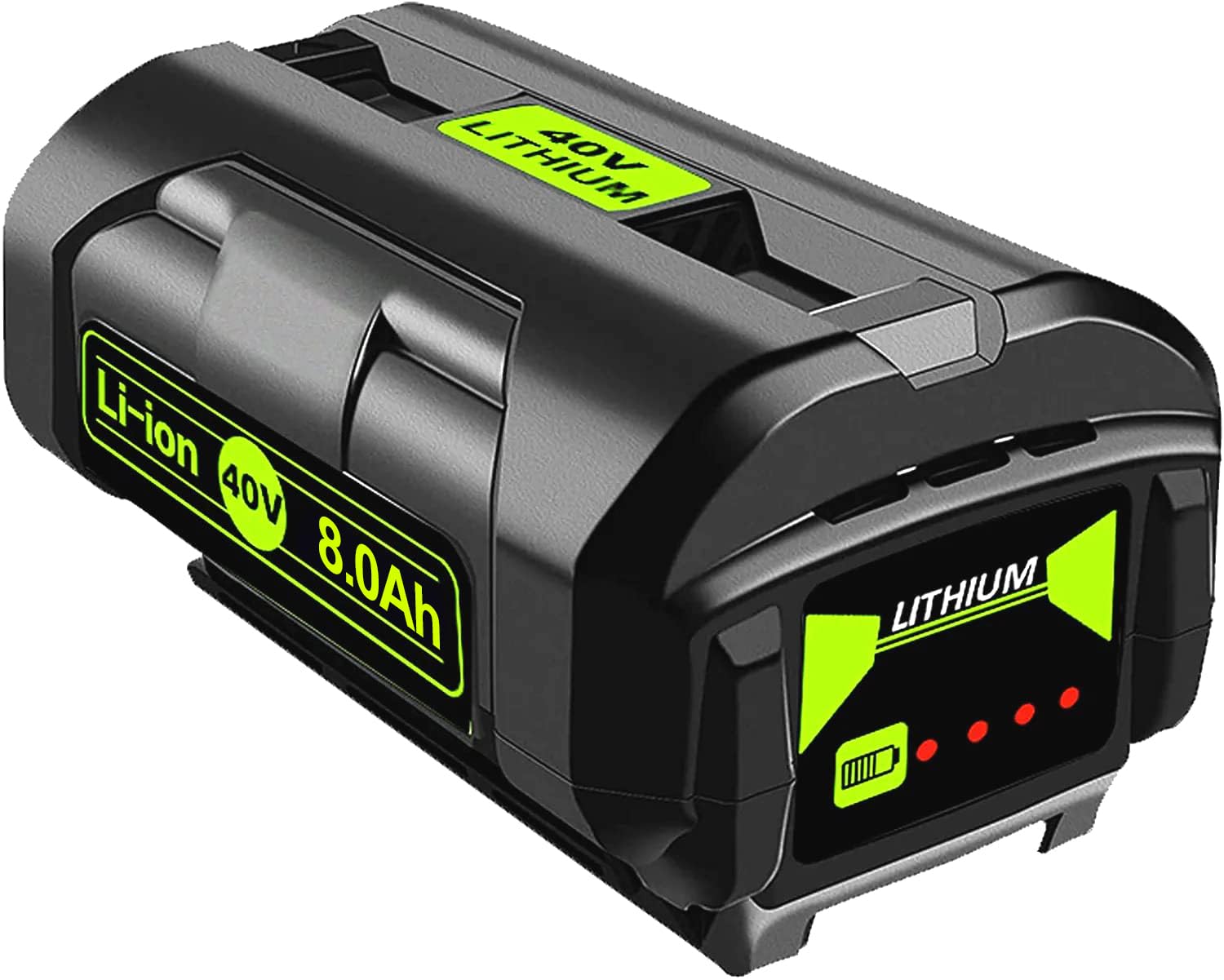

Image: Kulatiom 40V Lithium Battery with specifications highlighting 8000mAh capacity, 40V voltage, and Li-ion type.
Safety Features
The Kulatiom 8000mAh 40V Lithium Battery incorporates multiple intelligent protection systems to ensure safe operation and longevity:
- Overcharging Protection: Prevents damage from excessive charging.
- Over-discharge Protection: Safeguards against draining the battery too low.
- Over-current Protection: Protects against excessive current flow.
- Short Circuit Protection: Automatically cuts off power in case of a short circuit.
- Over-voltage Protection: Maintains stable voltage levels.
- Over-heating Protection: Monitors and regulates battery temperature.
- No-memory Effect: Allows charging at any time without reducing battery life.
- Environmental Safety: Contains no harmful heavy metals such as Mercury (Hg), Cadmium (Cd), or Lead (Pb).
Image: Diagram illustrating the comprehensive intelligent protection features of the Kulatiom 40V battery, including safeguards against over-discharge, no-memory effect, power protection, over-heating, over-current, over-charge, over-voltage, and short-circuit.
2. Setup and Installation
Initial Charging
Your Kulatiom 8000mAh 40V Lithium Battery is supplied partially charged. To ensure full capacity and optimal performance, it is recommended to completely charge the battery using a compatible Ryobi 40V charger before its first use.
Installing and Removing the Battery
- Installation: Before inserting the battery pack, ensure the on/off switch of your power tool is in the OFF position. Align the battery with the tool's battery slot and slide it in firmly until it clicks securely into place.
- Removal: To remove the battery, press the battery release button (typically located on the battery or tool) and pull the battery downwards.

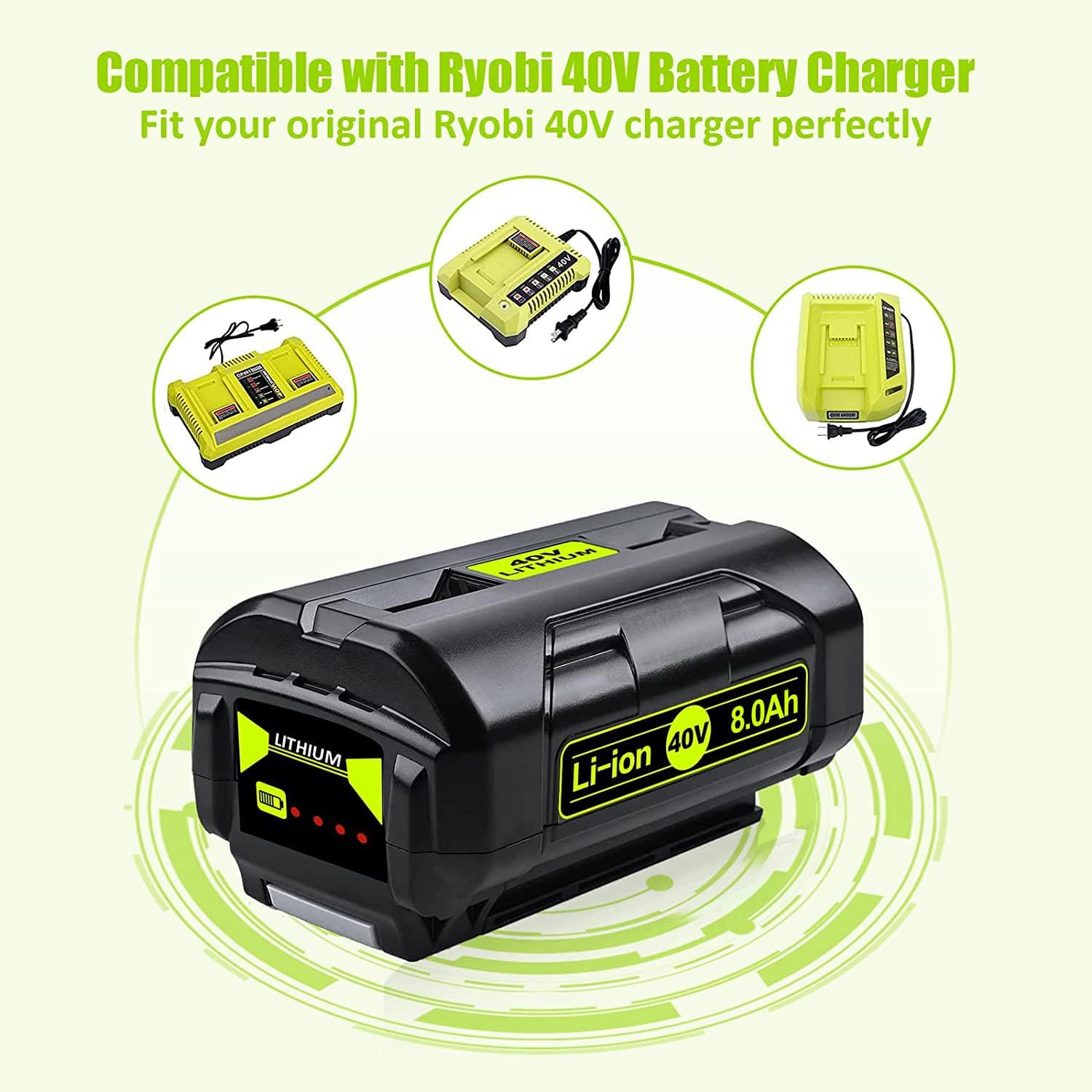

Image: The Kulatiom 40V Lithium Battery being charged on a compatible Ryobi 40V battery charger, demonstrating proper fit and charging readiness.
Video: A demonstration of the Kulatiom 40V battery's features and its compatibility with various Ryobi 40V tools and chargers, including installation and removal.
3. Operating Instructions
Powering Your Tool
Once the Kulatiom 8000mAh 40V Lithium Battery is securely installed in your compatible Ryobi 40V power tool, you can switch the tool to the ON position to begin operation. The battery is designed to provide consistent power for efficient work.
Monitoring Battery Level
The battery features an LED indicator light system. Press the indicator button to view the current charge level. This allows you to track the remaining power, helping you plan your work effectively and avoid unexpected power loss.
Image: The Kulatiom 40V battery shown in conjunction with various Ryobi 40V outdoor power tools, illustrating its broad compatibility and application.
Video: A detailed overview of the 7500mAh High Capacity OP4026 Replacement Battery, showcasing its features and how it integrates with Ryobi 40V tools for extended use.
4. Maintenance and Storage
Charging Guidelines
- Charger Compatibility: Always recharge the battery only with the charger specified by the manufacturer or a suitable Ryobi 40V charger. Using an incompatible charger may create a risk of fire.
- Environment: Do not charge the battery in wet or damp places. Avoid using it in high-temperature environments.
Storage Recommendations
- Long-term Storage: If the battery is not used for an extended period, it is recommended to charge the battery once a month to maintain its health and prolong its lifespan.
- Protection: Protect the battery against heat, e.g., against continuous sun irradiation and fire. Store in a cool, dry place.
General Care
- Avoid Short-circuiting: When the battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- Liquid Contact: Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Physical Damage: Do not crush, drop, or damage the battery pack. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.
Image: The Kulatiom 8.0Ah 40V battery powering a chainsaw and a string trimmer, demonstrating its high capacity for prolonged outdoor work.
5. Troubleshooting
Battery Not Charging
- Ensure the charger is properly plugged into a working power outlet.
- Verify that the battery is correctly seated in the charger.
- Check the LED indicators on the charger for any error signals. Refer to your charger's manual for specific error code meanings.
- Ensure the charging environment is within the recommended temperature range.
Tool Not Powering On
- Confirm the battery is fully charged by checking its LED indicator.
- Ensure the battery is securely installed in the tool.
- Check the tool's on/off switch and any safety interlocks.
Reduced Run Time
- Ensure the battery is fully charged before use.
- Review maintenance and storage guidelines to ensure optimal battery health.
- Over time, all batteries experience a natural decrease in capacity. If run time is significantly reduced, the battery may be nearing the end of its lifespan and require replacement.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Kulatiom |
| Model | 8.0Ah-1 |
| Battery Type | Lithium-ion |
| Voltage | 40V |
| Capacity | 8000mAh / 8.0Ah |
| Compatibility | Ryobi 40V tools and chargers (OP4050A, OP4015, OP4026, OP40201, OP40261, OP4030, OP40301, OP4040, OP40401, OP4050, OP40501, OP40601) |
| Protection Features | Overcharging, Over-discharge, Over-current, Short circuit, Steady voltage, Over-heating |
7. Warranty and Support
Customer Support
We are committed to providing high-quality products and excellent customer service. If you encounter any issues, have questions, or concerns regarding your Kulatiom 8000mAh 40V Lithium Battery, please do not hesitate to contact our customer support team. We are standing by to assist you.
Important Safety Notice
WARNING: Always use only batteries with the voltage listed on the nameplate of your power tool. Using other batteries can lead to injuries and pose a fire hazard. The use of batteries not suitable for the machine can lead to malfunctions or cause damage to the power tool.
