FEICE FM507 Automatic Skeleton Watch User Manual

Introduction

Welcome to the user manual for your new FEICE FM507 Automatic Skeleton Watch. This timepiece is designed for individuals who appreciate precision engineering and distinctive style. Featuring a double-sided skeletonized design composed of 225 parts, an automatic mechanical movement, and robust construction, the FM507 offers both sophistication and reliability. This manual provides essential information on setting up, operating, maintaining, and troubleshooting your watch to ensure its longevity and optimal performance.

Product Overview

The FEICE FM507 watch combines intricate mechanical design with practical features. Below are key visual components and their descriptions.

Figure 1: Overall View of the FEICE FM507 Watch. This image displays the watch's square case, skeletonized dial, and black silicone strap, with an inset showing the luminous hands and markers glowing in the dark.

Figure 2: Key Features and Components. This infographic highlights the watch's cool square case (43.2mm x 45mm), 2mm thickened anti-glare sapphire crystal, super luminous visual effects, seconds sub-dial, automatic self-wind movement with 80 hours power reserve, and 24-hour sub-dial.

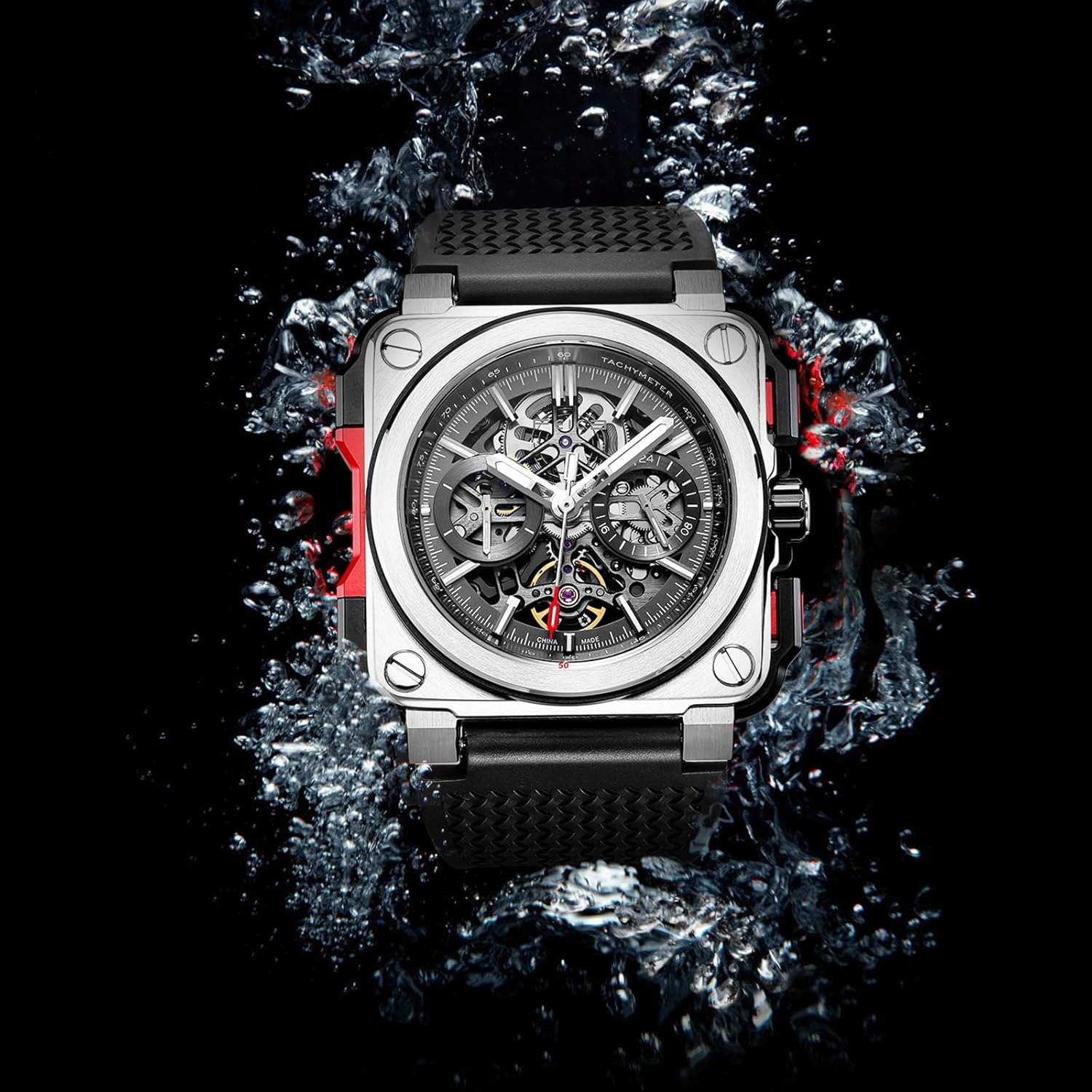

Figure 3: Water Resistance Demonstration. The watch is shown partially submerged in water, illustrating its 100-meter water resistance capability.

Figure 4: Detailed Dial View. A close-up of the watch face reveals the complex automatic mechanical movement and the detailed skeletonized design.

Setup

Initial Winding and Time Setting

Your FEICE FM507 watch is powered by an automatic mechanical movement and does not require a battery. It is powered by the motion of your wrist. For initial setup or after a period of inactivity, manual winding may be necessary.

1. Manual Winding (Position "0"): To initiate the movement or after the watch has stopped, ensure the crown is in its normal, pushed-in position (Position "0"). Rotate the crown upwards (clockwise) approximately 20-30 times. This will wind the mainspring and start the watch.
2. Setting the Time (Position "1"): Gently pull the crown outwards to Position "1". Rotate the crown to set the hour and minute hands to the correct time. Once set, push the crown back into Position "0" to secure the time and ensure water resistance.

Figure 5: Crown Positions for Winding and Setting. This diagram illustrates the crown's normal position (0) for winding and pulled-out position (1) for time adjustment.

Strap Adjustment

The liquid silicone strap is designed for comfort and durability, fitting wrists measuring 150-210mm. Adjust the tang buckle to achieve a comfortable and secure fit on your wrist. Ensure the watch is not too tight, which could restrict circulation, or too loose, which could affect the automatic winding mechanism.

Operating Instructions

Automatic Movement

The FEICE FM507 features a reliable automatic mechanical movement. This means the watch is powered by the natural motion of your wrist. When worn regularly, the movement of your arm keeps the mainspring wound, eliminating the need for manual winding or batteries. The watch boasts an 80-hour power reserve, 4Hz vibration frequency, and 27 ruby bearings for accurate timekeeping.

Luminous Display

The watch hands and markers are treated with a super luminous material, providing excellent visibility in low-light conditions. For optimal glow, expose the watch dial to a bright light source (natural or artificial) for a few minutes. The intensity and duration of the glow will depend on the exposure time and light source strength.

Figure 6: Luminous Feature in Action. The watch's hands and hour markers glow brightly in the dark, ensuring readability.

Water Resistance (10 ATM / 100 Meters)

The FM507 watch is water-resistant up to 100 meters (10 ATM), making it suitable for swimming, showering, and general water activities. It is not designed for deep-sea diving or prolonged submersion at significant depths. Always ensure the crown is fully pushed in before exposing the watch to water.

Sub-dials

The watch features dedicated sub-dials for enhanced functionality:

• Seconds Sub-dial: Displays the running seconds, providing precise time measurement.
• 24-Hour Sub-dial: Indicates the time in a 24-hour format, useful for tracking day/night cycles.

Maintenance

Proper care and maintenance will ensure the longevity and accuracy of your FEICE FM507 watch.

• Cleaning: Regularly wipe the watch case and strap with a soft, dry cloth. For the silicone strap, a mild soap and water solution can be used, ensuring to rinse thoroughly and dry completely. Avoid harsh chemicals or abrasive materials.
• Water Resistance: While water-resistant, avoid exposing the watch to hot water, steam, or sudden temperature changes, as this can compromise the seals. Always ensure the crown is fully pushed in before contact with water. After exposure to saltwater, rinse the watch with fresh water and dry it thoroughly.
• Avoid Shocks: Mechanical watches are delicate. Avoid dropping the watch or subjecting it to strong impacts, which can damage the internal movement.
• Magnetic Fields: Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, mobile phones, MRI machines), as magnetism can affect the accuracy of the mechanical movement. If your watch becomes magnetized, it may run fast or slow and require demagnetization by a professional.
• Storage: When not wearing the watch, store it in a cool, dry place, ideally in its original box or a watch winder to keep the automatic movement running.

Troubleshooting

If you encounter any issues with your FEICE FM507 watch, please refer to the following common troubleshooting steps:

Specifications

• Model: FM507 BLACK
• Movement: Automatic Mechanical
• Power Reserve: Approximately 80 hours
• Vibration Frequency: 4Hz
• Jewels: 27 Ruby Bearings
• Case Material: Stainless Steel
• Crystal: Anti-glare Sapphire Crystal (2mm thickened)
• Water Resistance: 10 ATM (100 meters / 330 feet)
• Strap Material: Liquid Silicone
• Wrist Fit: 150-210mm
• Product Dimensions: 3.03 x 5.47 x 5.79 inches
• Item Weight: 7.05 ounces
• Manufacturer: FEICE

Warranty and Support

FEICE is committed to providing high-quality products and excellent customer service. Your FEICE FM507 watch comes with a manufacturer's warranty covering defects in materials and workmanship under normal use. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official FEICE website.

If you have any questions, require technical assistance, or need to initiate a warranty claim, please do not hesitate to contact the FEICE customer support team. We are dedicated to ensuring your satisfaction and will respond to your inquiries within 24 hours to provide a satisfactory solution.

For support, please visit the FEICE Store on Amazon or contact their official customer service channels.
