DOMANKI 10000 BTU Portable Air Conditioner User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your DOMANKI 10000 BTU Portable Air Conditioner (Model DAC-10CPD-PS1). Please read it thoroughly before installation and use, and retain it for future reference.

Key Features:

• Powerful Cooling: 10,000 BTU ASHRAE, suitable for rooms up to 450 sq. ft.
• 3-in-1 Functionality: Offers Cooling, Fan, and Dehumidifying modes.
• User-Friendly Controls: Features an LED display and a remote control for convenient operation.
• Quiet Operation: Operates at approximately 51dB in sleep mode for minimal disturbance.
• Portability: Equipped with casters and a concealed handle for easy movement.
• Easy Installation: Includes a window installation kit for vertical and horizontal sliding windows (up to 38 inches).
• Maintainable: Features a removable and washable air filter for improved air quality.

2. Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using your air conditioner, follow these basic precautions:

• Always plug the unit into a grounded 3-prong outlet. Do not remove the grounding prong.
• Do not use an adapter or extension cord.
• Do not operate the unit with a damaged power cord or plug.
• Ensure the unit is placed on a stable, level surface to prevent tipping.
• Keep the air inlet and outlet clear of obstructions to ensure proper airflow.
• Do not insert fingers or objects into the air vents.
• Unplug the unit before cleaning or servicing.
• Do not use the appliance in very damp rooms (e.g., laundries) or outdoors.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Package Contents

Verify that all items listed below are included in your package:

• Portable Air Conditioner Unit
• Remote Control
• User Guide (This Manual)
• Window Kit with Exhaust Hose
• Drainage Pipe

4. Setup and Installation

Follow these steps to properly set up your portable air conditioner.

4.1 Window Kit Assembly

1. Adjust the length of the window panel to fit your window opening.
2. Secure the adjusted panel with screws to maintain the desired length.
3. Place the assembled window panel into the window track and close the window to secure it.

4.2 Exhaust Hose Connection

1. Connect one end of the exhaust hose to the hose connector on the back of the air conditioner unit. Ensure it clicks securely into place.
2. Extend the other end of the exhaust hose and insert it into the opening of the installed window panel.
3. Ensure all connections are tight to prevent air leakage, which can reduce efficiency.

The unit is designed for easy movement with 360° casters and a hidden handle, allowing you to position it conveniently near a window.

5. Operating Instructions

Your DOMANKI portable air conditioner can be operated using the control panel on the unit or the included remote control.

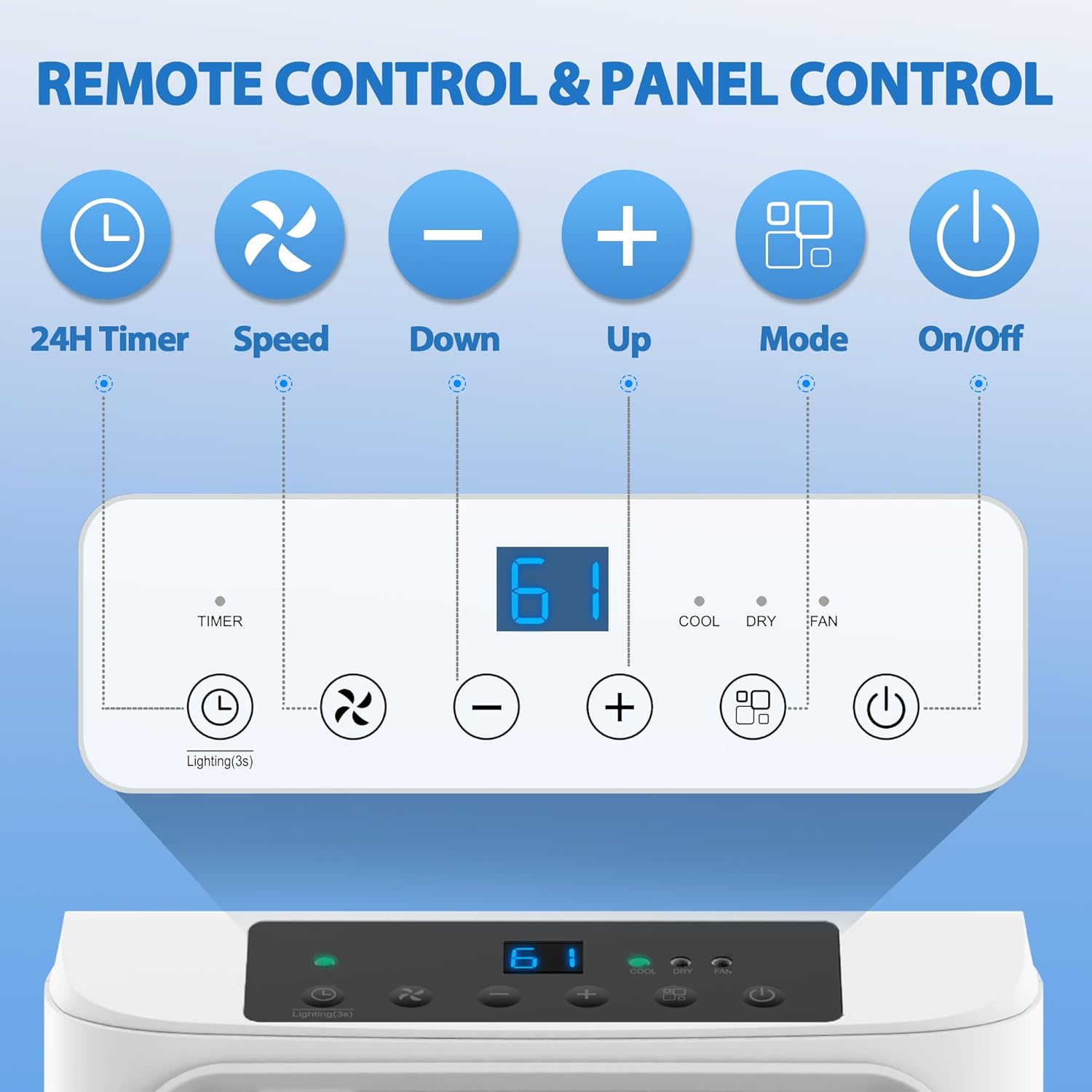

5.1 Control Panel and Remote Control

The unit features an intuitive LED display and touch buttons on the top panel. The remote control provides convenient access to all functions from a distance of up to 25 feet.

5.2 Operating Modes

• Cool Mode: Provides powerful cooling for rooms up to 450 sq. ft. Set your desired temperature between 61°F and 88°F.
• Fan Mode: Circulates air without cooling. Choose between 2 fan speeds (Low/High).
• Dehumidifier Mode: Removes up to 58.6 L/day of moisture from the air. Continuous drainage is recommended in this mode.
• Sleep Mode: Automatically adjusts fan speed and temperature for quiet, comfortable overnight operation (approx. 51dB). This mode can only be set via the remote control.
• 24-Hour Timer: Allows you to program the unit to turn on or off at a specific time within a 24-hour period.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your air conditioner.

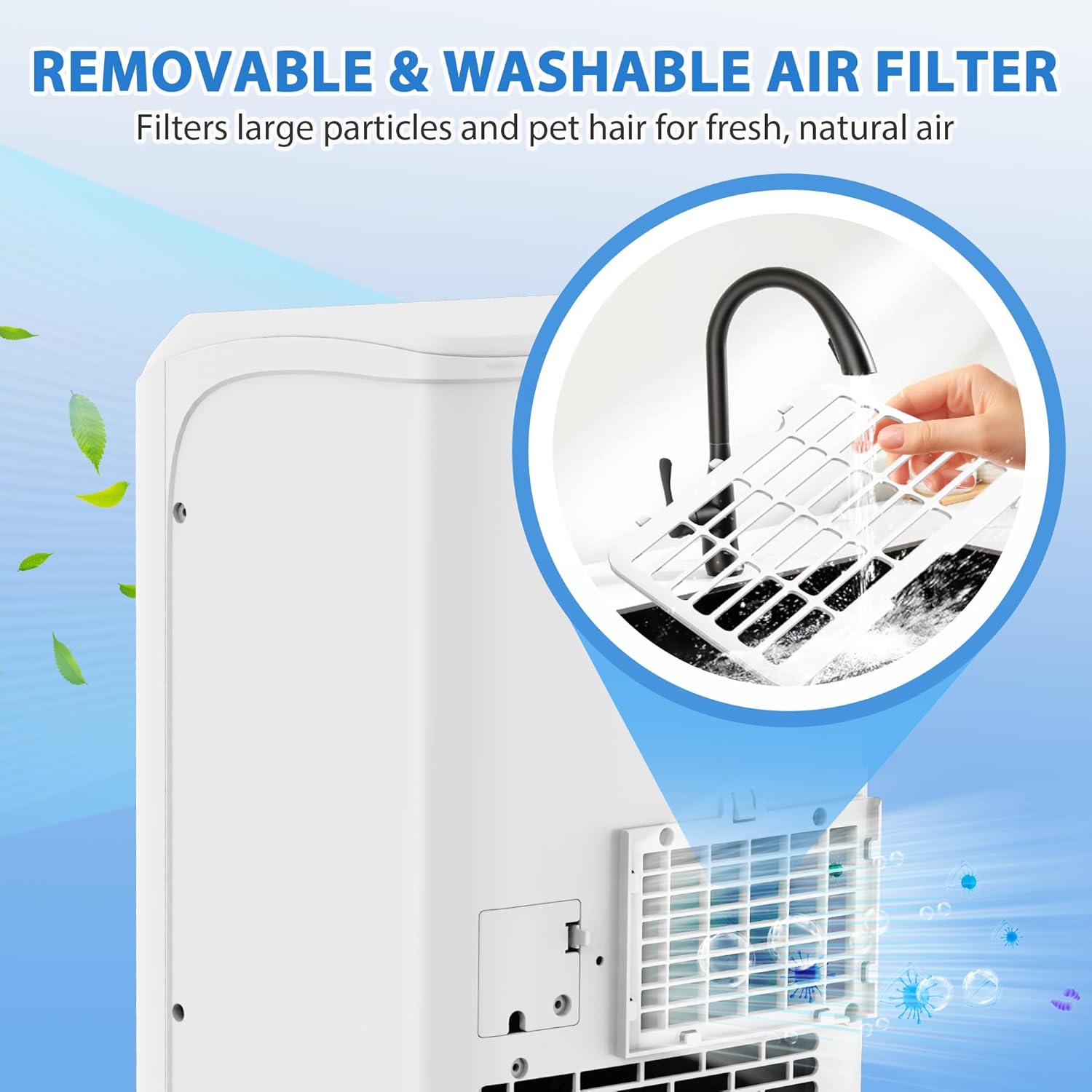

6.1 Cleaning the Air Filter

The unit includes a removable and washable air filter. Clean the filter regularly (every two weeks or more often depending on usage) to maintain air quality and efficiency.

1. Turn off and unplug the air conditioner.
2. Locate the air filter on the side/back of the unit and gently pull it out.
3. Wash the filter under running water with a mild detergent. Rinse thoroughly.
4. Allow the filter to air dry completely before reinserting it into the unit.

6.2 Water Drainage

In dehumidifier mode or high humidity conditions, the unit may accumulate excess water. The unit features a self-evaporating system, but manual drainage may be required if the "HL" (High Water Level) indicator appears on the display.

1. Turn off and unplug the unit from the power source.
2. Place a drain pan (not supplied) under the lower drain plug at the back of the unit.
3. Remove the lower drain plug. Water will drain out.
4. For continuous drainage, connect the provided drainage pipe to the drain outlet. Ensure the pipe is positioned to drain into a suitable container or floor drain.
5. After draining, replace the lower drain plug firmly.

7. Troubleshooting

If you encounter issues with your air conditioner, refer to the table below for common problems and solutions.

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact DOMANKI customer service through the retailer where the product was purchased.

Please have your model number (DAC-10CPD-PS1) and purchase date ready when contacting support.
