MURNELAP Carburetor Instruction Manual

1. Introduction

This manual provides instructions for the installation, maintenance, and troubleshooting of the MURNELAP replacement carburetor. This carburetor is designed for compatibility with Cub Cadet 524SWE and 31AM53TR756 2X 24-inch 208cc two-stage snow blowers. Proper installation and care are essential to ensure optimal performance of your snow blower's engine.

2. Safety Information

Always adhere to safety precautions when working with fuel and engine components. Failure to do so may result in injury or damage.

• Always disconnect the spark plug wire before performing any service or maintenance to prevent accidental engine startup.
• Work in a well-ventilated area to avoid inhaling fuel fumes.
• Handle fuel with extreme care. Fuel is highly flammable and its vapors are explosive. Store fuel in approved containers.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, to protect against splashes and sharp edges.
• Allow the engine to cool completely before servicing to prevent burns.

3. Package Contents

Verify that all components are present and undamaged before beginning installation.

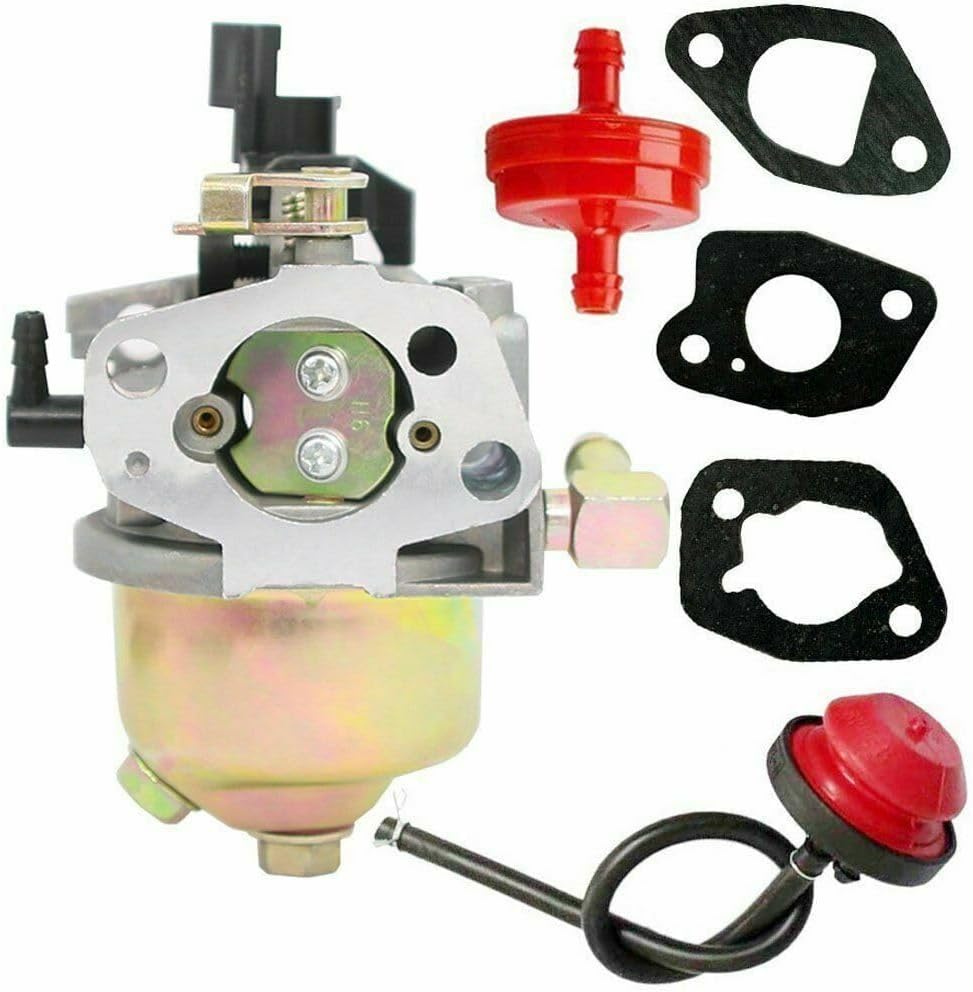

This image displays the complete MURNELAP carburetor replacement kit. It includes the main carburetor assembly, a red inline fuel filter, three black gaskets of varying shapes, and a red primer bulb with an attached hose.

• Carburetor Assembly
• Fuel Filter (Inline, Red)
• Gaskets (3 pieces, various shapes)
• Primer Bulb with Hose

4. Setup and Installation

This carburetor is a direct replacement part. For detailed, model-specific instructions, always refer to your Cub Cadet snow blower's original service manual. The following are general steps:

1. Preparation: Ensure the snow blower is turned off, the engine is cool, and the spark plug wire is disconnected. Place the snow blower on a stable, level surface.
2. Drain Fuel: Carefully drain all fuel from the fuel tank into an approved container.
3. Access Carburetor: Remove the air filter housing and any other components obstructing access to the carburetor. Note the routing of all hoses and linkages.
4. Disconnect Components: Disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor.
5. Remove Old Carburetor: Unbolt and remove the old carburetor and its gaskets. Dispose of old gaskets properly.
6. Install New Gaskets: Place the new gaskets in their correct positions between the engine, insulator, and the new carburetor. Ensure they are seated correctly to prevent vacuum leaks.
7. Install New Carburetor: Mount the new MURNELAP carburetor, ensuring all mounting bolts are tightened securely but do not overtighten.
8. Reconnect Components: Reconnect the fuel line, throttle linkage, and choke linkage to the new carburetor. Ensure all connections are secure and move freely.
9. Install Fuel Filter: If replacing the fuel filter, cut the fuel line and insert the new inline fuel filter, ensuring the flow direction is correct (usually indicated by an arrow). Secure with clamps if necessary.
10. Reassemble: Reinstall the air filter housing and any other components removed during disassembly.
11. Verify Fit: Before adding fuel, visually inspect all connections and ensure the carburetor is properly seated and all parts are aligned. Refer to the product image and specified dimensions to ensure a precise fit.

5. Operating Instructions (Post-Installation)

After successful installation, follow these steps before operating your snow blower:

• Refill Fuel: Add fresh, stabilized fuel to the snow blower's fuel tank.
• Check for Leaks: Visually inspect all fuel line connections for any signs of leakage. Address any leaks immediately.
• Prime Engine: Follow your snow blower's specific instructions for priming the engine (typically by pressing the primer bulb several times until fuel is visible).
• Reconnect Spark Plug: Reconnect the spark plug wire.
• Start Engine: Start the snow blower according to its operating manual. Allow the engine to warm up for a few minutes.
• Check Operation: Observe the engine for smooth operation, stable idle, and proper throttle response.

6. Maintenance

Regular maintenance helps prolong the life and efficiency of your carburetor and snow blower.

• Fuel Filter: Inspect the inline fuel filter periodically. Replace it annually or if it appears clogged or dirty.
• Fuel Quality: Always use fresh, clean fuel. For seasonal storage, use a fuel stabilizer or drain the fuel system completely to prevent gumming and varnish buildup in the carburetor.
• Air Filter: Ensure the air filter is clean and free of debris. A clogged air filter can affect carburetor performance.
• Carburetor Cleaning: If performance issues arise due to fuel contamination, the carburetor may need to be cleaned by a qualified technician.

7. Troubleshooting

If your snow blower experiences issues after carburetor installation, consider the following common troubleshooting steps:

• Engine Not Starting:
  • Check if there is fresh fuel in the tank.
  • Ensure the spark plug wire is connected and the spark plug is clean and functional.
  • Verify the fuel filter is not clogged.
  • Confirm the primer bulb is working and fuel is reaching the carburetor.
  • Check that the choke is set correctly for starting.
• Rough Idle or Stalling:
  • Inspect for vacuum leaks around the carburetor and intake manifold gaskets.
  • Ensure the air filter is clean.
  • Check for proper adjustment of the idle speed screw (if applicable and accessible).
• Loss of Power or Poor Performance:
  • Replace the fuel filter if it's old or dirty.
  • Ensure the fuel cap vent is not blocked.
  • Verify the air filter is clean and not restricted.
  • If issues persist, the carburetor jets may be partially clogged, requiring professional cleaning.

If you are unable to resolve the issue, consult a qualified small engine technician.

8. Specifications

• Brand: MURNELAP
• Part Type: Carburetor
• Compatible Snow Blower Models: Cub Cadet 524SWE, 31AM53TR756 (2X 24" 208cc Two-Stage Snow Blower)
• UPC: 669993514866

9. Warranty and Support

For specific warranty information regarding this MURNELAP carburetor, please refer to the product's purchase documentation or contact the seller directly. For technical support related to your snow blower's operation or further assistance with carburetor issues, consult your snow blower's original service manual or contact a qualified small engine technician.
