AOGLLATI Twin Bed Frame User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your AOGLLATI Twin Bed Frame. Designed with a stylish velvet flower design, LED lighting, and practical storage solutions, this bed frame offers both comfort and functionality. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct operation.

Figure 1: AOGLLATI Twin Bed Frame with LED headboard and storage drawers.

Important Safety Information

WARNING:

• Ensure proper assembly, as incorrect installation may lead to instability or collapse.
• Do not exceed the maximum weight capacity of 250 pounds.
• Be cautious of potential pinch points or sharp edges during assembly and use.
• Keep all small parts and packaging materials away from children to prevent choking hazards.

Parts List

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

Refer to the included installation manual for a complete and detailed parts list with specific quantities and identifiers.

Setup and Assembly

Assembly is required for this bed frame. It is recommended to have two people for assembly. Please follow the steps carefully. All parts are labeled with numbers for easy identification.

Assembly Video Guide

Video 1: AOGLLATI Flower LED Bed Frame Installation Video. This video provides a visual step-by-step guide for assembling your bed frame.

Step-by-Step Assembly Overview

1. Prepare the Storage Drawers: Assemble the four metal mesh storage drawers (R) by attaching the side panels and securing them. Install the wheels (S) and screws (U) to the bottom of each drawer. Attach the drawer front panels (Q) using screws (V).


Figure 2: Detail of the storage drawers, showing smooth wheels and the locking mechanism.

2. Assemble the Bed Frame Structure: Connect the side rails (F1, F2, F3, F4) to the headboard posts (D) and footboard (E). Secure with appropriate hardware (N).
3. Install Center Supports: Attach the center support bars (G, H, I) and their corresponding support legs (J, K) to the main frame. Secure with hardware (N).
4. Attach Headboard: Secure the upholstered headboard (C) to the headboard posts (D) using the provided hardware (N).

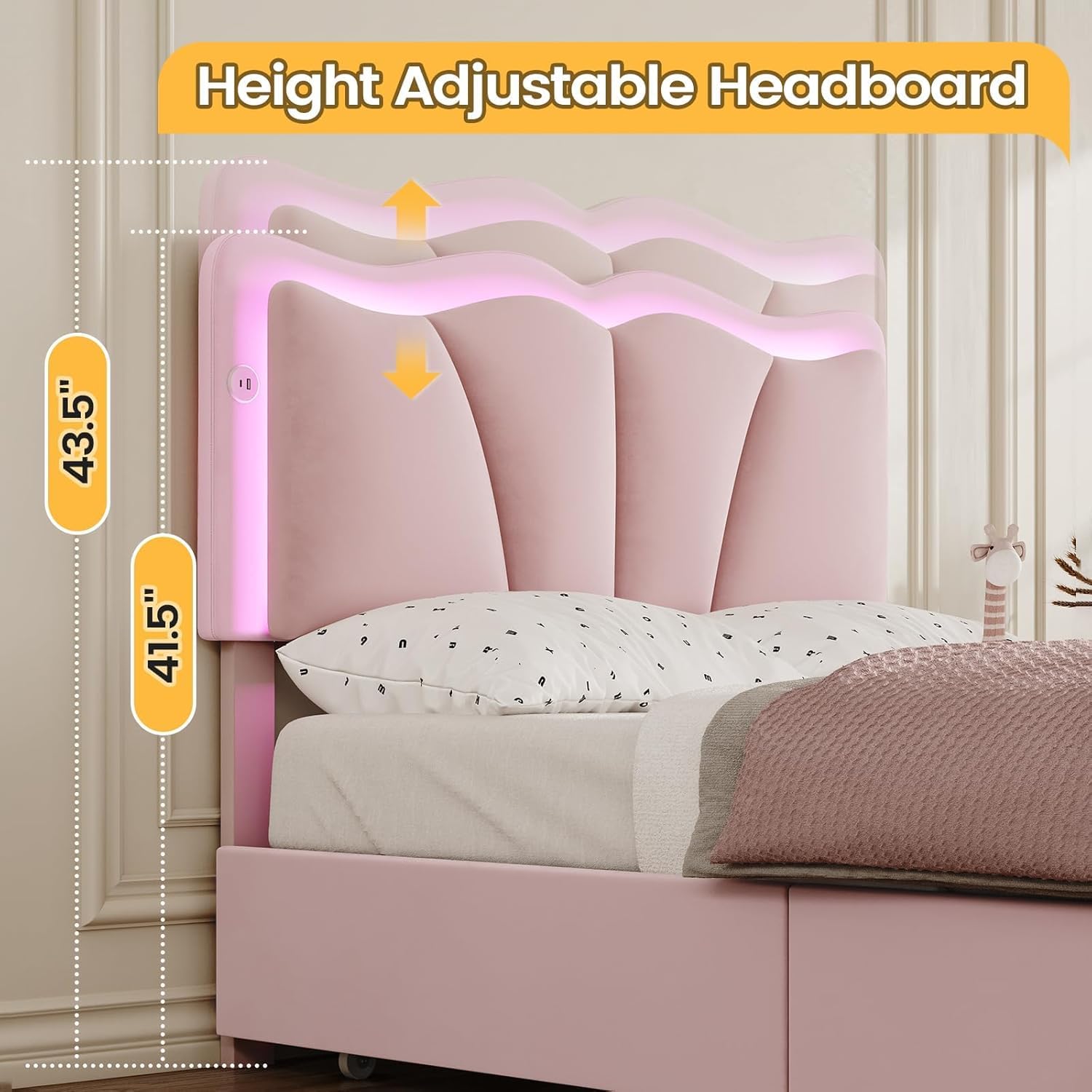

Figure 3: The headboard height is adjustable to accommodate different mattress thicknesses.

5. Place Wooden Slats: Lay the wooden slats (A, B) across the bed frame. Insert the slat caps (O) to secure the slats in place. Ensure all slats are evenly spaced and firmly seated.


Figure 4: The bed frame features strong wooden slats designed to support up to 800 lbs.

6. Insert Storage Drawers: Slide the assembled storage drawers into their designated spaces under the bed frame. Ensure the locking mechanism engages to prevent them from sliding out.

For detailed diagrams and specific hardware usage, refer to the included printed instruction manual.

Operating Instructions

LED Lighting System

The integrated RGB LED light strips on the headboard offer a wide range of colors and dynamic modes. They can be controlled via a dedicated app or a physical key control.

• App Control: Download the recommended app (refer to the included manual for QR code or app name) to access millions of colors, 29 dynamic modes, voice control, music sync mode, and timing functions.
• Key Control: Use the physical key control to cycle through basic colors and modes.
• Music Sync: In music mode, the lights will change with the rhythm of music, creating an immersive experience.

Figure 5: Control options and features of the RGB LED lighting system.

Charging Station

The headboard is equipped with a convenient charging station to power your electronic devices.

• Ports: It includes one (1) USB-A port (5V/2A) and one (1) USB-C port (5V/3A).
• Usage: Simply plug your device's charging cable into the appropriate port.

Figure 6: Detail of the integrated USB-A and USB-C charging ports.

Storage Drawers

The four large-capacity storage drawers provide ample space for clothes, bedding, or other items.

• Access: Pull the drawers out from under the bed frame.
• Locking Mechanism: Each drawer is equipped with a locking mechanism to prevent accidental sliding. Ensure the lock is engaged when the drawers are fully pushed in.

Maintenance

• Cleaning: Wipe the bed frame surfaces with a damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the velvet upholstery or LED components.
• Upholstery Care: For velvet upholstery, gently blot spills immediately. For deeper cleaning, consult a professional upholstery cleaner.
• Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability.
• LED Lights: The LED lights are designed for long-term use. If any issues arise, refer to the troubleshooting section or contact customer support. Do not attempt to replace individual LED components.

Troubleshooting

Specifications

Figure 7: Product dimensions and key features.

Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact AOGLLATI customer service directly. Support contact details are typically found on the product packaging or the manufacturer's official website.

For further assistance, please visit the AOGLLATI Store on Amazon.
