Bebebao Express Wearable Electric Breast Pump User Manual

Introduction

The Bebebao Express Wearable Electric Breast Pump is designed for comfortable and efficient milk expression. Its hands-free and portable design allows for discreet pumping without the need for large equipment or cables. The compact and lightweight construction makes it ideal for use on the go.

This manual provides detailed instructions on how to set up, operate, maintain, and troubleshoot your Bebebao Express breast pump to ensure optimal performance and a seamless user experience.

Product Overview

The Bebebao Express breast pump offers several key features designed for user convenience and efficiency:

• Hands-Free and Portable: Designed for discreet and comfortable milk expression without bulky equipment.
• Comfortable and Quiet: Features a soft, flexible silicone breast shield for a secure fit and operates silently for a peaceful pumping experience.
• Customizable Pumping Modes: Includes Massage Mode to stimulate milk let-down, Express Mode for efficient pumping, and a unique Mixed Mode for optimal comfort and milk flow.
• Easy to Use and Clean: Operable with one hand, with a modern design where only a few parts contact breast milk, simplifying cleaning.
• Long-Lasting and Rechargeable: Equipped with a powerful rechargeable battery providing up to 2 hours of pumping on a single charge. Features a smart memory function to recall preferred settings.
• Versatile Fit: Includes four different breast shield sizes to ensure a comfortable fit for various users, supporting optimal milk expression. A silicone nipple ruler is provided to assist in finding the correct size.
• Interchangeable Pump Compatibility: The collection cup can be used with other compatible tabletop breast pumps, offering flexibility.

Components

Familiarize yourself with the main components of your Bebebao Express breast pump:

•

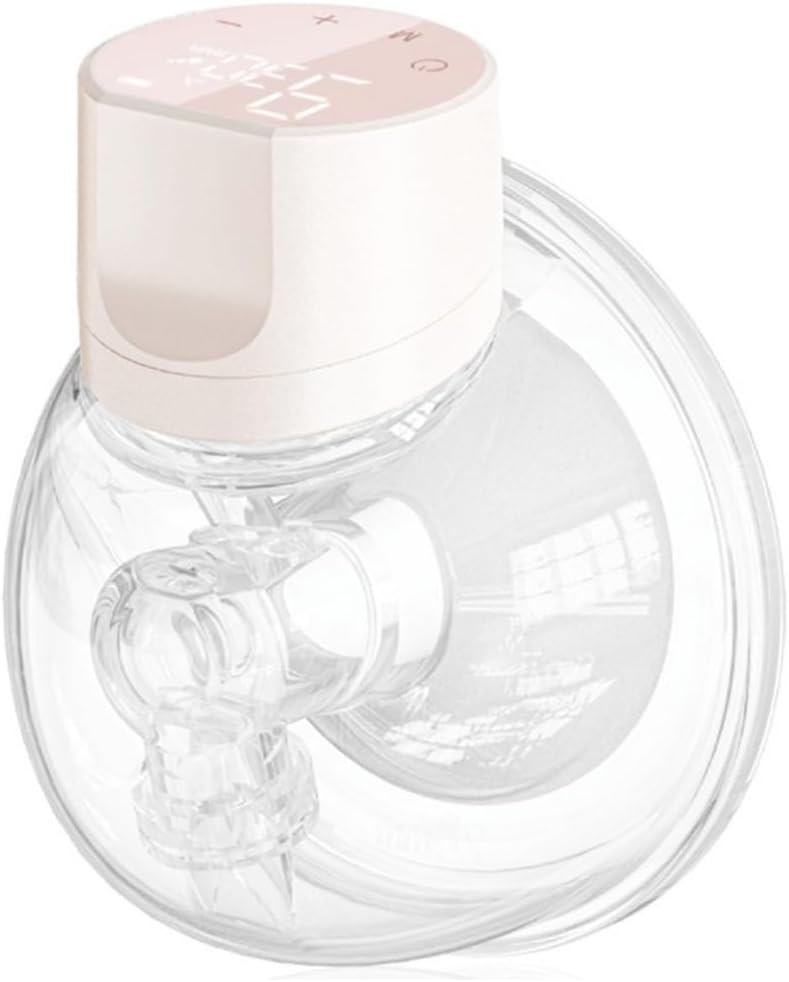

  1. Main Pump Unit

  This is the complete assembled unit, ready for use. It consists of the motor unit, collection cup, and breast shield. The compact design allows it to fit discreetly inside a bra.
•

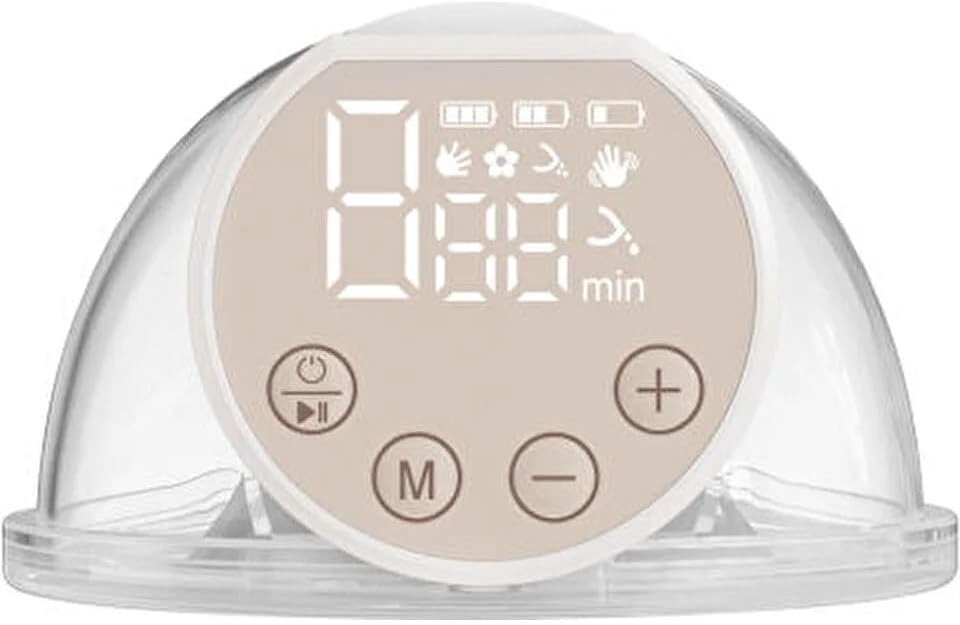

  2. Control Panel

  The top part of the pump houses the control panel with an LED display. It shows the current mode, suction level, and battery indicator. Buttons include Power/Pause, Mode selection (M), and Suction Level adjustment (+/-).

•

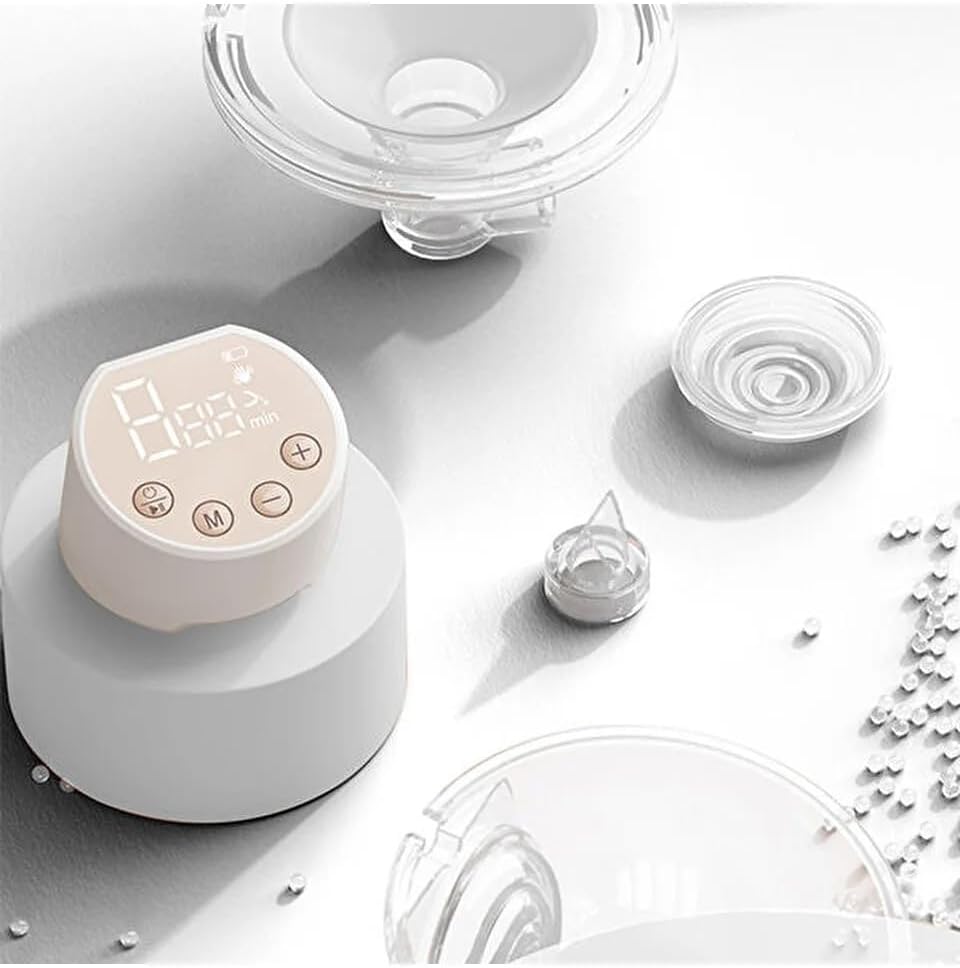

  3. Collection Cup and Silicone Components

  The transparent collection cup holds the expressed milk. It connects to the motor unit and features a soft silicone breast shield (flange), a silicone diaphragm, and a valve. These parts are designed for easy assembly and cleaning.

Setup

Before first use, ensure all parts are clean and sterilized. Follow these steps for assembly:

1. Charge the Pump: Connect the charging cable to the pump's charging port and a suitable power adapter. Charge until the battery indicator shows full.
2. Assemble the Valve: Insert the duckbill valve firmly into the bottom of the collection cup.
3. Attach the Diaphragm: Place the silicone diaphragm securely onto the top of the collection cup, ensuring a tight seal.
4. Insert the Breast Shield: Choose the appropriate size silicone breast shield and insert it into the collection cup.
5. Connect Motor Unit: Align the motor unit with the assembled collection cup and press down firmly until it clicks into place, ensuring a secure connection.
6. Check for Proper Assembly: Verify that all components are securely attached and there are no gaps to prevent air leakage, which could affect suction.

Operating Instructions

Follow these steps to operate your Bebebao Express breast pump:

1. Position the Pump: Place the assembled pump directly onto your breast, ensuring your nipple is centered within the breast shield. Ensure a comfortable and secure seal.
2. Power On: Press and hold the Power button (usually indicated by a power icon) on the control panel to turn on the pump. The display will light up.
3. Select Mode:
   • Massage Mode: This mode is designed to stimulate milk let-down. Press the 'M' button to cycle through modes until Massage Mode is selected.
   • Express Mode: Once milk flow begins, switch to Express Mode for efficient pumping. Press the 'M' button to select this mode.
   • Mixed Mode: This unique mode combines elements of massage and expression for optimal comfort and milk flow. Press the 'M' button to select this mode.
4. Adjust Suction Level: Use the '+' and '-' buttons to increase or decrease the suction intensity to a comfortable level. Start with a lower setting and gradually increase.
5. Pumping Session: Pump for approximately 15-20 minutes per breast, or until milk flow significantly slows.
6. Power Off: Press and hold the Power button to turn off the pump.
7. Disassemble and Store Milk: Carefully remove the pump from your breast. Disassemble the components and transfer the expressed milk into a sterile storage bottle or bag.

The smart memory function will remember your last used settings for convenience in subsequent sessions.

Cleaning and Maintenance

Proper cleaning and maintenance are crucial for hygiene and the longevity of your breast pump. Only parts that come into contact with breast milk need to be cleaned after each use.

1. Disassemble: Separate all parts that came into contact with breast milk (collection cup, breast shield, valve, diaphragm). The motor unit should not be submerged in water.
2. Rinse: Rinse all disassembled parts under cold running water to remove any milk residue.
3. Wash: Wash the parts in warm, soapy water using a dedicated brush. Ensure all surfaces are thoroughly cleaned.
4. Rinse Again: Rinse thoroughly under clean running water to remove all soap residue.
5. Sterilize (Optional, but Recommended): For initial use and periodically, sterilize the parts. This can be done by boiling them in water for 5 minutes, using a steam sterilizer, or a sterilizing solution according to product instructions.
6. Air Dry: Place all cleaned and sterilized parts on a clean drying rack or paper towel to air dry completely. Do not use a cloth towel as it may leave lint.
7. Store: Once completely dry, store the parts in a clean, dry place until the next use.

Wipe the motor unit with a clean, damp cloth. Do not immerse it in water or use abrasive cleaners.

Troubleshooting

If you encounter issues with your Bebebao Express breast pump, refer to the following common problems and solutions:

Specifications

Warranty and Support

The Bebebao Express Wearable Electric Breast Pump comes with a Turkey Guarantee, ensuring quality and reliability. For specific warranty terms and conditions, please refer to the documentation included with your product or contact the retailer.

For technical support, troubleshooting assistance beyond this manual, or inquiries regarding replacement parts, please contact Bebebao customer service through their official website or the retailer from whom you purchased the product.
