RuiSiSi Full Size Murphy Bed Wall Bed with Desk

1. Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your RuiSiSi Full Size Murphy Bed Wall Bed with Desk. This product is designed to offer a space-saving solution, combining a full-size bed, a functional desk, and integrated storage shelves and cabinets. Please read this manual thoroughly before beginning assembly or use to ensure proper function and longevity of your furniture.

2. Safety Information

Adherence to these safety guidelines is crucial for preventing injury and damage to the product.

• Read All Instructions: Ensure all assembly and operating instructions are read and understood before use.
• Adult Assembly Required: Assembly should be performed by at least two adults.
• Secure Wall Mounting: The Murphy bed must be securely anchored to a wall stud or appropriate structural support. Failure to do so can result in serious injury.
• Weight Capacity: Do not exceed the recommended weight capacity of the bed (1000 lbs) or desk.
• Clearance: Ensure adequate clearance around the bed when opening and closing to prevent obstruction or damage.
• Children and Pets: Keep children and pets away from the bed during operation.
• Mattress Requirements: Use a mattress that meets the recommended thickness (8-10 inches) and weight (more than 41 lbs) for proper operation.
• Regular Inspection: Periodically check all fasteners and connections to ensure they remain tight and secure.

3. Product Specifications

4. Setup & Assembly

The RuiSiSi Murphy Bed requires assembly. It is shipped in multiple packages (typically 4). Please ensure all packages are received and inspected for damage before beginning assembly. A detailed instruction booklet with a list of parts and step-by-step diagrams is included with your product. Follow these instructions carefully.

4.1 Before You Begin

• Unpack Carefully: Lay out all components on a soft, clean surface to prevent scratches.
• Identify Parts: Compare all parts against the included parts list to ensure nothing is missing.
• Tools Required: Gather necessary tools as specified in the instruction booklet (e.g., screwdriver, hammer, wrench).
• Wall Mounting: Identify the exact location for the bed, ensuring there are wall studs or suitable structural blocking for secure mounting. This step is critical for safety.

4.2 Assembly Steps (General Overview)

1. Assemble the main cabinet frame according to the diagrams.
2. Attach the desk and storage shelf components. Note that storage shelves can be installed on either side.
3. Assemble the bed frame and slat system.
4. Integrate the bed frame into the main cabinet, ensuring the folding mechanism operates smoothly.
5. Securely mount the entire unit to the wall. This step is mandatory for safe operation.
6. Install any remaining doors or decorative panels.
7. Place your mattress onto the bed frame.

Figure 1: Fully assembled RuiSiSi Murphy Bed with desk and storage, shown in a room.

Figure 2: Overall dimensions of the Murphy Bed unit, including bed frame extended.

Figure 3: Detailed dimensions of the integrated desk and storage compartments.

Figure 4: The Murphy Bed with the full-size bed frame partially extended from the cabinet.

5. Operating Instructions

5.1 Opening the Bed

1. Ensure the area in front of the bed is clear of obstructions.
2. Gently pull the handles on the bed panel downwards and outwards.
3. Guide the bed frame smoothly to the floor until it is fully extended and resting on its support legs.
4. The mattress and bedding should remain in place due to the bed's design.

5.2 Closing the Bed

1. Remove any items from the bed surface that might obstruct closing.
2. Lift the bed frame from the foot end, guiding it upwards into the cabinet.
3. Ensure the bed panel aligns correctly with the cabinet opening.
4. Push firmly until the bed panel is fully closed and secured.

5.3 Using the Desk and Storage

• The integrated desk provides a stable surface for work or study. Avoid placing excessively heavy items on the desk.
• Utilize the open shelves for books, decor, or frequently accessed items.
• The closed cabinets offer discreet storage for personal belongings.

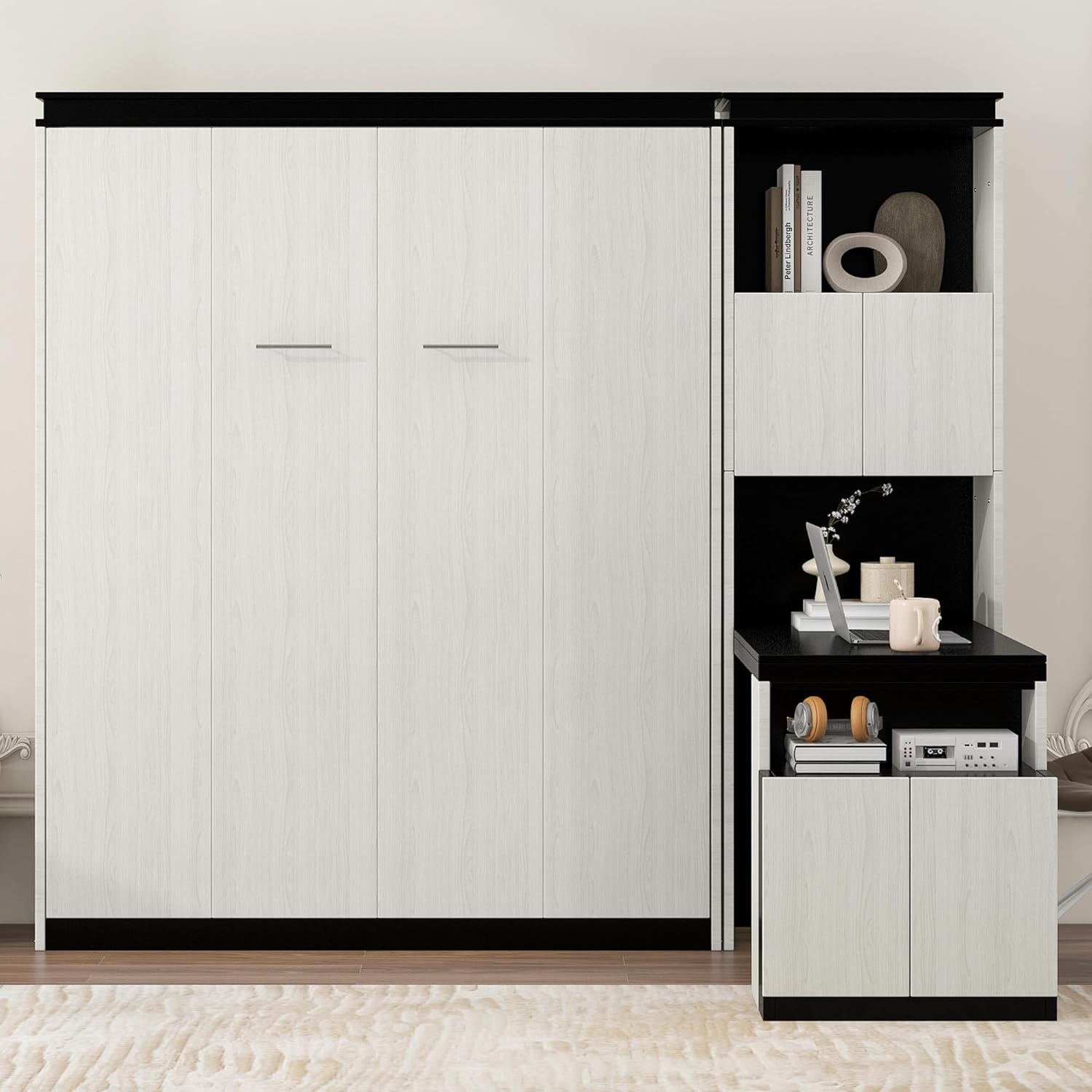

Figure 5: The Murphy Bed in its closed position, showcasing the functional desk and storage.

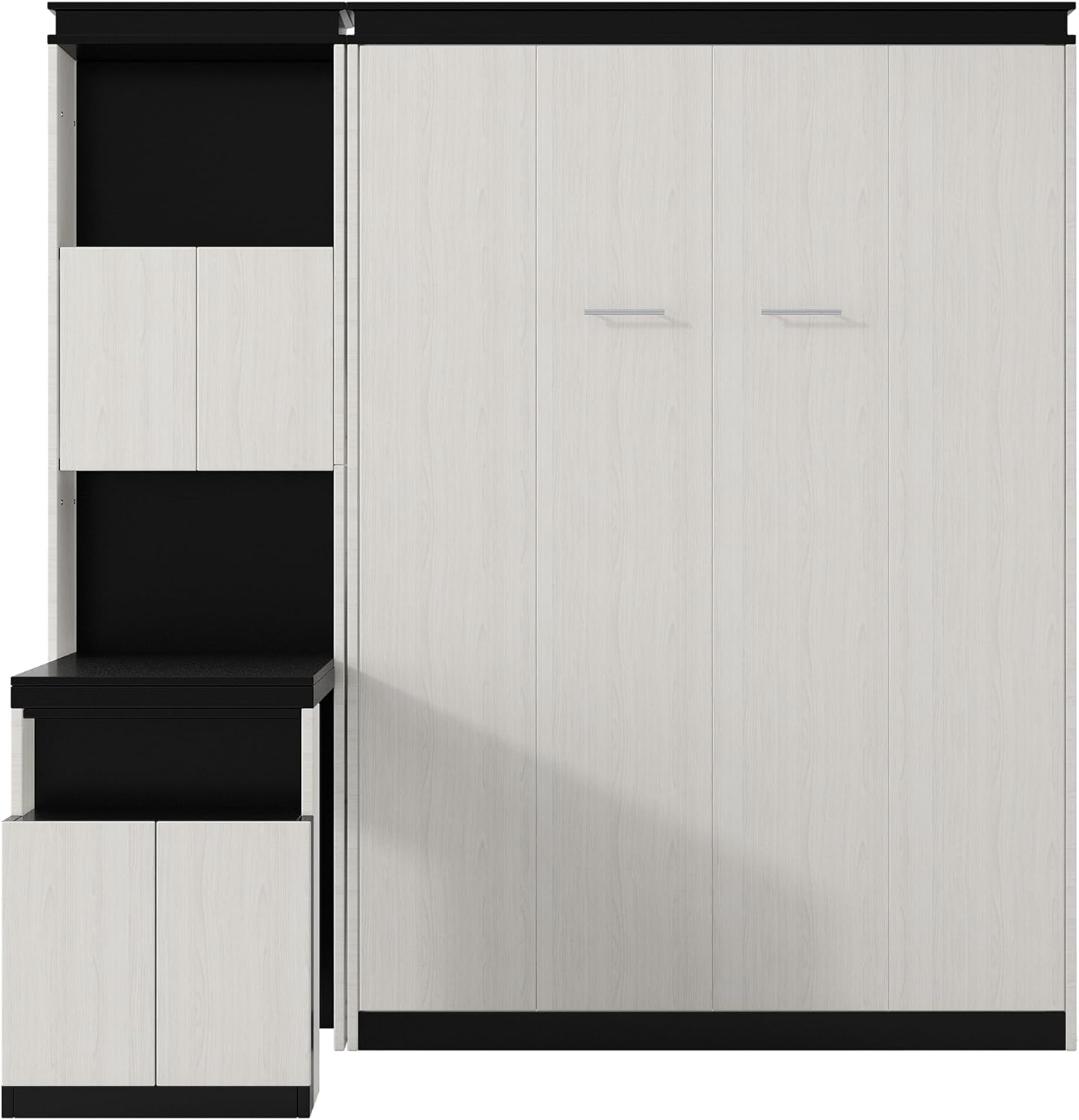

Figure 6: Front view of the Murphy Bed when fully closed, appearing as a sleek cabinet unit.

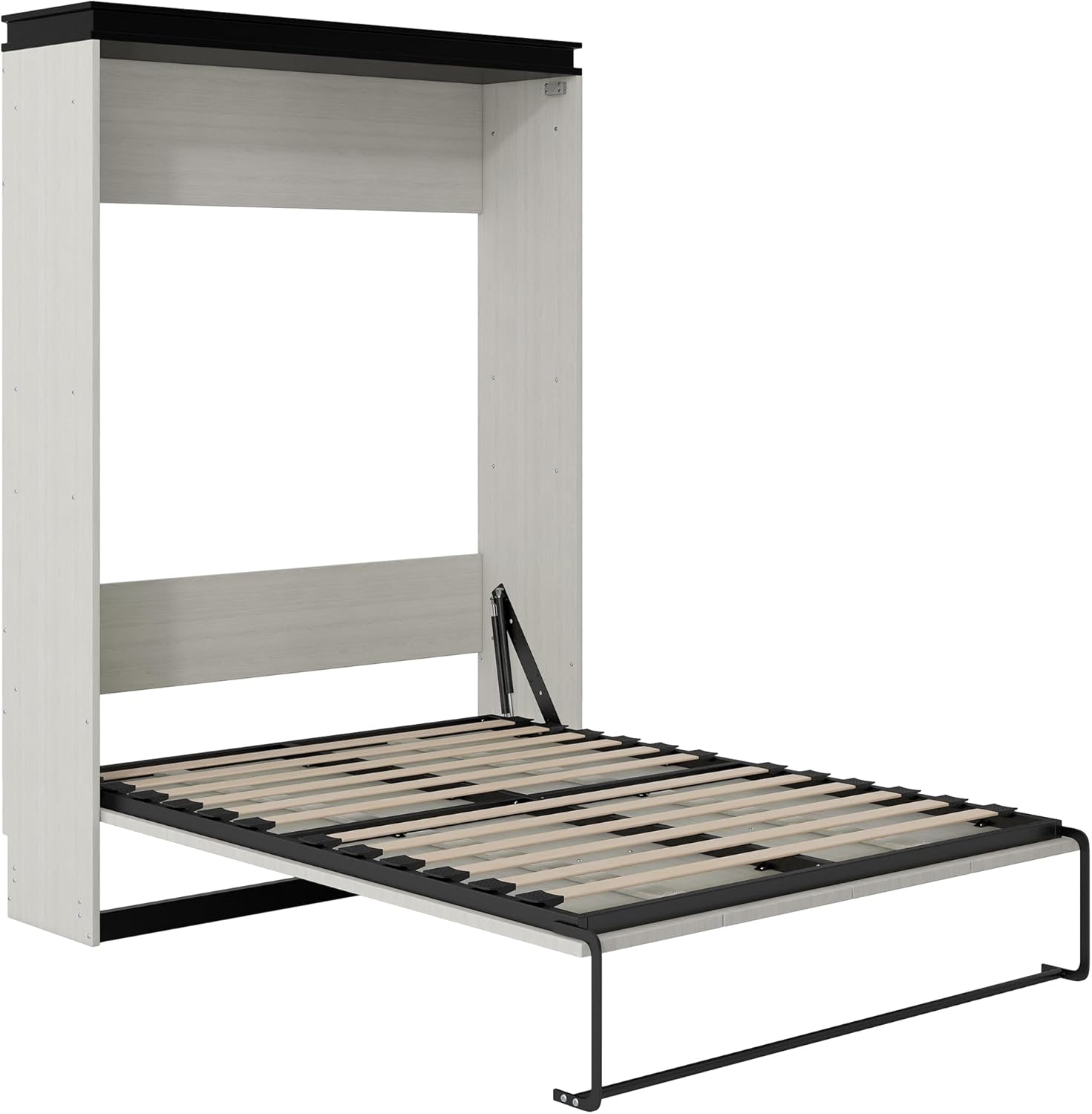

Figure 7: Side view of the Murphy Bed with the full-size bed extended, showing the support mechanism.

Figure 8: Close-up view of the desk area and storage cabinets with doors open.

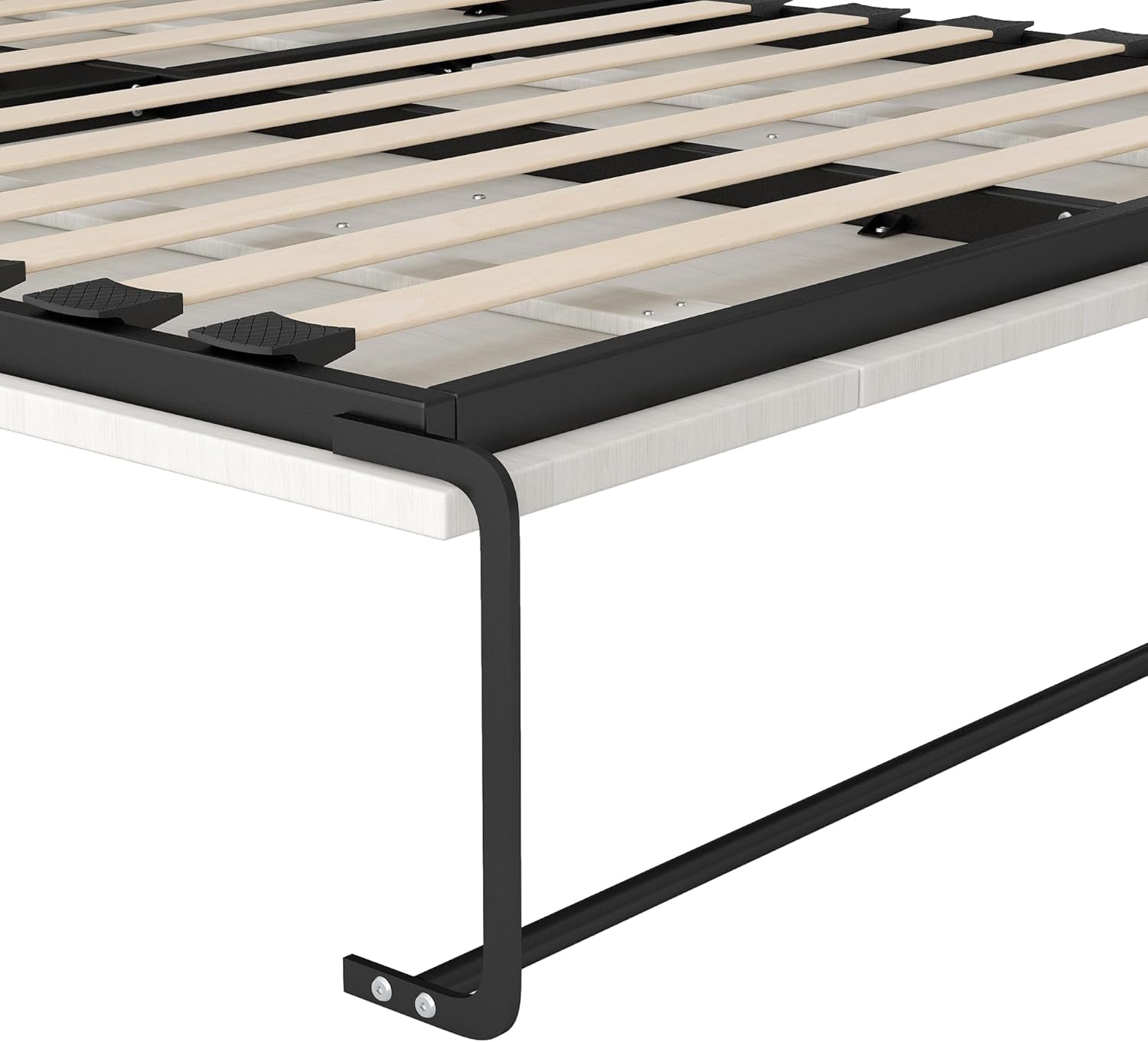

Figure 9: Detailed view of the sturdy bed frame and wooden slat support system.

6. Maintenance

Proper care and maintenance will extend the life and appearance of your Murphy bed.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Hardware Check: Periodically check all screws, bolts, and connections to ensure they are tight. Re-tighten if necessary.
• Mechanism Lubrication: If the folding mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to moving parts (consult the detailed instruction booklet for specific points).
• Avoid Overloading: Do not overload shelves, cabinets, or the bed itself beyond specified weight capacities.

7. Troubleshooting

If you encounter issues with your Murphy bed, consider the following common solutions:

• Bed Does Not Close/Open Smoothly:
  • Check for obstructions in the path of the bed frame.
  • Ensure all assembly hardware is correctly installed and tightened.
  • Verify that the mattress meets the recommended specifications.
• Unit Feels Unstable:
  • Crucially, ensure the unit is securely anchored to the wall studs. This is the most common cause of instability.
  • Check all structural connections for tightness.
• Damaged or Missing Parts:
  • Refer to the parts list in your instruction booklet. Contact RuiSiSi customer support or your seller for replacement parts.

8. Warranty and Support

For specific warranty information, please refer to the documentation included with your purchase or contact the seller directly. If you require assistance with assembly, have questions about operation, or need to report damaged/missing parts, please contact RuiSiSi customer support or the retailer from whom you purchased the product (e.g., ORIEN HOME CORP. if purchased via Amazon).

When contacting support, please have your model number (WS02595) and purchase information readily available.
