AMERLIFE Full Murphy Bed with Storage and Charging Station

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your AMERLIFE Full Murphy Bed with Storage and Charging Station, Model BPB008. This innovative furniture piece is designed to maximize space efficiency, offering both a comfortable sleeping area and practical storage solutions.

Key features include:

• Dual Functionality: Seamlessly transitions between a storage cabinet and a full-size bed.
• Integrated Storage & Charging: Features a desktop surface, built-in mattress storage, a spacious drawer for pillows and accessories, and an integrated charging station with AC outlets and USB ports.
• Durable Construction: Equipped with smooth rails, fixed universal wheels, an anti-tipping device, and reinforced zinc alloy connectors for stability and longevity.
• Enhanced Comfort: Utilizes EVA padding to reduce noise and improve sleep comfort.
• Farmhouse Design: Rustic Grey finish with farmhouse-style patterns to complement various interior decors.

Image: The AMERLIFE Full Murphy Bed in its unfolded state, revealing a comfortable sleeping surface and accessible charging station. A person is shown utilizing the bed's features.

Setup and Assembly

Assembly of the AMERLIFE Full Murphy Bed typically requires two individuals and takes approximately 2-3 hours. Please ensure all parts are present and undamaged before beginning assembly. Each part is numbered for easy identification. Follow the detailed instructions provided in the included manual carefully.

Assembly Steps Overview:

1. Step 1: Prepare the Cabinet. Ensure the main cabinet structure is correctly oriented.
2. Step 2: Pull Out the Drawer. Extend the bottom storage drawer.
3. Step 3: Lift Top Board and Press Red Button. Engage the mechanism to release the bed panel.
4. Step 4: Lower Panel. Gently lower the bed panel into the sleeping position.

Image: A visual representation of the four main steps to convert the Murphy bed from its cabinet form to a sleeping configuration.

Important Assembly Notes:

• Slide Rail Installation: When installing the slide rails, separate the two sections as instructed. Ensure they are installed on a flat surface and pay attention to the direction of the slide rail.
• Zinc Alloy Connectors: The folding frame is reinforced with zinc alloy connectors. Ensure these are securely fastened during assembly for enhanced longevity and stability.
• Anti-Tipping Device: Install the anti-tipping device as instructed to ensure stability and safety, preventing accidental tipping.
• Silent Padding: The bed includes silent padding (EVA) to reduce noise. Ensure these are correctly placed during assembly.

Image: Close-up details of the bed's construction, highlighting the smooth twin-track slides, zinc alloy connectors, and important installation guidance.

Operating Instructions

Converting from Cabinet to Bed:

1. Ensure the area in front of the cabinet is clear.
2. Gently pull out the bottom storage drawer.
3. Lift the top board of the cabinet. Locate and press the red release button.
4. Carefully lower the bed panel until it is fully extended and rests on the floor.

Converting from Bed to Cabinet:

1. Remove any bedding or mattress from the bed frame.
2. Locate the handles under the bed frame. Use these handles to lift the bed panel.
3. Guide the bed panel upwards until it locks securely into the cabinet position.
4. Push the bottom storage drawer back into place.

Image: The Murphy bed configured as a cabinet, with its spacious bottom drawer extended to reveal storage for items like pillows or blankets. A folded mattress is also visible, indicating the bed's compact storage capability.

Using the Charging Station:

The integrated charging station is located on the side of the cabinet. It includes:

• 2 AC Outlets (125V/12A)
• 1 USB Port (5V/2A)
• 1 Type C Port (5V/2A)

A 5-foot power cord is provided to connect the charging station to a wall outlet. Ensure the power cord is securely plugged in before use.

Image: A detailed view of the charging station, illustrating the types of ports available for electronic devices.

Storage Drawer Usage:

The large drawer located at the bottom of the unit provides additional storage space. It is ideal for storing pillows, blankets, bed linens, or other personal items. The drawer operates on smooth slides for easy access.

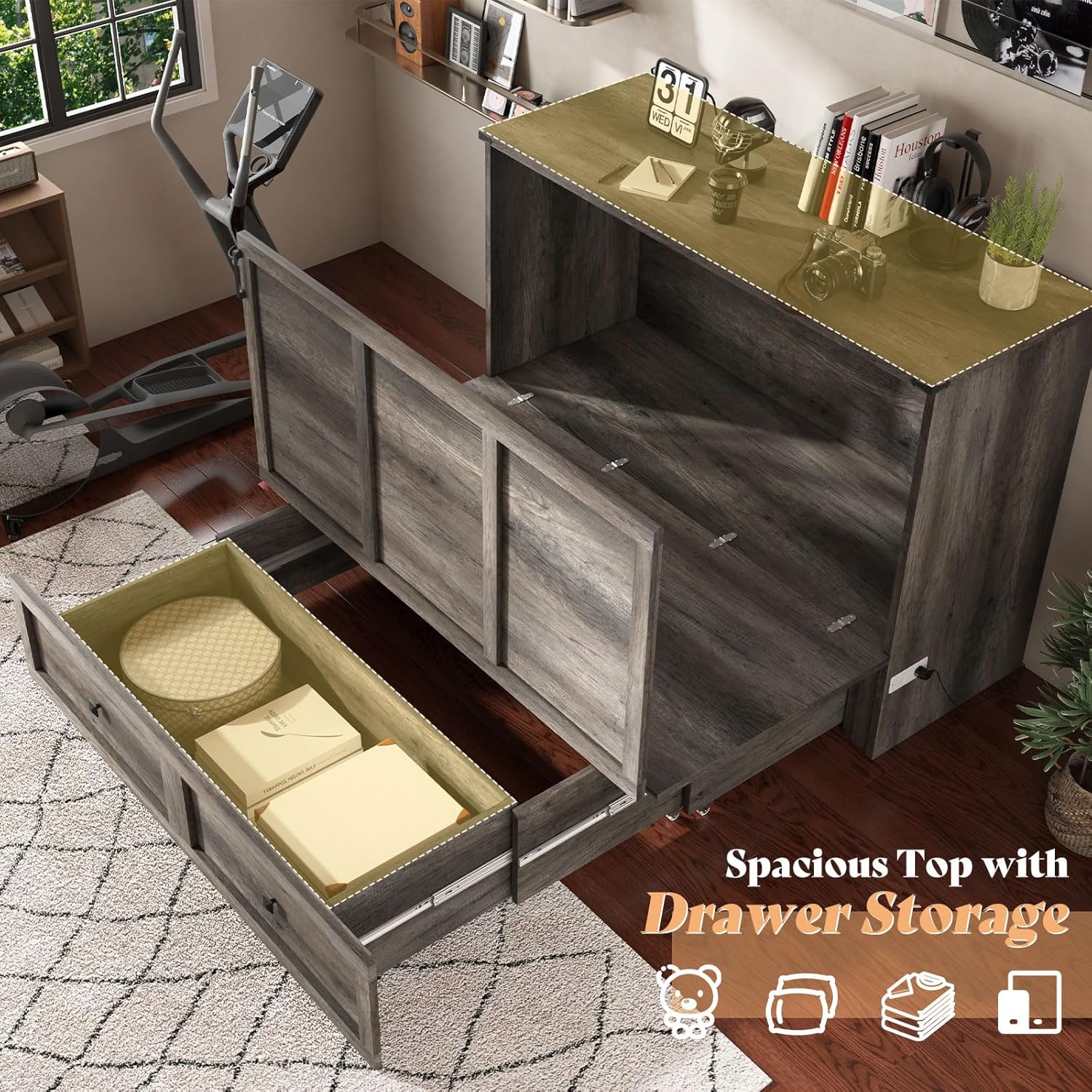

Image: An overhead perspective of the Murphy bed cabinet, emphasizing the spacious top surface and the open storage drawer filled with various items.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your AMERLIFE Full Murphy Bed.

• Cleaning: For the furniture surfaces, wipe regularly with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Fabric Components: If your mattress or bedding includes fabric components, refer to their specific care instructions. The general care instruction for such items is often 'Dry Clean Only'.
• Hardware Check: Periodically check all screws, bolts, and connectors to ensure they are tight. Loose hardware can affect the bed's stability and operation.
• Moving the Unit: When moving the Murphy bed, ensure it is in the fully closed (cabinet) position. Utilize the fixed universal wheels for easier relocation.

Troubleshooting

If you encounter any issues with your AMERLIFE Full Murphy Bed, please refer to the following common solutions:

• Bed Does Not Fold/Unfold Smoothly:
  • Ensure all internal mechanisms and slides are free from obstructions.
  • Check that the bed is on a level surface. Uneven flooring can affect operation.
  • Verify that all assembly hardware, especially for the slides and connectors, is securely tightened.
• Drawer Does Not Close Properly:
  • Inspect the drawer slides for any debris or misalignment.
  • Ensure the drawer is not overloaded or obstructed by items inside.
  • Confirm that the drawer was assembled correctly, paying attention to the direction of the slide rails.
• Noise During Operation:
  • The bed is designed to be 'noisy free' with EVA padding. If noise occurs, check for loose connections or parts that may be rubbing.
  • Ensure the EVA padding is correctly positioned.
• Charging Station Not Working:
  • Verify that the 5-foot power cord is securely plugged into both the charging station and a functional wall outlet.
  • Test the wall outlet with another device to confirm it has power.

Product Specifications

Image: Detailed product dimensions for the AMERLIFE Full Murphy Bed, illustrating measurements for both the cabinet and the unfolded bed frame, along with the maximum weight capacity.

Warranty Information

Specific warranty details for the AMERLIFE Full Murphy Bed (Model BPB008) are not provided in this manual. For information regarding product warranty, including coverage duration and terms, please refer to the documentation included with your purchase or contact the manufacturer directly.

Customer Support

For any questions, assistance with assembly, or to report missing/damaged parts, please contact AMERLIFE customer support or the seller, Happy Tao. Please have your model number (BPB008) and purchase details ready when contacting support.

You can typically find contact information on the packaging, the seller's storefront, or through your purchase platform.
