Garvee 30-inch Aluminum Tool Box User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Garvee 30-inch Aluminum Tool Box. Please read these instructions thoroughly before installation and operation. Retain this manual for future reference.

2. Product Overview

The Garvee 30-inch Aluminum Tool Box is designed for secure and organized storage of tools and equipment in various applications, including pickup truck beds, RVs, and trailers. Constructed from durable aluminum, it features a T-handle lock for security and a weather-resistant design.

Key Features:

• Efficient Storage: Prevents tools and accessories from scattering, offering ample space.
• Rugged Construction: Made from sturdy aluminum with hand-welded seams and corrosion-resistant diamond tread.
• Secure Locking Mechanism: Features a built-in T-handle security lock with keys.
• Versatile Application: Suitable for trucks, RVs, ATVs, trailers, garages, and job sites.
• Space-Efficient: Designed for under-vehicle mounting to maximize truck bed space.

Figure 2.1: Front view of the Garvee 30-inch Aluminum Tool Box in its closed state. This image displays the diamond plate aluminum finish and the T-handle lock mechanism on the front panel.

3. Setup and Installation

Proper installation is crucial for the security and stability of your tool box. This tool box can be mounted in various locations, including truck beds, RVs, or trailers. Mounting hardware is typically not included and must be sourced separately based on your specific application.

Installation Steps:

1. Select Mounting Location: Choose a flat, stable surface that can support the weight of the tool box and its contents. Consider accessibility and weight distribution.
2. Measure and Mark: Carefully measure the dimensions of the tool box to ensure it fits the intended space. Mark the drilling points for mounting brackets.
3. Drill Pilot Holes: Using appropriate drill bits for your vehicle's material, drill pilot holes at the marked locations.
4. Secure Mounting Brackets: Attach the mounting brackets (not included) to the tool box and the vehicle using suitable bolts, washers, and nuts. Ensure all connections are tight and secure.
5. Verify Stability: After installation, gently shake the tool box to confirm it is firmly attached and does not wobble.

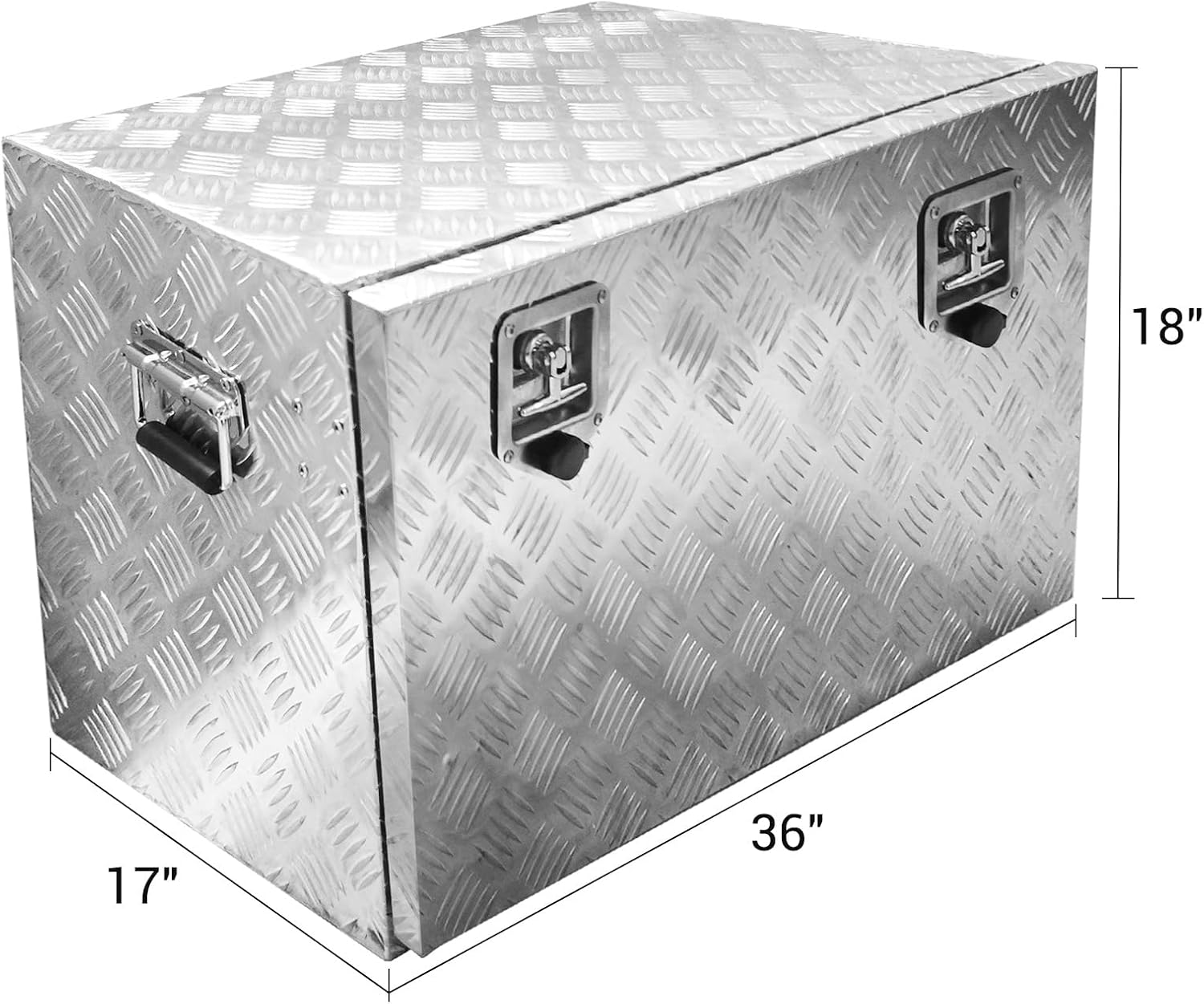

Figure 3.1: The Garvee 30-inch Aluminum Tool Box with indicated dimensions of 36 inches (length), 17 inches (width), and 18 inches (height). These measurements are crucial for planning installation space.

Figure 3.2: A composite image showing detailed views of the tool box. The top right inset displays an internal mounting bracket, while the bottom right inset shows the ergonomic handle for the T-handle lock mechanism.

4. Operating Instructions

The tool box is designed for straightforward operation, focusing on secure access to your stored items.

Opening the Tool Box:

1. Unlock: Insert the key into the T-handle lock and turn it to the unlock position.
2. Engage Handle: Rotate the T-handle to disengage the latch mechanism.
3. Lift Lid: Gently lift the lid. Gas struts assist in holding the lid open for easy access.

Figure 4.1: A close-up view of the T-handle lock mechanism. This shows the keyhole and the handle used to secure and open the tool box.

Figure 4.2: The T-handle lock with keys inserted, demonstrating the locking functionality. The keys are used to secure the contents of the tool box.

Closing and Securing the Tool Box:

1. Lower Lid: Carefully lower the lid until it rests on the main body of the tool box.
2. Engage Latch: Ensure the T-handle is in the closed position, engaging the latch.
3. Lock: Insert the key and turn it to the lock position. Remove the key to secure the contents.

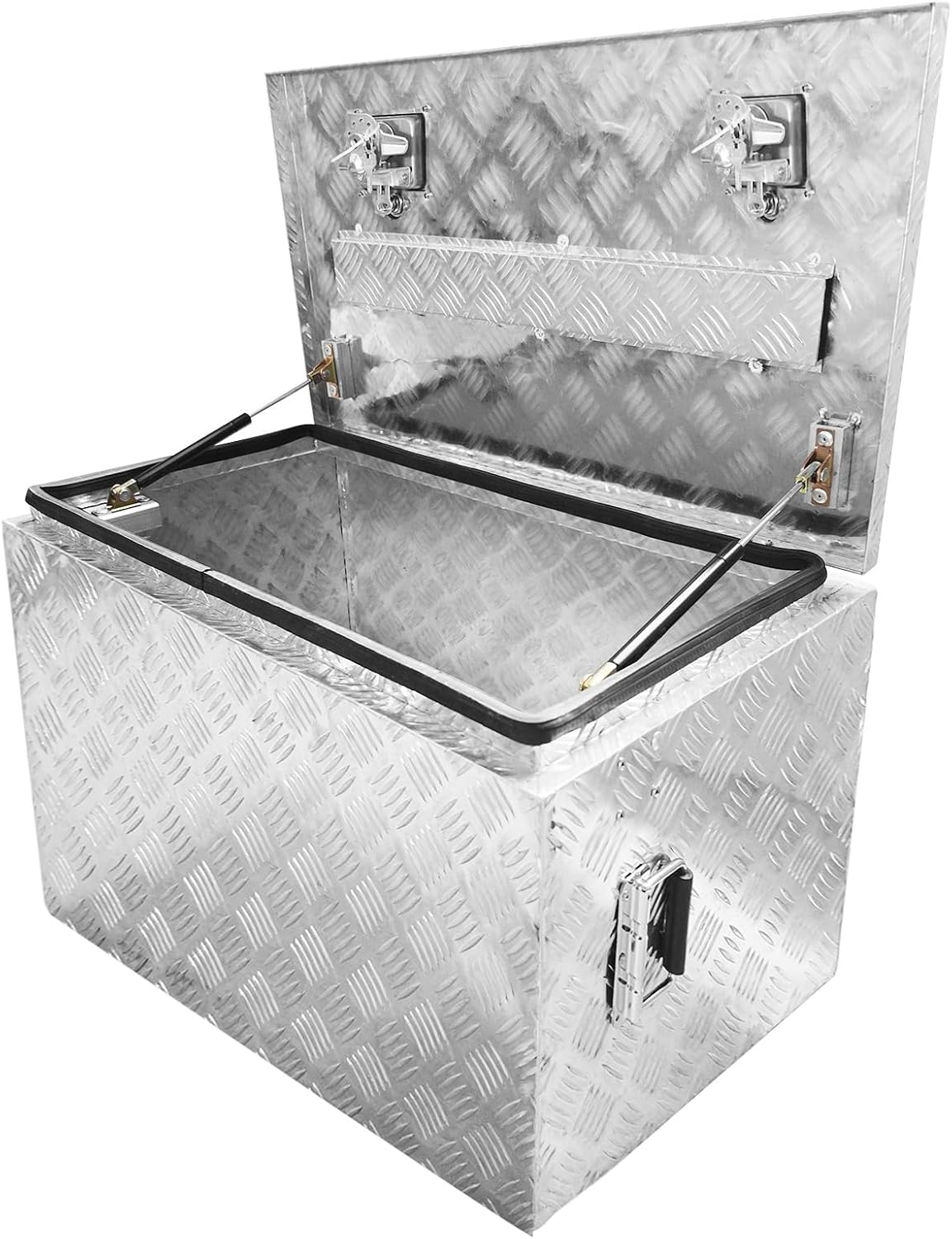

Figure 4.3: The Garvee 30-inch Aluminum Tool Box with its lid fully open, revealing the spacious interior and the gas struts that support the lid. A rubber seal is visible around the opening, designed to protect contents from elements.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Garvee Aluminum Tool Box.

• Cleaning: Clean the exterior aluminum surface periodically with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly and dry with a soft cloth.
• Lock Mechanism: Lubricate the T-handle lock mechanism and hinges annually with a graphite-based lubricant or a silicone spray to ensure smooth operation and prevent corrosion.
• Weather Seal: Inspect the rubber weather seal around the lid for any signs of wear, cracks, or damage. A damaged seal can compromise the weather resistance of the box. Replace if necessary.
• Mounting Hardware: Periodically check all mounting bolts and fasteners for tightness. Re-tighten as needed to maintain secure installation.

6. Troubleshooting

This section addresses common issues you might encounter with your tool box.

Issue: Lid is difficult to open or close.

• Possible Cause: Latch mechanism is stiff or obstructed.
• Solution: Lubricate the T-handle lock and latch components. Check for any debris or obstructions preventing smooth movement.
• Possible Cause: Gas struts are worn or damaged.
• Solution: If the lid does not stay open or is excessively heavy, the gas struts may need replacement. Contact customer support for compatible parts.

Issue: Water or dust ingress.

• Possible Cause: Damaged or improperly seated weather seal.
• Solution: Inspect the rubber seal around the lid. Ensure it is clean, free of debris, and properly seated. Replace if cracked or torn.
• Possible Cause: Improperly closed lid or latch.
• Solution: Ensure the lid is fully closed and the T-handle latch is securely engaged.

Issue: Key is stuck or lock is jammed.

• Possible Cause: Lock mechanism is dirty or corroded.
• Solution: Apply a small amount of graphite lubricant into the keyhole and gently work the key. Avoid forcing the key.
• Possible Cause: Incorrect key.
• Solution: Ensure you are using the correct key provided with the tool box.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or to inquire about replacement parts, please contact Garvee customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.

You can also visit the official Garvee store for more information: Garvee Store on Amazon
