lulunemo Portable Hook-On Chair with Removable Dining Tray (Model B0DGJY5SC6) User Manual

1. Introduction

Thank you for choosing the lulunemo Portable Hook-On Chair with Removable Dining Tray. This manual provides essential information for the safe assembly, operation, and maintenance of your product. Please read these instructions carefully before use and retain them for future reference.

Image 1.1: The lulunemo Portable Hook-On Chair with its removable dining tray, shown attached to a wooden table.

2. Safety Information

Your child's safety is paramount. Always follow these safety guidelines to prevent injury.

• Maximum Weight Capacity: Do not exceed 15 kg (33 pounds).
• Always secure your child with the 3-point safety harness.
• Ensure the chair is securely attached to the table before placing your child in it.
• Never leave your child unattended in the chair.
• Regularly check all components for wear, damage, or loose parts. Discontinue use if any damage is found.
• Keep children away from moving parts during installation and removal.

2.1 Unsuitable Table Types

Do NOT use the hook-on chair with the following table types:

• Glass table tops
• Loose table tops
• Single pedestal tables
• Tables with tablecloths or placemats
• Table leafs (extension leaves)
• Card tables
• Uneven surfaces

Image 2.1: Visual guide illustrating table types that are unsafe for use with the hook-on chair, including glass, loose, single pedestal, and card tables, as well as those with tablecloths or uneven surfaces.

3. Package Contents

Verify that all items are present in your package:

• 1 x lulunemo Portable Hook-On Chair
• 1 x Removable Dining Tray
• 1 x Storage Bag

4. Specifications

5. Setup and Installation

Follow these steps to securely attach the hook-on chair to your table.

1. Prepare the Table: Ensure the table surface is clean, dry, and free of any obstructions. Verify that the table thickness is between 0.8 inches (20mm) and 3.3 inches (85mm).
2. Position the Chair: Place the chair on the table edge where you intend to install it. The chair's arms should rest on the tabletop, and the hooks should be positioned underneath.
3. Engage the Clamps: Rotate the clamping mechanisms (usually by turning a knob or lever) to extend the clamps. Ensure the non-slip serrated pads make firm contact with both the top and bottom surfaces of the table.
4. Tighten Securely: Continue to tighten the clamps until the chair is firmly secured to the table and there is no movement or wobble. Do not overtighten.
5. Verify Stability: Before placing your child in the chair, gently push and pull on the chair to confirm it is stable and will not detach from the table.

Image 5.1: Illustration of the one-step installation process, showing how the chair's clamps secure to the table edge.

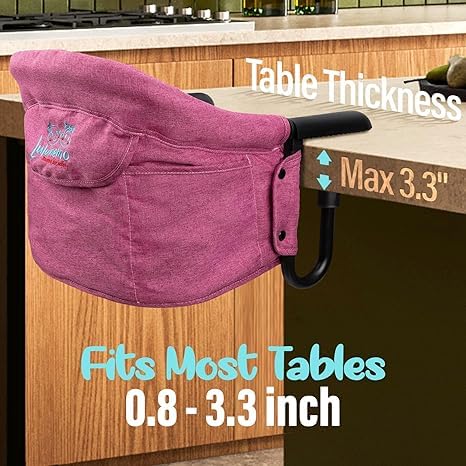

Image 5.2: A close-up view demonstrating the compatible table thickness range (0.8 to 3.3 inches) for secure attachment.

6. Operating Instructions

6.1 Securing Your Child

1. Ensure the chair is securely installed on a suitable table.
2. Place your child into the chair.
3. Fasten the 3-point safety harness around your child. Adjust the straps for a snug, secure fit.
4. Double-check that the harness is properly buckled and adjusted before leaving your child to eat or play.

Image 6.1: Detailed view of the three-point safety harness, highlighting its components and how it secures the child.

6.2 Using the Removable Dining Tray

The dining tray provides a convenient surface for meals and activities.

• Attaching the Tray: Align the tray with the chair's armrests and slide it into place until it clicks securely.
• Detaching the Tray: Locate the release mechanisms (usually tabs or buttons) on the sides of the tray. Press or lift them and slide the tray off.

Image 6.2: A baby seated in the hook-on chair, utilizing the removable dining tray for a meal.

6.3 Using the Storage Pocket

The integrated storage pocket on the back of the chair is suitable for small items.

• Use the pocket to store baby essentials such as wipes, small toys, or a bib.
• Do not overload the pocket, as this may affect the chair's balance or comfort.

Image 6.3: The storage pocket located on the back of the hook-on chair, shown with various baby items.

7. Maintenance and Cleaning

Regular cleaning ensures hygiene and extends the product's lifespan.

• Fabric Seat Cover: The removable seat cover and cushion are machine washable. Detach them from the chair frame and wash according to the care label instructions (typically cold water, gentle cycle). Air dry thoroughly.
• Dining Tray: The dining tray can be wiped clean with a damp cloth and mild soap, or washed in a sink. It is also dishwasher safe (top rack recommended).
• Frame and Clamps: Wipe the metal frame and plastic components with a damp cloth. Do not use abrasive cleaners or solvents. Ensure all parts are dry before reassembly or storage.

8. Storage and Portability

The chair features a lightweight, fold-flat design for easy storage and travel.

• To fold, loosen the clamps and remove the chair from the table.
• Collapse the chair's frame according to its design until it lies flat.
• Place the folded chair and dining tray into the provided storage bag.
• Store in a cool, dry place away from direct sunlight.

Image 8.1: Step-by-step visual guide on folding the hook-on chair and packing it into the storage bag for portability.

9. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

• Chair feels unstable after installation:
  Solution: Ensure the table thickness is within the specified range (0.8-3.3 inches). Re-tighten the clamps firmly. Verify that the table itself is stable and not one of the unsuitable types listed in Section 2.1.
• Dining tray does not attach securely:
  Solution: Check for any debris or obstructions in the tray's attachment points or on the chair's armrests. Ensure the tray is aligned correctly before attempting to slide it into place.
• Harness straps are difficult to adjust:
  Solution: Ensure the straps are not twisted. Loosen the buckle slightly before attempting to adjust the length.

10. Customer Support

If you require further assistance or have questions not covered in this manual, please contact our service team. We are committed to providing timely support.

For support, please visit the lulunemo Store on Amazon or contact us through your purchase platform.
