PULITUO 6-Inch Cordless Mini Chainsaw User Manual

Important Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and hearing protection when operating the chainsaw.
• Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
• Ensure the battery is fully charged before use and always remove the battery when not in use, before cleaning, or performing maintenance.
• Maintain a firm grip with both hands on the chainsaw handles during operation.
• Be aware of kickback. Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
• Do not overreach. Keep proper footing and balance at all times.

Product Overview

The PULITUO 6-inch cordless mini chainsaw is designed for efficient cutting of small branches and wood. It features a brushless motor for enhanced performance and durability.

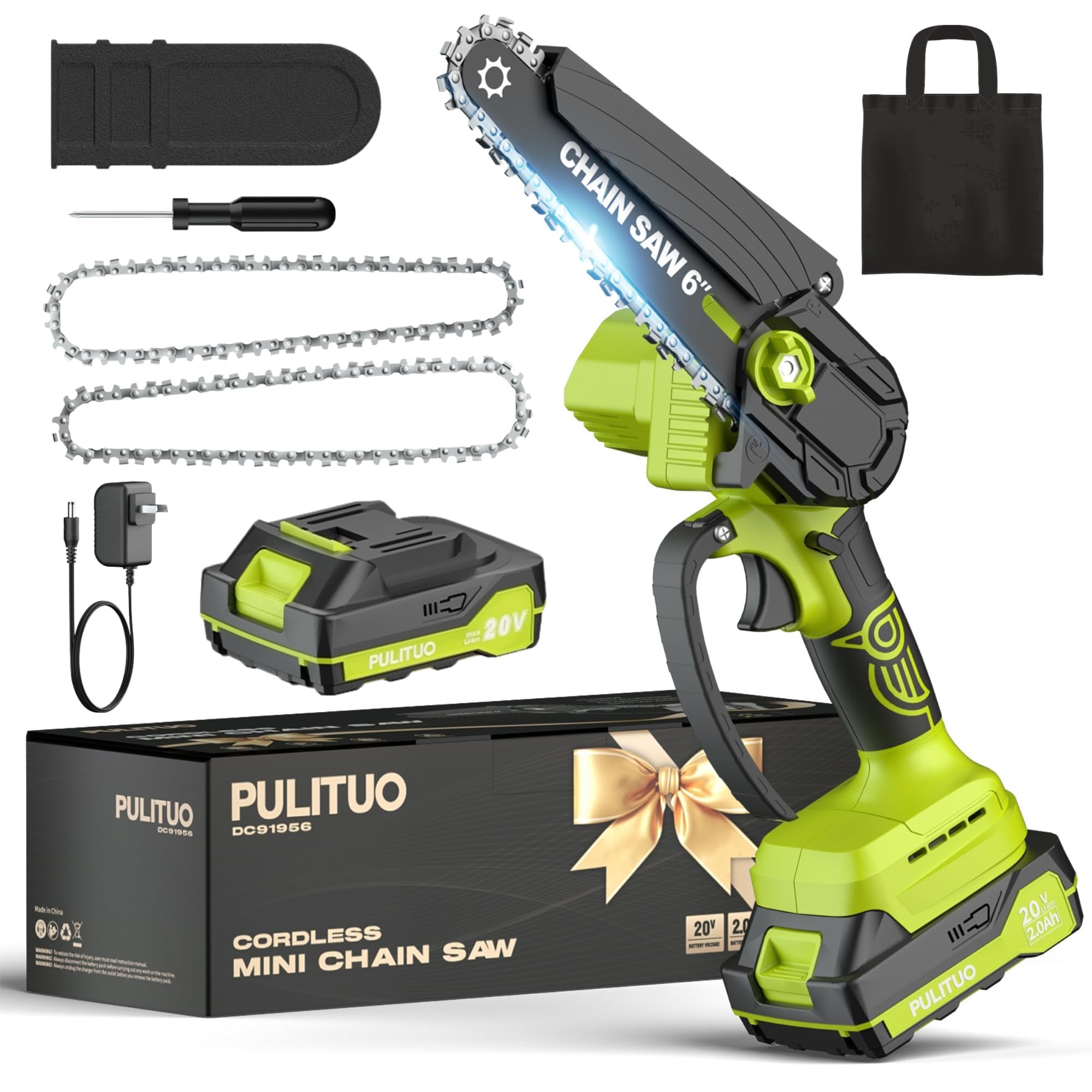

Image: The PULITUO 6-inch cordless mini chainsaw, showcasing its compact design, ergonomic handle, and the installed guide bar and chain. A battery pack is shown attached to the tool, highlighting its portability and readiness for use. This image provides a general view of the product and its main components.

Package Contents:

• PULITUO 6-inch Cordless Mini Chainsaw Body
• 2 x 2.0Ah Lithium-ion Batteries
• Battery Charger
• 2 x Saw Chains
• Guide Bar
• Wrench
• Screwdriver
• User Manual (this document)

Setup

1. Battery Charging

1. Connect the charger to a standard power outlet.
2. Insert the battery pack into the charger. Ensure it clicks into place.
3. The indicator light on the charger will show the charging status (e.g., red for charging, green for fully charged).
4. Once fully charged, remove the battery from the charger.

(An image here would typically show the battery being inserted into the charger, with indicator lights visible.)

2. Guide Bar and Chain Installation

1. Ensure the battery is removed from the chainsaw.
2. Loosen the guide bar cover nut using the provided wrench and remove the cover.
3. Place the saw chain around the sprocket and then around the guide bar, ensuring the cutting edges of the chain teeth face in the correct direction (away from the motor at the top of the guide bar).
4. Align the guide bar onto the chainsaw body, ensuring the chain tensioning pin fits into the hole on the guide bar.
5. Replace the guide bar cover and hand-tighten the nut. Do not fully tighten yet.

(An image here would typically illustrate the steps of placing the chain on the sprocket and guide bar, and then positioning the guide bar on the chainsaw body.)

3. Chain Tension Adjustment

1. With the guide bar cover hand-tightened, use the screwdriver to adjust the chain tensioning screw.
2. Turn the screw clockwise to increase tension and counter-clockwise to decrease tension.
3. The chain is correctly tensioned when it can be pulled away from the guide bar by about 2-3 mm at the center, but still snaps back into place. It should move freely around the guide bar without binding.
4. Once tension is correct, fully tighten the guide bar cover nut with the wrench.
5. Check the chain tension again after tightening the nut, as it can sometimes change slightly.

(An image here would typically show the location of the chain tensioning screw and demonstrate how to check chain tension.)

Operating Instructions

1. Starting the Chainsaw

1. Ensure all safety precautions are followed and PPE is worn.
2. Insert a fully charged battery into the chainsaw until it clicks securely.
3. Hold the chainsaw firmly with both hands.
4. Press and hold the safety lock button (usually located on the handle).
5. While holding the safety lock, squeeze the trigger switch to start the chainsaw. Release the safety lock once the chain starts moving.

2. Cutting Techniques

• General Cutting: Position the chainsaw with the chain not touching the material. Start the chainsaw, then gently bring the moving chain into contact with the wood. Allow the saw to do the work; do not force it.
• Pruning Branches: When cutting branches, support the branch to prevent it from pinching the chain. Make an undercut first if the branch is heavy, then cut from the top.
• Small Logs: For small logs, ensure the log is stable and cannot roll. Cut through the log in a single pass if possible.
• Always be aware of the cutting direction and potential kickback.

(An image here would typically demonstrate proper cutting posture and technique for pruning a branch.)

3. Stopping the Chainsaw

Release the trigger switch. The chain will stop moving. For extended breaks or when finished, always remove the battery pack from the chainsaw.

Maintenance

Regular maintenance ensures the longevity and safe operation of your chainsaw. Always remove the battery before performing any maintenance.

1. Cleaning

• After each use, clean the chainsaw body with a damp cloth.
• Remove the guide bar cover and clean out sawdust and debris from around the sprocket, guide bar groove, and chain. Use a brush or compressed air if available.
• Ensure the air vents on the motor housing are clear of obstructions.

(An image here would typically show the guide bar cover removed and the areas to be cleaned.)

2. Chain Lubrication

This mini chainsaw does not have an automatic oiling system. It is crucial to manually lubricate the chain and guide bar frequently during operation (every 10-15 minutes of continuous use) and before storage. Use a high-quality bar and chain oil.

• Apply a small amount of bar and chain oil directly to the chain and along the guide bar groove.
• Run the chainsaw briefly (without cutting) to distribute the oil.

(An image here would typically show how to apply oil to the chain and guide bar.)

3. Chain Sharpening

A dull chain will reduce cutting efficiency and increase strain on the motor. Sharpen the chain regularly or replace it when necessary.

• Use a round file of the correct diameter for your chain (refer to chain specifications).
• File each cutter with consistent strokes, maintaining the original angle.
• Alternatively, take the chain to a professional for sharpening.

4. Storage

• Store the chainsaw in a dry, secure place, out of reach of children.
• Remove the battery pack from the chainsaw before storage.
• Store batteries in a cool, dry place, partially charged (around 50%) for long-term storage.

Troubleshooting

Specifications

Warranty and Support

PULITUO products are manufactured to high-quality standards. For warranty information, technical support, or replacement parts, please contact PULITUO customer service through the retailer where the product was purchased or visit the official PULITUO website.

Please have your model number (DC95957) and purchase date available when contacting support.
