1. Introduction
This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your MDCEQP Compressor Nebulizer Machine. Please read this manual thoroughly before first use and retain it for future reference. This device is designed to convert liquid medication into a fine mist for inhalation, aiding in respiratory treatment for both adults and children.
Image: The MDCEQP Nebulizer is suitable for various respiratory conditions such as cold, cough, pharyngitis, influenza, asthma, rhinitis, and bronchitis.
2. Important Safety Information
Always follow basic safety precautions when using electrical products, especially when children are present. This device is intended for use with prescribed medications only. Consult your physician or pharmacist for proper medication and dosage.
- Do not immerse the main unit in water.
- Keep the device away from heat sources.
- Ensure the power cord is not damaged.
- Use only accessories provided or approved by MDCEQP.
- Supervise children during use.
- Unplug the device when not in use and before cleaning.
3. Package Contents
Verify that all items are present in the package:
- 1 x Nebulizer Compressor
- 1 x Universal Mouthpiece
- 1 x Adult Mask
- 1 x Child Mask
- 1 x Air Tube
- 1 x Liquid Cup (Medication Cup)
- 1 x User Manual
- 2 x Air Filters
- 2 x Mask Fixing Ropes
Image: Detailed view of all components included in the MDCEQP Nebulizer package, showing the main unit, liquid cup, masks, air tube, air filters, and mask fixing ropes.
Image: Complete MDCEQP Compressor Nebulizer Machine with included masks, mouthpiece, and tubing.
4. Product Overview
The MDCEQP Compressor Nebulizer is designed for efficient medication delivery. It features a compact design, one-button operation, and an adjustable nebulization rate.
Image: Top-down view illustrating the compact and portable design of the nebulizer machine.
Key Features:
- High-Efficiency Nebulization: Advanced compressed air technology produces fine particles (2-5µm) for effective treatment.
- Adjustable Atomization Rate: Control the nebulization amount by rotating the nebulization cover.
- Family Use: Includes adult mask, child mask, and mouthpiece for versatile application.
- One-Button Operation: Simple and intuitive to use.
5. Setup and Operating Instructions
Follow these steps for proper setup and operation of your nebulizer:
- Connect the Air Tube: Securely connect one end of the air tube to the air outlet on the main compressor unit and the other end to the bottom of the liquid cup.
- Prepare Medication: Open the liquid cup and pour the prescribed liquid medication into it. Do not exceed 8 ml of solution.
- Attach Accessory: Attach either the adult mask, child mask, or mouthpiece to the top of the liquid cup assembly.
- Adjust Nebulization Rate (Optional): If desired, rotate the nebulization cover on the liquid cup to adjust the atomization rate. Options typically include small, medium, and large.
- Power On: Plug the power cord into an electrical outlet. Press the power button on the main unit to start the nebulization process.
- Begin Treatment: Place the mask over your nose and mouth, or hold the mouthpiece between your lips, and breathe normally until the medication is fully nebulized.
- Power Off: Once the medication is consumed and nebulization stops, press the power button to turn off the device and unplug it.
Image: Visual guide demonstrating the steps for using the nebulizer: connecting the tube, pouring liquid, adjusting atomization rate, turning on, and starting treatment.

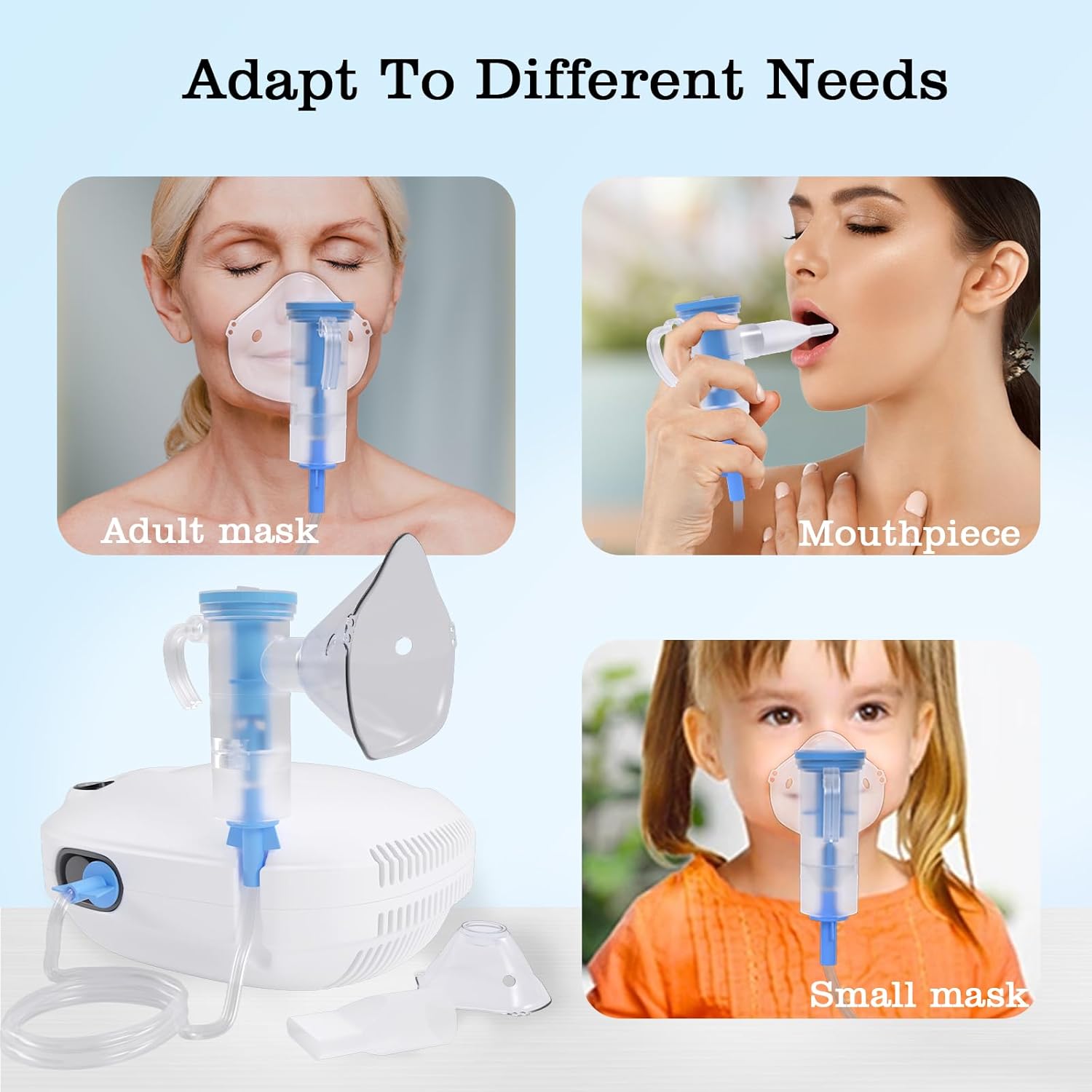

Image: Illustration showing the adult mask, mouthpiece, and child mask, demonstrating how the nebulizer adapts to different user requirements.
Image: Close-up of the liquid cup showing the adjustable nebulization rate settings (Small, Medium, Large) and the maximum 8ml liquid capacity.
6. Cleaning and Maintenance
Regular cleaning and maintenance ensure optimal performance and hygiene of your nebulizer.
- After Each Use: Disassemble the liquid cup, mouthpiece/mask, and air tube. Wash these components with warm water and mild detergent. Rinse thoroughly and air dry.
- Disinfection (Weekly or as needed): For thorough disinfection, boil the disassembled components (excluding the air tube and main unit) in water for 10 minutes, or use a medical disinfectant solution as recommended by your physician.
- Main Unit: Wipe the exterior of the compressor unit with a clean, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
- Air Filter Replacement: Check the air filter regularly. Replace it when it appears discolored or every 30 days of use, whichever comes first. Spare filters are included.
- Storage: Store the nebulizer and its accessories in a clean, dry place when not in use.
Image: Illustrates the ease of cleaning the MDCEQP nebulizer cup compared to other types, highlighting its air compression motor and adjustable nebulization rate.
7. Troubleshooting
If you encounter issues with your nebulizer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No mist produced or weak mist. |
|
|
| Device does not turn on. |
|
|
| Unusual noise during operation. |
|
|
If the problem persists after attempting these solutions, please contact MDCEQP customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 8.66 x 6.69 x 3.94 inches |
| Weight | 2.87 Pounds |
| Particle Size | 2-5µm |
| Max Liquid Capacity | 8 ml |
| Operation | One-button |
| Model Number | MDCEQP Compressor Nebulizer |
Image: Diagram illustrating the effective particle size (2-5µm) produced by the nebulizer for optimal respiratory delivery, compared to larger particles.
9. Warranty and Support
MDCEQP is committed to providing high-quality products. For warranty information, technical support, or any questions regarding your nebulizer, please contact MDCEQP customer service through the retailer where the product was purchased or visit the official MDCEQP website.
Please retain your proof of purchase for warranty claims.
