Introduction
This instruction manual provides detailed guidance for the installation, operation, maintenance, and troubleshooting of your Oudbo Molartte 60" W x 76" H Sliding Shower Door. Please read this manual thoroughly before beginning installation or use to ensure proper function and safety. Keep this manual for future reference.

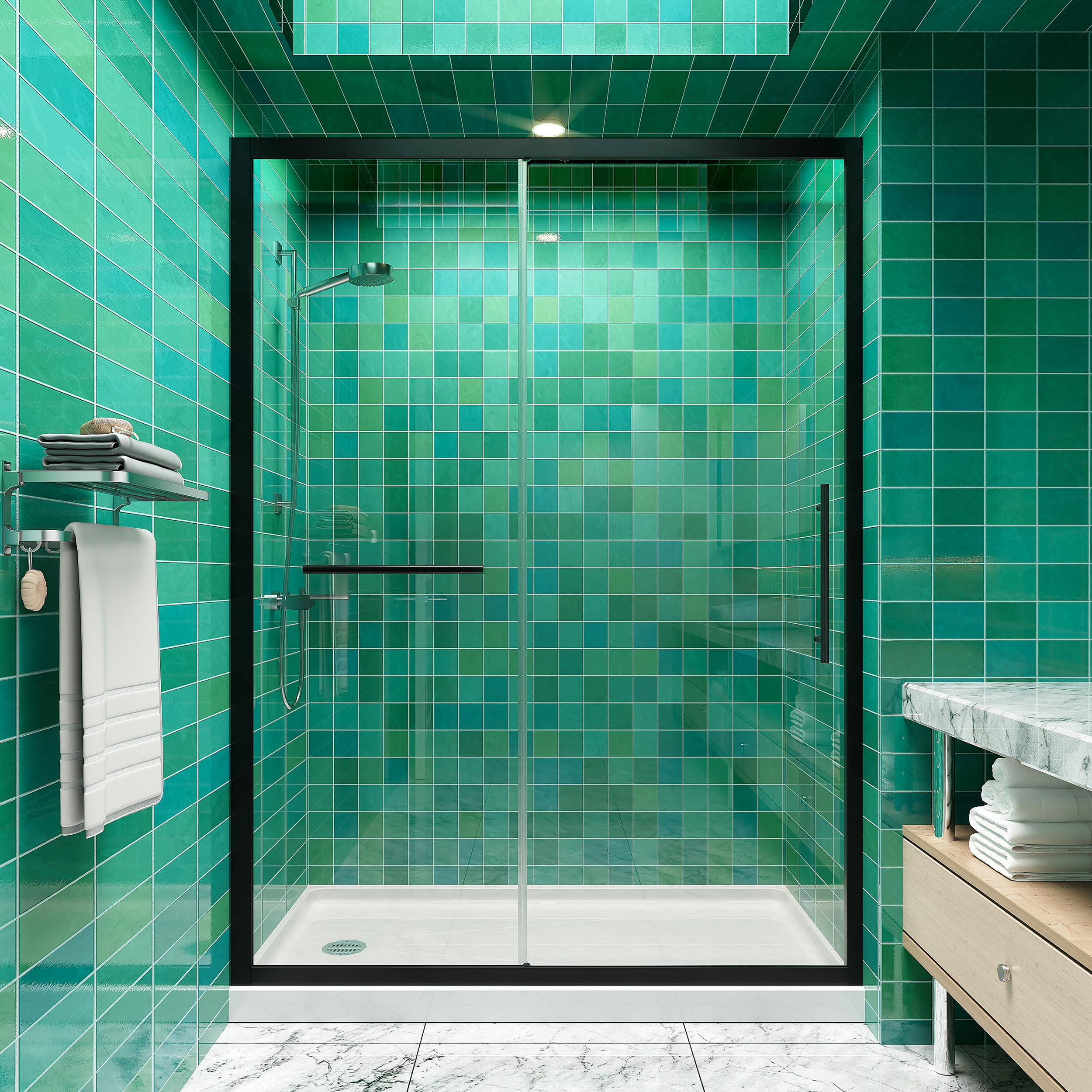

Your Oudbo Molartte shower door features 1/4" (6mm) thick SGCC tempered glass, a semi-frameless design, and a matte black finish, offering both durability and modern aesthetics.
Important Safety Information
- Always wear appropriate safety gear, including safety glasses and gloves, during installation.
- Handle glass panels with extreme care. Tempered glass, while strong, can shatter if struck at the edges or corners.
- Ensure the installation surface is structurally sound and level.
- Do not overtighten screws, as this can damage components or glass.
- If you are unsure about any step, consult a qualified professional.
- Keep children and pets away from the installation area.
Setup and Installation
The Oudbo Molartte sliding shower door is designed for flexible installation and can be adjusted to fit various bathroom layouts.
Package Contents
Verify that all components are present before beginning installation. The package includes the shower door glass panels and all necessary mounting parts.
Dimensions and Adjustability
This shower door measures 60" W x 76" H. It features an adjustable width, allowing for up to 3/8 inches (5 mm) adjustment on each side to accommodate minor variations in wall dimensions.
Reversible Installation
The shower door is designed for reversible installation, allowing the sliding panel to open from either the left or right side, depending on your bathroom layout and preference.
General Installation Steps (Summary)
- Prepare the Area: Ensure the shower base or tub is level and the walls are plumb. Clean the installation area.
- Measure and Mark: Carefully measure the opening width and height. Mark the positions for wall profiles and drill holes as per the detailed installation guide (not included in this manual, refer to the full product manual for specific drilling templates and hardware instructions).
- Install Wall Profiles: Secure the vertical wall profiles to the bathroom walls using appropriate fasteners.
- Assemble Frame Components: Attach the top and bottom tracks to the wall profiles.
- Install Fixed Glass Panel: Carefully place the fixed glass panel into the designated channels and secure it.
- Install Sliding Glass Panel: Mount the rollers onto the sliding glass panel and then hang the panel onto the top track. Ensure smooth movement.
- Install Handles and Towel Bar: Attach the handles and towel bar to the sliding glass panel.
- Apply Sealing Strips: Install all sealing strips and sweeps to ensure a watertight enclosure.
- Seal with Silicone: Apply a bead of silicone sealant along the exterior joints of the frame and wall profiles to prevent water leakage. Allow adequate drying time before use.
Operating Instructions
Sliding Door Operation
Your Oudbo Molartte shower door is designed for smooth and quiet operation. Gently push or pull the handle to slide the door open or closed. Avoid forcing the door, as this can damage the rollers or tracks.
Towel Bar Functionality
The sliding door features a unique two-handle design. One handle is used for opening and closing the door, while the other serves as a convenient towel rack.
Maintenance and Cleaning
Glass Cleaning
The 1/4" (6mm) tempered glass is treated with a water-repelling spot guard coating. This coating helps resist hard water stains, soap scum, and limescale, making cleaning easier and maintaining a lasting shine. For daily cleaning, wipe the glass with a soft cloth and mild glass cleaner after each use. Avoid abrasive cleaners or scouring pads that can damage the coating or glass surface.
Quick-Release Design for Easy Cleaning
The shower door features a quick-release design, allowing for easy access to clean the gaps in the shower door tracks and rollers. This prevents dirt and soap residue buildup. Refer to the detailed installation guide for specific instructions on how to engage and disengage the quick-release mechanism.
Frame and Hardware Care
The matte black aluminum alloy frame and stainless steel hardware are designed to resist rust, chipping, and scratching. Clean these surfaces with a soft, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals that can damage the finish.
Waterproof Design
The shower door incorporates sealing strips on the bottom and sides to prevent water from escaping the shower area. Regularly inspect these strips for wear or damage and replace them if necessary to maintain optimal waterproofing.
Troubleshooting
This section addresses common issues you might encounter with your sliding shower door. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not slide smoothly. | Debris in track, damaged rollers, misaligned track. | Clean the bottom track thoroughly. Inspect rollers for damage and replace if necessary. Check track alignment and adjust if loose. |
| Water leaks from the shower enclosure. | Damaged or improperly installed sealing strips, insufficient silicone sealant. | Inspect all sealing strips and sweeps for proper placement and wear; replace if damaged. Reapply silicone sealant to exterior joints if necessary, ensuring a continuous bead. |
| Door feels loose or wobbly. | Loose mounting screws, worn rollers. | Check and tighten all mounting screws on the wall profiles and frame. Inspect rollers for wear and replace if they are no longer providing stable support. |
Specifications
- Brand: Oudbo Molartte
- Model Number: AHA-UG6072/48072
- Dimensions: 60" W x 76" H (Product Dimensions: 0.24 x 60 x 76 inches)
- Adjustable Width: Up to 3/8 inches (5 mm) on each side
- Glass Thickness: 1/4" (6mm)
- Glass Type: SGCC Tempered Glass, ANSI Certified
- Glass Coating: Water-repelling spot guard coating
- Frame Material: Aluminum Alloy
- Hardware Material: Stainless Steel
- Color: Matte Black
- Item Weight: Approximately 100 Pounds
- Assembly Required: Yes
- Included Components: All mounting parts, shower door glass panels
Warranty Information
Specific warranty details for the Oudbo Molartte 60" W x 76" H Sliding Shower Door are not provided in this manual. For information regarding product warranty, including coverage duration and terms, please contact Oudbo Molartte customer support directly or refer to the warranty card included with your purchase.
Customer Support
If you have any questions, require assistance with installation, or need to report a missing or damaged part, please contact Oudbo Molartte customer support.
- Brand: Oudbo Molartte
- Manufacturer: Oudbo Molartte
- Online Store: Visit the Oudbo Molartte Store on Amazon
- Please refer to your purchase documentation for direct contact information.
