1. Product Overview
This manual provides instructions for the installation and maintenance of the Generic D-Type Shaft Air Fryer Replacement Knob. This product is designed to replace worn or broken control knobs on various appliances, primarily air fryers, that utilize a D-shaped shaft for knob attachment.

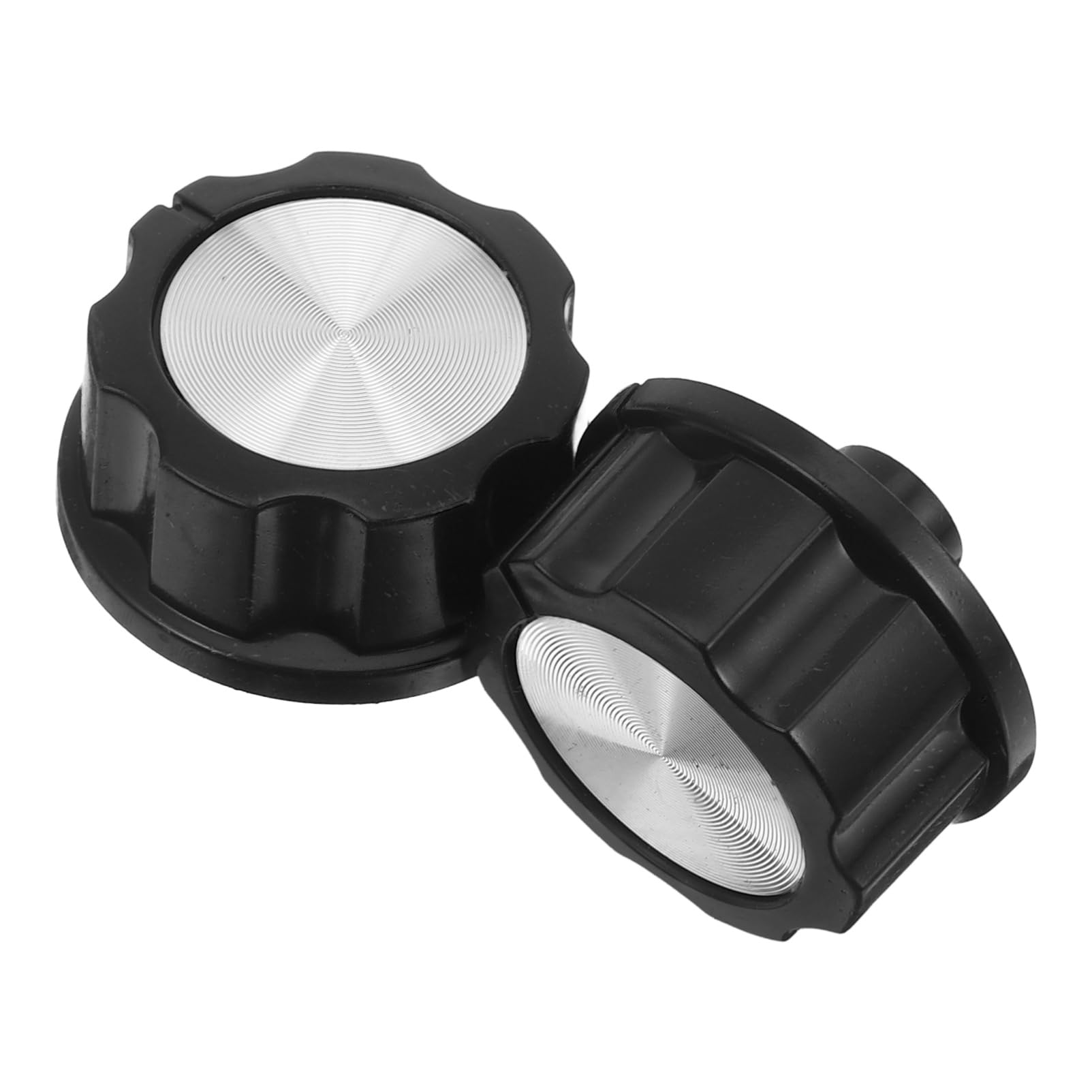

Image 1.1: Two Generic D-Type Shaft Replacement Knobs. The image highlights the clear details and fine texture of the knobs, which are black with a silver-colored, textured top surface.
Key Features:
- D-Shaft Interface: Designed for appliances with a D-shaped shaft, ensuring a secure fit and preventing rotation slippage.
- Durable Material: Constructed from high-density, high-temperature resistant plastic for longevity and safe use in appliance environments.
- Anti-slip Design: The knob features an anti-slip treated side surface, providing a firm grip even with oily hands.
- Easy Installation: Simple push-on installation requires no additional tools.
2. Compatibility and Verification
Before installation, it is crucial to verify that your appliance uses a D-shaped shaft for its control knobs. Incorrect shaft types will prevent proper installation and function.
Image 2.1: Detailed view of the D-shaped shaft opening on the back of the replacement knob. This shape ensures compatibility with D-type shafts on appliances.
The knob dimensions are approximately 1.18 inches (3 cm) in diameter and 0.87 inches (2.2 cm) in height. Please compare these dimensions and the D-shaft type with your existing knob and appliance shaft before proceeding.
Image 2.2: Side view of the replacement knob with approximate dimensions. The diameter is shown as 1.18 inches (3 cm) and the height as 0.86 inches (2.2 cm).
3. Installation Instructions
Follow these steps to install the replacement knob:
- Step 1: Remove the Original Knob. Gently pull the old knob directly off the appliance shaft. If it is stuck, try wiggling it slightly while pulling.
- Step 2: Align the Mounting Axis. Position the D-shaped opening on the back of the new replacement knob with the D-shaped shaft on your appliance. Ensure the flat side of the knob's opening aligns with the flat side of the shaft.
- Step 3: Press the Knob Down. Once aligned, firmly press the new knob onto the shaft until it is securely seated. No additional tools are required for this process.
- Step 4: Verify Installation. Gently turn the knob to ensure it rotates smoothly and controls the appliance function as expected.
Image 3.1: Visual guide for knob installation. The image illustrates the four-step process: removing the old knob, aligning the D-shaft, pressing the new knob into place, and the final installed knob.
4. Operating the Knob
Once installed, the replacement knob functions identically to the original. Rotate the knob clockwise or counter-clockwise to adjust settings such as temperature, timer, or cooking mode, depending on your appliance's design. Ensure the knob is fully engaged with the shaft before making adjustments.
Note: If your appliance's original knob had specific markings (e.g., "OFF" or "0" position), you may wish to mark the replacement knob or the appliance panel to indicate these positions for precise control.
5. Maintenance and Care
To ensure the longevity and proper function of your replacement knob, follow these simple maintenance guidelines:
- Cleaning: Wipe the knob regularly with a soft, damp cloth. For stubborn stains, a mild soap solution can be used. Avoid abrasive cleaners or harsh chemicals, as these can damage the plastic material.
- Avoid Excessive Force: Do not apply excessive force when turning the knob. If it feels stiff, check for any obstructions or issues with the appliance's internal mechanism.
- Temperature Exposure: While designed for high-temperature environments, prolonged exposure to extreme heat sources directly on the knob should be avoided.
6. Troubleshooting
- Knob Does Not Fit:
Ensure your appliance shaft is a D-type. This knob is specifically designed for D-shaped shafts. If your shaft is round, splined, or another shape, this knob will not be compatible. Refer to Section 2 for compatibility verification.
- Knob Slips or Does Not Turn Appliance:
Verify that the knob is fully pressed onto the shaft and that the D-shaped opening is correctly aligned with the shaft's flat side. If the issue persists, the appliance's internal shaft mechanism may be damaged, requiring professional service.
- Knob is Loose:
Re-press the knob firmly onto the shaft. If it continues to be loose, the D-shaped opening in the knob or the appliance shaft may be worn. Consider replacing the knob if the opening is damaged.
7. Specifications
| Attribute | Detail |
|---|---|
| Product Dimensions | 1.18 x 1.18 x 0.87 inches (3 x 3 x 2.2 cm) |
| Item Weight | 0.352 ounces |
| Material | High-density Plastic |
| Shaft Type | D-Type |
| Model Number | 8133VY443197RP |
8. Customer Support
For any questions, concerns, or assistance regarding your Generic Air Fryer Replacement Knob, please contact our customer service. We are committed to providing a positive experience and will assist you with any issues you may encounter.
Please have your product model number (8133VY443197RP) available when contacting support.
