Maisto Ferrari SF23 F1 Racing Remote Control Car Instruction Manual

1. Introduction

Thank you for purchasing the Maisto Ferrari SF23 F1 Racing Remote Control Car. This 1:10 scale replica of Charles Leclerc's #16 Formula 1 car provides an authentic racing experience. This manual contains important information for the safe operation, setup, and maintenance of your new RC car. Please read it thoroughly before use and retain it for future reference.

2. Safety Information

WARNING:

• For use under adult supervision.
• Keep out of reach of children under 8 years old.
• Failure to respect these indications would expose you to risks inherent in the abuse of the toy.
• Small parts may cause choking.
• Do not operate near people, pets, or obstacles.
• Avoid water and extreme temperatures.

3. What's in the Box

Please check the contents of your package to ensure all items are present:

• 1:10 Scale Maisto Ferrari SF23 F1 Racing Remote Control Car
• Remote Control Transmitter
• Rechargeable Lithium Battery (for car)
• 2 AA Batteries (for remote control)

4. Setup

4.1 Car Battery Installation and Charging

1. Locate the battery compartment on the underside of the car.
2. Open the battery compartment cover.
3. Insert the rechargeable Lithium Battery, ensuring correct polarity.
4. Close the battery compartment cover securely.
5. Connect the Lithium Battery to the provided charger (if applicable, follow charger instructions for initial charging). Ensure the battery is fully charged before first use.

4.2 Remote Control Battery Installation

1. Locate the battery compartment on the back of the remote control.
2. Open the battery compartment cover.
3. Insert the 2 AA batteries, matching the polarity indicators (+/-).
4. Close the battery compartment cover securely.

4.3 Pairing the Car and Remote

Typically, the car and remote will automatically pair when both are turned on. Ensure the car's power switch is ON and the remote control is also ON. If pairing issues occur, refer to the troubleshooting section.

Image 1: The Maisto Ferrari SF23 F1 Racing Remote Control Car, ready for operation.

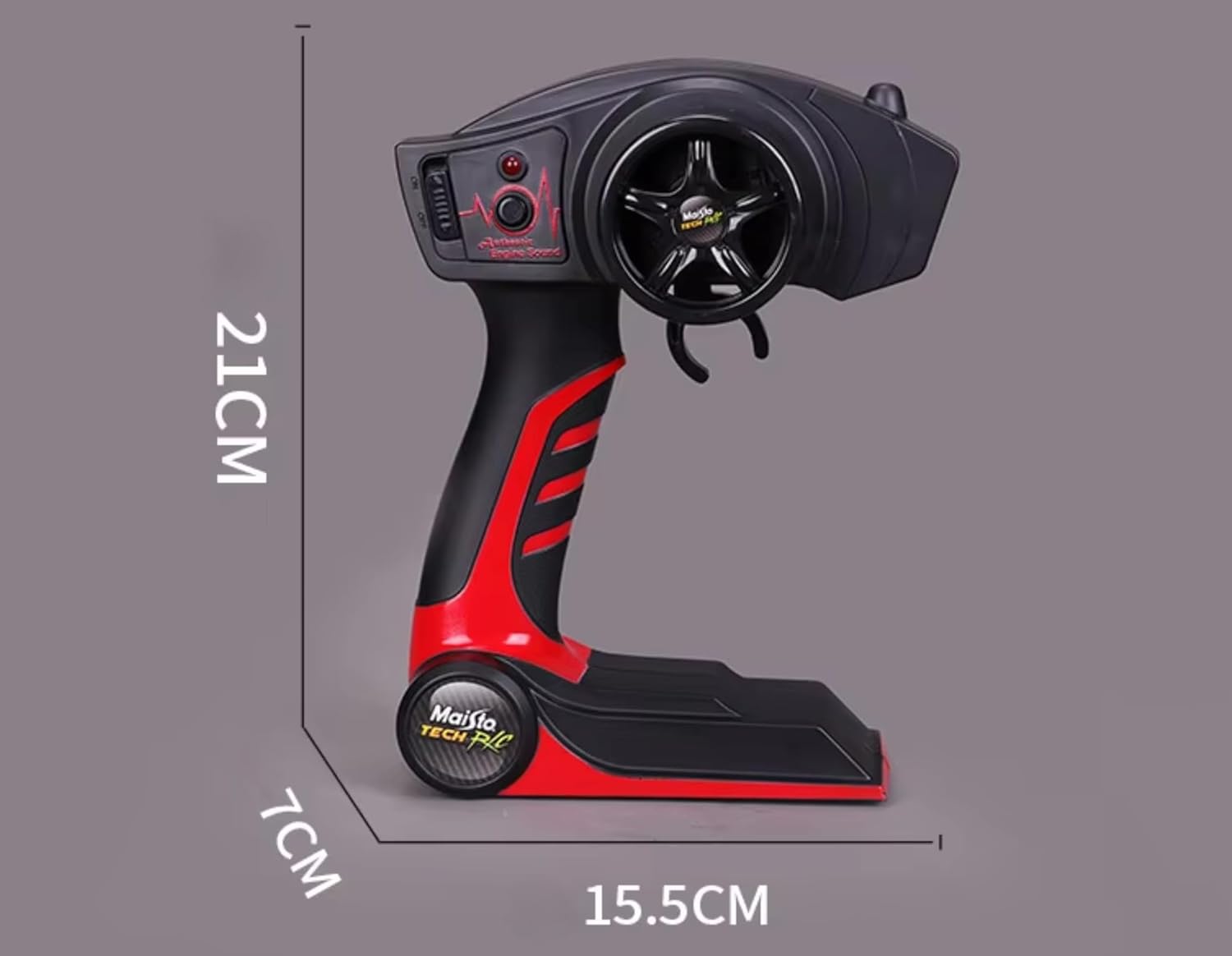

Image 2: The ergonomic remote control transmitter for the Maisto RC car, showing its dimensions.

5. Operating Instructions

5.1 Basic Controls

• Throttle Trigger: Pull the trigger to move the car forward. Push the trigger away from you to brake or reverse.
• Steering Wheel: Turn the wheel left to steer the car left, and right to steer the car right.
• Power Switch: Located on the car and remote. Turn ON before use, OFF after use.

5.2 Driving Tips

• Start in an open, clear area free of obstacles.
• Practice gentle throttle and steering inputs to get a feel for the car's response.
• Avoid driving on wet surfaces or through puddles to prevent damage to electronics.
• Do not operate the car in sand or excessively dusty environments, as this can damage moving parts.

6. Maintenance

6.1 Cleaning

Use a soft, dry cloth to wipe down the car and remote control after each use. Do not use water or chemical cleaners, as these can damage the electronic components and paint finish.

6.2 Storage

When not in use for extended periods, remove all batteries from both the car and the remote control to prevent leakage and damage. Store the car and remote in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

• Car does not respond to remote:
  - Ensure both the car and remote control are switched ON.
  - Check if batteries in both the car and remote are fully charged or replaced.
  - Ensure the car and remote are within operating range.
• Poor range or intermittent control:
  - Replace batteries in the remote control.
  - Recharge the car's Lithium Battery.
  - Avoid operating near other radio-controlled devices or strong electromagnetic interference.
• Car moves slowly or inconsistently:
  - The car's Lithium Battery may be low; recharge it fully.
  - Check for any obstructions in the wheels or drivetrain.

8. Specifications

Image 3: Detailed dimensions of the Maisto Ferrari SF23 F1 Racing Remote Control Car.

9. Warranty and Support

For warranty information or technical support, please contact Maisto customer service directly. Refer to the product packaging or the official Maisto website for contact details. Please have your model number (M82772) and proof of purchase available when contacting support.
