Beaquicy 80040 Washer Agitator Dogs Kit & DC47-00019A Dryer Heating Element Kit Instruction Manual

1. Product Overview

This manual provides instructions for the Beaquicy 80040 Washer Agitator Dogs Kit and the DC47-00019A Dryer Heating Element Kit. These components are designed as replacement parts for specific washing machines and dryers to restore proper functionality.

The 80040 Washer Agitator Dogs are crucial for the washing machine's agitator to effectively rotate and move clothes during the wash cycle. The DC47-00019A Dryer Heating Element Kit provides the necessary heat for the dryer to efficiently dry clothes.

2. Package Contents

Upon opening the package, verify that all the following components are present:

• 48 x Washer Agitator Dogs (Part #80040)
• 1 x Dryer Heating Element (Part #DC47-00019A)
• 1 x Thermal Fuse (Part #DC96-00887A)
• 1 x Thermostat (Part #DC47-00018A)
• 1 x Thermal Fuse (Part #DC47-00016A)

Image: Overview of all included components: 48 washer agitator dogs, a dryer heating element, and three thermal control components (two thermal fuses and one thermostat).

3. Product Specifications

3.1. 80040 Washer Agitator Dogs

• Material: High-strength wear-resistant ABS plastic
• Dimensions: Approximately 0.99 inches (2.5 cm) long x 0.4 inches (1 cm) wide
• Quantity: 48 pieces

Image: Detailed view showing the dimensions of a single 80040 washer agitator dog, measuring approximately 0.9 inches in length and 0.4 inches in width.

3.2. DC47-00019A Dryer Heating Element Kit

• Heating Element Material: High-quality nickel-chromium alloy
• Rated Voltage: 240V
• Rated Power: 5300W
• Terminals: 5/16 inch male terminals
• DC96-00887A Thermal Fuse: Operates at 320°F (160°C)
• DC47-00018A Thermostat: Upper limit 260°F, lower limit 210°F

Image: Close-up view of the DC47-00019A dryer heating element, highlighting its 5/16 inch male terminals, 80% nickel-chromium content, and dimensions (9.8 inches long, 6.5 inches wide, 4.8 inches deep).

Image: Detailed view of the three thermal control components. The DC47-00018A high limit thermostat (L260-50F) is 1.8 inches wide. The DC96-00887A thermal cut-off fuse is 1.2 inches high. The DC47-00016A dryer thermal fuse is 0.9 inches high.

4. Compatibility

4.1. 80040 Washer Agitator Dogs

These agitator dogs are compatible with various washing machine models from brands including Dacor, Roper, Kenmore, Maytag, and Whirlpool. They replace part numbers such as 285612, 285770, 387091, 3366877, 80040VP, 99989668, 3109, AP3119063, PS388034, and EAP388034.

A partial list of compatible models includes: lsr7233dz1, lsq8243hq0, lsq8512kq0, lsq8543jq0, lsq8543jt0, lsq9110pw1, lsq9244eq0, 7ewtw1409ym0, 7lsr7233bn0, 7mgst9679pl0, 7mgst9679pw0, 7mlsc9545jq2, 8tlsq8533lt1, 11020722990, 11024052300, 11024054300, 11024056300, 11024292300, 11024294300, 11010202000, 11010202001, 11010852990, 11010852991, 11012202100, 11012502100, 11012852100.

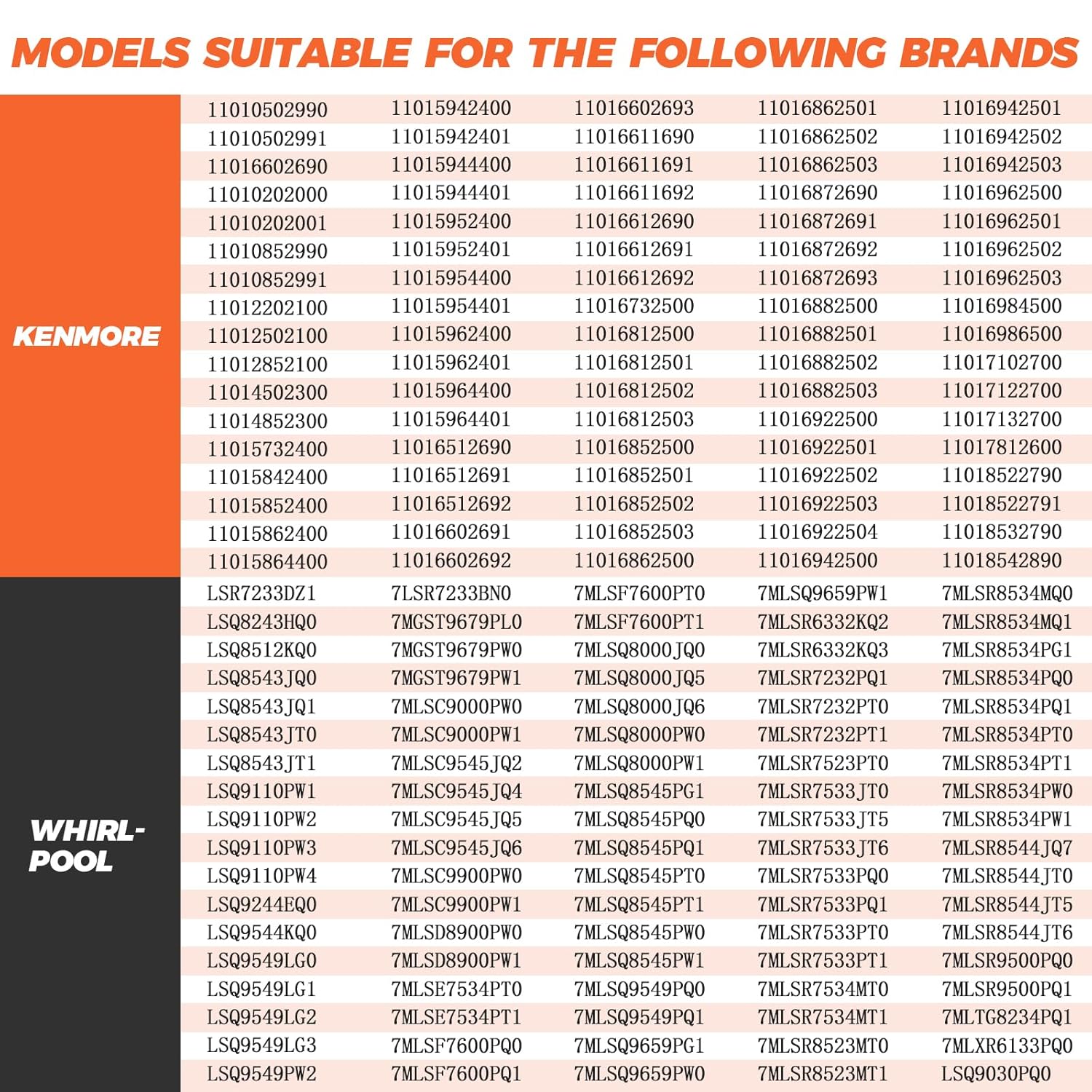

Image: A comprehensive table listing numerous compatible model numbers for Kenmore and Whirlpool washing machines that use the 80040 agitator dogs.

4.2. DC47-00019A Dryer Heating Element Kit

This heating element kit is designed for Samsung dryers. It is compatible with various Samsung dryer models and replaces part numbers such as AP4201899, 2068550, PS2038533, EAP2038533.

A partial list of compatible models includes: dv42h5000ew/a3, dv45h7000ew/a2, dv48h7400ew/a2, dv42h5200ep/a3, dv40j3000ew/a2, dv42h5200ew/a3, dve50m7450w/a3, dv448aep/xaa, dv5451aew/xaa, dv5471aep/xaa, dv56h9000ep/a2, dv419aew/xaa, dv50f9a6evw/a2, dv50f9a7evp/a2, dv42h5000es, dv407aew/xaa, dv45h7000ep/a3.

Image: Graphic indicating that the DC47-00019A Dryer Heating Element Kit is a replacement part for Samsung dryers, listing several compatible model numbers.

5. Installation and Setup

Important Safety Information: Before attempting any repair or installation on an appliance, always disconnect the appliance from its power source (unplug it or turn off the circuit breaker). Failure to do so can result in serious injury or electrical shock. If you are unsure about any step, consult a qualified technician or refer to your appliance's specific service manual.

5.1. 80040 Washer Agitator Dogs Installation

The agitator dogs are small plastic components located within the agitator assembly of a top-loading washing machine. They engage with the agitator's gear teeth to create the necessary agitation for washing clothes. When worn, they can cause the agitator to slip or not move effectively.

1. Disconnect Power: Unplug the washing machine from the electrical outlet.
2. Access Agitator: Remove the fabric softener dispenser (if applicable) and the cap covering the agitator bolt.
3. Remove Agitator Bolt: Use a socket wrench to remove the bolt securing the agitator.
4. Remove Agitator: Carefully pull the agitator straight up and out of the wash tub.
5. Disassemble Agitator: Separate the upper and lower sections of the agitator. The agitator dogs are typically located in the upper section.
6. Replace Agitator Dogs: Remove the old, worn agitator dogs and insert the new 80040 agitator dogs into their slots. Ensure they are seated correctly.
7. Reassemble Agitator: Reconnect the upper and lower agitator sections.
8. Reinstall Agitator: Place the agitator back onto the shaft in the wash tub, ensuring it engages properly.
9. Secure Agitator: Reinstall the agitator bolt and tighten it securely. Replace the cap and fabric softener dispenser.
10. Restore Power: Plug the washing machine back into the electrical outlet.

5.2. DC47-00019A Dryer Heating Element Kit Installation

The heating element kit includes the heating element itself, a high-limit thermostat, and two thermal fuses. These components work together to regulate the dryer's temperature and prevent overheating.

1. Disconnect Power: Unplug the dryer from the electrical outlet or turn off the circuit breaker.
2. Access Heating Element: Depending on your dryer model, you may need to remove the back panel, front panel, or top panel to access the heating element housing. Refer to your dryer's service manual for specific access instructions.
3. Disconnect Wires: Carefully disconnect the electrical wires from the old heating element, thermostat, and thermal fuses. Note their positions for correct reinstallation.
4. Remove Old Components: Unscrew or unclip the old heating element, thermostat (DC47-00018A), and thermal fuses (DC96-00887A, DC47-00016A) from their mounts.
5. Install New Components: Install the new DC47-00019A heating element, DC47-00018A thermostat, DC96-00887A thermal fuse, and DC47-00016A thermal fuse in their respective positions. Ensure they are securely mounted.
6. Reconnect Wires: Reconnect the electrical wires to the new components, ensuring all connections are tight and correct.
7. Reassemble Dryer: Reattach any panels removed during access.
8. Restore Power: Plug the dryer back into the electrical outlet or turn on the circuit breaker.
9. Test Functionality: Run a short cycle to ensure the dryer heats properly and operates without issues.

6. Troubleshooting

6.1. Washer Agitator Dogs Related Issues

If your washing machine exhibits the following symptoms, worn or broken agitator dogs may be the cause:

• Will not stir: The agitator does not move or rotate during the wash cycle.
• Rotate slowly: The agitator moves sluggishly or with reduced force.
Noisy: Unusual grinding or clicking sounds coming from the agitator area during operation.

Image: Three illustrative images depicting common symptoms of faulty agitator dogs: a person looking into a non-rotating washer tub, a washer tub with very slow rotation, and a person holding their head due to noise, indicating a noisy washer.

6.2. Dryer Heating Element Kit Related Issues

If your dryer exhibits the following symptoms, issues with the heating element, thermostat, or thermal fuses may be the cause:

• Takes too long to dry: Clothes remain damp after a full drying cycle.
• No heat: The dryer runs but produces no heat.
• Shuts off too soon: The dryer stops operating before the cycle is complete, often due to overheating (which can trigger thermal fuses or thermostats).

Image: Three illustrative images depicting common symptoms of a faulty dryer heating element: a person checking clothes that are not dry, a dryer full of clothes that are taking too long to dry, and a person looking at a dryer that has shut off prematurely.

7. Maintenance

Regular maintenance of your appliances can extend their lifespan and prevent premature failure of components. While these parts are designed for durability, periodic inspection is recommended.

• Washer Agitator Dogs: If you notice reduced agitation or unusual noises from your washer, inspect the agitator dogs for wear. Replace them as needed to maintain optimal washing performance.
• Dryer Heating Element Kit: Ensure your dryer's lint filter is cleaned after every load to prevent lint buildup, which can restrict airflow and cause the heating element and thermal components to work harder or overheat. Periodically check the dryer vent for obstructions.

8. Warranty and Support

Beaquicy offers a 365-day guarantee on the 80040 Agitator Dogs and DC47-00019A Heating Element Kit. If you encounter any quality issues with these components within 365 days of purchase, please contact our customer service through the Amazon platform. We are committed to resolving issues and providing after-sales support within 24 hours.

For further assistance or if you are unsure about compatibility with your specific appliance model, please contact customer service for prompt support.
