FAMAPY Full Murphy Bed with Drawer Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your FAMAPY Full Murphy Bed with Drawer. Designed for space-saving and versatility, this cabinet bed transforms from a compact cabinet into a comfortable full-size bed, ideal for bedrooms and guest rooms. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Safety Information

• Always follow all assembly instructions precisely to ensure the structural integrity and safe operation of the Murphy bed.
• Do not exceed the recommended weight limit for the bed. Refer to the specifications section for details.
• Ensure the unit is placed on a flat, stable surface.
• Keep small parts and packaging materials away from children during assembly.
• It is recommended to have at least two people for assembly to prevent injury and ensure proper alignment.
• This product includes a warning to follow all assembly instructions and not exceed the recommended weight limit to ensure safe and proper use.

3. Product Features

The FAMAPY Full Murphy Bed with Drawer offers a blend of functionality and modern design.

• Space-Saving Design: Transforms from a compact cabinet (23.6”D x 55.9”W x 41.3”H) into a full-size bed (75.6”L x 55.9”W x 41.3”H), ideal for optimizing room space.
• Integrated Storage: Features a bottom drawer for convenient storage of bed sheets, pillows, or other items.
• Mattress Compatibility: Designed to hold a mattress up to 6 inches thick (mattress not included).
• Functional Side Panels: Includes two side panels that serve as convenient surfaces for placing phones, clocks, potted plants, or books.
• Stylish Appearance: White cabinet with black metal handles, featuring a modern and chic design with decorative patterns and lines.
• Durable Construction: Primarily constructed from quality MDF and particle board for stability and sturdiness.
• Smooth Operation: Drawer equipped with metal slides and robust wheels for easy pulling.

Image: The FAMAPY Full Murphy Bed unfolded, showcasing its full-size configuration and integrated side shelves.

4. Components List

Before assembly, verify that all components listed below are present and undamaged. The product is packaged in two boxes, which may arrive separately.

• Cabinet Panels (Top, Bottom, Sides, Back)
• Bed Frame Components
• Drawer Components (Front, Sides, Back, Bottom)
• Black Metal Handles
• Wheels for Drawer and Bed Base
• Metal Drawer Slides
• Side Shelf Panels
• Hardware Pack (Screws, dowels, cam locks, hinges, etc.)
• Assembly Instruction Manual

Image: Detailed dimensions of the Murphy bed in both its folded cabinet form and unfolded bed form.

5. Setup and Assembly

Assembly requires careful attention to detail. It is highly recommended to assemble with another person. Ensure you have adequate space and the necessary tools (e.g., screwdriver, hammer) before starting.

Assembly Steps Overview:

1. Unpack and Organize: Carefully unpack all components and hardware. Lay them out and identify each part using the provided labels and the components list.
2. Assemble the Cabinet Base: Follow the instructions to construct the main cabinet structure, ensuring all connections are secure.
3. Install Drawer Mechanism: Attach the metal drawer slides to the cabinet and assemble the bottom drawer, ensuring smooth operation of the wheels and slides.
4. Attach Bed Frame Components: Assemble the bed frame sections that will fold out from the cabinet.
5. Integrate Folding Mechanism: Connect the bed frame to the cabinet using the specified hinges and mechanisms, allowing for smooth transformation.
6. Install Side Panels and Handles: Attach the side shelf panels and the black metal handles to the cabinet doors and drawer.
7. Final Checks: Ensure all screws are tightened, and the bed mechanism operates smoothly and safely.

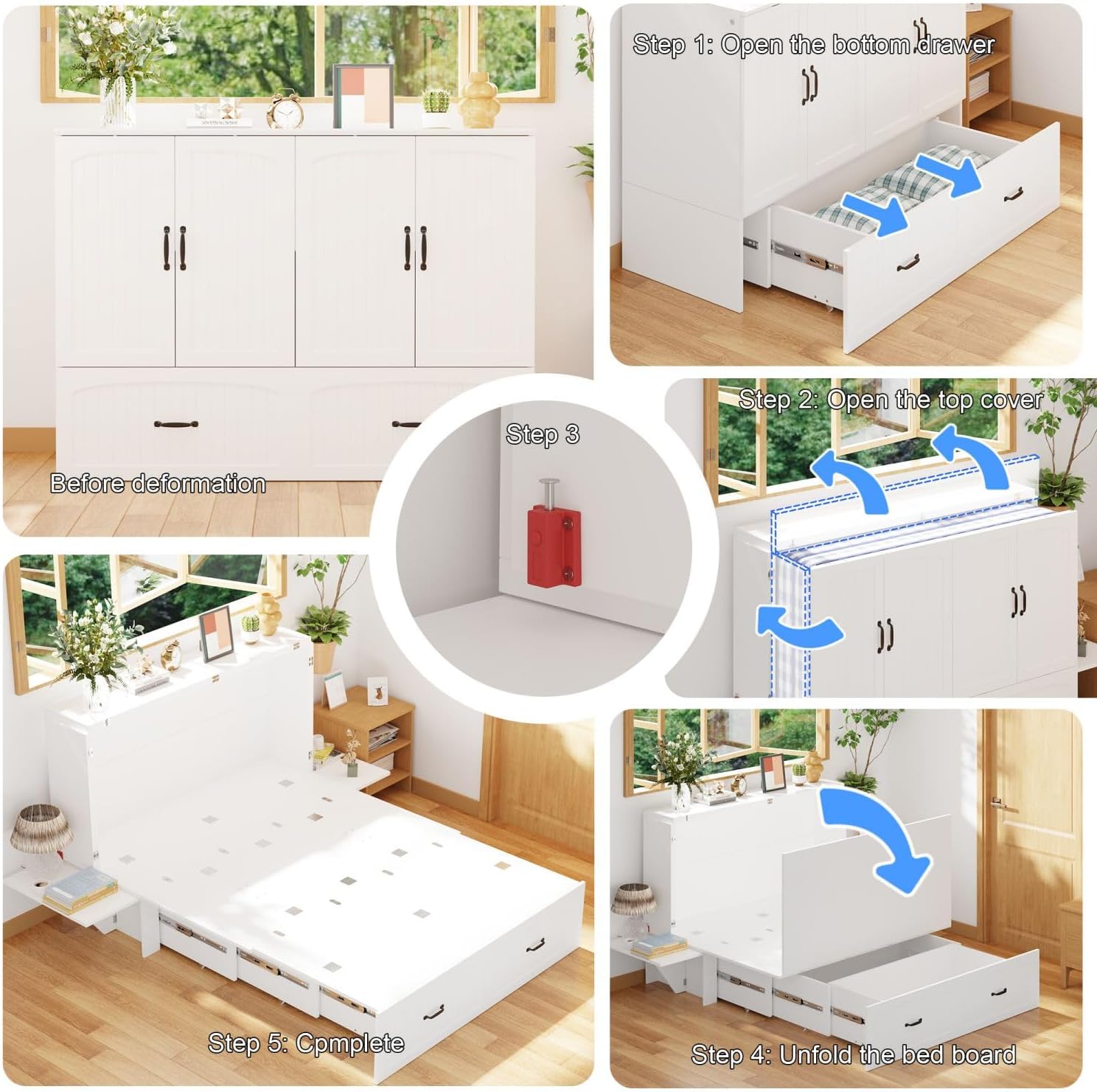

Image: Visual guide illustrating the five main steps to transform the cabinet into a bed.

Image: Close-up view of the smooth-rolling wheel mechanism on the bed's base.

Image: Detail of the metal drawer slide, ensuring smooth and quiet operation of the storage drawer.

6. Operating Instructions

Transforming from Cabinet to Bed:

1. Step 1: Open the Bottom Drawer. Pull out the integrated bottom drawer. This often reveals the initial part of the bed frame or provides access for the next step.
2. Step 2: Open the Top Cover. Unlatch and lift the top section of the cabinet, which typically folds upwards and backwards to reveal the bed's headboard area.
3. Step 3: Prepare for Unfolding. Ensure the area in front of the cabinet is clear.
4. Step 4: Unfold the Bed Board. Gently pull the main bed platform forward and down. The mechanism will guide the bed board to unfold into a horizontal position.
5. Step 5: Complete Setup. Once fully extended, ensure the bed is stable. Place your mattress (up to 6 inches thick, not included) onto the bed platform.

Transforming from Bed to Cabinet:

1. Remove the mattress from the bed platform.
2. Lift the bed platform upwards, guiding it back into the cabinet.
3. Fold down the top cover and secure any latches.
4. Push the bottom drawer back into the cabinet until it is fully closed.

Image: An aerial view of the unfolded Murphy bed, highlighting its full size and the surrounding space.

Image: Detail of the top shelf, suitable for decorative items or small essentials when the bed is unfolded.

Image: Detail of the convenient side shelf, perfect for holding books or a lamp.

Image: The Murphy bed in its cabinet form, with an illustration indicating that the mattress is not included.

7. Maintenance and Care

• Cleaning Surfaces: Wipe down the cabinet and bed surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Mechanism Check: Periodically inspect the folding mechanism, hinges, and drawer slides for any signs of wear or looseness. Tighten screws as needed.
• Drawer Maintenance: Keep the drawer tracks clean and free of debris to ensure smooth operation.
• General Care: Protect the furniture from direct sunlight and extreme temperature changes to prevent warping or fading.

8. Troubleshooting

• Difficulty Assembling:

  Ensure all parts are correctly identified and oriented according to the instruction manual. Some steps may require two people. If parts seem misaligned, re-check the previous steps.
• Parts Missing or Damaged:

  Verify all boxes have arrived, as the product ships in two separate packages. If parts are genuinely missing or damaged upon arrival, contact FAMAPY customer support with your purchase details and a description of the issue.

• Bed Mechanism Not Smooth:

  Check that all hinges and moving parts are properly installed and tightened. Ensure no obstructions are preventing the smooth folding/unfolding action. Lubrication may be applied to moving metal parts if necessary, using a silicone-based lubricant.

• Drawer Sticking:

  Inspect the drawer slides for any debris or misalignment. Ensure the wheels are clean and rolling freely. Re-tighten any loose screws on the drawer or its slides.

9. Specifications

10. Warranty and Support

For specific warranty information regarding your FAMAPY Full Murphy Bed, please refer to the documentation included with your purchase or contact FAMAPY directly.

If you require assistance with assembly, have questions about product functionality, or need to report missing/damaged parts, please contact the seller or FAMAPY customer support. Provide your purchase details (order number, date of purchase, and product model) to expedite assistance.

Manufacturer: FAMAPY
