1. Introduction
This instruction manual provides essential information for the safe and effective installation, maintenance, and troubleshooting of your YOKAMU replacement washer belts. These belts are designed for compatibility with Maytag A612 washing machines. Please read this manual thoroughly before attempting any installation or maintenance procedures.
2. Safety Information
Always prioritize safety when working with appliances. Failure to follow these safety guidelines may result in personal injury or damage to the appliance.
- Disconnect Power: Before beginning any repair or maintenance, always unplug the washing machine from its power source to prevent electrical shock.
- Wear Protective Gear: Use work gloves to protect your hands from sharp edges or moving parts.
- Follow Manufacturer Guidelines: Refer to your washing machine's original service manual for specific disassembly and reassembly instructions.
- Proper Tools: Use appropriate tools for the job to avoid damage to components.
3. Product Overview
The YOKAMU replacement belt kit includes two belts essential for the operation of your Maytag A612 washing machine: a drive belt and a pump belt.
3.1 Included Components
- 1 x Washer Drive Belt (Replaces Part Numbers: 211125, ER211125, P50-021, LB126, 2-11125, AP4025855)
- 1 x Washing Machine Pump Belt (Replaces Part Numbers: 211124, ER211124, P50-020, LB125, 2-11124, AP4024902)
3.2 Compatibility
These replacement belts are compatible with Maytag A612 washing machine models.

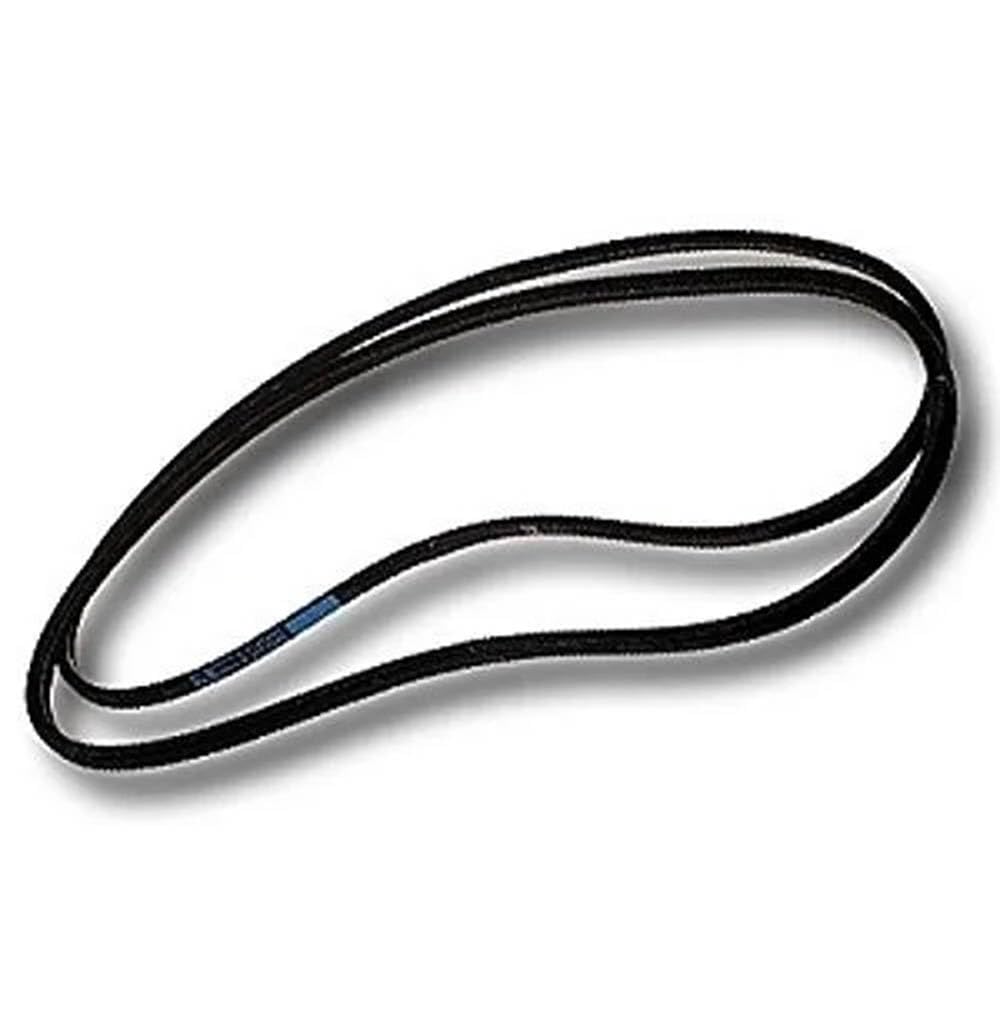

Image 1: YOKAMU Replacement Washer Belts. This image shows the two black rubber belts, one slightly longer and wider than the other, coiled and ready for installation.
Image 2: Close-up view of the YOKAMU Washer Belts. The image highlights the texture and material of the belts, showing their durable construction.
4. Installation Guide
This section provides general steps for replacing the washer belts. Specific disassembly procedures for your Maytag A612 model may vary. Always consult your appliance's service manual for detailed instructions.
4.1 Tools Required
- Screwdriver set (Phillips and flathead)
- Socket wrench set (if applicable for panel removal)
- Work gloves
4.2 Step-by-Step Installation
- Disconnect Power: Unplug the washing machine from the electrical outlet. Turn off the water supply valves.
- Access Belts: Depending on your Maytag A612 model, you may need to remove the front panel, back panel, or tilt the machine to access the motor and pump assembly where the belts are located. Refer to your washer's service manual for exact panel removal instructions.
- Identify Belts: Locate the drive belt (typically larger, connecting the motor to the transmission) and the pump belt (smaller, connecting the motor to the water pump).
- Remove Old Belts: Carefully remove the old belts. This may involve releasing tensioners or simply rolling them off the pulleys. Note how they were routed for reinstallation.
- Install New Belts: Place the new YOKAMU belts onto their respective pulleys. Ensure they are seated correctly and not twisted. The drive belt is 42 inches long x 1/2 inch wide, and the pump belt is 41 1/2 inches long x 3/8 inch wide.
- Tension Adjustment: If your model has adjustable tensioners, ensure the belts are properly tensioned according to your washer's service manual. Belts should be snug but not overly tight.
- Reassemble: Reattach any panels or components removed during access. Ensure all screws and fasteners are securely tightened.
- Test Operation: Plug the washing machine back into the electrical outlet and turn on the water supply. Run a short cycle to verify proper operation and check for any unusual noises or vibrations.
5. Maintenance
Regular inspection of your washer belts can extend their lifespan and prevent unexpected breakdowns.
- Visual Inspection: Periodically inspect the belts for signs of wear, such as cracks, fraying, glazing, or stretching.
- Tension Check: Ensure belts maintain proper tension. Loose belts can slip, while overly tight belts can strain the motor and pulleys.
- Cleanliness: Keep the belt area free from lint, debris, and detergent residue, which can cause premature wear.
- Replacement: Replace belts immediately if any signs of significant wear or damage are observed.
6. Troubleshooting
If your washing machine is experiencing issues related to belt operation, consider the following:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Washer not spinning or agitating | Broken or slipped drive belt | Inspect and replace drive belt if damaged. Ensure proper tension. |
| Loud squealing or grinding noise during operation | Worn, loose, or misaligned belts | Check belt tension and alignment. Replace belts if worn. |
| Water not draining completely | Broken or slipped pump belt | Inspect and replace pump belt if damaged. Ensure proper tension. |
| Burning rubber smell | Slipping or overheating belt | Immediately turn off the washer. Inspect belts for damage and proper tension. Replace if necessary. |
7. Specifications
Detailed specifications for the YOKAMU replacement washer belts:
- Drive Belt Dimensions: 42 Inches Long x 1/2 Inch Wide
- Pump Belt Dimensions: 41 1/2 Inches Long x 3/8 Inch Wide
- Manufacturer Part Number: YG04002
- Replaces Drive Belt Part Numbers: 211125, ER211125, P50-021, LB126, 2-11125, AP4025855
- Replaces Pump Belt Part Numbers: 211124, ER211124, P50-020, LB125, 2-11124, AP4024902
8. Warranty and Support
YOKAMU stands behind the quality of its products.
8.1 Warranty Information
Every YOKAMU product includes a 30-day money-back guarantee and an 18-month worry-free warranty. This warranty covers defects in materials and workmanship under normal use.
8.2 Customer Support
If you have any questions regarding the compatibility, installation, or performance of your YOKAMU replacement belts, or if you need to claim warranty service, please contact YOKAMU customer support. When contacting support, please provide your washing machine's model and serial number if you are unsure about compatibility.
For assistance, please refer to the contact information provided with your purchase or visit the official YOKAMU website.
