MAIWO 4 Bay Hard Drive Enclosure User Manual

Introduction

This manual provides comprehensive instructions for the setup, operation, and maintenance of your MAIWO 4 Bay Hard Drive Enclosure. This external enclosure is designed to house up to four 3.5-inch or 2.5-inch SATA HDDs/SSDs, offering a maximum storage capacity of 96TB (24TB per drive). It features a USB 3.1 Type-C interface for high-speed data transmission up to 5Gbps and an integrated HDMI port for 4K Ultra HD video output. The robust aluminum alloy housing and dual adjustable fans ensure efficient heat dissipation for optimal drive performance and longevity.

Figure 1: MAIWO 4 Bay Hard Drive Enclosure

Package Contents

Please verify that all items listed below are included in your package:

• 1 x MAIWO 4 Bay Hard Drive Enclosure for 3.5 2.5 inch SATA HDD
• 1 x 12V/7A Power Adapter
• 1 x USB-C to USB-C Cable
• 1 x USB-C to USB-A Cable
• Screws for drive installation
• Screwdriver
• User Manual (this document)

Setup and Installation

1. Drive Compatibility

The enclosure supports 2.5-inch and 3.5-inch SATA HDDs/SSDs. Ensure your drives are SATA compatible. IDE drives are not supported.

Figure 2: Supported Drive Types

2. Hardware Installation

Follow these steps to install your hard drives into the enclosure:

1. Pull out the hard drive tray: Gently remove the hard drive tray from the enclosure.
2. Insert the drive: Carefully slide your 3.5-inch or 2.5-inch SATA HDD/SSD into the designated slot on the tray.
3. Fix hard drive with screws: Secure the drive to the tray using the provided screws and screwdriver.
4. Fix the hard drive tray: Ensure the tray is properly aligned and secured.
5. Insert the hard drive tray into enclosure: Slide the tray back into the enclosure until it clicks into place.
6. Fix the hard drive tray with screws: Secure the tray to the enclosure using the remaining screws on the bottom.

Figure 3: Enclosure Dimensions and Port Layout

Figure 4: Drives Installed in Enclosure

3. Connecting to Your PC

To connect the enclosure to your computer:

1. Connect the power adapter: Plug the 12V/7A power adapter into the DC 12V port on the back of the enclosure and then into a power outlet.
2. Connect to PC: Use either the provided USB-C to USB-C cable or the USB-C to USB-A cable to connect the enclosure's Type-C port to your computer's USB port.
3. Power on: Turn on the main power switch on the back of the enclosure. You can also individually power on/off each drive using their respective switches.

Figure 5: Connecting Power and Data Cables

4. Drive Initialization and Formatting

For new drives or drives not recognized by your system, you may need to initialize and format them. Important: Backup any important data on your drives before proceeding with initialization or formatting.

Video: Installation, Drive Initialization, and HDMI Output Guide
This comprehensive video provides a visual walkthrough of the hardware installation process, how to initialize your drives for use, and how to utilize the integrated HDMI output feature.

Video 1: MAIWO 4 Bay Enclosure Installation, Drive Setup, and HDMI Usage

General Steps for Windows (refer to video for detailed steps):

1. Right-click on 'This PC' (or 'Computer') and select 'Manage'.
2. In 'Computer Management', navigate to 'Disk Management'.
3. Locate your newly connected drive(s). They will likely appear as 'Unallocated' or 'Not Initialized'.
4. Right-click on the disk and select 'Initialize Disk'. Choose GPT for drives larger than 2TB, or MBR for drives 2TB or smaller (MBR is also compatible with older Windows XP systems).
5. Once initialized, right-click on the unallocated space and select 'New Simple Volume'. Follow the wizard to create a new partition and format it (NTFS is recommended for Windows).

Operating Instructions

1. Power Management

The enclosure features a main power switch and individual power switches for each drive bay. This allows you to power on or off specific drives without affecting others, enhancing power efficiency and drive longevity.

Figure 6: HDD LED Indicators

The LED indicators on the top of the enclosure correspond to each drive bay (HDD1, HDD2, HDD3, HDD4). A lit LED indicates the drive is powered on and active.

2. Data Transfer

The USB 3.1 (Type-C) interface provides a theoretical transmission speed of up to 5Gbps, enabling fast and efficient data transfer between your computer and the installed drives.

Figure 7: USB 3.1 Data Transfer Speed

3. HDMI Output (4K UHD)

The integrated HDMI port supports 4K Ultra HD video output, allowing you to connect the enclosure to a monitor or TV for an extended display. This feature is ideal for media playback or extending your workspace. Refer to Video 1 in the "Setup and Installation" section for a visual demonstration of HDMI connectivity.

Figure 8: HDMI Connectivity Example

4. Heat Dissipation

The enclosure is equipped with two level-adjustable cooling fans and front/rear cooling holes to maintain optimal operating temperatures for your drives. This prevents overheating and ensures stable performance.

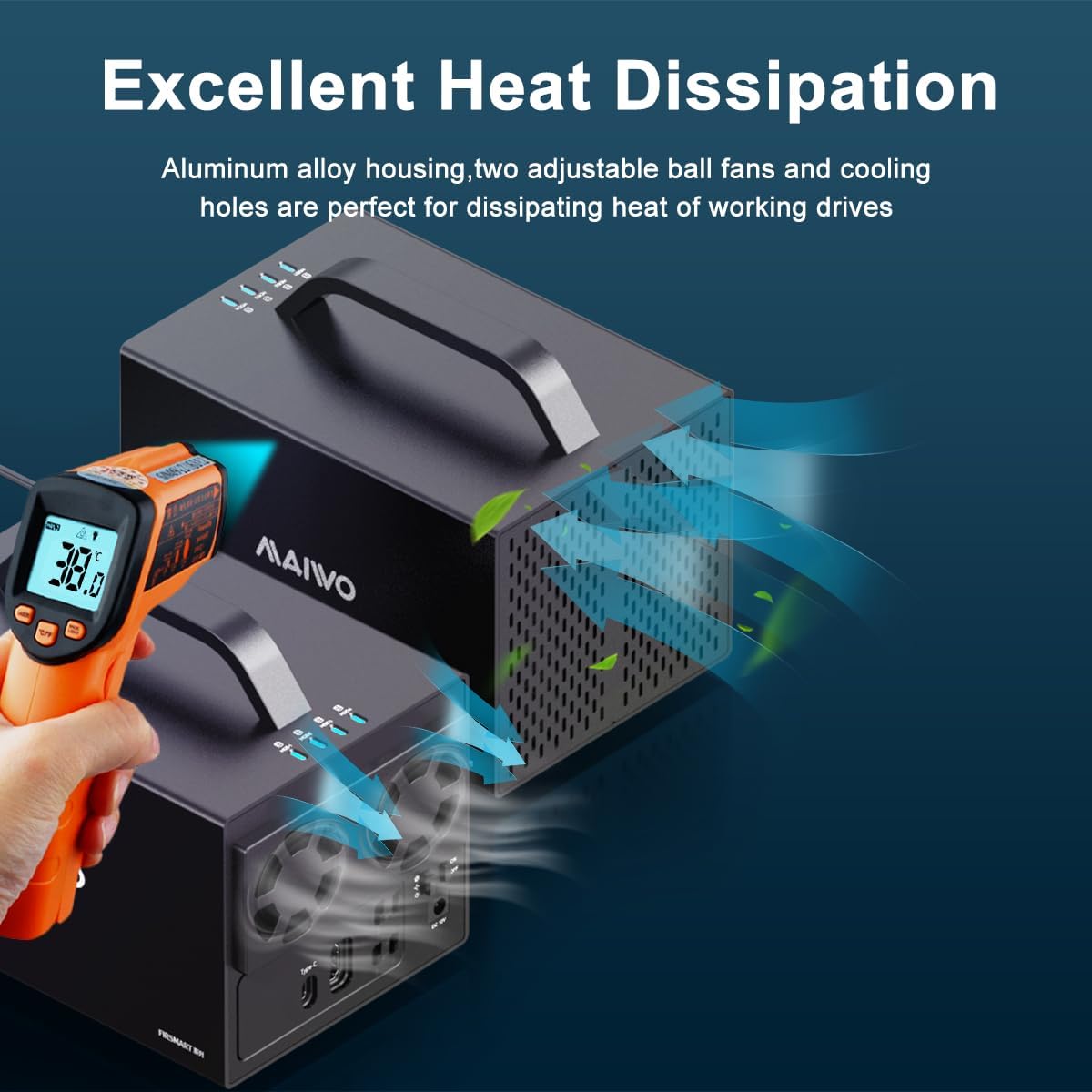

Figure 9: Efficient Heat Dissipation System

Specifications

Maintenance

To ensure the longevity and optimal performance of your MAIWO 4 Bay Hard Drive Enclosure:

• Cleaning: Regularly clean the exterior of the enclosure with a soft, dry cloth. Use compressed air to clear dust from the fan vents to maintain efficient cooling.
• Environment: Operate the enclosure in a well-ventilated area, away from direct sunlight, excessive heat, and moisture.
• Cable Management: Ensure all cables are securely connected and not under strain.
• Safe Ejection: Always safely eject or unmount drives from your operating system before powering off the enclosure or disconnecting cables to prevent data corruption.

Troubleshooting

If you encounter issues with your MAIWO 4 Bay Hard Drive Enclosure, refer to the following common solutions:

• Drives Not Recognized:
  • Ensure all power and data cables are securely connected.
  • Verify that the main power switch and individual drive switches are in the 'ON' position.
  • Check Disk Management (Windows) or Disk Utility (macOS) to see if the drives appear as 'Unallocated' or 'Not Initialized'. If so, initialize and format them as described in the "Drive Initialization and Formatting" section.
  • Try rebooting your computer with the enclosure connected and powered on. Some systems may require this for initial recognition.
  • Test with different USB ports or cables on your computer.
• Frequent Disconnections:
  • Ensure the power adapter is providing stable power (12V/7A).
  • Check for loose cable connections.
  • Verify that your computer's USB port is functioning correctly.
  • Ensure the enclosure is placed on a stable surface and not subject to vibrations.
• Slow Data Transfer Speeds:
  • Confirm you are connected to a USB 3.0/3.1 port on your computer. Older USB 2.0 ports will result in slower speeds.
  • Ensure the data cable used is rated for USB 3.1 speeds.
  • Check the health and performance of the installed hard drives.
• Overheating:
  • Ensure the cooling fans are operating. Adjust fan speed if applicable.
  • Clear any obstructions from the fan vents and cooling holes.
  • Place the enclosure in an area with good airflow.

Warranty and Support

MAIWO products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official MAIWO website. If you require technical assistance or have questions not covered in this manual, please contact MAIWO customer support through their official channels.

You can visit the MAIWO Store on Amazon for more product information and support resources.
