ComfyStyle Bifold Shower Door User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your ComfyStyle Bifold Shower Door. Please read all instructions carefully before beginning installation to ensure proper function and safety. Retain this manual for future reference.

Safety Precautions:

• Always wear safety glasses during installation.
• Handle glass panels with extreme care. Tempered glass, while strong, can shatter if struck at the edges.
• Ensure all measurements are taken accurately after walls are finished (e.g., tiled).
• Two people are recommended for installation due to the weight and size of the glass panels.
• Use appropriate tools and hardware as specified.

Package Contents

Verify that all components are present before beginning installation. If any parts are missing or damaged, contact ComfyStyle customer support.

• Tempered Glass Panels (Bifold)
• Aluminum Frame Components (Brushed Nickel Finish)
• Reinforced Hinges
• Door Handle (304 Stainless Steel)
• Magnet Seal Strip
• Side Seal Strips
• Bottom Seal Strip
• Installation Hardware (screws, anchors, etc.)
• Instruction Manual

Setup and Installation

This section outlines the steps for installing your bifold shower door. Ensure your shower opening width is between 32 and 33.9 inches and height is 72 inches for this model.

Pre-Installation Notes:

• All measurements must be taken after walls are finished (e.g., tile, backer board).
• Ensure the shower base or curb is level.
• Gather necessary tools: measuring tape, level, drill, screwdriver, caulk gun, silicone sealant, safety glasses.

Step-by-Step Installation:

1. Prepare the Opening: Measure the width and height of your shower opening at multiple points to confirm it falls within the specified range. Ensure the walls are plumb and the curb is level.
2. Determine Door Orientation: The bifold shower door allows for reversible installation, meaning it can be configured for either left-hand or right-hand opening. Decide which orientation best suits your bathroom layout.

   Illustration depicting how the shower door can be installed for either left-hand or right-hand opening, offering installation flexibility.

3. Install Wall Profiles: Attach the vertical aluminum wall profiles to the finished walls using the provided screws and anchors. Use a level to ensure they are perfectly vertical. The wall profiles feature an adjustment mechanism to accommodate slight variations in wall plumbness.

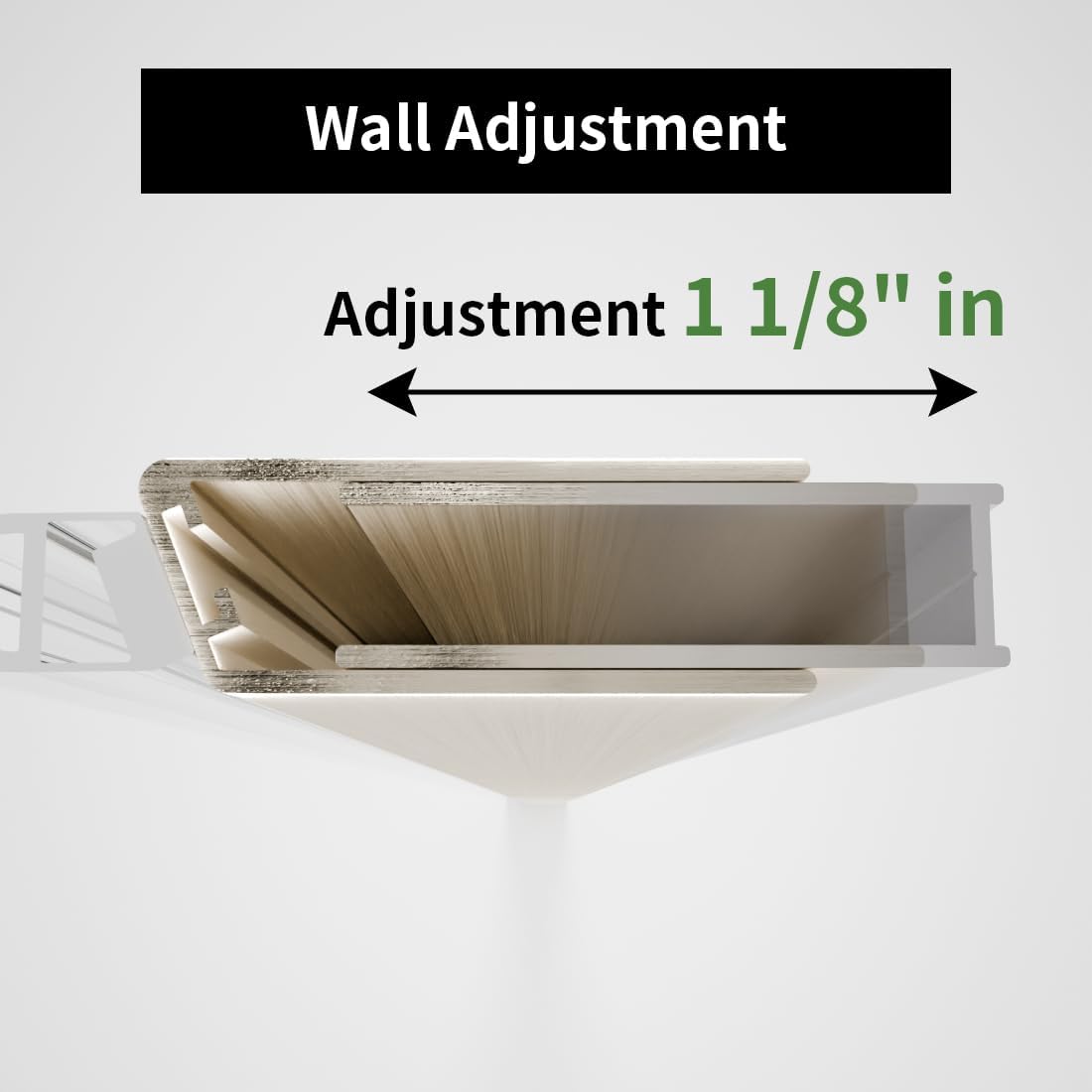

   Illustration demonstrating the wall adjustment capability, allowing for up to 1 1/8 inches of adjustment to fit varying wall conditions.
4. Assemble Glass Panels and Hinges: Carefully attach the reinforced hinges to the tempered glass panels according to the instructions. These hinges allow the door to fold and rotate up to 180 degrees.

   A detailed view of the durable, reinforced hinge that allows the shower door to fold smoothly and rotate 180 degrees.

5. Mount Door Assembly: Carefully lift and position the assembled glass door into the installed wall profiles. Secure the door assembly to the wall profiles using the designated hardware.
6. Adjust for Uneven Ground: The door features a ground adjustment function to compensate for uneven shower bases or curbs. Adjust as needed to ensure the door is level and operates smoothly.

   An illustration showing the 'Ground Adjustment' mechanism, which allows the door to be raised or lowered to compensate for uneven floor surfaces.

7. Install Seals: Apply the bottom seal strip to the bottom edge of the door and the side seal strips to the vertical edges where the door meets the wall profiles. Ensure the magnet seal strip is correctly aligned for a secure closure. These seals are crucial for a water-tight design.

   An annotated diagram highlighting the magnet seal strip, side seal strip, and bottom seal strip, which ensure a watertight enclosure.
8. Attach Handle: Install the 304 stainless steel handle to the designated holes on the glass panel.

   A detailed image of the 304 stainless steel handle with a brushed nickel finish, designed for comfortable grip and durability.

9. Seal with Silicone: Apply a continuous bead of high-quality silicone sealant along the exterior joints of the wall profiles and the shower base to prevent water leakage. Allow the sealant to cure completely before using the shower (typically 24-48 hours, refer to sealant manufacturer's instructions).

Operation

Your ComfyStyle Bifold Shower Door is designed for smooth and easy operation. To open the door, gently pull the handle, allowing the panels to fold inward. To close, push the handle until the magnet seal engages, securing the door in the closed position.

The bifold shower door shown partially open, demonstrating its folding mechanism and space-saving design.

Maintenance

Regular cleaning and maintenance will ensure the longevity and pristine appearance of your shower door.

Cleaning the Glass:

The glass surface features an easy-to-clean paint coating that resists watermarks and reduces the accumulation of water stains and sewage. For daily cleaning, wipe the glass with a soft cloth or squeegee after each use to remove water droplets. For deeper cleaning, use a non-abrasive glass cleaner and a soft cloth. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the coating and finish.

Cleaning the Frame and Hardware:

Wipe the brushed nickel aluminum frame and stainless steel handle with a soft, damp cloth. For stubborn spots, use a mild, non-abrasive cleaner specifically designed for brushed nickel finishes. Rinse thoroughly and dry immediately to prevent water spots. Do not use abrasive cleaners, steel wool, or cleaners containing ammonia or bleach.

Seal Maintenance:

Periodically inspect the bottom and side seal strips for wear or damage. If seals become discolored, cracked, or lose their effectiveness, they may need to be replaced to maintain a watertight enclosure. Ensure the magnet seal strip is free of debris to allow for proper closure.

Troubleshooting

Refer to this section for solutions to common issues you might encounter.

• Water Leakage:
  • Check if the bottom and side seal strips are properly installed and free of gaps.
  • Ensure the silicone sealant applied during installation is intact and not cracked or peeling. Reapply sealant if necessary.
  • Verify that the door closes completely and the magnet seal engages properly.
• Door Not Closing Properly:
  • Inspect the magnet seal strip for any obstructions or damage.
  • Check the alignment of the door panels. Minor adjustments might be possible using the wall adjustment feature.
  • Ensure the ground adjustment is correctly set for a level closure.
• Door Feels Flimsy or Wobbly:
  • Recheck all mounting screws in the wall profiles to ensure they are securely tightened.
  • Verify that the wall profiles are plumb and securely fastened to the wall.
  • Confirm that the hinges are properly secured to the glass panels and operating correctly.
• Difficulty Folding/Unfolding:
  • Check hinges for any debris or stiffness. Lubricate with a silicone-based spray if necessary.
  • Ensure no objects are obstructing the door's path.

Specifications

The following table provides key specifications for your ComfyStyle Bifold Shower Door.

A technical drawing illustrating the various dimensions (height, width, installation width, opening) for different models of the bifold shower door.

Warranty and Support

ComfyStyle products are manufactured to high-quality standards and are backed by a limited warranty against defects in materials and workmanship. For specific warranty details, please refer to the warranty card included with your product or contact customer support.

For technical assistance, missing parts, or any questions regarding your ComfyStyle Bifold Shower Door, please contact our customer support team. Contact information can typically be found on our official website or on the product packaging.
