XvuaTeIw WD21X10490 Dishwasher Door Latch Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the XvuaTeIw WD21X10490 Dishwasher Door Latch. This component is a replacement part designed to ensure proper door closure and operation of compatible dishwashers.

2. Safety Information

WARNING: Before attempting any repair or installation, always disconnect power to the dishwasher by unplugging the appliance or shutting off the house circuit breaker. Failure to do so can result in serious injury or electrical shock.

• Wear appropriate personal protective equipment, such as work gloves, to protect your hands during installation.
• If you are unsure about any step of the installation process, consult a qualified appliance technician.
• Keep small parts away from children.

3. Product Overview

The WD21X10490 Dishwasher Door Latch is a critical component that secures the dishwasher door during operation. It is constructed from durable, moisture-proof material and features a powerful spring mechanism for reliable performance.

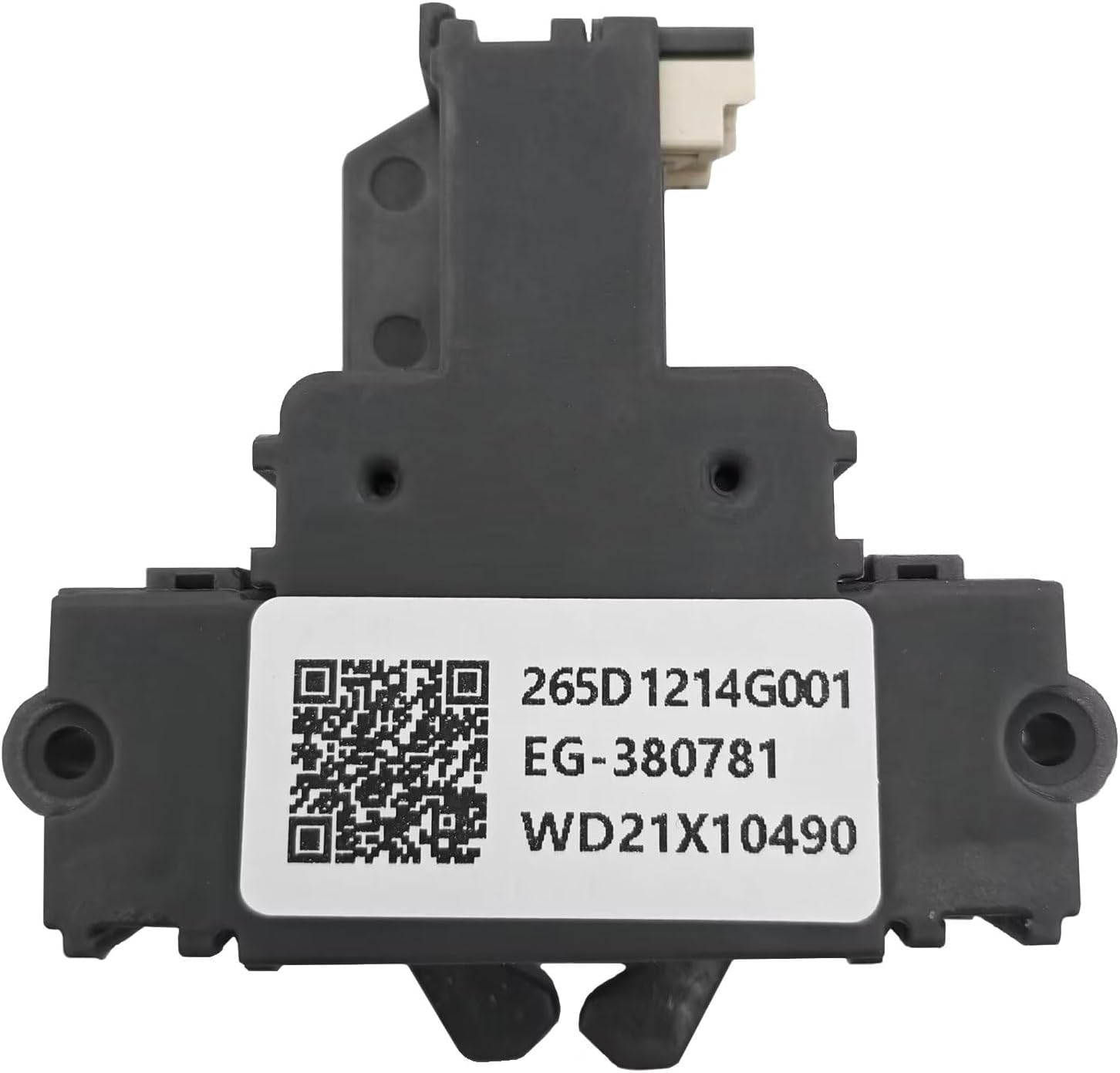

Image 3.1: The XvuaTeIw WD21X10490 Dishwasher Door Latch.

Image 3.2: Close-up view of the latch mechanism, highlighting the connector and internal spring.

3.1 Dimensions

Image 3.3: The approximate dimensions of the WD21X10490 Dishwasher Door Latch are 2.84 inches by 2.84 inches.

4. Compatibility

The WD21X10490 Dishwasher Door Latch is a replacement for various part numbers, including W11239857, 997693, AP5668411, PS6447681, 265D1214G001, EG-380781, EAP6447681, and 20152933007.

It is compatible with numerous GE dishwasher models across the ADT, CDT, DDT, GDF, GDP, GDT, PDF, PDP, PDT, QDP, and ZDT series. Please refer to the images below for a partial list of compatible models. It is recommended to verify your specific dishwasher model number before purchase.

Image 4.1: Compatible GE dishwasher models including ADT, CDT, DDT, GDT, PDT, and ZDT series.

Image 4.2: Additional compatible GE dishwasher models including GDF, PDF, GDP, PDP, and QDP series.

5. Installation Instructions

Replacing the dishwasher door latch is a straightforward process. Follow these steps carefully:

1. Safety First: Ensure the dishwasher is completely disconnected from its power source.
2. Open the dishwasher door and locate the existing door latch assembly, typically at the top center of the door frame.
3. Carefully remove any screws or fasteners securing the old latch in place.
4. Disconnect the electrical wiring harness from the old latch. Note the orientation of the wires if necessary.
5. Remove the old door latch.
6. Connect the electrical wiring harness to the new WD21X10490 door latch.
7. Position the new latch in the correct location and secure it with the screws or fasteners. Ensure it is firmly seated.
8. Close the dishwasher door to test the latch mechanism. It should close securely.
9. Reconnect power to the dishwasher and test its operation.

5.1 Installation Video Guide

6. Operating Instructions

Once installed, the WD21X10490 Dishwasher Door Latch operates automatically. When the dishwasher door is closed, the latch engages, securing the door and allowing the dishwasher to begin its cycle. Ensure the door is fully closed and latched before starting any wash program.

7. Maintenance

The dishwasher door latch is designed for long-term reliability and generally requires minimal maintenance. Periodically inspect the latch for any signs of wear, damage, or debris accumulation. Clean the area around the latch with a soft, damp cloth if necessary. Avoid using harsh chemicals or abrasive cleaners.

8. Troubleshooting

If your dishwasher is experiencing issues related to the door latch, consider the following common symptoms and potential solutions:

• Door Latch Failure: If the door does not stay securely closed, the latch mechanism may be worn or damaged. Replacement is typically required.
• Door Won't Close: Check for any obstructions preventing the door from fully closing. If no obstructions are present, the latch may be misaligned or faulty.
• Dishwasher Will Not Start: Many dishwashers have a safety interlock that prevents operation if the door is not properly latched. If the door is closed but the dishwasher won't start, the latch sensor might be malfunctioning, indicating a need for replacement.

If troubleshooting does not resolve the issue, professional assistance may be required.

9. Specifications

10. Warranty and Support

For information regarding warranty coverage or technical support, please refer to the product packaging or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
