Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your KRISTALLUM LED Lighted Medicine Cabinet. Designed for modern bathrooms, this cabinet offers integrated lighting, smart features, and ample storage. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Image: KRISTALLUM LED Lighted Medicine Cabinet, showcasing its sleek design and interior storage.
Key Features
- Front & Backlit LED Lighting: Provides comprehensive illumination for various tasks.
- Dimmable & Color Temperature Control: Adjust brightness and choose from three color temperatures (Warm, Natural, Cold) for optimal ambiance.
- Integrated Clock & Temperature Display: Conveniently view time and room temperature directly on the mirror surface.
- Built-in USB Outlets: Two electrical outlets and USB ports (USB-A and USB-C) for charging devices and powering grooming tools.
- Anti-Fog Technology: Ensures a clear reflection even after hot showers.
- Shatter-Proof Mirror & Tempered Glass Shelves: Enhanced safety and durability.
- IP44 Waterproof Rating: Suitable for bathroom environments.
- Adjustable Interior Shelves: Customize storage space to fit various item sizes.
- Wireless Remote Control: Conveniently manage lighting functions without touching the mirror.
- BLUM 180° Soft Close Hinges: Ensures smooth and quiet door operation, protecting the mirror.
- 3x Magnifier Mirror: Positioned on the door for detailed grooming.
- Sensor-Activated Interior Light: Automatically illuminates when the cabinet door is opened.
Image: Anti-Fog and Waterproof features, highlighting safety and durability.
Image: Smart Organizing features, including adjustable shelves and built-in outlets.
Image: All-side reflection capability for comprehensive viewing.
Setup and Installation
The KRISTALLUM medicine cabinet supports both recessed and surface mounting. Due to its weight (50 lbs), professional installation is recommended. Ensure the mounting surface is structurally sound.
Mounting Options:
- Recessed Installation: For a sleek, built-in look, remove the side mirrors and install the cabinet into a wall opening.
- Surface Installation: For a standalone appearance, keep the side mirrors in place and mount the cabinet directly onto the wall surface.
Installation Steps:
- Fix the Bottom Mounting Bracket: Securely attach the bottom mounting bracket to the wall at the desired height.
- Slide the Cabinet: Carefully slide the medicine cabinet onto the bottom mounting bracket.
- Fix the Top Mounting Bracket: Secure the top mounting bracket to the wall, ensuring the cabinet is stable and level.
Image: Easy installation guide for the medicine cabinet.

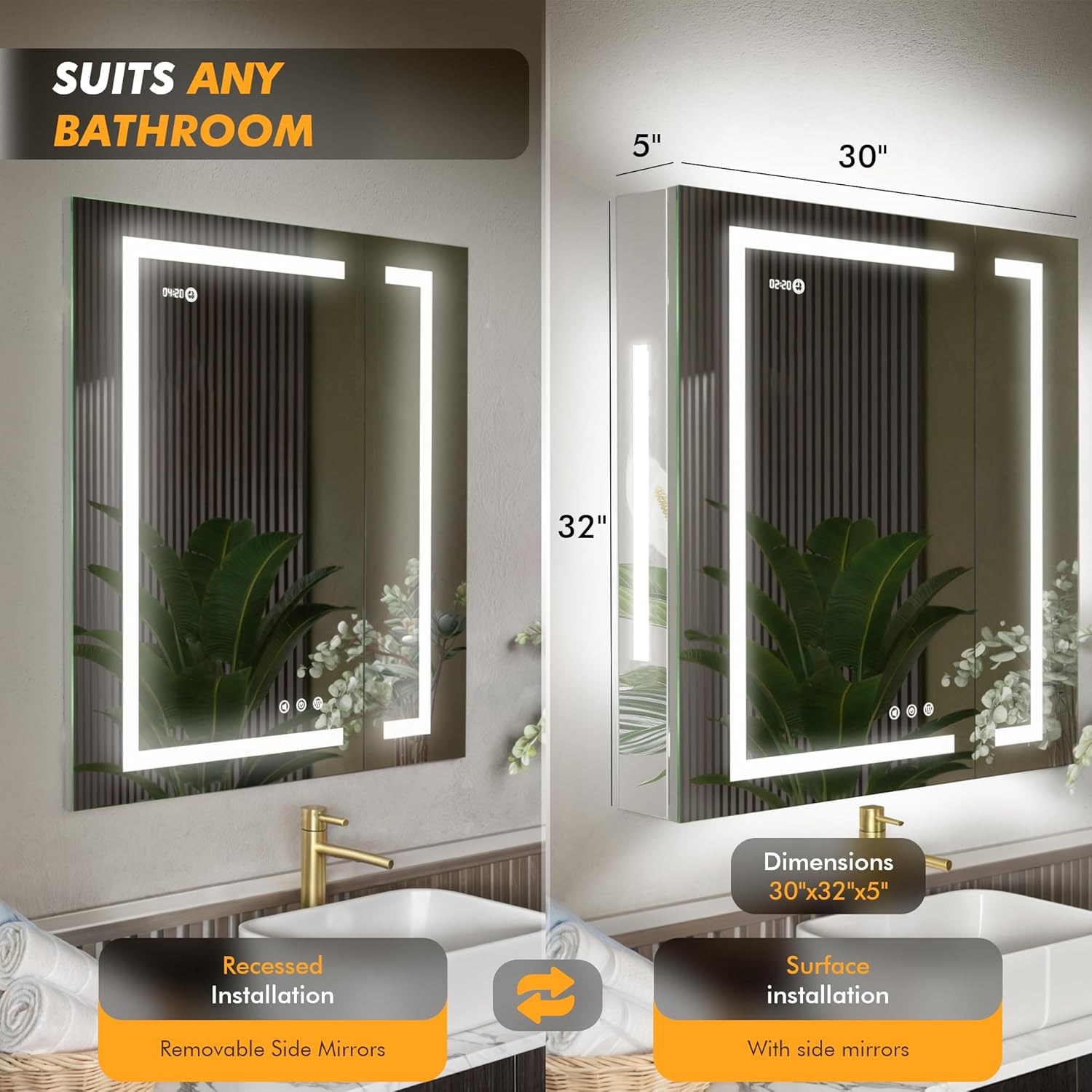

Image: Recessed vs. Surface Installation options.
Operating Instructions
Your medicine cabinet features intuitive touch controls and a wireless remote for easy operation.
Touch Controls:
The mirror surface has touch-sensitive buttons for various functions:
- Power On/Off & Brightness: Tap to turn the light on/off. Long press to adjust brightness (dimmable). The button illuminates white when powered.
- Color Temperature Control: Press to cycle through three color temperatures: Warm (3000K), Natural (4000K), and Cold (6000K).
- Anti-Fog Function: Press to activate the defogger. The button light indicates when the demister is on. Use before hot showers for a clear mirror.
Wireless Remote Control:
The included wireless remote provides convenient control over lighting functions:
- ON/OFF Button: Turns the mirror lights on or off.
- Brightness Adjustment: Dims or brightens the light.
- Color Adjustment: Changes the color temperature.
- The remote has a memory function, retaining your last settings. It can be detached from its wall-mounted holder for flexible use.
Additional Features:
- Time and Temperature Display: The integrated display shows current time and room temperature.
- Sensor-Activated Interior Light: The light inside the cabinet automatically turns on when the door is opened, providing clear visibility of contents.
Image: Touch-sensitive controls for anti-fog function.
Image: Wireless remote control for light settings.
Maintenance
Regular maintenance will ensure the longevity and optimal performance of your medicine cabinet.
- Cleaning the Mirror: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the edges.
- Cleaning the Cabinet Interior: Wipe down shelves and interior surfaces with a damp cloth and mild detergent. Dry thoroughly.
- Electrical Components: Ensure the cabinet is unplugged or the power supply is off before cleaning near electrical outlets or USB ports. Do not use excessive water.
- Anti-Fog Function: The anti-fog pad is designed for long-term use. If fogging persists, ensure the function is activated and the mirror surface is clean.
- Hinges: The BLUM soft-close hinges are designed for durability and require minimal maintenance. Avoid applying excessive force to the doors.
- Water Resistance: The cabinet has an IP44 waterproof rating, meaning it is protected against splashing water. However, avoid direct water jets or submersion.
Image: Construction materials for durability and resistance.
Troubleshooting
If you encounter issues with your medicine cabinet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights not turning on. | No power, loose connection, faulty switch. | Check power supply. Ensure all connections are secure. Try using both touch control and remote. |
| Mirror is fogging. | Anti-fog function not activated. | Activate the anti-fog function using the touch button on the mirror. Allow a few minutes for it to take effect. |
| Touch controls unresponsive. | Power issue, temporary glitch. | Ensure power is connected. Try turning off and on the main power supply to reset. Clean the mirror surface to ensure no obstructions. |
| Remote control not working. | Dead battery, out of range. | Replace the remote control battery. Ensure you are within effective range of the cabinet. |
| Interior light not working. | Sensor obstruction, power issue. | Ensure nothing is blocking the sensor inside the cabinet. Check power supply. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Attribute | Detail |
|---|---|
| Brand | KRISTALLUM |
| Model Name | LBCKRISTALLUM |
| Size | 30 x 32 inches |
| Product Dimensions | 5"D x 20"W x 32"H (Note: Product dimensions from data are 5"D x 20"W x 32"H, while size is 30x32. Clarifying based on product title and image showing 30"W) |
| Item Weight | 50 Pounds |
| Color | Silver |
| Mounting Type | Wall Mount (Recessed or Surface) |
| Special Feature | Built-in Defogger, Dimmable, Color Temperature Control, USB Outlets, Clock & Temp Display |
| Included Components | Shelves |
| Manufacturer | MITOBA DESIGN |
| Date First Available | September 5, 2024 |
Warranty and Support
For any product-related inquiries, technical assistance, or warranty claims, please contact KRISTALLUM customer support. Your purchase includes a 30-day return policy from the date of receipt for refund or replacement, as per Amazon's standard policy.
Please retain your proof of purchase for any warranty or support requests.
