Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your ANPABO 24V Ride on Shark Car Toy. Please read all instructions carefully before use and retain this manual for future reference.
Important Safety Information
WARNING: To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water. Always wear shoes, and never allow more than the recommended number of riders.
- Age Range: Suitable for children aged 3 years and up.
- Weight Capacity: Maximum weight capacity is 110 pounds.
- Seating: Designed for one child aged 3-12, or two children aged 3-6.
- Battery: Powered by a 24V 7AH battery.
- Adult Assembly Required: Keep small parts away from children during assembly.
- Charging: Only use the provided charger. Do not overcharge.
- Environment: Operate on flat, dry surfaces away from traffic and hazards.
What's in the Box
Before assembly, ensure all components are present:
- Car body
- Remote control (requires 2 x 1.5 AAA batteries, not included)
- Wheels (4x)
- Seats (2x)
- Steering wheel
- Front and rear fenders
- Axles and suspension components
- Charger
- Assembly hardware (screws, washers, nuts)
- Instruction Manual
Setup and Assembly
Follow these steps to assemble your ANPABO 24V Ride on Shark Car Toy. Refer to the installation video for visual guidance.
Assembly Steps:
- Unboxing: Carefully open the packaging and remove all components. Inspect for any damage.
- Connect Battery: Locate the battery compartment, usually under the seat or hood. Connect the battery terminals as instructed. Ensure a secure connection.
- Install Axles and Suspension: Attach the front and rear axles to the car body. Secure the shock absorbers to the designated points.
- Attach Wheels: Slide each wheel onto its respective axle. Secure with washers and nuts. Attach the wheel covers.
- Install Steering Wheel: Connect the steering wheel's electrical connector to the steering column. Slide the steering wheel onto the column and secure it with the provided screw.
- Attach Fenders: Secure the front and rear fenders to the car body using the provided screws.
- Install Seats: Place the seats into their designated positions and secure them with screws. Ensure seat belts are accessible and functional.
- Remote Control Setup: Open the battery compartment on the remote control and insert 2 x 1.5 AAA batteries (not included).
Video Description: Official ANPABO installation video demonstrating the complete assembly process for the 24V Ride on Shark Car. It shows each part being attached and secured, including electrical connections and final checks.
Operating Instructions
Your ANPABO 24V Ride on Shark Car Toy offers both manual driving and parental remote control modes.
Manual Mode:
- Start the Vehicle: Press the red power button on the dashboard.
- Select Speed: Use the High/Low speed switch to choose your desired driving speed. The vehicle can reach a maximum speed of 5.1 MPH.
- Direction: Use the forward/back joystick to select forward, park, or reverse.
- Accelerate: Press the foot pedal accelerator to move the vehicle.
- Steering: Use the steering wheel to control direction.
Parental Remote Control Mode:
For younger children or additional safety, parents can control the vehicle using the remote control.
- Pairing: Follow the remote control's instructions to pair it with the vehicle.
- Controls: The remote allows control over forward/reverse movement, left/right steering, and speed selection.
- Override: The remote control typically overrides manual controls for safety.
Key Features:
- 4WD Power: Equipped with four 24V 200W motors for robust performance on various terrains.
- EVA Tires: Durable, wear-resistant EVA rubber tires provide superior grip and stability on grass, rocky roads, and dirt tracks.
- 4-Wheel Suspension: Minimizes bumps for a smooth and comfortable ride.
- Bluetooth Connectivity: Connect your device to the built-in music panel to play favorite songs and stories.
- Lights: Features bright front lights for enhanced visibility and cool aesthetics.
- Low Center of Gravity: Enhances stability and reduces rollover risk.

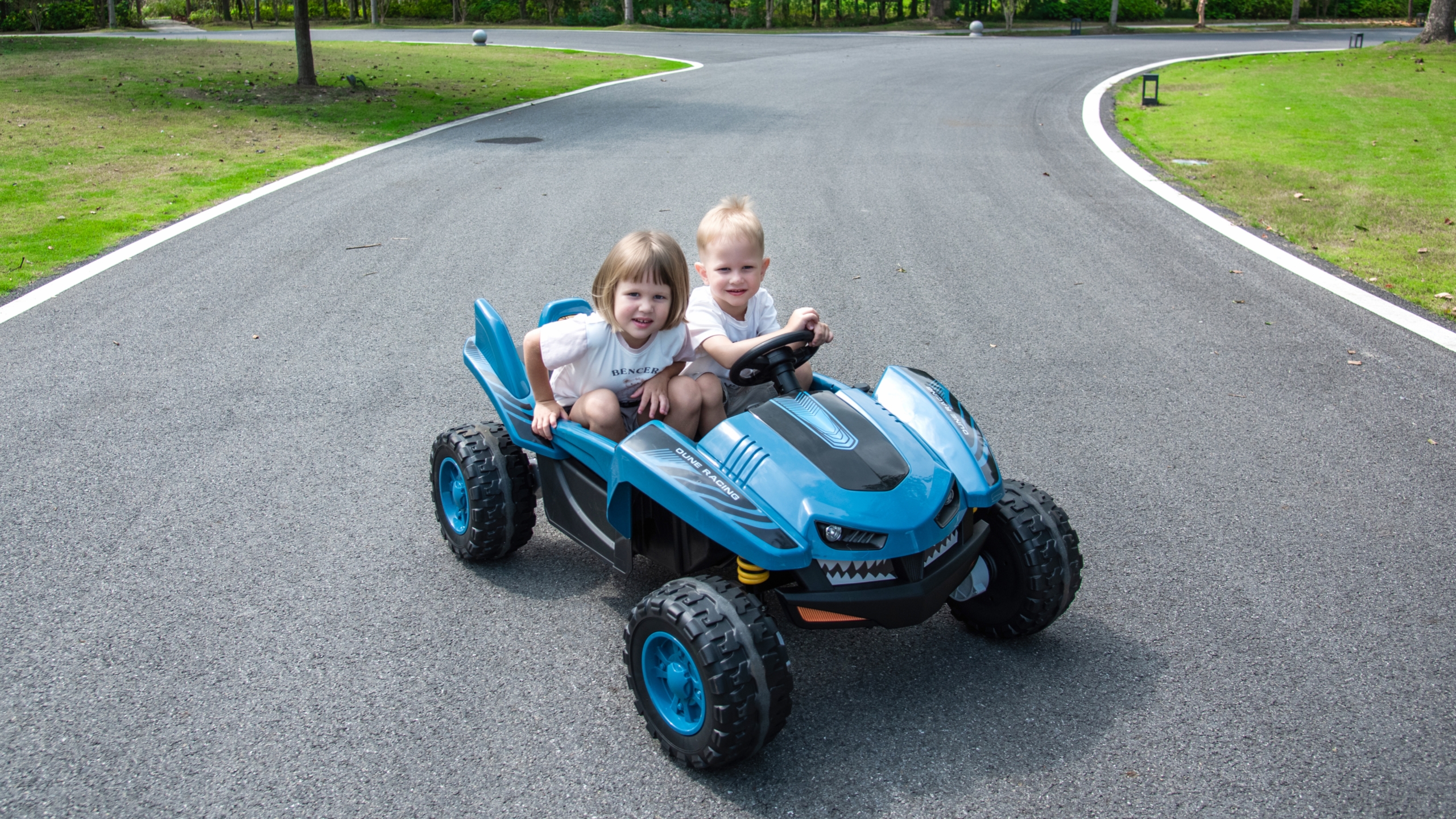

Video Description: This video demonstrates a child riding the ANPABO 24V Shark Car, showcasing its two-seater capacity, 4x4 powerful engine, easy ascent capabilities on inclines, and smooth steering. It highlights the vehicle's performance on various outdoor terrains.
Video Description: This video features two children enjoying a ride in the ANPABO 24V 4WD Ride On UTV, emphasizing its spacious two-seater design and durable EVA tires suitable for various terrains. It shows the vehicle being driven on paved paths and grassy hills, demonstrating its powerful motor and ease of operation.
Video Description: This video highlights the ANPABO 2-Seater Ride on Shark Car's features, including its spacious design for two riders, powerful 800W motors, all-terrain EVA tires, and flexible steering. It demonstrates the vehicle's ability to navigate various surfaces and obstacles.
Maintenance
Regular maintenance ensures the longevity and safe operation of your ride-on toy.
- Battery Care: Charge the battery fully after each use. Do not allow the battery to completely drain. Store the vehicle with a fully charged battery if not used for extended periods.
- Cleaning: Wipe the vehicle with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Avoid spraying water directly onto electrical components.
- Storage: Store the vehicle in a dry, cool place away from direct sunlight and moisture.
- Inspection: Periodically check all screws, nuts, and connections to ensure they are tight. Inspect tires for wear and tear.
Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Battery is low or disconnected; loose wiring; blown fuse. | Charge battery; check battery connections; inspect wiring; replace fuse if necessary. |
| Vehicle moves slowly | Low battery charge; overloaded vehicle; operating on rough terrain. | Fully charge battery; reduce load; operate on smoother surfaces. |
| Remote control not working | Remote batteries are dead; remote not paired; interference. | Replace remote batteries; re-pair remote control; move away from interference sources. |
| Unusual noises during operation | Loose parts; debris in motor/wheels. | Check and tighten all fasteners; remove any debris from moving parts. |
Specifications
- Product Dimensions: 48 x 35.4 x 24.4 inches
- Item Weight: 62 pounds
- Manufacturer Recommended Age: 3 years and up
- Battery: 24V 7AH
- Motors: 4x 200W (Total 800W)
- Maximum Speed: 5.1 MPH
- Tires: EVA Rubber
- Suspension: 4-Wheel Shock Absorbers
- Seating Capacity: 2-seater
Warranty and Support
For warranty information, technical support, or replacement parts, please contact ANPABO customer service. Keep your purchase receipt as proof of purchase.
Contact Information: Refer to the contact details provided on the product packaging or the official ANPABO website.
