1. Introduction
Thank you for choosing the YOLENY 12' x 14' Hardtop Gazebo. This gazebo is designed to provide a durable and stylish outdoor living space, featuring a galvanized steel double roof and a robust aluminum frame. This manual contains important information regarding the safe assembly, proper operation, and effective maintenance of your new gazebo. Please read it thoroughly before beginning assembly and retain it for future reference.

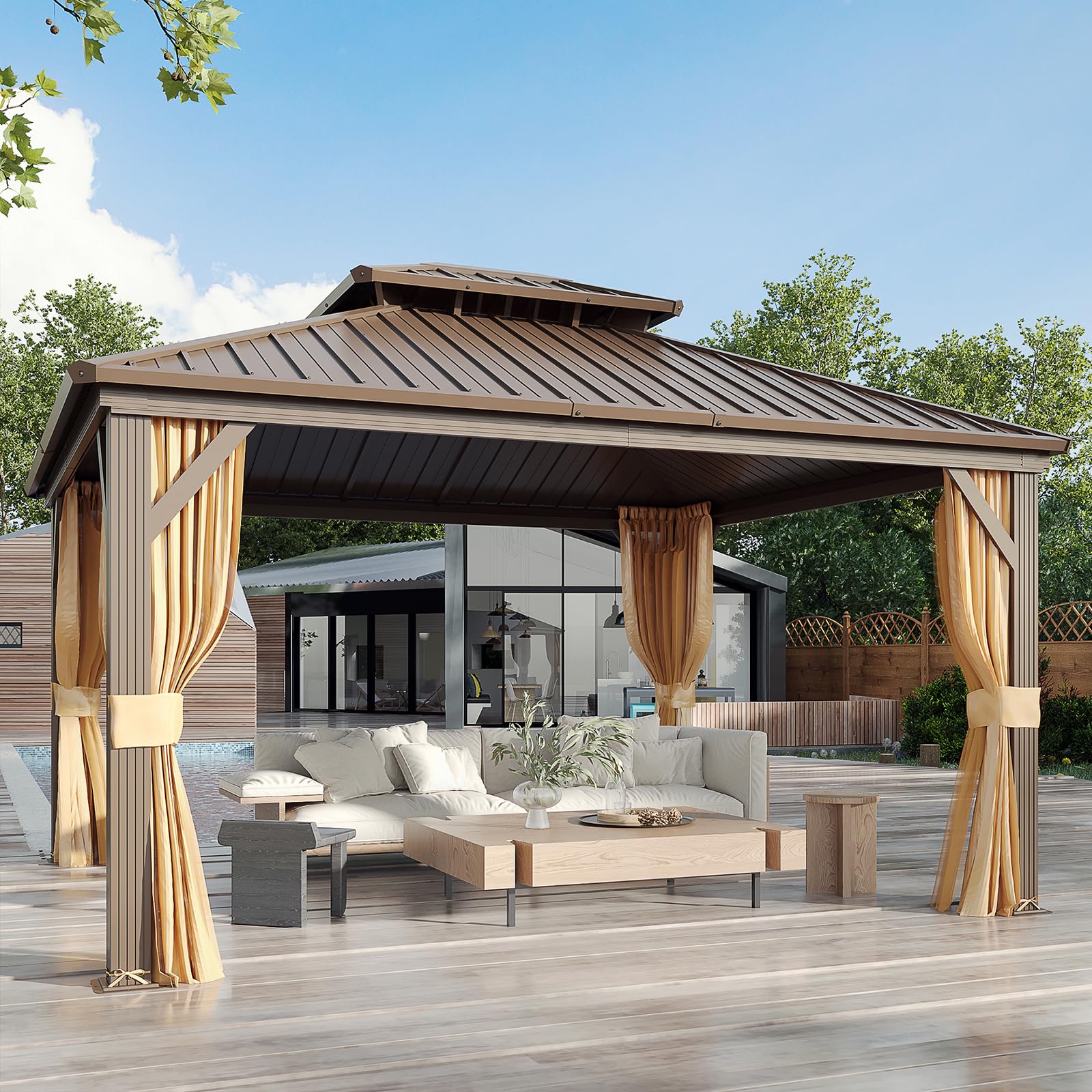

Image 1.1: Fully assembled YOLENY 12' x 14' Hardtop Gazebo.
2. Safety Information
Adhering to these safety guidelines is crucial for preventing injury and damage to the product.
- Snow Capacity and Wind Rating: Regularly check the snow capacity and wind rating specifications for your gazebo. Clear snow accumulation promptly to prevent structural damage. Take protective measures, such as removing curtains and securing the structure, when wind speeds approach or exceed rated values.
- Anchoring: Ensure all four anchors are firmly secured to the ground. Proper anchoring is essential for stability, especially in windy conditions.
- Assembly Personnel: A minimum of two people are required for safe and efficient installation. Attempting to assemble alone may lead to injury or damage.
- Tools: Ladders and protective gloves are required for installation. Ensure all tools are in good working condition.
- Site Selection: Choose a level and stable surface for installation. Avoid areas prone to water accumulation or excessive wind exposure.
- Clearance: Maintain adequate clearance around the gazebo from trees, power lines, and other structures.
3. Package Contents
Your YOLENY Hardtop Gazebo is shipped in multiple boxes (typically 4). It is common for these boxes to arrive on different days. Please do not be concerned if you receive only one box initially; the remaining boxes will follow. Before beginning assembly, verify that all parts listed in the included instruction manual are present and undamaged. Contact customer support if any parts are missing or damaged.
Image 3.1: Gazebo components are shipped in multiple packages.
4. Assembly Instructions
Assembly requires at least two individuals, ladders, and gloves. Follow the step-by-step diagrams provided in your physical instruction manual. The following tips will aid in a smoother assembly process:
- Preparation: Lay out all parts and identify them using the labels. Remove all stickers from parts before assembly to avoid residue.
- Frame Assembly: When assembling the main frame, loosely install all bolts first. Tighten them only after all components for a section are correctly aligned and in place. This allows for minor adjustments.
- Roof Panel Installation: The roof panels require careful installation. Do not fully tighten the roof frame bolts until all roof panels are correctly seated. Some users find it necessary to temporarily loosen corner connections of the roof frame to properly fit the panels. Be gentle with roof panel clips as they can dislodge easily.
- Post Stability: The gazebo features sturdy 3.94" x 3.94" triangular powder-coated aluminum frames with pre-drilled bases. Ensure the posts are level before tightening horizontal beams. Mark the floor to maintain plumb and level during roof installation.
- Tools: An impact driver with an appropriate Allen head bit (4mm) can expedite assembly, but use with caution to avoid over-torquing or stripping screws. Extra fasteners are provided; if a screw cross-threads, use a new one.
- Curtain and Netting System: The gazebo includes a dual rail system for easy operation of the zippered double-layer sidewalls (curtains and netting). Install these after the main structure is complete.
Image 4.1: Detail of the triangular column and sturdy aluminum frame.
Image 4.2: Double roof design for ventilation and weather resistance.

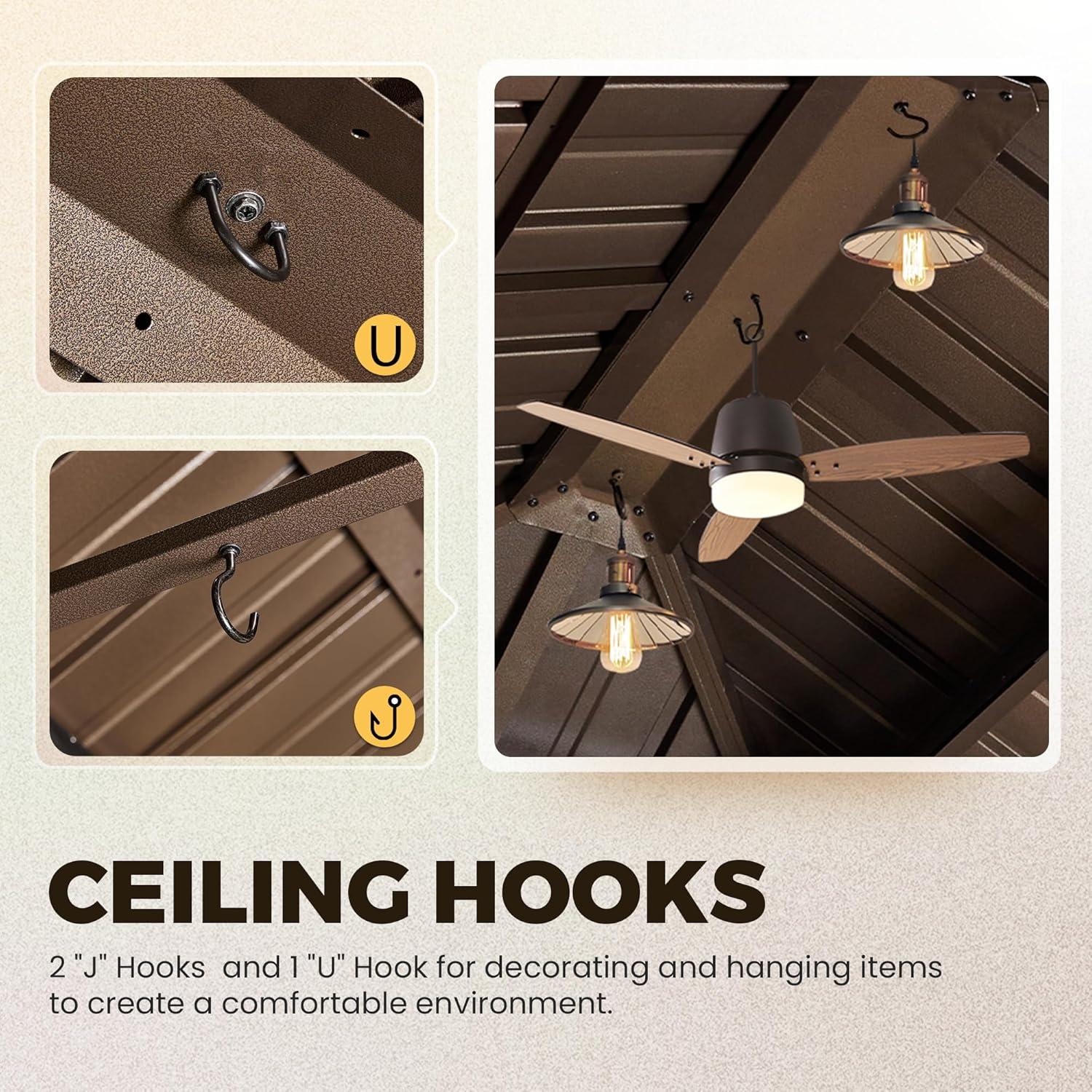

Image 4.3: Ceiling hooks for hanging items.
5. Operating Instructions
The YOLENY Hardtop Gazebo is designed for versatile use with its integrated curtain and netting system.
- Curtains and Netting: The gazebo features a dual rail system, allowing you to easily open or close the double-layer sidewalls. The inner layer consists of netting to protect against insects while maintaining ventilation. The outer layer comprises privacy curtains for sun protection and privacy.
- Adjusting Sidewalls: Slide the curtains and netting along their respective tracks. Use the integrated zippers to fully enclose the gazebo for maximum privacy or insect protection. Secure open curtains with the provided tie-backs.
- Ceiling Hooks: Utilize the 2 "J" hooks and 1 "U" hook located on the ceiling for hanging decorative lights, fans, or other lightweight items to enhance your outdoor experience.
Image 5.1: Dual-track system for curtains and netting.
Image 5.2: Gazebo configurations: Fully Open, Semi-Open, and Fully Closed.
6. Maintenance
Regular maintenance will extend the life and appearance of your gazebo.
- Cleaning: Clean the galvanized steel roof and aluminum frame with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly with clean water.
- Fabric Care: The curtains and netting can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags. Ensure they are completely dry before storing or closing for extended periods to prevent mildew.
- Snow Removal: During winter, regularly clear snow from the roof to prevent excessive weight accumulation, which can cause structural collapse.
- Wind Protection: In anticipation of strong winds, secure all curtains and netting, or remove them if extreme weather is expected. Ensure the gazebo is properly anchored at all times.
- Inspection: Periodically inspect all bolts, connections, and frame components for tightness and signs of wear or damage. Tighten any loose fasteners.
- Gutter System: The sloping roof design includes leakage holes to facilitate rainwater runoff. Regularly check and clear these holes and any integrated gutter systems of leaves and debris to ensure proper drainage.
Image 6.1: Gazebo designed for all-season use with weather-resistant features.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Parts do not align during assembly. | Bolts tightened too early; slight manufacturing variations. | Ensure all bolts are loosely installed before tightening. Apply gentle pressure or slightly adjust components to align holes. If a hole is significantly misaligned, contact customer support. |
| Roof panels do not fit correctly. | Roof frame bolts are too tight; panel clips dislodged. | Loosen the roof frame bolts, especially at the corners, to allow flexibility. Re-seat any dislodged panel clips. Ensure panels are inserted correctly before tightening. |
| Water accumulation on the roof. | Drainage holes or gutters are blocked. | Clear any debris (leaves, dirt) from the roof's leakage holes and gutter system to ensure proper water runoff. |
| Gazebo feels unstable or wobbly. | Anchors not properly secured; loose frame connections. | Verify that all ground anchors are firmly secured. Check and tighten all frame bolts and connections. Ensure the installation surface is level. |
| Curtains/netting do not slide smoothly. | Debris in tracks; damaged rollers/hooks. | Clean the dual tracks of any dirt or obstructions. Inspect rollers/hooks for damage and replace if necessary. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | YOLENY |
| Model Number | WQG |
| Product Dimensions | 168"L x 144"W x 120"H (14'L x 12'W x 10'H) |
| Floor Area | 168 Square Feet |
| Item Weight | 280 Pounds |
| Frame Material | Aluminum |
| Roof Material | Galvanized Steel (Double Roof) |
| Water Resistance Level | Water Resistant |
| Ultraviolet Light Protection | 99.99% |
| Color | Brown |
| Assembly Required | Yes |
Image 8.1: Product dimensions overview.
9. Warranty and Support
For any questions regarding assembly, missing parts, or product performance, please contact YOLENY customer support. Refer to your purchase documentation for specific warranty details and contact information. Always provide your model number (WQG) and purchase date when contacting support to ensure efficient service.
Contact Information: Please refer to the contact details provided with your purchase or visit the official YOLENY website for support.
