BAHOOMED 21V Cordless Mini Pruning Chainsaw (Model BUC-160B) Instruction Manual

Introduction

Thank you for choosing the BAHOOMED 21V Cordless Mini Pruning Chainsaw. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before use and retain it for future reference.

Important Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep this manual for future reference.

• Wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and hearing protection.
• Ensure the safety button and start trigger are pressed simultaneously to activate the chainsaw.
• Keep hands and body clear of the chain when the tool is operating.
• Do not operate the chainsaw in wet conditions or near flammable liquids or gases.
• Always remove the battery when performing maintenance, cleaning, or when the tool is not in use.
• Keep children and bystanders away from the operating area.

Package Contents

Verify that all items are present and in good condition upon unpacking.

• BAHOOMED 21V Cordless Mini Pruning Chainsaw
• 2 x 21V 4.0Ah Lithium-Ion Batteries
• Battery Charger
• Saw Chain (8-inch)
• Guide Bar
• Chain File
• Gloves
• Safety Goggles
• User Manual
• Storage Case

Image: The BAHOOMED 21V Cordless Mini Pruning Chainsaw, two batteries, charger, chain, guide bar, chain file, gloves, safety goggles, and storage case are shown. The chainsaw is teal and black, with an 8-inch bar. The batteries are black with red accents and labeled "21V MAX 4.0Ah".

Setup and Assembly

1. Battery Charging

Before first use, fully charge both 21V 4.0Ah Lithium-Ion batteries. Connect the charger to a power outlet and then to the battery. The indicator light on the charger will show charging status (e.g., red for charging, green for fully charged). Charging time is approximately 2 hours per battery.

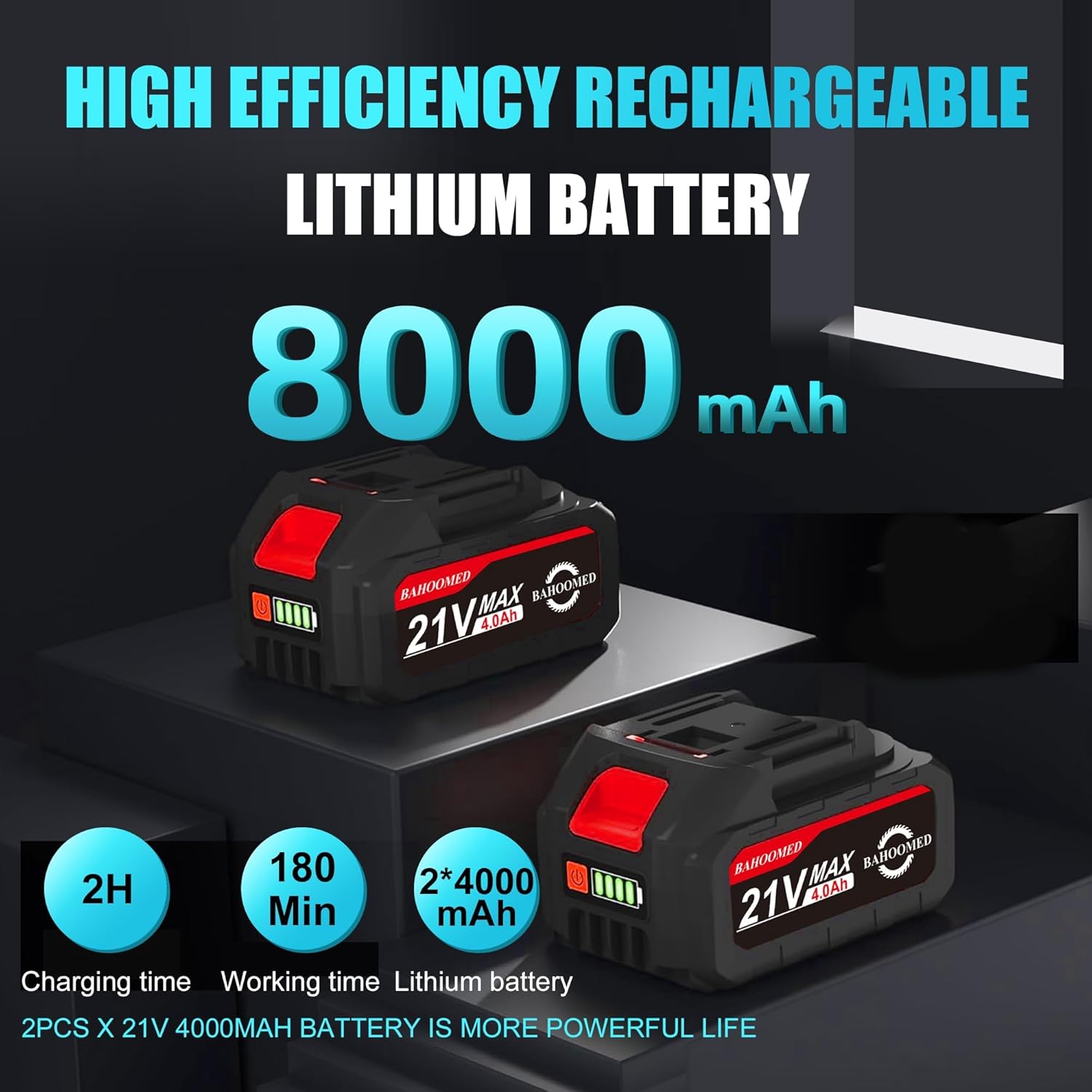

Image: Two 21V MAX 4.0Ah BAHOOMED batteries are displayed, indicating a charging time of 2 hours and a working time of 180 minutes. This illustrates the power source for the chainsaw.

2. Chain and Guide Bar Installation

Ensure the battery is removed before installation. Place the chain around the guide bar, ensuring the cutting teeth are facing the correct direction. Align the guide bar with the chainsaw body and secure it using the tool-less chain tensioning knob. Adjust the chain tension so it is snug but can still be moved freely by hand.

Image: A close-up view of the chainsaw's tool-less chain tensioning knob. It shows the steps: loosen the cover fastening knob, revolve the chain tighten knob for adjustment, and finally tighten the cover fastening knob.

3. Oiling System

The chainsaw features an automatic oiling system. Before each use, fill the oil reservoir with universal saw chain oil (not included). Press the oil cap to ensure proper lubrication of the bar and chain during operation. This extends the life of the chain and improves cutting performance.

Image: A hand is shown pouring universal saw chain oil into the designated reservoir of the chainsaw, highlighting the convenient oiling system. The text "Press to add oil" indicates the mechanism for filling.

Operating Instructions

1. Starting the Chainsaw

Insert a fully charged battery into the chainsaw. To start the chainsaw, you must simultaneously press the safety button located on the handle and the main trigger switch. Release the trigger to stop the chainsaw.

Image: A detailed view of the chainsaw handle, pointing out the safety button and the start trigger. This illustrates the two-step activation process for enhanced safety.

2. Cutting Techniques

Hold the chainsaw firmly with both hands. For optimal performance and safety, allow the chainsaw to reach full speed before engaging the chain with the material to be cut. Apply steady, even pressure. Avoid forcing the saw, as this can lead to kickback or damage to the tool. Always be aware of the material's stability and potential for kickback.

Maintenance

1. Chain Sharpening

Regularly sharpen the chain using the provided chain file. Place the file against the beveled cutting surface of the teeth at a 30° angle with the saw. File from the inside to the outside of the teeth. Sharpen all left-hand teeth on one side of the chain, then move to the other side and file all the right-hand teeth. A sharp chain ensures efficient cutting and reduces strain on the motor.

2. Cleaning and Storage

After each use, remove the battery and clean the chainsaw. Use a brush to remove sawdust and debris from the chain, guide bar, and motor housing. Store the chainsaw in its original case in a dry, secure location, away from children and unauthorized users. Ensure the chain guard is in place during storage.

Troubleshooting

Specifications

• Brand: BAHOOMED
• Model Number: BUC-160B
• Power Source: Battery Powered
• Voltage: 21 Volts
• Wattage: 900 Watts
• Horsepower: 900 Watts
• Chain Length: 8 Inches
• Chain Speed: Max 32 Ft/S
• Item Weight: 7 Pounds (approximately 3.17 kg)
• Product Dimensions: 18"L x 8"W x 6"H (approximately 45.7cm L x 20.3cm W x 15.2cm H)
• Material: ABS, High Carbon Steel
• Battery Cell Type: Lithium Ion
• UPC: 748253828988

Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase documentation or visit the official BAHOOMED website. Keep your purchase receipt as proof of purchase.
