1. Introduction
This manual provides essential instructions for the proper installation, use, and maintenance of your PSNOOK Adjustable Wheelchair Safety Strap Seat Belt. Designed to enhance safety and provide stable support, this belt is suitable for individuals requiring extra security in wheelchairs, transport chairs, and mobility scooters. Please read this manual thoroughly before use to ensure safe and effective operation.
Image 1.1: The PSNOOK Wheelchair Lap Belt, highlighting its design for comfort and safety.
2. Safety Information
Always prioritize safety when using this product. Failure to follow these guidelines may result in injury or product damage.
- Proper Installation: Ensure the belt is correctly installed and securely fastened to the wheelchair backrest bars as described in the 'Setup and Installation' section.
- Regular Inspection: Before each use, inspect the belt for any signs of wear, fraying, cuts, or damage to the buckles. Do not use if damaged.
- Correct Adjustment: The belt must be adjusted to a snug fit around the user's lap without being overly tight or restrictive.
- Supervision: This belt is a positioning and safety aid, not a substitute for proper supervision, especially for individuals who may attempt to remove it.
- Intended Use: This product is designed for use with wheelchairs, transport chairs, and mobility scooters. Do not use for purposes other than its intended design.
3. Product Overview
The PSNOOK Adjustable Wheelchair Safety Strap Seat Belt is constructed from high-strength polyester with POM safety buckles, featuring advanced five-twill weaving technology and reinforced cross-box stitching for durability and stability.
Components:
- Adjustable Polyester Strap (2 inches wide, 13-86 inches length)
- Side-Release Buckle (POM material)
- Strap Adjusters
Image 3.1: Overview of the PSNOOK Adjustable Wheelchair Safety Strap Seat Belt, showing the full belt and its buckle mechanism.
Image 3.2: Detail of the five-twill weave, illustrating the enhanced strength and smooth finish of the strap material.
Image 3.3: Close-up view of the cross-box stitching, demonstrating the reinforcement at the buckle connection point.
Image 3.4: Detailed image of the secure side-release buckle, showing its robust design and easy-release mechanism.
4. Setup and Installation
Follow these steps to properly install the safety strap on a wheelchair, transport chair, or mobility scooter.
- Position the Belt: Place the safety strap across the user's lap, ensuring the buckle mechanism is centered.
- Thread Around Backrest: Take each end of the strap and thread it around the vertical backrest bars of the wheelchair. Ensure the strap passes behind the backrest and is not twisted.
- Secure the Buckle: Bring the two ends of the strap together in front of the user and insert the male end of the buckle into the female end until it clicks securely.
- Adjust Length: Use the strap adjusters on both sides to tighten the belt. Pull the loose end of the strap until the belt is snug against the user's lap, providing stable support without causing discomfort or restricting movement. Ensure there is no slack.
- Verify Security: Gently pull on the belt to confirm it is firmly attached and the buckle is locked.
To Release:
Press the two side buttons on the buckle simultaneously to release the mechanism. The belt can then be unthreaded from the wheelchair.
5. Operating Instructions
Once installed, the PSNOOK safety strap provides continuous support. No further operational steps are required beyond initial setup and adjustment.
- Daily Use: Ensure the belt is properly fastened and adjusted each time the wheelchair is used.
- User Comfort: Periodically check that the belt remains comfortable and does not cause pressure points. Re-adjust if necessary.
6. Maintenance
Proper maintenance will extend the life of your safety strap.
- Cleaning: The polyester strap can be cleaned with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. Allow to air dry completely before re-use.
- Storage: Store the belt in a clean, dry place away from direct sunlight and extreme temperatures when not in use.
- Inspection: Regularly inspect the entire belt, including stitching and buckles, for any signs of wear, damage, or malfunction. Replace the belt immediately if any damage is found.
7. Troubleshooting
If you encounter issues with your safety strap, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Belt does not stay tight | Improper adjustment; strap adjusters slipping | Ensure strap is threaded correctly through adjusters. Pull firmly to remove slack. If slipping persists, inspect adjusters for damage. |
| Buckle does not latch securely | Debris in buckle; damaged buckle mechanism | Check for and remove any obstructions in the buckle. If damaged, discontinue use and replace the belt. |
| Belt appears worn or frayed | Normal wear and tear; excessive friction | Discontinue use immediately. Replace the safety belt to ensure continued safety. |
8. Specifications
- Material: High-strength Polyester strap, POM (Polyoxymethylene) safety buckles
- Strap Width: 2 inches (5.08 cm)
- Adjustable Length: 13 inches to 86 inches (33 cm to 218 cm)
- Weaving Technology: Five-twill weave
- Stitching: Reinforced cross-box stitching
- Color: Black
- Weight: Approximately 5.29 ounces (150 grams)

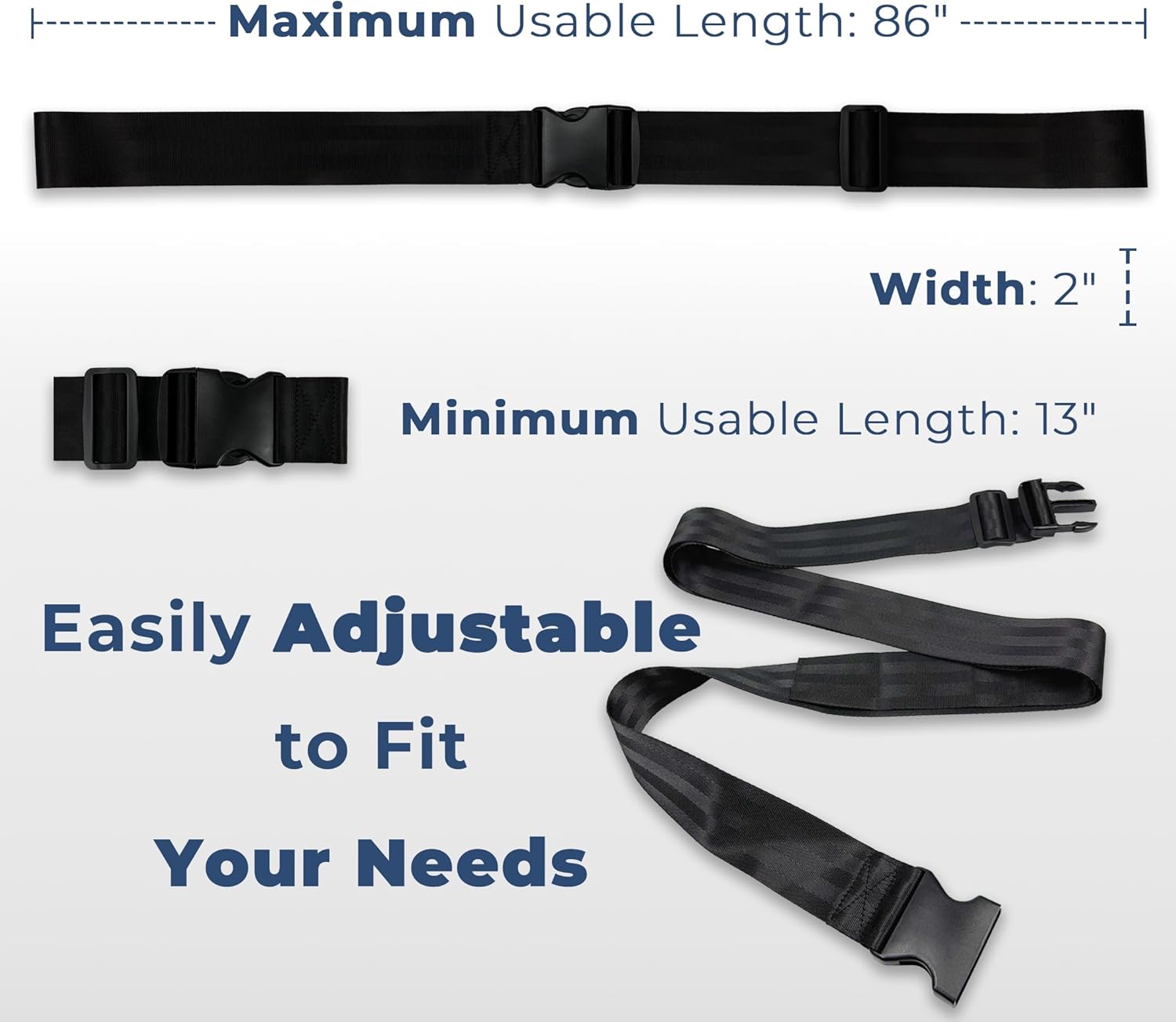

Image 8.1: Visual representation of the belt's adjustable length (13" to 86") and width (2").
9. Warranty and Support
Specific warranty information for the PSNOOK Adjustable Wheelchair Safety Strap Seat Belt is not provided in this manual. For warranty details, product support, or to report any issues, please contact the manufacturer directly through their official website or the retailer where the product was purchased.
Manufacturer: PSNOOK
