Universal WC Flush Mechanism User Manual

1. Introduction

Thank you for choosing the Neezra Universal WC Flush Mechanism. This product is designed for easy installation and long-lasting performance, compatible with most toilet cisterns. It features a dual-flush system for optimal water saving and is constructed from high-quality, durable materials to ensure a perfect seal and prevent leaks.

This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure you get the most out of your new flush mechanism.

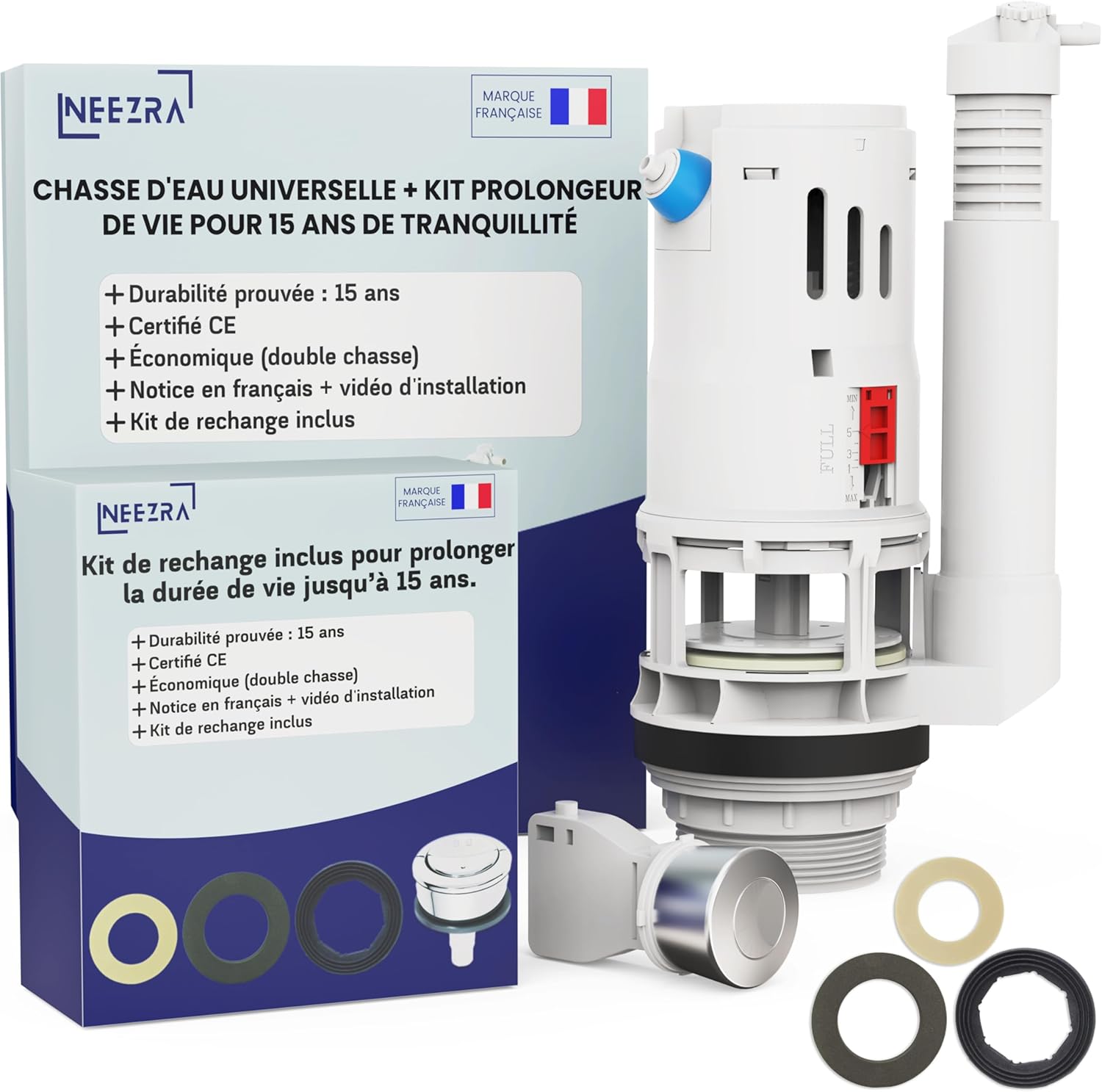

Figure 1: Neezra Universal WC Flush Mechanism with packaging and included components.

2. Product Components

The Neezra Universal WC Flush Mechanism comes with all necessary parts for a complete installation and extended durability. Please ensure all components listed below are present before beginning installation:

• Universal Flush Mechanism Unit
• Dual Flush Button (Push-button)
• Foam Seal (for perfect sealing between tank and toilet)
• Flush Seal (for efficient evacuation and leak prevention)
• Additional replacement parts (e.g., extra seals, as specified in packaging)

Figure 2: Detailed view of the included high-quality seals (clapet seal, base seal) and the robust flush button, essential for leak-proof performance and stability.

Figure 3: The complete replacement kit, including foam seal for tank-to-toilet connection, flush seal for efficient evacuation, and a durable flush button, ensuring extended product life.

3. Installation Guide

The Neezra flush mechanism is designed for quick and intuitive installation, typically completed in 3 easy steps. For a visual guide, please refer to the installation video accessible via the QR code provided in your product packaging.

Step-by-Step Installation:

1. Preparation: Turn off the water supply to your toilet and flush to empty the cistern. Remove the old flush mechanism. Clean the inside of the cistern thoroughly.
2. Install the New Mechanism: Place the Neezra universal flush mechanism into the cistern. Ensure the base seal is correctly positioned to create a watertight connection with the toilet bowl. Secure the mechanism according to your toilet's design (usually by tightening a nut from underneath the cistern).
3. Connect and Test: Reconnect the water supply line to the fill valve (not included with this flush mechanism). Install the dual flush button onto the cistern lid, ensuring it aligns with the mechanism. Turn on the water supply slowly and check for any leaks. Perform several test flushes to ensure proper operation of both small and large flush options.

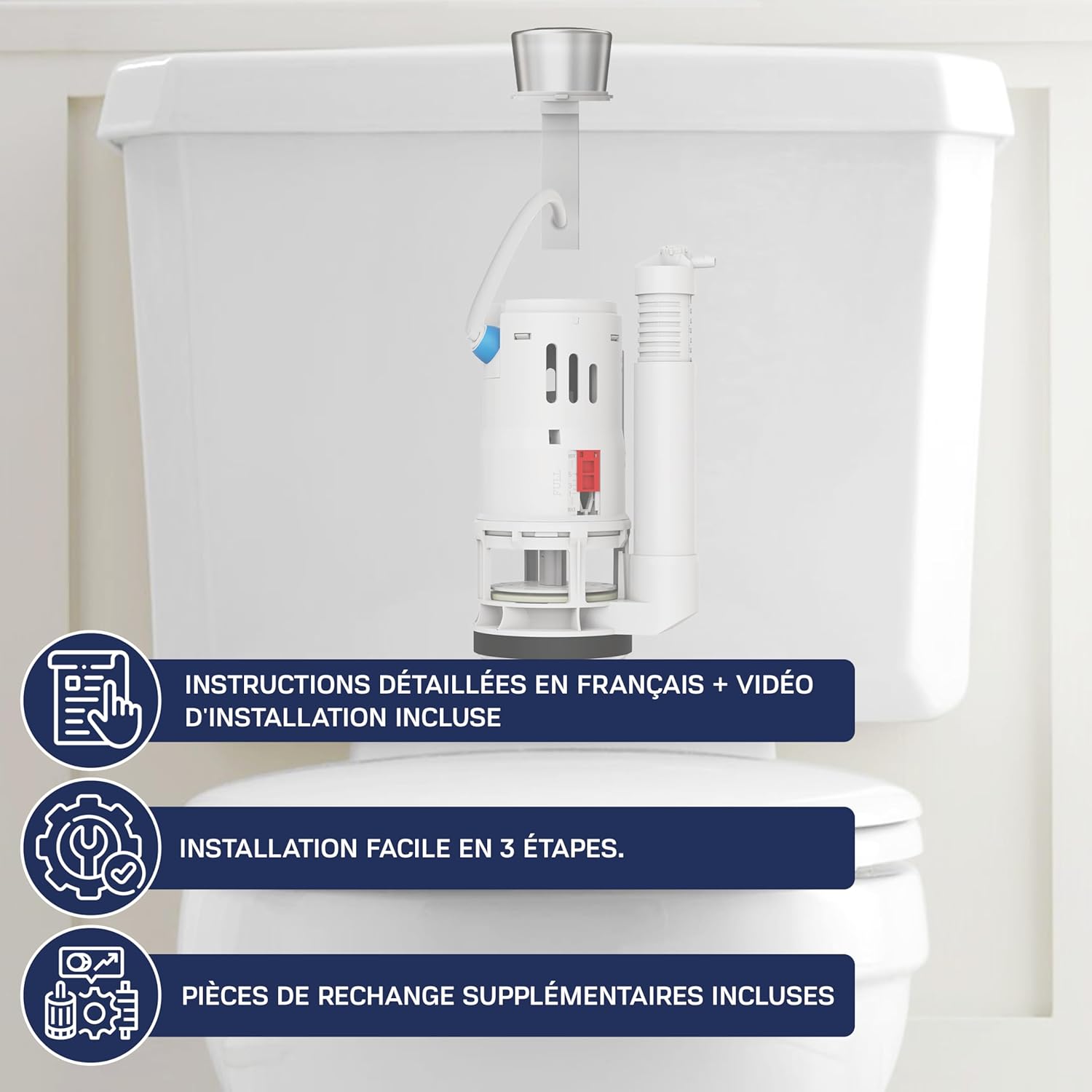

Figure 4: The Neezra flush mechanism installed in a toilet cistern, illustrating its compact design and highlighting the ease of installation.

4. Operating Instructions

The Neezra Universal WC Flush Mechanism features a dual-flush system designed to conserve water. This system provides two flushing options:

• Small Flush (Half Flush): Press the smaller button on the dual flush actuator. This option releases a reduced volume of water, ideal for liquid waste, significantly saving water with each use.
• Large Flush (Full Flush): Press the larger button on the dual flush actuator. This option releases the full volume of water for solid waste, ensuring effective and powerful evacuation.

Always ensure the cistern has refilled completely before attempting another flush to ensure optimal performance.

Figure 5: Exploded diagram of the Neezra flush mechanism, showcasing its universal design, robust construction, watertight mechanism, and dual-flush capability.

5. Care and Maintenance

The Neezra flush mechanism is built with high-quality materials for a durability of 15 years. Regular, simple maintenance can further extend its lifespan and ensure continued optimal performance:

• Regular Cleaning: Periodically clean the inside of the cistern and the flush mechanism components to prevent mineral buildup and ensure smooth operation. Use non-abrasive cleaners.
• Seal Inspection: Inspect the foam seal and flush seal annually for any signs of wear or damage. Replace them if necessary using the provided replacement kit to maintain a perfect seal and prevent leaks.
• Component Check: Ensure all moving parts, especially the flush button and internal levers, operate smoothly. The product features galvanized stainless steel screws and a high-quality button to resist corrosion and wear.

Figure 6: Comparison highlighting the corrosion resistance of Neezra's galvanized stainless steel screws and high-quality flush button, preventing common issues like rust and premature wear.

6. Troubleshooting

If you encounter any issues with your Neezra Universal WC Flush Mechanism, please refer to the common problems and solutions below:

If the problem persists after attempting these solutions, please contact Neezra customer support for further assistance.

7. Product Specifications

Figure 7: Feature comparison table demonstrating the superior attributes of the Neezra flush mechanism, including 15-year durability, perfect sealing, CE certification, and easy installation.

8. Warranty and Customer Support

Neezra is a French brand committed to quality and reliability. Your Universal WC Flush Mechanism is certified and designed for long-term use, with a proven durability of 15 years.

We stand by the quality of our product. If you have any questions, concerns, or require assistance with your Neezra flush mechanism, our responsive customer service team is available to help. Please refer to the contact information provided in your product packaging or on our official website.

Your satisfaction is our priority, ensuring a worry-free experience with our product.

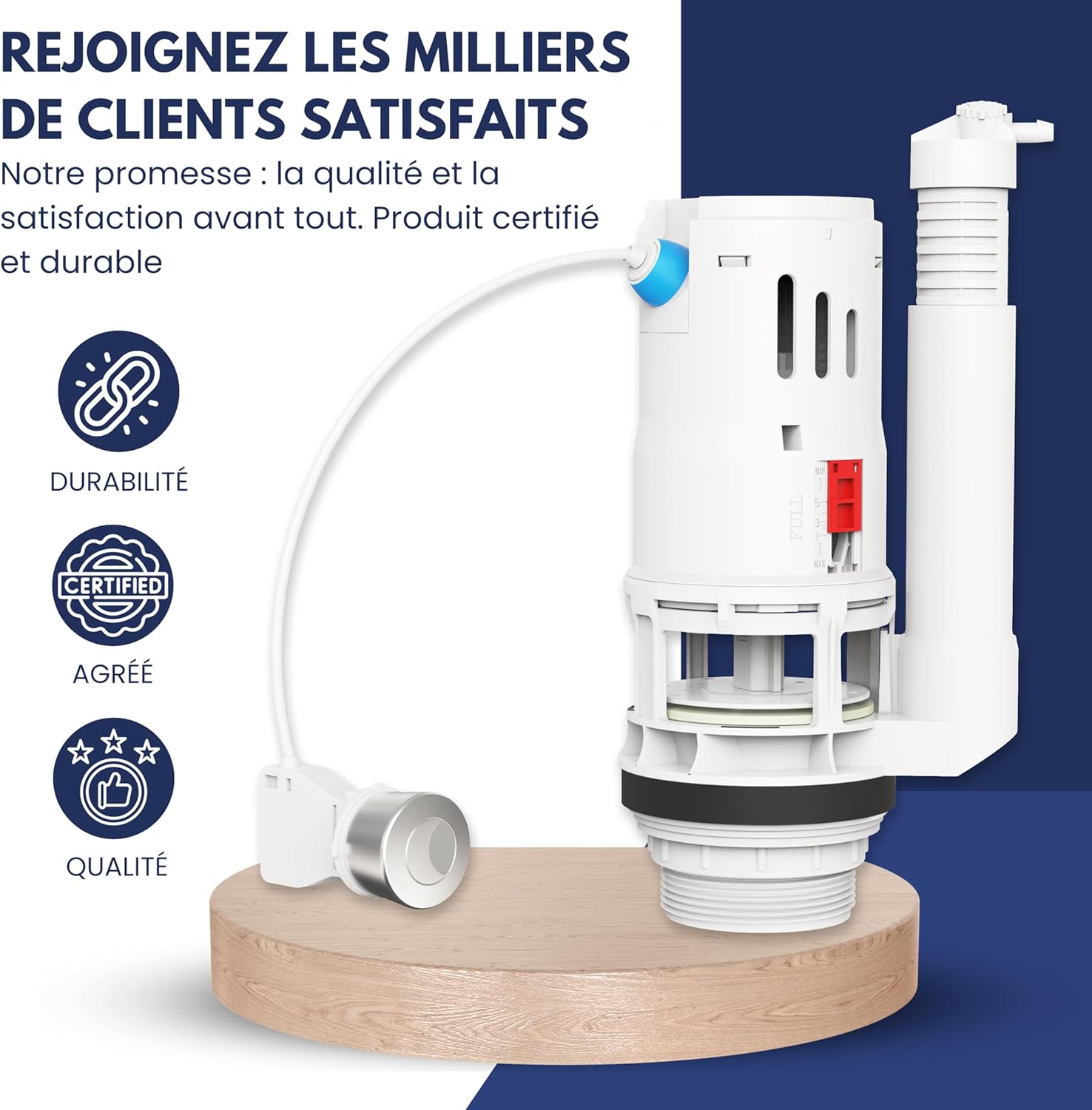

Figure 8: Visual representation of Neezra's commitment to durability, certification, and overall product quality, emphasizing customer satisfaction.
