Introduction
Welcome to the Gyrocopters J30 Electric Scooter user manual. This guide provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
The Gyrocopters J30 is designed for efficient and enjoyable travel, featuring a powerful 350W brushless motor, 8.5-inch burst-proof tires, and smart app integration for enhanced control and tracking.
Safety Information
Your safety is paramount. Always adhere to local laws and regulations regarding electric scooter use. Wear appropriate safety gear, including a helmet, knee pads, and elbow pads, during operation.
General Safety Guidelines:
- Always wear a helmet and other protective gear.
- Ensure all screws and components are securely fastened before each ride.
- Do not ride in heavy rain or through puddles deeper than 2 cm.
- Avoid riding on slippery surfaces, steep inclines, or uneven terrain.
- Maintain a safe distance from pedestrians and other vehicles.
- Do not perform stunts or sudden maneuvers.
- The scooter is designed for one rider only. Do not carry passengers.
- Keep hands and feet on the designated areas while riding.
- The Gyrocopters J30 features a push-to-start safety mechanism. Gently push off with your foot to initiate acceleration.
Battery Safety:
- Use only the original charger provided with the scooter.
- Do not overcharge the battery. Disconnect the charger once fully charged.
- Store the scooter and battery in a cool, dry place away from direct sunlight and extreme temperatures.
- If the battery shows signs of damage or overheating, discontinue use immediately and contact customer support.
Setup and Assembly
The Gyrocopters J30 comes mostly pre-assembled. Follow these steps to complete the setup:
- Unboxing: Carefully remove the scooter and all accessories from the packaging. Check for any visible damage.
- Handlebar Installation:
Unfold the main stem of the scooter. Align the handlebar with the stem and secure it using the provided screws and tool. Ensure it is firmly attached and does not wobble.
Image: The Gyrocopters J30 Electric Scooter in its fully assembled, upright position, ready for use. This image also shows the scooter folded for transport and a smartphone displaying the Vicont app interface.
- Initial Charge:
Before your first ride, fully charge the scooter's battery. Connect the charger to the charging port on the scooter and then to a power outlet. The charging indicator on the charger will change when charging is complete.
Charging time is approximately 5 hours for a full charge.
- Tire Check:
Although the J30 features solid, burst-proof tires, it's good practice to visually inspect them for any debris or damage before each ride.
Image: A detailed view of the 8.5-inch solid rubber tire, highlighting its durable construction and the front fender for protection against mud and water.
Operating Instructions
Power On/Off:
Press and hold the power button on the display for 3 seconds to turn the scooter on or off.
Image: A close-up of the scooter's handlebar, showing the LCD display screen, bell, brake handle, and accelerator. Instructions for power on/off and headlight control are also visible.
Riding the Scooter:
- Push to Start: The J30 requires a gentle push with your foot to activate the motor. Once you reach a speed of about 3 km/h, press the accelerator thumb lever to engage the motor.
- Acceleration: Use the thumb accelerator on the right handlebar to control your speed.
- Braking: Use the brake lever on the left handlebar to slow down or stop. The scooter is equipped with a rear disc brake for effective stopping power.
- Headlight: Press the power button once to turn the LED headlight on or off.
Image: A close-up view of the bright LED headlight, emphasizing its role in enhancing visibility for safe night riding.
Image: A view of the integrated taillight on the rear fender, providing extra safety by increasing visibility from behind.
Speed Modes:
The J30 offers three speed modes. Double-press the power button to cycle through them:
- Eco Mode (12 km/h): For maximum efficiency and extended range.
- Normal Mode (18 km/h): Ideal for daily commutes.
- Sports Mode (31 km/h): For faster and more powerful rides.

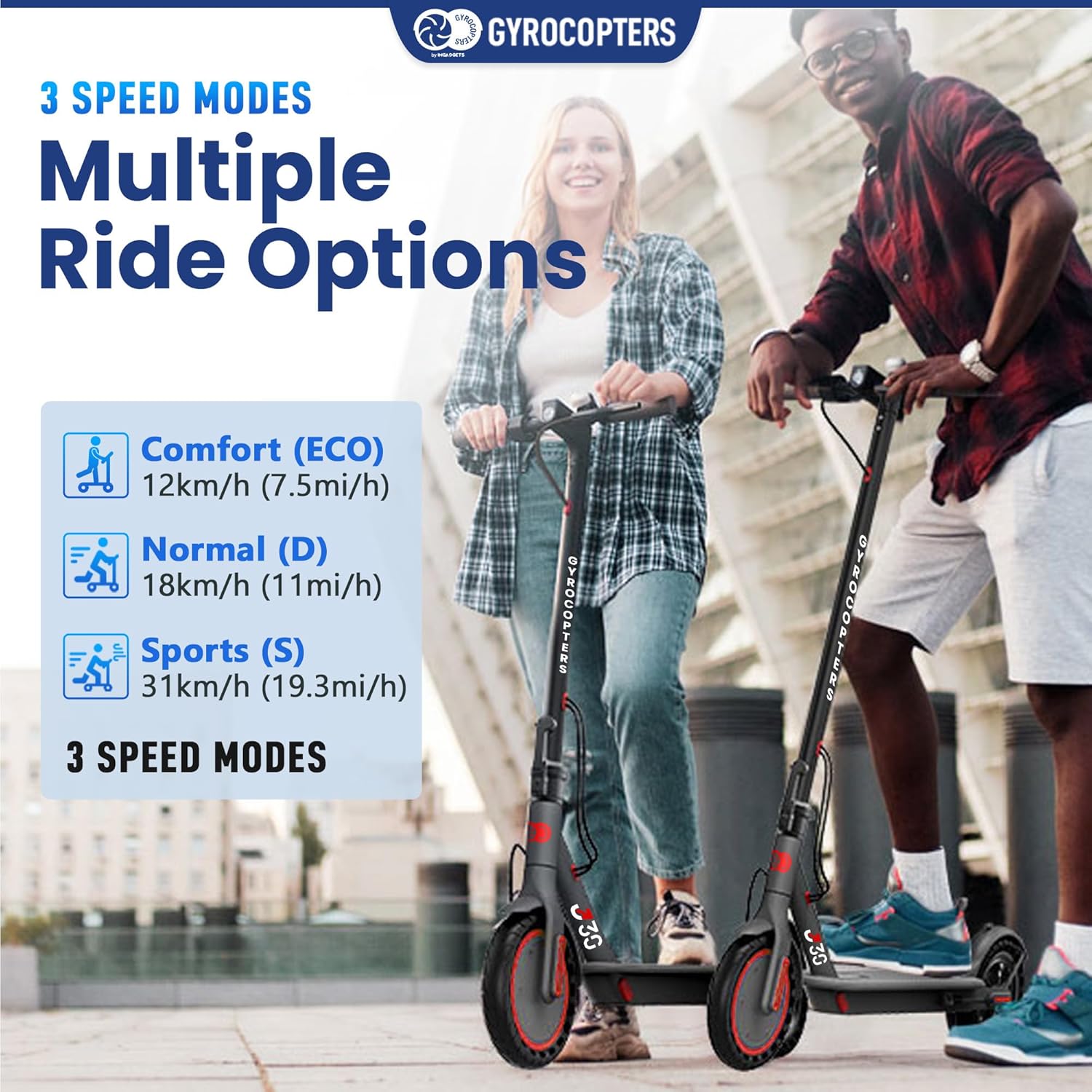

Image: Two Gyrocopters J30 scooters with an overlay detailing the three speed modes: Comfort (ECO) at 12km/h, Normal (D) at 18km/h, and Sports (S) at 31km/h.
Folding and Portability:
To fold the scooter, locate the folding mechanism near the base of the stem. Follow the instructions in the quick start guide or refer to the manufacturer's video for detailed steps. Once folded, the scooter can be easily carried for transport or storage.

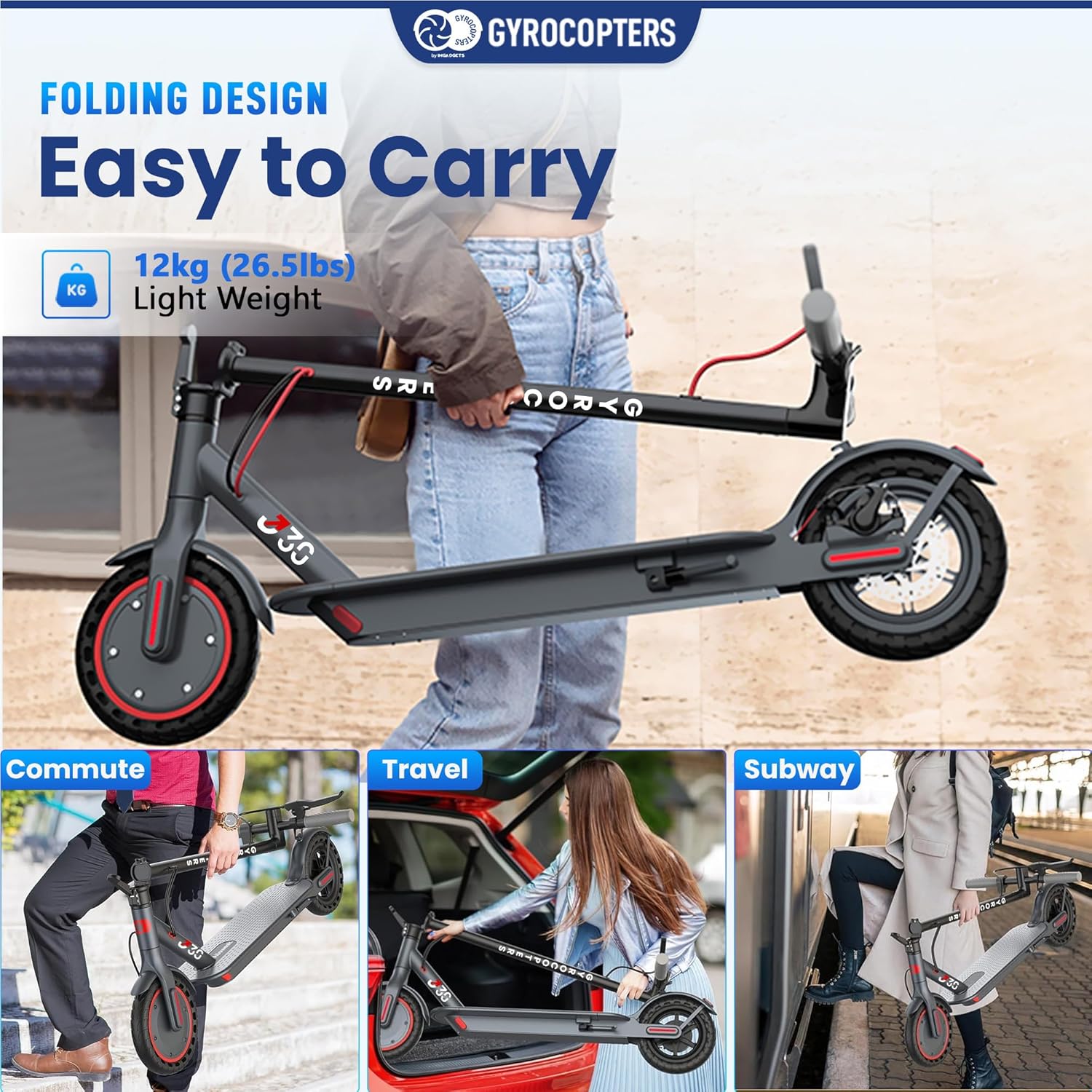

Image: A person carrying the folded Gyrocopters J30 electric scooter, demonstrating its lightweight and portable design for easy transport in various scenarios like commuting, travel, or on public transport.
App Integration (Vicont App):
Enhance your riding experience by connecting your J30 scooter to the Vicont app via Bluetooth. The app offers features such as:
- Track Your Ride
- Remote Locking/Unlocking
- Headlight Control
- Cruise Control
- Ride History Tracking
Search for "Vicont" on the Google Play Store (Android) or Apple App Store (iOS) to download and install the app.
Image: A smartphone screen showing the Vicont app interface, with options for lock/unlock, headlight control, cruise control, mode switching, and riding history, demonstrating the app's integrated control features.
Maintenance
Regular maintenance ensures the longevity and safe operation of your Gyrocopters J30 scooter.
- Cleaning: Wipe down the scooter with a damp cloth after each use. Avoid using high-pressure water jets or harsh chemicals.
- Battery Care: Charge the battery regularly, even if not in use, to maintain its health. Do not let the battery completely drain for extended periods.
- Brake Adjustment: Periodically check the brake for proper function and adjust if necessary. Refer to the detailed maintenance section in the full manual for adjustment procedures.
- Fastener Check: Regularly inspect all screws and bolts, especially on the handlebars and folding mechanism, to ensure they are tight.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Low battery; Power button not held long enough. | Charge the battery; Press and hold the power button for 3 seconds. |
| Scooter does not accelerate. | Not push-started; Accelerator malfunction. | Ensure you push off with your foot before pressing the accelerator; Contact customer support if issue persists. |
| Reduced range or speed. | Low battery; Riding uphill frequently; Heavy load; Extreme temperatures. | Fully charge battery; Adjust riding style; Note that performance varies with conditions. |
| Handlebar feels loose. | Screws are loose. | Tighten the handlebar screws securely. |
For more complex issues, please contact Gyrocopters customer support.
Specifications
| Feature | Detail |
|---|---|
| Model | J30 |
| Motor Power | 350W Brushless Motor |
| Max Speed | Up to 31 km/h (19.3 mph) |
| Max Range | Up to 30 km (18.6 miles) |
| Battery Capacity | 7.8 Ah Lithium-Ion |
| Tire Size | 8.5 inches (Solid Rubber) |
| Max Load Capacity | 120 kg (265 lbs) |
| Item Weight | 12 kg (26.5 lbs) |
| Brake Type | Rear Disc Brake |
| Safety Certification | UL2272 Approved |
| Special Features | Foldable, Portable, LED Display, App-Integrated Control, Push-to-Start, Regenerative Braking System, Cruise Control |
Warranty Information
Gyrocopters products typically come with a limited manufacturer's warranty covering defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official Gyrocopters website for detailed warranty terms and conditions, including coverage period and claim procedures.
Keep your proof of purchase for warranty claims.
Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact Gyrocopters customer support:
- Phone: +1 647-797-3804
- Email: customercare@imgadgets.com
- Chat: www.imgadgets.com
Please have your model number (J30) and purchase date ready when contacting support.
