SVAVO Automatic Air Freshener Dispenser PL-151082 User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your SVAVO Automatic Air Freshener Dispenser. This device is designed to automatically release fragrance at set intervals, maintaining a pleasant environment in various indoor spaces.

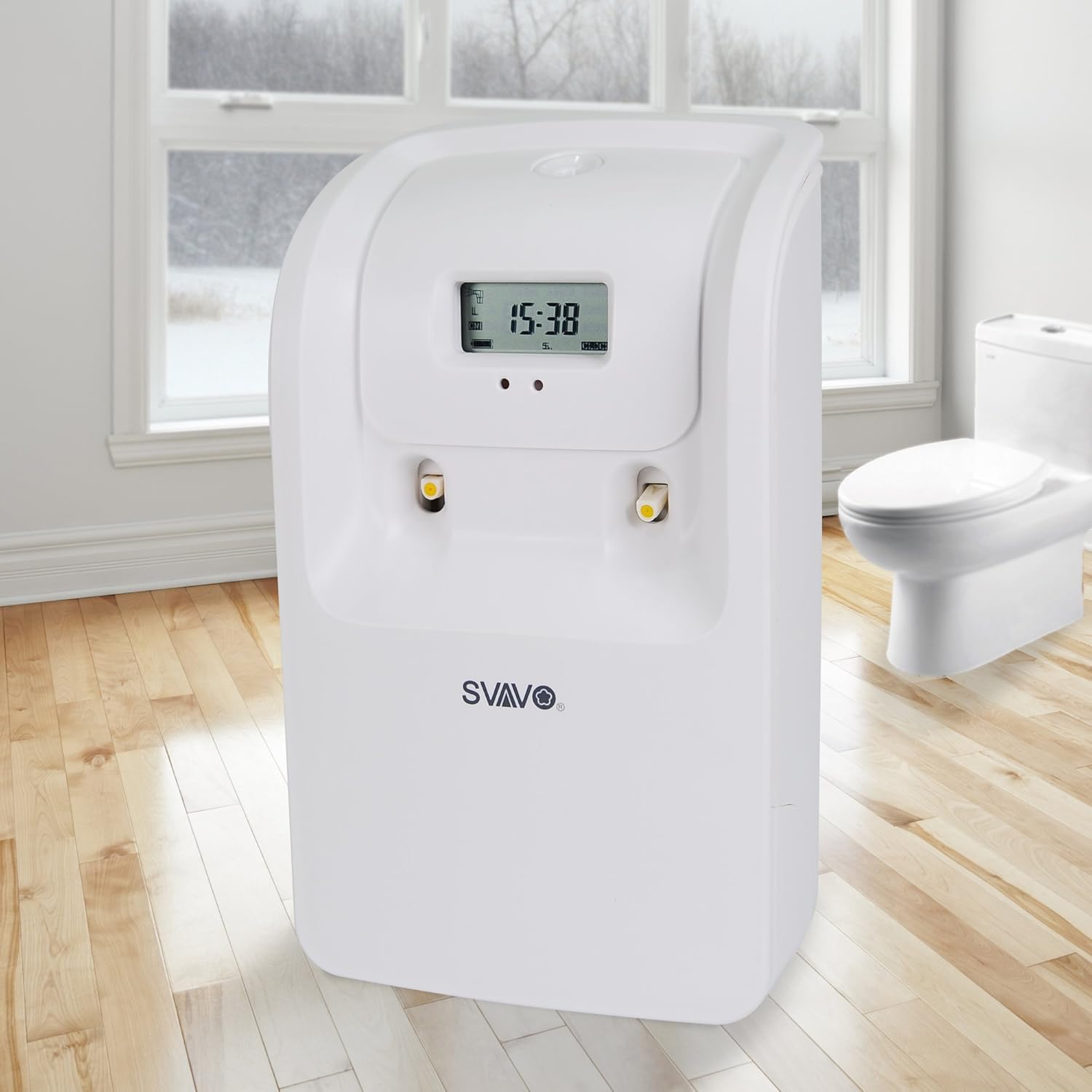

Image: The SVAVO Automatic Air Freshener Dispenser, white in color, shown mounted on a wall in a room with a window and a toilet visible in the background. The dispenser features an LCD screen displaying "15:38".

Key Features

• Automatic Spray Function: Dispenses fragrance automatically at user-defined intervals.
• Dual Can Capacity: Accommodates two standard-sized aerosol air freshener cans for extended operation.
• LCD Display: Clear screen for viewing current time and programming settings.
• Programmable Timer: Allows setting spray frequency from 1 to 60 minutes.
• Flexible Working Modes: Choose operation for Monday-Friday, Monday-Saturday, or Monday-Sunday.
• Adjustable Working Period: Set specific start and stop times (e.g., 8:00 am to 6:00 pm).
• Compact Design: Sleek white ABS plastic construction suitable for various indoor environments.

Package Contents

Upon opening the package, verify that all components are present:

• SVAVO Automatic Air Freshener Dispenser Unit
• Mounting Screws (4)
• Wall Anchors (4)
• Key for Dispenser Access
• User Manual (this document)

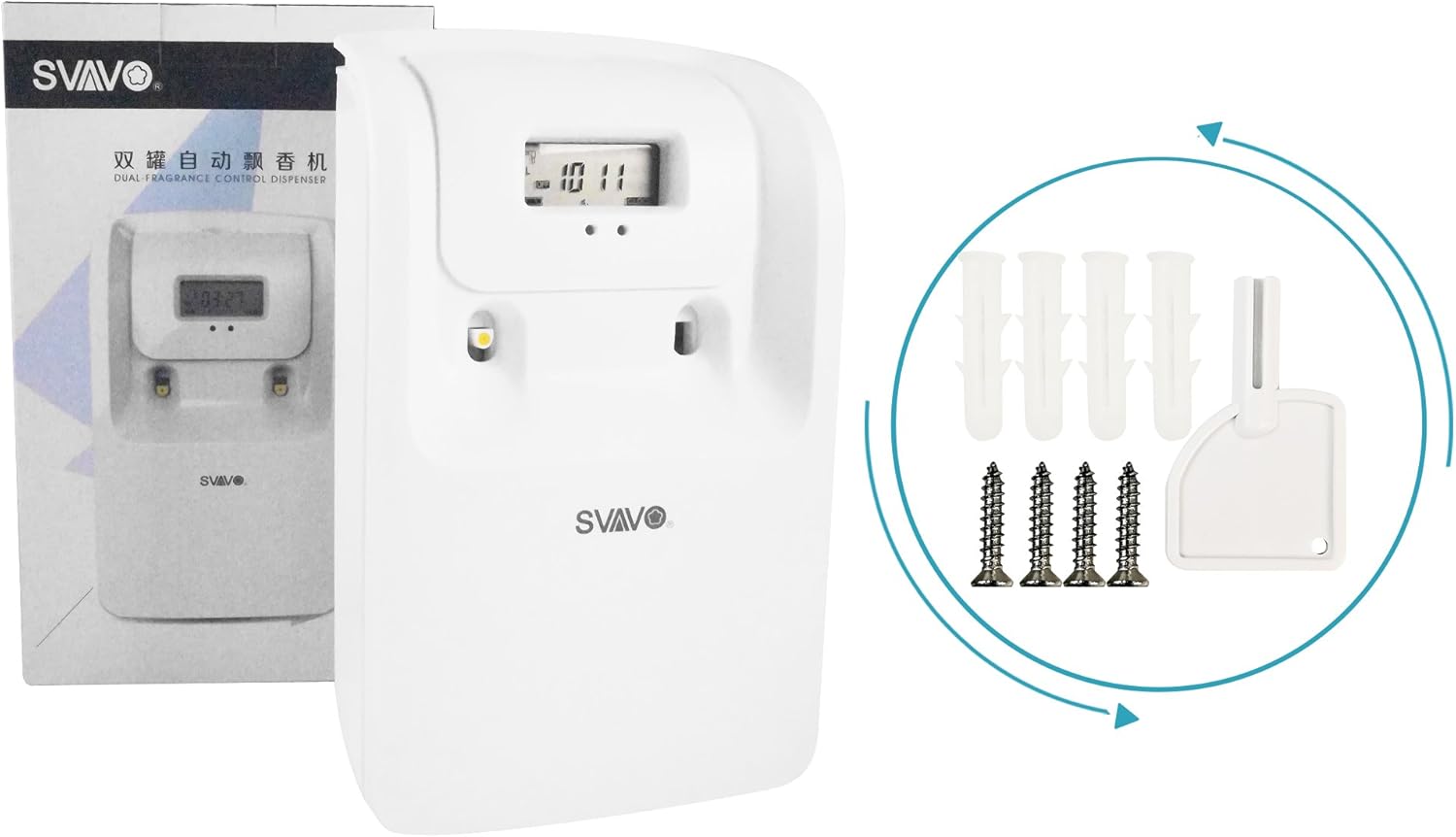

Image: The SVAVO Automatic Air Freshener Dispenser unit shown alongside its packaging box, four screws, four wall anchors, and a small white key, indicating the items included in the package.

Note: Air freshener cans and batteries are not included and must be purchased separately.

Specifications

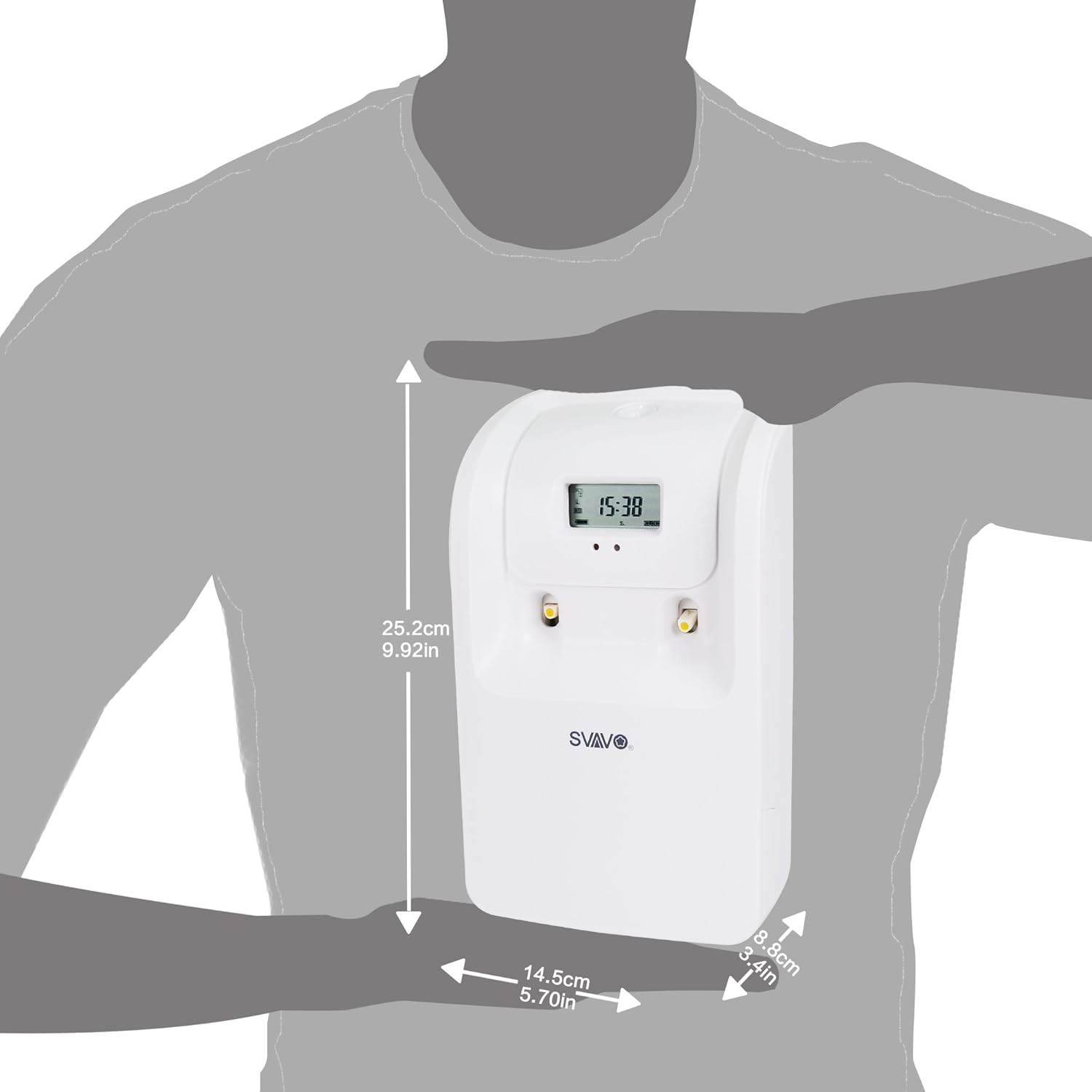

Image: A person holding the SVAVO Automatic Air Freshener Dispenser, with arrows and measurements indicating its dimensions: 9.92 inches (25.2 cm) in height, 5.70 inches (14.5 cm) in width, and 3.4 inches (8.8 cm) in depth.

Setup and Installation

1. Open the Dispenser: Use the provided key to unlock and open the front cover of the dispenser.
2. Insert Batteries: Locate the battery compartment. Insert the required batteries (typically 2 x D-size, not included) according to the polarity markings.
3. Insert Air Freshener Cans: Place two standard-sized aerosol air freshener cans into the designated slots. Ensure the spray nozzles are facing forward and aligned with the internal spray mechanism.
4. Mounting (Optional):
   • Choose a suitable wall location, ensuring it is at an appropriate height and away from direct water spray.
   • Mark the desired drilling points using the dispenser's mounting holes as a template.
   • Drill holes and insert wall anchors if necessary.
   • Secure the dispenser to the wall using the provided screws.
5. Close the Dispenser: Close the front cover and lock it with the key.

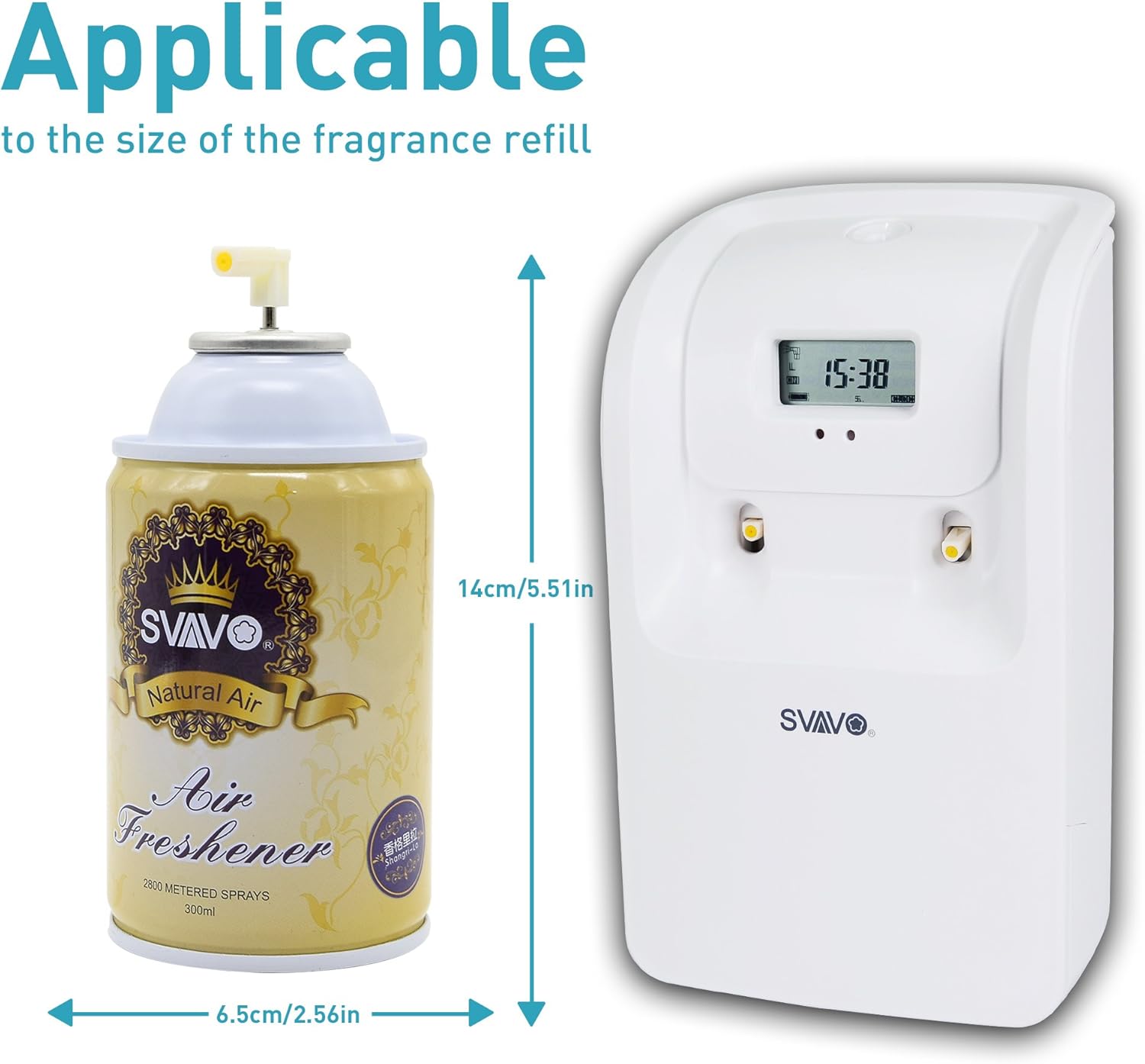

Image: The SVAVO Automatic Air Freshener Dispenser shown next to a standard aerosol air freshener can, with measurements indicating the can's height (14 cm / 5.51 inches) and diameter (6.5 cm / 2.56 inches), demonstrating compatibility.

Operating Instructions

The dispenser features an LCD display and control buttons for programming. Refer to the display for current settings.

Setting the Time

1. Press the "MODE" button until "CLOCK" appears on the display.
2. Use the "HOUR" and "MINUTE" buttons to set the current time.
3. Press "MODE" again to save and exit.

Setting Spray Interval (Frequency)

1. Press the "MODE" button until "INTERVAL" appears on the display.
2. Use the "HOUR" and "MINUTE" buttons to set the desired spray interval from 1 to 60 minutes.
3. Press "MODE" again to save and exit.

Setting Working Mode (Days of Week)

1. Press the "MODE" button until "WEEK" appears on the display.
2. Use the "HOUR" button to cycle through the available working modes:
   • Monday to Friday (5 days)
   • Monday to Saturday (6 days)
   • Monday to Sunday (7 days)
3. Press "MODE" again to save and exit.

Setting Working Period (Start/Stop Time)

1. Press the "MODE" button until "START" appears on the display.
2. Use the "HOUR" and "MINUTE" buttons to set the desired start time (e.g., 8:00 am).
3. Press "MODE" again. "STOP" will appear on the display.
4. Use the "HOUR" and "MINUTE" buttons to set the desired stop time (e.g., 6:00 pm).
5. Press "MODE" again to save and exit.

The dispenser will now operate according to your programmed settings. The LCD display will show the current time and active settings.

Maintenance

• Battery Replacement: When the battery indicator on the LCD display is low, replace all batteries with new ones. Open the dispenser with the key, remove old batteries, insert new ones with correct polarity, and close the cover.
• Air Freshener Can Replacement: When a can is empty, open the dispenser, remove the empty can, and insert a new one. Ensure the nozzle is correctly positioned.
• Cleaning: Wipe the exterior of the dispenser with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water. Ensure no liquid enters the internal components.
• Nozzle Check: Periodically check the spray nozzles for any blockages. If a nozzle appears blocked, gently wipe it clean. Do not use sharp objects to clear blockages.

Troubleshooting

Warranty and Support

For warranty information or technical support, please contact SVAVO customer service. Refer to the product packaging or the official SVAVO website for contact details.

Note: The return policy for this product is typically 30 days for refund or replacement, as per standard retail terms. Specific warranty terms may vary.
