1. Introduction
This manual provides essential information for the safe and efficient operation and maintenance of your VEVOR Air Compressor. This 20-gallon, oil-free air compressor is designed for various applications including tire inflation, auto repair, spray painting, and woodwork nailing. It features a 3KW motor, delivering 10.6 CFM at 90 PSI with a maximum pressure of 125 PSI, all while operating at an ultra-quiet 78 dB.

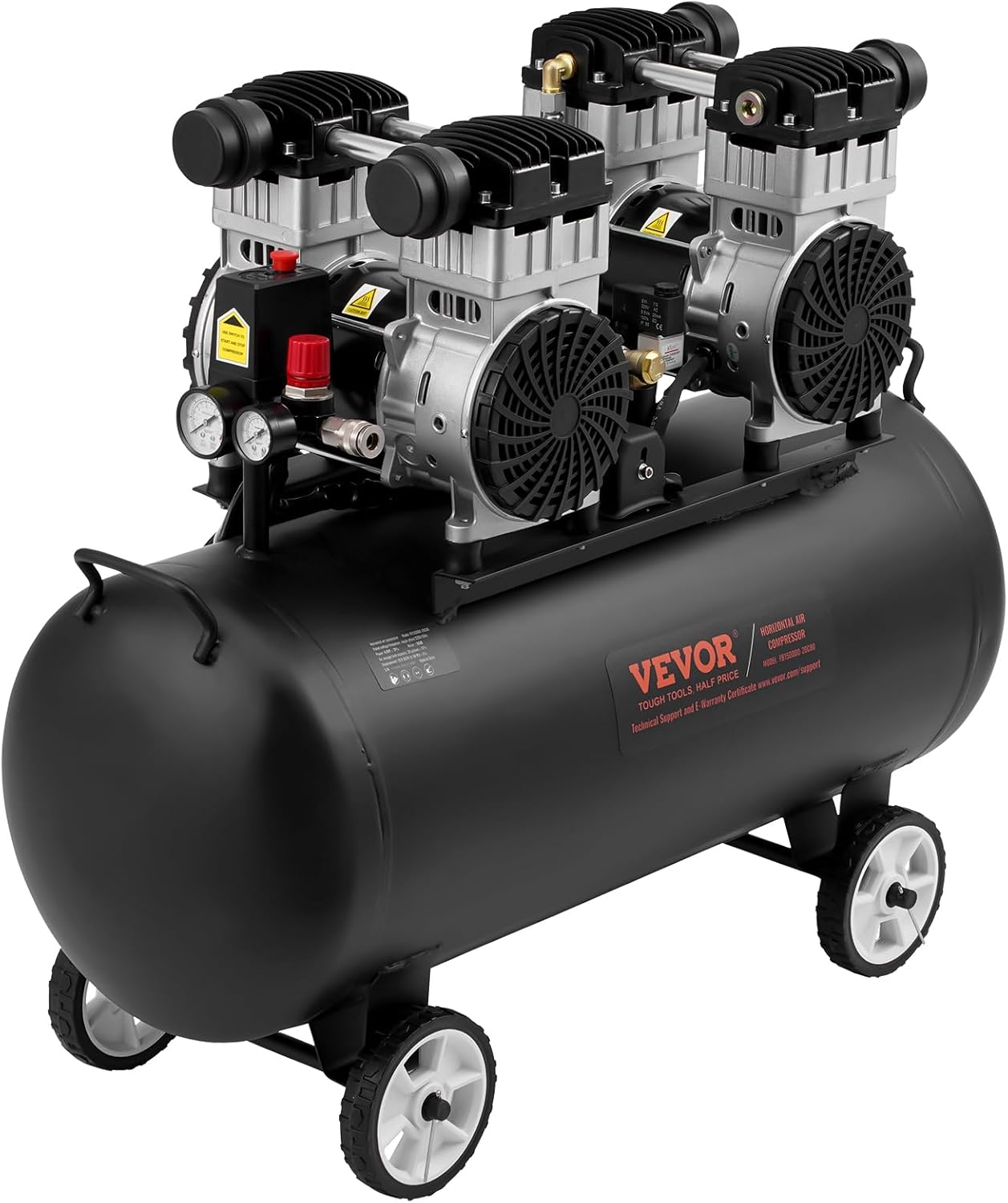

Figure 1: VEVOR 20 Gallon Air Compressor with its main components visible, including the tank, motor, and control panel.
2. Setup
2.1 Unpacking and Assembly
Carefully remove the air compressor from its packaging. Attach the wheels and the handle as per the included assembly instructions. Ensure all connections are secure before proceeding.
Figure 2: Close-up view of the air compressor's motor assembly and control panel, highlighting the dual pumps and air filters.
2.2 Power Connection
Connect the air compressor to a 220V, 60Hz power source. It is recommended to use a dedicated 20-amp circuit to prevent power issues, especially during startup or under heavy load. Avoid using extension cords if possible, or ensure they are heavy-duty and rated for the compressor's power requirements.
3. Operating Instructions
3.1 Powering On and Pressure Adjustment
Locate the ON/OFF switch on the control panel. Turn the unit on. The compressor will begin to build pressure in the tank. Use the pressure regulator knob to adjust the output pressure to suit your pneumatic tools or application. The pressure gauges will display both the tank pressure and the regulated output pressure.

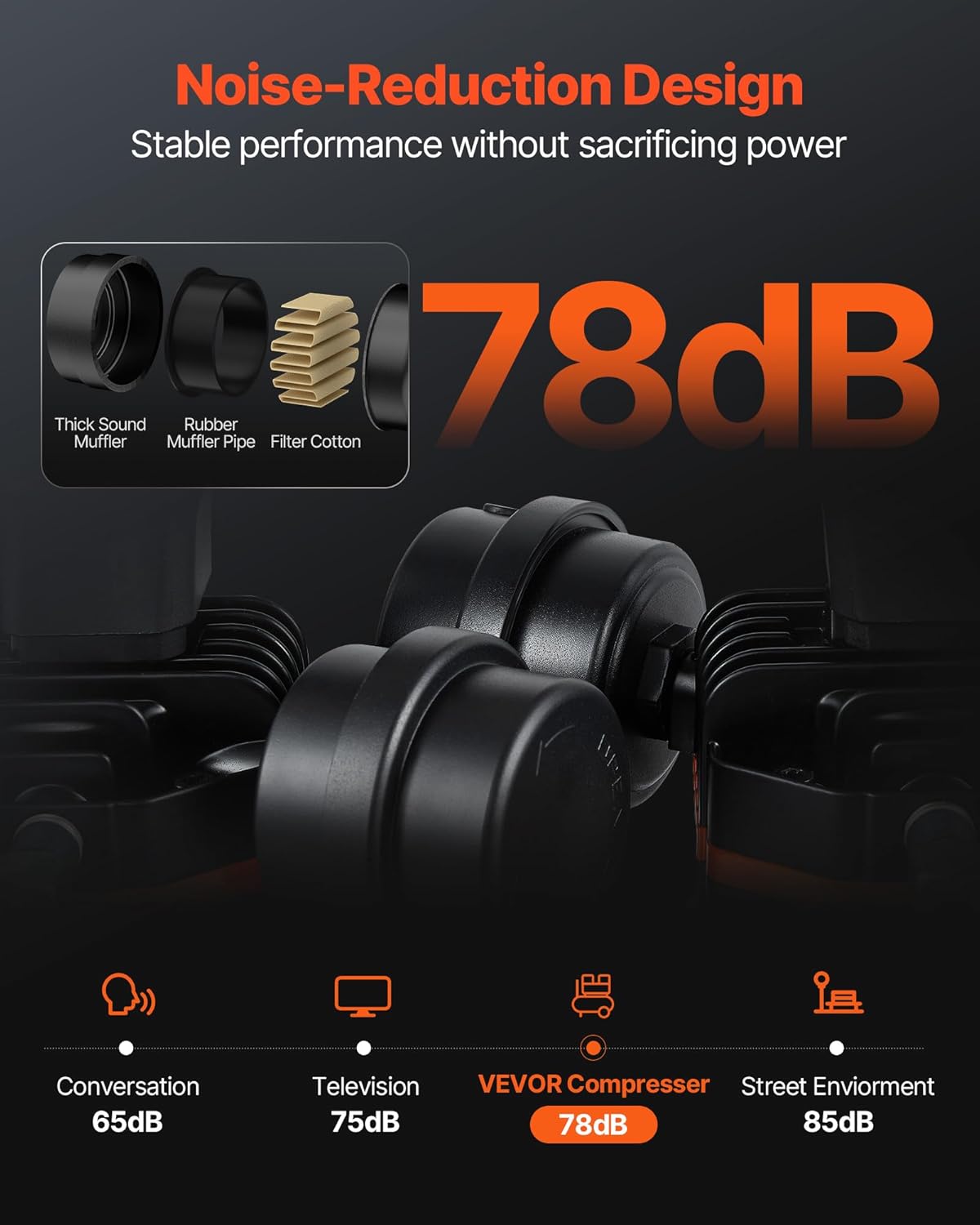

Figure 3: The noise reduction design, featuring a thickened muffler cover, rubber muffler pipe, and filter cotton, contributes to the compressor's ultra-quiet 78 dB operation.
3.2 Applications
This air compressor is versatile and suitable for a range of tasks:
- Tire Inflation: Easily inflate vehicle tires, bicycle tires, and other inflatables.
- Auto Repair: Power various pneumatic tools for automotive maintenance.
- Spray Painting: Provides consistent airflow for spray guns, ideal for painting projects.
- Woodwork Nailing: Compatible with nail guns for construction and woodworking tasks.
Figure 4: Demonstrations of the air compressor's versatile compatibility across different applications, including tire inflation, auto repair, spray painting, and woodwork nailing.
4. Maintenance
4.1 Draining Condensation
Regularly drain any accumulated water from the air tank to prevent rust and corrosion. Locate the water release valve at the bottom of the tank and open it to allow condensation to drain. Close the valve securely after draining.
4.2 Overheating Protection
The air compressor is equipped with a large cooling fan and automatic overheating protection. If the motor temperature becomes too high, the compressor will automatically shut off to prevent damage. Allow the unit to cool down before resuming operation.
Figure 5: Key safety features of the air compressor, including the overheat protector, overload protector, and safety valve, designed for user and equipment protection.
5. Troubleshooting
5.1 Power Issues
If the compressor struggles to start or frequently trips its internal protection, ensure it is connected to a dedicated electrical circuit, ideally 20-amp. Avoid using long or inadequate extension cords, as they can cause voltage drop and prevent proper operation.
5.2 Overheating Shutdown
If the compressor shuts down due to overheating, allow it sufficient time to cool down. Ensure adequate ventilation around the unit. Continuous operation beyond its duty cycle can trigger this safety feature.
6. Specifications
| Feature | Specification |
|---|---|
| Brand | VEVOR |
| Model Name | Air Compressor |
| Item Model Number | FB1500D0-20C80 |
| Capacity | 20 Gallon (75 L) |
| Motor Horsepower | 4 HP (3 KW) |
| Air Flow Capacity | 10.6 CFM @ 90 PSI |
| Maximum Operating Pressure | 125 PSI |
| Noise Level | 78 dB |
| Voltage | 220 Volts |
| Power Source | Corded Electric |
| Item Weight | 134.7 Pounds (61.1 Kg) |
| Product Dimensions | 35.43 x 16.93 x 28.74 inches |
| Special Features | Portable, Automatic Shut-Off |
Figure 6: Detailed dimensions and key performance specifications of the VEVOR air compressor.
7. Warranty and Support
Specific warranty details and customer support contact information are not provided in this manual. For warranty claims, technical assistance, or further inquiries, please refer to the official VEVOR website or contact their customer service directly. Keep your purchase receipt for any warranty-related services.
