1. Introduction
Thank you for choosing the JOYRACER 24V Electric Ride-On Jeep. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric vehicle. Please read it thoroughly before first use and retain it for future reference. This vehicle is designed to provide an exciting and safe driving experience for children, featuring robust construction and advanced control options.
Image: The JOYRACER 24V Electric Ride-On Jeep in red, accompanied by its remote control.
Image: Overview of the powerful off-road truck, showcasing available color options.
2. Safety Information
WARNING: Using under adult supervision is required at all times.
- Always ensure children wear appropriate safety gear, including seat belts, when operating the vehicle.
- Do not operate the vehicle near swimming pools, steep inclines, public roads, or other hazardous areas.
- Ensure the vehicle is fully charged before each use to prevent unexpected power loss.
- The maximum weight capacity for this vehicle is 135 lbs. Do not exceed this limit.
- Recommended age for use is 36 months to 8 years.
- The vehicle features a slow start function for enhanced safety, preventing sudden acceleration.

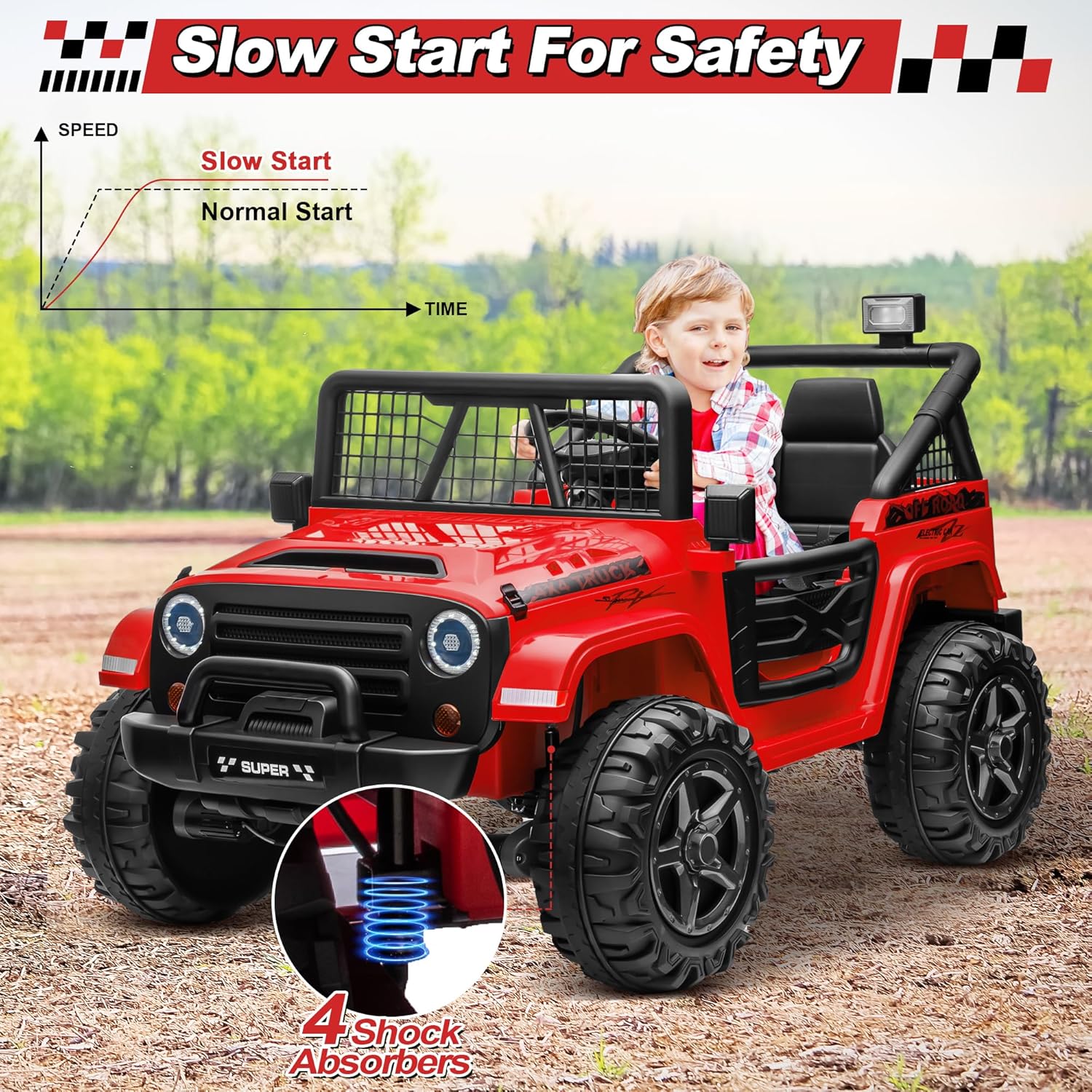

Image: Illustration of the slow start safety feature and integrated shock absorbers for a smoother, safer ride.
3. What's in the Box
Upon opening the package, please verify that all components are present and undamaged. The box should contain:
- All necessary ride-on car parts for assembly.
- Remote Control unit.
- Charger.
- Instruction Manual.
4. Setup and Assembly
Assembly of the JOYRACER Electric Ride-On Jeep requires adult supervision and basic tools. Follow the step-by-step instructions provided in the separate assembly guide included with your product. Key steps typically include:
- Attaching the wheels and axles.
- Connecting the battery and electrical components.
- Installing the steering wheel and seats.
- Securing all body panels and accessories.
Ensure all connections are secure and all screws are tightened before first use.
5. Operating Instructions
5.1 Driving Modes
The vehicle supports dual driving modes:
- Kids Manual Control: Children can operate the vehicle using the foot pedal for acceleration and the steering wheel for direction. The vehicle offers high-low speed options for self-drive.
- Parental Remote Control: Parents can override manual control using the 2.4GHz remote control. This allows for easy control of driving functions, including forward/backward movement, left/right turns, 3-speed optional settings, and emergency braking.
Image: Visual representation of the two driving modes: child manual control and parental remote control.
Image: Detailed view of the vehicle's dashboard controls and the parental remote control functions, including speed settings.
5.2 4WD/2WD Switchable System
The vehicle features a switchable drive system, allowing you to select between 2-wheel drive (2WD) and 4-wheel drive (4WD) modes.
- 2WD Mode: Ideal for saving energy and smooth riding on flat, even surfaces.
- 4WD Mode: Provides stronger power and better traction for rough roads and challenging terrains, enabling faster riding.
Image: Diagram illustrating the 2WD and 4WD switchable system for varied terrain performance.
5.3 Multimedia Functions
The vehicle is equipped with a built-in music player for enhanced entertainment during playtime.
- USB/Bluetooth/MP3 Player: Connect your devices to play music.
- LED Lights: Functional LED headlights and taillights for realistic driving experience.
- Horn: Integrated horn for interactive play.
Image: Children enjoying the ride-on jeep, highlighting the integrated musical features and display.
6. Features
- Powerful Motors: Equipped with 4 x 200W motors (800W total) for strong and stable power.
- Spacious 2-Seater Design: Features a 20-inch extra-wide seat, comfortably accommodating two smaller children or one larger child. Each seat includes individual seat belts.
- Storage Compartment: A handy storage space is included, perfect for toys, snacks, and water.
- All-Terrain Capability: Designed to handle various surfaces including grass, gravel, asphalt, and mud.
- Decorative Flower: Comes with a decorative flower for a special gift presentation.
Image: Rear view of the jeep, emphasizing its 4WD capability and power for climbing inclines.
Image: The rear storage compartment of the ride-on jeep, demonstrating its capacity for carrying items.
Image: The ride-on jeep demonstrating its versatility across different terrains, including grass, gravel, asphalt, and mud.
Image: Detailed close-ups of various features including the wide seats with safety belts, bright LED lights, foot pedal, steering wheel, openable door with safety lock, and storage space.
Image: The ride-on jeep presented with a decorative flower, highlighting its suitability as a gift.
7. Maintenance
- Charging: Charge the 24V battery for 8-12 hours before first use, and 8-12 hours after each use. Do not overcharge.
- Cleaning: Wipe the vehicle with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the vehicle in a dry, cool place away from direct sunlight and moisture. If storing for extended periods, charge the battery monthly.
- Tires: Regularly check tires for wear and tear.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Low battery; Loose battery connection; Blown fuse; Motor issue. | Charge battery; Check battery terminals; Replace fuse; Contact support. |
| Short playtime | Battery not fully charged; Old battery; Overloaded vehicle. | Ensure full charge; Consider battery replacement; Reduce load. |
| Remote control not working | Remote battery low; Not paired; Interference. | Replace remote batteries; Re-pair remote; Move away from interference sources. |
| Gas pedal sticks | Debris or mechanical issue. | Inspect pedal area for obstructions; Contact customer support for repair. |
9. Specifications
- Product Dimensions: 49.6 L x 31.1 W x 30.3 H inches
- Item Weight: 69.4 pounds
- Motor Power: 4 x 200W (Total 800W)
- Battery: 24V
- Max Speed: Up to 5.9 MPH
- Playtime: 1-2 hours (continuous, depending on usage)
- Max Weight Capacity: 135 lbs
- Recommended Age: 36 months - 8 years
- Seat Width: 20 inches

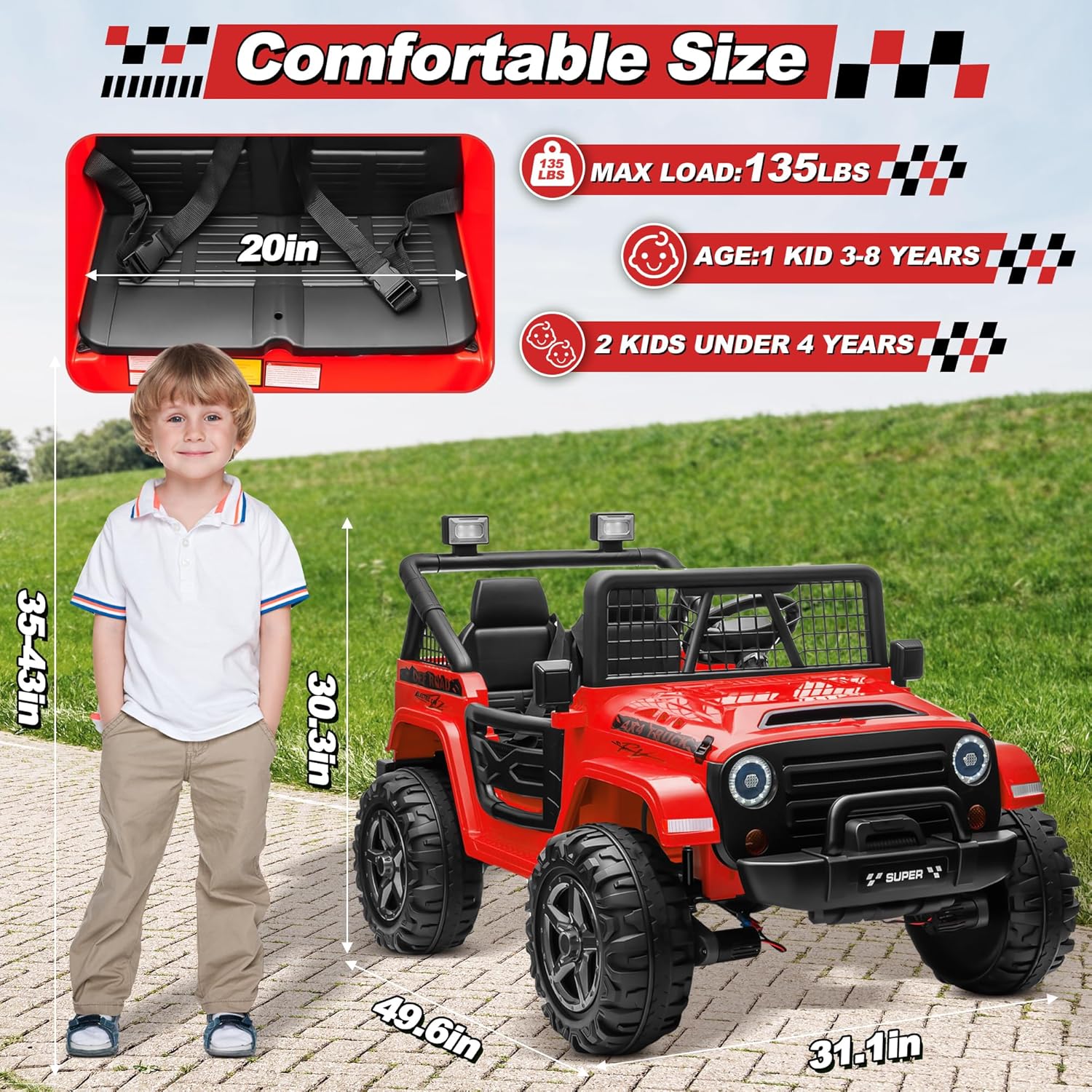

Image: Dimensional diagram of the ride-on jeep, illustrating its size and comfortable seating for children.
10. Warranty and Support
JOYRACER products are designed for quality and durability. For any issues or questions regarding your product, please contact JOYRACER customer support. Refer to your purchase documentation for specific warranty terms and conditions. You can reach out via Amazon message for the fastest assistance.
