CasterHQ Hamilton W-625-DL-1-15/16 Duralast Wheel Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your CasterHQ Hamilton W-625-DL-1-15/16 Duralast Wheel. Please read these instructions carefully before use to ensure safe and efficient performance and to maximize the lifespan of your product. Retain this manual for future reference.

2. Product Overview

The Hamilton W-625-DL-1-15/16 Duralast Wheel is a heavy-duty industrial wheel designed for demanding applications. It features a 6-inch diameter polyurethane tread (95A durometer) bonded to a robust cast iron core, providing exceptional durability, load capacity, and floor protection. Its design ensures reliable performance in various industrial environments.

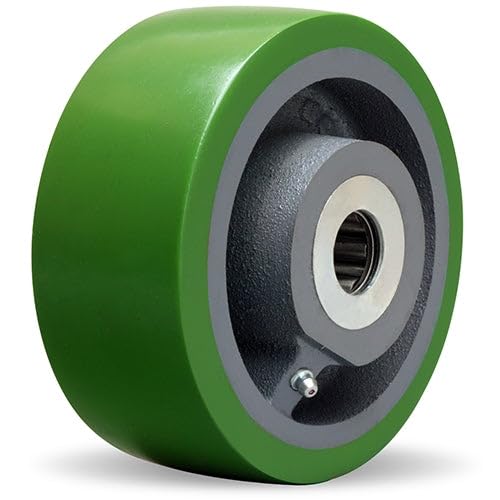

Figure 2.1: Hamilton W-625-DL-1-15/16 Duralast Wheel. This image displays the Hamilton W-625-DL-1-15/16 Duralast Wheel. It features a vibrant green polyurethane tread over a dark grey cast iron core. The wheel's hub is visible, showing a plain bore and a grease fitting for maintenance. The design emphasizes its heavy-duty construction for industrial applications.

Key Features:

• Duralast Polyurethane Tread: 95A durometer for excellent wear resistance, traction, and floor protection.
• Cast Iron Core: Provides high strength and load-bearing capacity.
• Optimal Dimensions: 6" diameter, 2 1/2" width, 3 1/4" hub length, and 1 15/16" plain bore for versatile application.
• Reduced Noise and Vibration: Polyurethane material contributes to smoother and quieter operation.

3. Setup and Installation

Proper installation is crucial for the safe and effective operation of the wheel. Ensure all components are compatible and securely fastened.

1. Inspect Components: Before installation, visually inspect the wheel and all mounting hardware for any signs of damage or defects. Do not install damaged components.
2. Prepare Mounting Surface: Ensure the mounting surface on your equipment is clean, flat, and free from obstructions.
3. Align Wheel: Position the wheel's 1 15/16" plain bore with the axle or mounting shaft of your equipment.
4. Secure Fasteners: Use appropriate bolts, nuts, and washers (not included) to securely attach the wheel to the equipment. Tighten all fasteners to the manufacturer's recommended torque specifications for your equipment. Over-tightening or under-tightening can lead to premature wear or failure.
5. Verify Movement: After installation, manually rotate the wheel to ensure it moves freely without binding or excessive wobble.

Note: This wheel is designed for use with compatible axles and mounting systems. Consult your equipment's manual for specific installation requirements.

4. Operating Guidelines

To ensure optimal performance and safety, adhere to the following operating guidelines:

• Load Capacity: Do not exceed the specified load capacity of the wheel or the equipment it is attached to. Overloading can cause damage to the wheel, equipment, and may lead to unsafe conditions.
• Surface Conditions: Operate on surfaces that are reasonably smooth and free from sharp objects, debris, or extreme temperature variations that could damage the polyurethane tread.
• Speed: Avoid excessive speeds, especially when carrying heavy loads, as this can increase wear and reduce control.
• Environmental Factors: While Duralast polyurethane offers good resistance, prolonged exposure to harsh chemicals, oils, or extreme temperatures should be avoided to prevent material degradation.
• Even Distribution: Ensure loads are evenly distributed across all wheels to prevent undue stress on individual components.

5. Maintenance

Regular maintenance helps extend the life of your Hamilton Duralast Wheel and ensures continued reliable operation.

• Routine Inspection: Periodically inspect the wheel for signs of wear, cuts, cracks, or flat spots on the polyurethane tread. Check the cast iron core for any structural damage.
• Bearing Lubrication: The wheel features a grease fitting (zerk) for lubrication. Apply a suitable grease (e.g., lithium-based multi-purpose grease) at regular intervals, typically every 1-3 months depending on usage and environment. Do not over-lubricate.
• Fastener Check: Regularly check the tightness of all mounting bolts and nuts. Re-tighten as necessary to prevent loosening during operation.
• Cleaning: Keep the wheel clean from debris, dirt, and foreign materials that could impede its movement or damage the tread. Use mild soap and water if necessary, avoiding harsh chemicals.
• Replacement: If significant wear or damage is observed, replace the wheel promptly to maintain safety and performance.

6. Troubleshooting

This section addresses common issues you might encounter with your industrial wheel.

7. Specifications

8. Warranty and Support

For information regarding product warranty, technical support, or replacement parts, please contact CasterHQ directly. Refer to your purchase documentation or visit the official CasterHQ website for contact details.
