1. Introduction
Thank you for choosing the TOFR Aluminum Hydraulic Rear Foot Brake. This product is designed to provide reliable braking performance for your Talaria XXX Electric Bike. This manual will guide you through the proper installation, operation, and maintenance procedures to ensure optimal performance and safety. Please read all instructions carefully before installation and use.
2. Product Overview
The TOFR Hydraulic Rear Foot Brake is a high-quality component crafted from durable 6061 T6 aluminum, ensuring both strength and lightweight properties for extended durability. It features a hydraulic master cylinder that activates the rear brake, allowing for foot-operated braking while retaining the hand brake functionality. This design caters to riders who prefer or are accustomed to foot-activated rear braking. The component is CNC-machined for high precision and reliability, and its anodized blue finish provides a smart and dashing appearance.

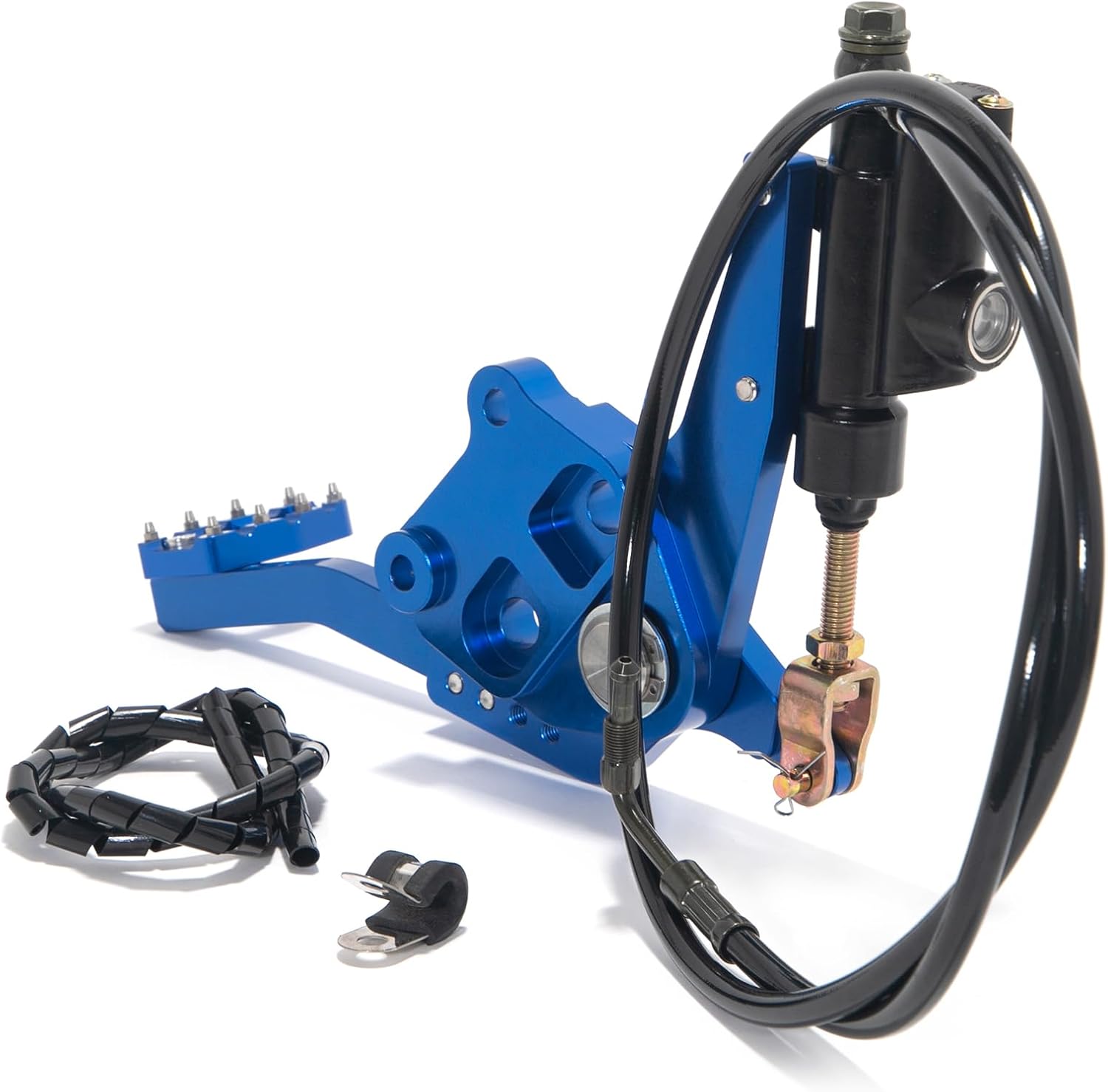

Figure 2.1: Complete TOFR Aluminum Hydraulic Rear Foot Brake assembly in blue, showcasing the main unit, hydraulic line, and associated hardware.
Figure 2.2: Side profile of the brake assembly, emphasizing the ergonomic design of the foot pedal and the integrated hydraulic cylinder.

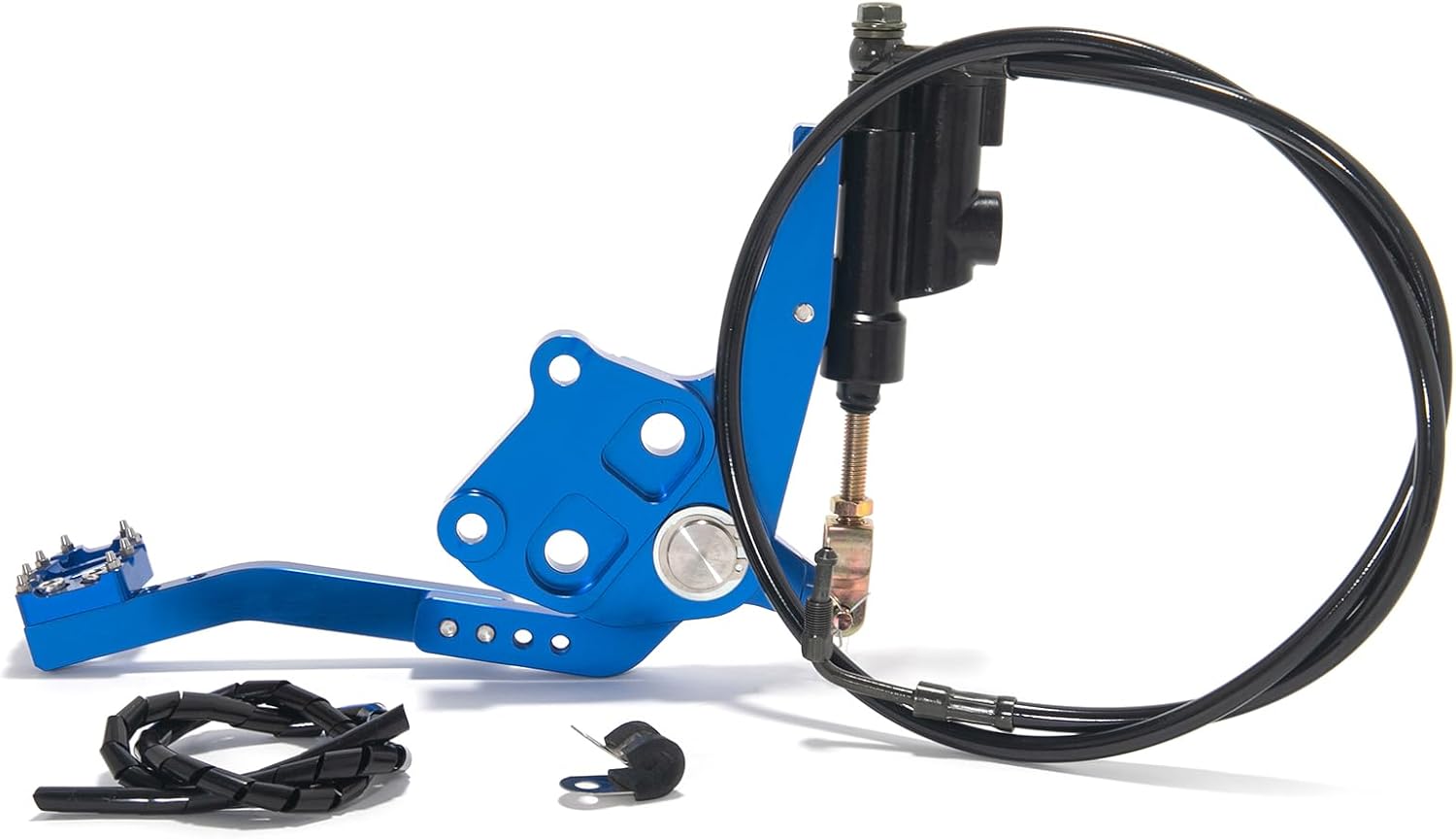

Figure 2.3: Alternative side view of the brake, illustrating the routing of the hydraulic line and the robust construction of the aluminum frame.
Figure 2.4: Rear perspective of the brake assembly, detailing the mounting brackets and the pivot mechanism for the foot pedal.
Figure 2.5: Detailed view of the hydraulic master cylinder, showing its integration with the brake lever and the fluid reservoir.
3. Setup and Installation
Installation of the TOFR Aluminum Hydraulic Rear Foot Brake requires mechanical aptitude and familiarity with motorcycle braking systems. It is highly recommended that installation be performed by a qualified professional to ensure proper function and safety. Incorrect installation can lead to brake failure and serious injury.
Installation Steps:
- Preparation: Ensure the Talaria XXX Electric Bike is stable and secured. Disconnect the battery for safety. Gather all necessary tools, including wrenches, screwdrivers, and brake fluid.
- Remove Existing Components: Carefully remove the existing rear brake components if applicable, following the bike manufacturer's guidelines. This may include the hand-operated master cylinder if you are converting to foot-only rear brake operation, or simply replacing the foot brake assembly.
- Mount the New Assembly: Position the TOFR foot brake assembly onto the designated mounting points on the bike frame. Secure it using appropriate fasteners. Ensure all bolts are tightened to the manufacturer's specified torque settings.
- Connect Hydraulic Line: Connect the hydraulic line from the new master cylinder to the rear brake caliper. Ensure all connections are secure and free of leaks. Use new crush washers if required.
- Bleed the Brake System: Bleed the hydraulic brake system to remove any air. This is a critical step to ensure proper brake function. Follow standard brake bleeding procedures, ensuring fresh brake fluid is used and no air bubbles remain in the system.
- Adjust Pedal Position: Adjust the foot pedal position to a comfortable and safe operating angle. Ensure there is proper free play before the brake engages.
- Final Inspection: Double-check all connections, fasteners, and the overall integrity of the installation. Test the brake function at a low speed in a safe environment before full operation.
4. Operation
The TOFR Aluminum Hydraulic Rear Foot Brake is designed to provide responsive and controlled braking for the rear wheel of your Talaria XXX Electric Bike. To operate, apply pressure to the foot pedal with your right foot. The hydraulic master cylinder will transmit this pressure to the rear brake caliper, engaging the brake. The amount of braking force is proportional to the pressure applied to the pedal. Always apply brakes smoothly and progressively to maintain control, especially during turns or on slippery surfaces.
This system allows you to modify the brake to be foot-operated while retaining the hand brake, offering flexibility for riders who prefer or are accustomed to foot braking. Always use both front and rear brakes in conjunction for optimal stopping power and stability, unless specific riding conditions dictate otherwise.
5. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your TOFR Hydraulic Rear Foot Brake. Perform the following checks periodically:
- Brake Fluid Level: Check the brake fluid level in the master cylinder reservoir regularly. Top up with the recommended brake fluid if necessary.
- Brake Fluid Replacement: Replace brake fluid according to your bike manufacturer's recommendations, typically every 1-2 years, to prevent moisture contamination and maintain braking performance.
- Leak Inspection: Inspect all hydraulic lines and connections for any signs of leaks. Address any leaks immediately.
- Pad Wear: Check the rear brake pads for wear. Replace them when they reach their wear limit.
- Pedal Movement: Ensure the foot pedal moves freely and returns to its resting position without sticking. Lubricate pivot points if necessary.
- Component Integrity: Periodically inspect the aluminum components for any signs of damage, cracks, or corrosion. Clean the assembly to remove dirt and debris.
6. Troubleshooting
This section addresses common issues you might encounter with your hydraulic rear foot brake. For complex problems, consult a professional mechanic.
- Spongy Brake Pedal: This often indicates air in the hydraulic system. Re-bleed the brake system thoroughly.
- Reduced Braking Performance: Check brake fluid level, inspect for leaks, and examine brake pad wear. Contaminated brake fluid or worn pads can reduce performance.
- Brake Dragging: Ensure the pedal returns fully to its resting position. Check for proper adjustment and ensure the caliper pistons are not seized.
- Unusual Noises: Squealing or grinding noises may indicate worn brake pads or contamination. Inspect and replace pads if necessary.
7. Specifications
| Attribute | Detail |
|---|---|
| Product Name | TOFR Aluminum Hydraulic Rear Foot Brake |
| Model Number | MX-TAL-XXX-034-BLU@#US5 |
| Compatibility | For Talaria XXX Electric Bike |
| Material | 6061 T6 Aluminum |
| Surface Finish | Anodized |
| Weight | 1000g (2.2 lb) |
| Manufacturing Process | CNC-Machined |
| Item Weight (Shipping) | 1 pounds |
| Package Dimensions | 3.1 x 1.9 x 1.2 inches |
8. Warranty and Support
TOFR products are manufactured to high standards of quality and performance. For information regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims. For assistance with installation or troubleshooting beyond this manual, it is recommended to consult a certified mechanic or the product manufacturer's support channels.
