Introduction
This manual provides instructions for the InnovaGoods Vertical Folding Clothesline, Model 8435527826963. This vertical clothes airer is designed for efficient drying of a large volume of laundry. It features 24 metal bars across three height levels, offering approximately 17 meters of drying space. The design includes six individual folding wings and integrated supports for hangers, capable of holding up to 40 kg of clothing. Its portable design with wheels allows for easy relocation and compact storage.
Figure 1: The InnovaGoods Vertical Folding Clothesline in use, displaying its multi-level design and capacity for various garments.
Product Components
Before assembly, ensure all components are present. The clothesline is constructed from iron and polypropylene. Refer to the assembly instructions provided in the packaging for a detailed list of parts and illustrations.
Figure 2: Dimensional diagram of the clothesline, illustrating its compact folded state and expanded dimensions.
Setup and Assembly
The InnovaGoods Vertical Folding Clothesline is designed for tool-free assembly. Follow these general steps:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
- Assemble Base: Connect the base sections, ensuring the wheel mechanisms are correctly oriented.
- Attach Vertical Poles: Insert the vertical support poles into the designated slots on the base.
- Install Drying Racks: Secure the three levels of drying racks to the vertical poles. Each level typically clicks into place.
- Attach Hanger Supports: Install the top and side hanger supports onto the frame.
Refer to the detailed assembly instructions included in your product packaging for specific diagrams and step-by-step guidance. Ensure all connections are secure before use.

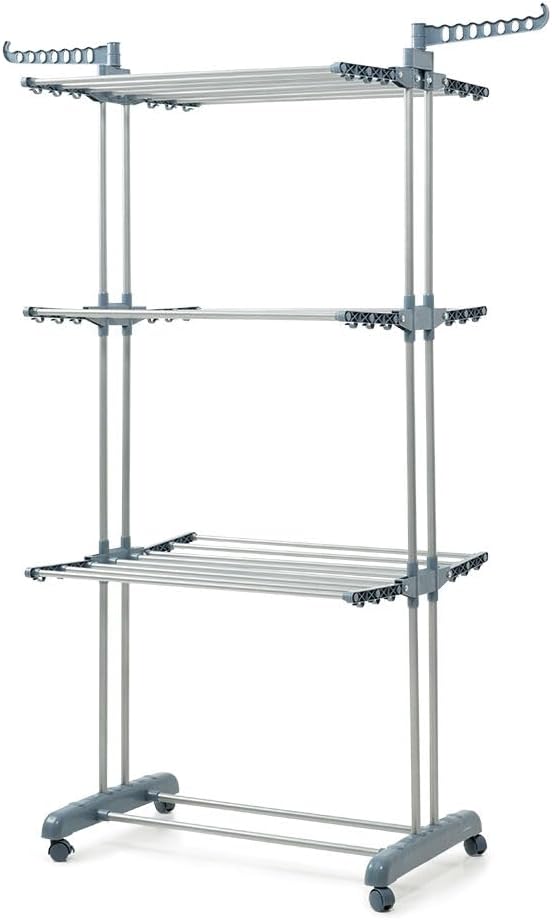

Figure 3: The clothesline fully assembled and empty, highlighting its structural design.
Operating Instructions
The InnovaGoods Vertical Folding Clothesline is designed for versatile use. Here's how to operate it effectively:
Using the Drying Racks
- Capacity: The clothesline features 24 metal bars distributed across three levels, providing ample space for various garments. It can support a maximum weight of 40 kg.
- Folding Wings: The six individual folding wings can be adjusted independently. Fold them up or down based on the amount of laundry or to save space when not in use.
- Hanger Supports: Utilize the two movable top brackets and the smaller side supports for hanging delicate items on clothes hangers, which helps prevent marks and creases. Hangers are not included.
Figure 4: The clothesline positioned in a room, demonstrating its practical use for drying a full load of laundry.
Figure 5: Detail of the top hanger supports, demonstrating their use for hanging garments.

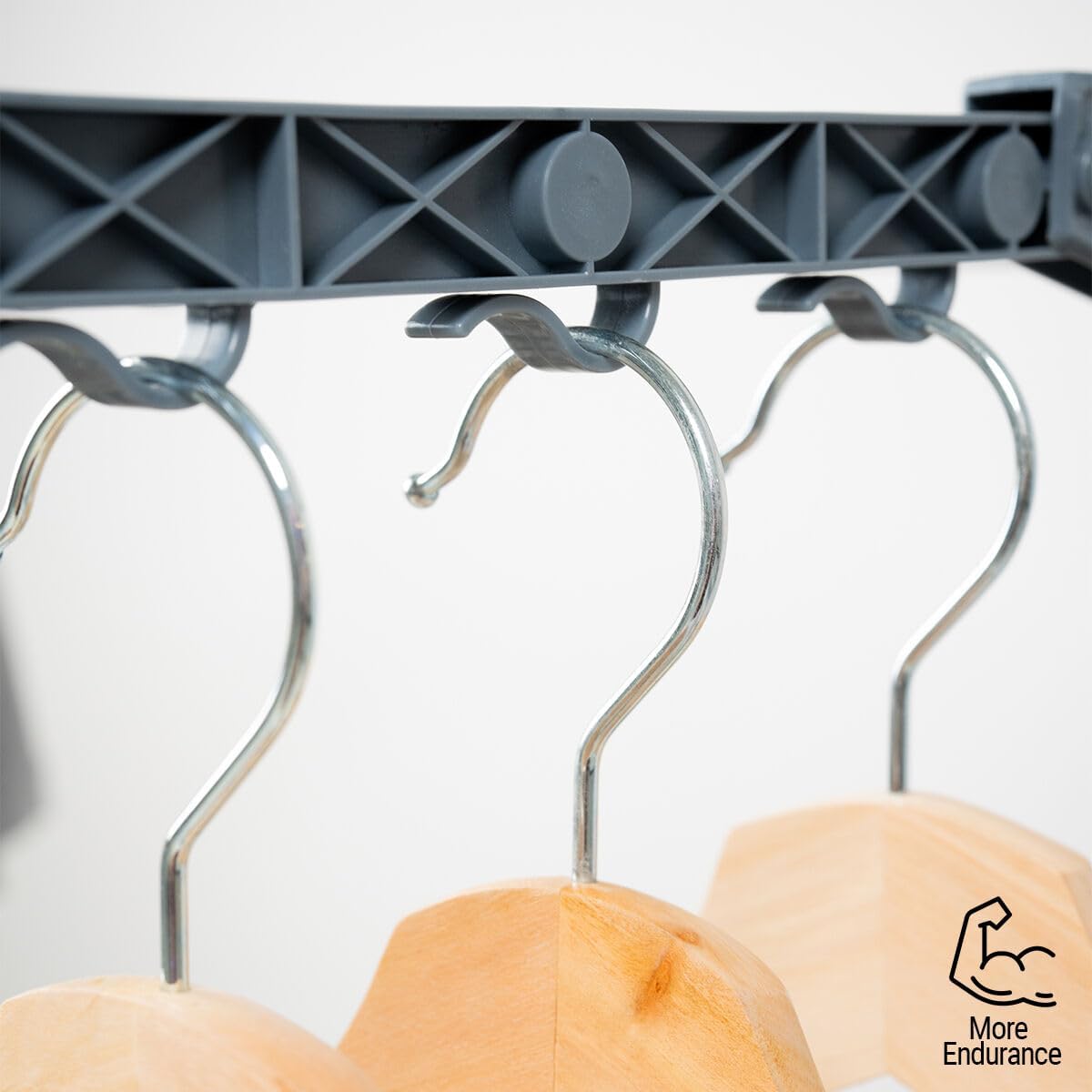

Figure 6: A closer look at the robust hanger hooks, designed for secure garment placement.
Mobility and Stability
- Wheels: The clothesline is equipped with four 360° rotating wheels for easy movement.
- Safety Lock: Two of the wheels include a safety lock mechanism. Engage these locks to secure the clothesline in a stationary position and prevent unintended movement.
Figure 7: Close-up view of one of the non-slip wheels and the InnovaGoods branding on the base.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your clothesline.
- Cleaning: Wipe down the iron and polypropylene surfaces with a damp cloth and mild detergent as needed. Avoid abrasive cleaners that could damage the finish.
- Inspection: Periodically check all connections and joints to ensure they remain secure. Tighten any loose parts if necessary.
- Storage: When not in use, especially for extended periods, fold the wings to minimize its footprint and store it in a dry place to prevent potential rust on metal components.
Troubleshooting
If you encounter issues with your InnovaGoods Vertical Folding Clothesline, consider the following:
- Stability Issues:
- Ensure all assembly connections are fully tightened.
- Verify that the clothesline is placed on a flat, even surface.
- Distribute laundry evenly across the racks to maintain balance.
- Engage the wheel safety locks when the clothesline is stationary.
- Difficulty Moving:
- Check if the wheel safety locks are disengaged.
- Clean any debris or lint that may be obstructing the wheels.
- Folding Mechanism Stiff:
- Ensure no clothing or objects are obstructing the folding wings.
- Apply a small amount of silicone spray to the pivot points if necessary, avoiding contact with clothing.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 8435527826963 |
| Material | Iron, Polypropylene |
| Color | Grey, Silver (Textile | 24 Bars variant) |
| Product Dimensions (Extended) | Approx. 49-62 cm (D) x 73 cm (W) x 175 cm (H) / 19.29"D x 19.29"W x 68.9"H |
| Drying Capacity | 24 Bars (approx. 17 linear meters of drying space) |
| Max. Supported Weight | 40 kg (88 pounds) |
| Wheels | 4 x 360° rotating, 2 with safety locks |
| Special Features | Foldable, Portable, 3 Height Levels, 6 Individual Folding Wings, Hanger Supports |
| Assembly | Tool-free assembly |
Warranty and Support
Information regarding product warranty and customer support was not provided in the available product data. For warranty details, technical assistance, or to inquire about replacement parts, please refer to the documentation included with your purchase or contact InnovaGoods directly through their official website or customer service channels.
You may find additional information on the InnovaGoods brand page on Amazon.
