YAUWOH Metal Bathroom Storage Cabinet

Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your YAUWOH Metal Bathroom Storage Cabinet (Model: YXM02WH01-YWS). Please read this manual thoroughly before beginning assembly or use to ensure safe and correct operation.

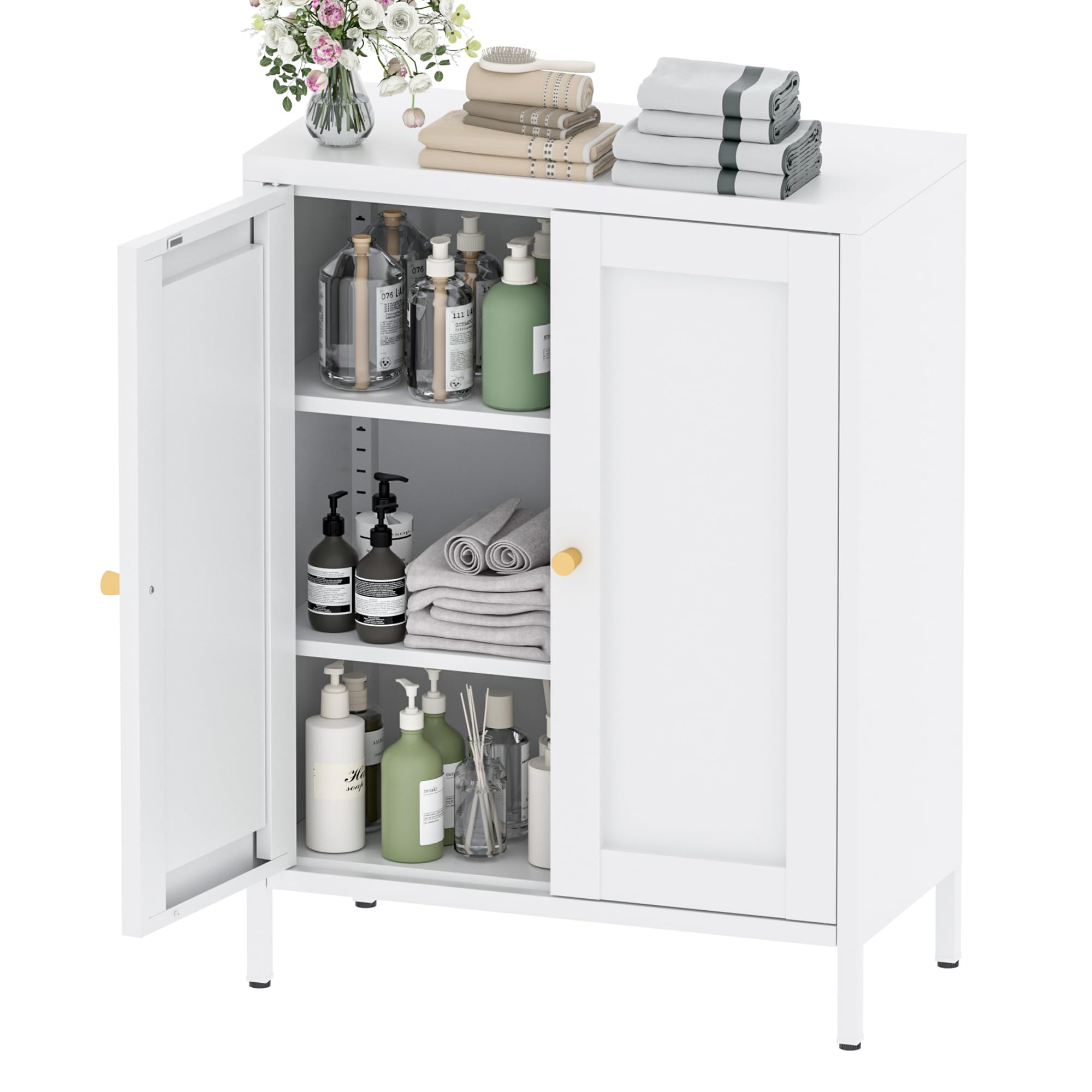

Image: The YAUWOH Metal Bathroom Storage Cabinet, a white two-door unit with gold handles, shown in a bathroom setting.

Safety Information

• Anchoring: It is highly recommended to anchor the cabinet to the wall using the provided hardware to prevent tipping over or accidents, especially in households with children or pets.
• Weight Limit: Be aware of the weight limit for each shelf. Each shelf is designed to hold up to 60 pounds. Do not exceed this limit to ensure stability and prevent damage.
• Material Properties: The cabinet is constructed from a duty steel frame with electrostatic powder coating, providing waterproof and rust-proof properties. This ensures durability and ease of cleaning.
• Assembly: Wear gloves during assembly to protect your hands from sharp edges. Follow all assembly steps carefully.

Package Contents

Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Cabinet Panels (labeled A, B, C)
• Adjustable Shelves (labeled D)
• Doors (labeled E, F)
• Base Legs (labeled H)
• Adjustable Feet (labeled G)
• Back Panels (labeled J)
• Shelf Pins (labeled O)
• Magnetic Catches (labeled Q, Z)
• Door Handles (labeled T, U)
• Assembly Hardware (screws, wall anchors)
• Specification Screwdriver
• Gloves

Setup and Assembly

Follow these steps to assemble your storage cabinet. All parts are labeled for easy identification. A screwdriver and gloves are included.

1. Unpack and Inspect: Carefully open the packaging and remove all components. Check against the package contents list to ensure everything is present and undamaged.
2. Assemble the Base: Attach the adjustable feet (G*4) to the base legs (H*2). Secure the base legs to the bottom panel of the cabinet.
3. Attach Side Panels: Connect the side panels (A*1) to the assembled base, ensuring the screw holes align.
4. Install Top Panel: Place the top panel (C*1) onto the side panels and secure it with screws (R*4).
5. Secure Back Panels: Slide the back panels (B*2) into the grooves on the cabinet frame. Secure them with screws (J*2, R*10).
6. Insert Shelf Pins: Place the shelf pins (O*8) into the desired holes on the side panels to support the adjustable shelves.
7. Place Adjustable Shelves: Carefully place the adjustable shelves (D*3) onto the installed shelf pins.
8. Attach Doors: Mount the doors (E*1, F*1) to the cabinet frame using the provided hinges and screws. Ensure they swing freely.
9. Install Magnetic Catches: Attach the magnetic catches (Q*2, Z*2) to the inside of the cabinet frame and doors to keep the doors securely closed.
10. Attach Door Handles: Screw the door handles (T*2, U*2) onto the front of the doors.

Assembly Video Guide

Video: A step-by-step installation guide for the YAUWOH Metal Bathroom Storage Cabinet, demonstrating how to assemble the base, attach panels, install shelves, and mount doors and handles.

Operating Instructions

Adjusting Shelves

The cabinet features adjustable shelves to accommodate items of various heights. To adjust a shelf:

1. Empty the shelf of all contents.
2. Remove the shelf by lifting it off its pins.
3. Relocate the shelf pins to the desired height by inserting them into the corresponding holes on the side panels.
4. Carefully place the shelf back onto the newly positioned pins, ensuring it is level and secure.

Opening and Closing Doors

The cabinet is equipped with two doors that open outwards. Gently pull the door handles to open. The magnetic catches will hold the doors securely when closed. Ensure no items obstruct the doors from closing completely.

Maintenance

To keep your YAUWOH Metal Bathroom Storage Cabinet in optimal condition, follow these maintenance guidelines:

• Cleaning: The electrostatic powder coating makes the cabinet easy to clean. Use a soft, damp cloth with mild soap and water to wipe down surfaces. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Rust Prevention: The cabinet is designed with anti-rust and anti-corrosion layers. However, to prolong its lifespan, promptly wipe away any standing water or moisture.
• Inspection: Periodically check all screws and connections to ensure they are tight. Re-tighten if necessary. Inspect the wall anchor hardware for any signs of wear or loosening.

Image: An illustration detailing the multi-layered construction of the cabinet for durability and rust resistance, alongside a visual of its waterproof design.

Troubleshooting

If you encounter any issues with your cabinet, refer to the following common problems and solutions:

• Doors Not Closing Properly or Uneven:
  - Check that the cabinet is assembled squarely and all screws are tightened. Uneven assembly can cause door misalignment.
  - Inspect the magnetic catches to ensure they are properly installed and aligned with the door. Adjust if necessary.
  - Verify that the hinges are securely attached to both the doors and the cabinet frame.
• Cabinet Feels Unstable:
  - Ensure the cabinet is placed on a flat, level surface.
  - Confirm that the adjustable feet (G) are properly installed and adjusted to provide maximum stability.
  - Crucially, ensure the anti-tipping anchor hardware is correctly installed and secured to the wall.
• Scratches on Surface:
  - While the metal finish is durable, heavy or sharp objects can cause scratches. Consider placing protective mats or pads on the top surface if you plan to place items on it.

Specifications

Image: Detailed dimensions of the cabinet, highlighting its magnetic doors, adjustable shelves, and adjustable legs.

Warranty and Support

For any questions, concerns, or issues regarding your YAUWOH Metal Bathroom Storage Cabinet, please contact the manufacturer directly. All parts are labeled, and an installation manual is provided for easy assembly. If you encounter any problems with our products, please feel free to let us know.

Contact information for support can typically be found on the product packaging or the manufacturer's official website.
