Introduction
Thank you for choosing the STARLEAD D3303 LED Full-Length Mirror. This manual provides essential information for the safe installation, operation, and maintenance of your new mirror. Please read it thoroughly before use and retain it for future reference.
Image: Two STARLEAD D3303 LED Full-Length Mirrors in a contemporary room, highlighting their elegant illuminated frames.
Image: The STARLEAD D3303 mirror enhancing the ambiance of a modern bedroom.
Safety Information
Please observe the following safety precautions to prevent injury or damage to the product:
- Always handle the mirror with care. Although made with tempered glass, excessive force or impact can cause breakage.
- Ensure the installation surface (wall or floor) is stable and capable of supporting the mirror's weight (approximately 9 kg).
- Keep the mirror away from water sources unless specifically designed for bathroom use (this model has an IP44 waterproof rating, suitable for damp environments but not direct water spray).
- Do not attempt to modify or repair the electrical components of the mirror. Contact qualified personnel for service.
- Unplug the mirror from the power source before cleaning or performing any maintenance.
Image: The mirror features a protective anti-scratch film (to be removed before use) and is constructed with tempered glass for enhanced durability and safety against breakage.
Package Contents
Verify that all components are present and undamaged upon unpacking:
- STARLEAD D3303 LED Full-Length Mirror (150 x 50 cm)
- Integrated U-shaped adjustable bracket (for freestanding/leaning)
- Power cord with EU plug (approximately 285 cm)
- Installation hardware (for wall mounting, if applicable)
Setup and Installation
The STARLEAD D3303 mirror offers three versatile installation options:
1. Freestanding
Simply unfold the integrated U-shaped adjustable bracket at the back of the mirror. Ensure the mirror is placed on a flat, stable surface. The bracket and frame are equipped with non-slip pads for stability.
2. Leaning Against a Wall
Lean the mirror securely against a wall, using the integrated bracket for support. Ensure the angle is stable and the mirror cannot easily tip over. The non-slip pads will help prevent sliding.
3. Wall-Mounted
For wall mounting, use the provided installation hardware. The mirror features a simple arch design with hook spacing of approximately 25cm. Ensure the wall is suitable for drilling and can support the mirror's weight. It is recommended to have two people for wall mounting.
- Power Connection: Plug the mirror into a standard EU power outlet. The power cord is approximately 285 cm long. For a hardwired connection, the plug can be cut by a qualified electrician to connect directly to your electrical system.
Image: Visual guide illustrating the mirror's dimensions, arch design, 25cm hook spacing for wall mounting, EU plug, and the sturdy U-shaped adjustable bracket for freestanding use.
Operating Instructions
The STARLEAD D3303 mirror features intuitive touch controls for its LED lighting functions.
Touch Control Functions:
- Power On/Off: Single-tap the touch switch icon on the mirror surface to turn the LED lights on or off.
- Change Light Color: Double-tap the touch switch icon to cycle through the three available light colors: Cool White, Natural Light, and Warm Light.
- Adjust Brightness (Dimming): When the lights are on, press and hold the touch switch icon to smoothly adjust the brightness level from 5% to 100%. Release when the desired brightness is reached.
- Memory Function: The mirror will remember your last used brightness and color settings when turned off and on again.
- Button Light Off: The illumination of the touch button itself can be turned off to avoid disturbing sleep. Refer to the specific product details for instructions on this feature if not covered by the main power control.

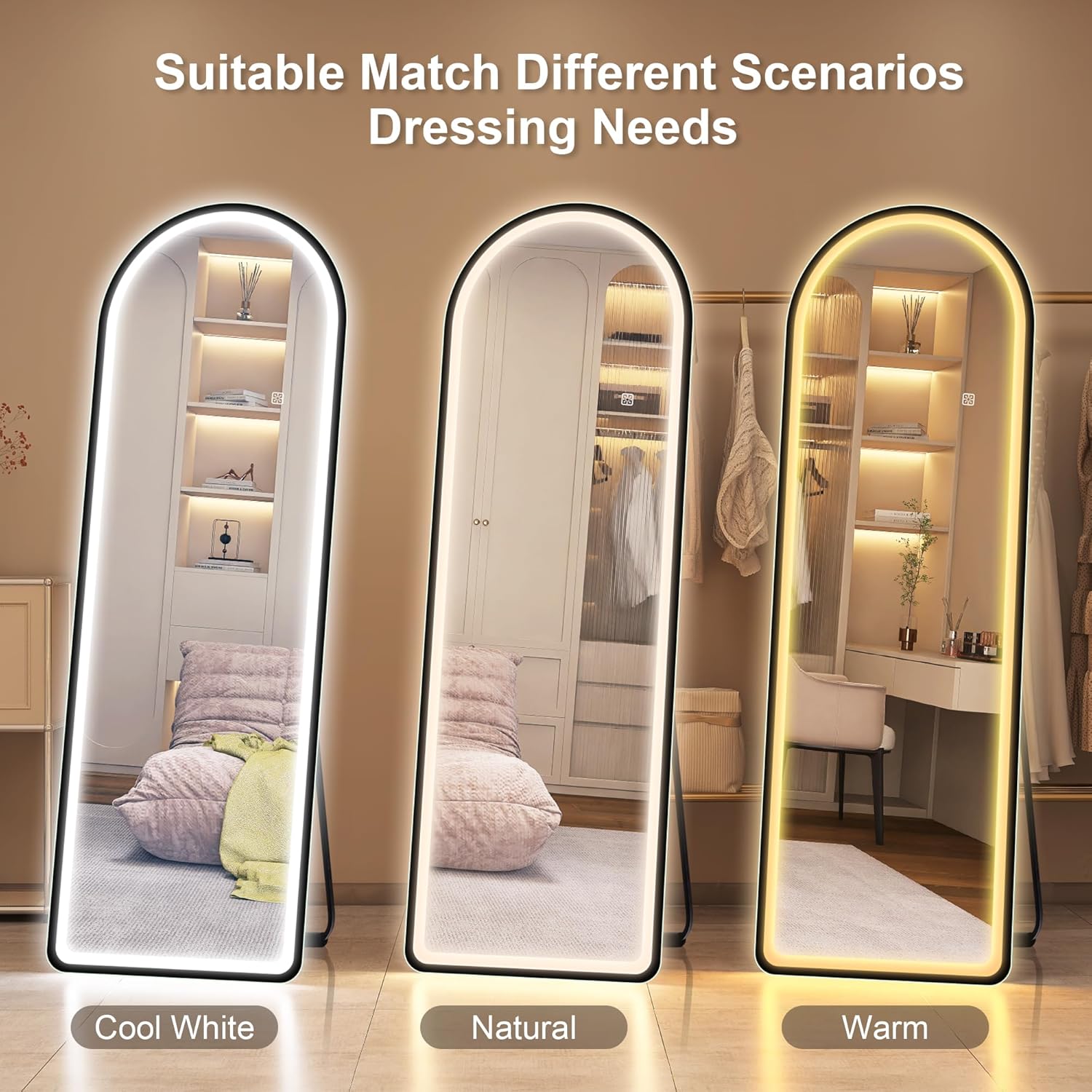

Image: The mirror offers three distinct light colors: Cool White, Natural, and Warm, suitable for various dressing needs and room ambiances.
Image: Demonstrates the dimming capability of the mirror, showing brightness levels at 5%, 50%, and 100% illumination.
Image: A visual comparison highlighting the enhanced clarity and illumination provided by the STARLEAD mirror's LED light effect versus a standard mirror.
Maintenance
Proper care will ensure the longevity and optimal performance of your STARLEAD mirror.
- Cleaning the Mirror Surface: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the electrical components. Wipe gently to remove dust and smudges.
- Cleaning the Frame: Wipe the frame with a soft, damp cloth. Avoid harsh chemicals or abrasive materials that could damage the finish.
- Electrical Components: Do not immerse any part of the mirror in water. Ensure the power is disconnected before cleaning.
- LED Lights: The LED lights are designed for long-term use and generally do not require maintenance. Do not attempt to replace individual LED beads.
Troubleshooting
If you encounter any issues with your mirror, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights do not turn on. | No power supply; loose connection; faulty switch. | Check if the power cord is securely plugged into a working outlet. Ensure the wall switch (if hardwired) is on. Try tapping the touch switch again. |
| Touch switch is unresponsive. | Power issue; temporary malfunction. | Ensure the mirror is powered. Unplug the mirror for 30 seconds, then plug it back in to reset. Ensure your finger is dry when touching the switch. |
| Lights flicker or dim unexpectedly. | Unstable power supply; internal wiring issue. | Check the power connection. Try plugging into a different outlet. If the problem persists, contact customer support. |
| Mirror appears distorted. | Protective film not removed. | Ensure the anti-scratch protective film has been completely removed from the mirror surface. |
If these solutions do not resolve the issue, please contact STARLEAD customer support for further assistance.
Specifications
Key technical details of the STARLEAD D3303 LED Full-Length Mirror:
| Feature | Detail |
|---|---|
| Brand | STARLEAD |
| Model | D3303 |
| Product Dimensions | 150 cm (Length) x 50 cm (Width) |
| Color | Black (D3303 variant) |
| Materials | Tempered Glass, Aluminum, Plastic |
| Item Weight | 9 Kilograms |
| Light Source | LED (410 beads) |
| Light Colors | Cool White, Natural Light, Warm Light (3 colors) |
| Dimming Range | 5% to 100% (Dimmable) |
| Control Type | Touch Switch |
| Special Features | Memory Function, HD Tempered Glass, IP44 Waterproof, 3 Usage Options (Freestanding, Leaning, Wall-Mounted) |
| Power Plug | EU Plug (can be cut for hardwiring) |
| Mounting Type | Floor Mount, Wall Mount |
Image: Summary of key features including EU plug compatibility, HD silver mirror quality, one-touch operation, three light modes, safety from rugged toughened glass, adjustable brightness, and IP44 waterproof rating.
Image: A comparison illustrating the STARLEAD mirror's advantages, such as bright and even eye-care light, IP65 waterproof LED beads, and a neat, closed cover, contrasting with common deficiencies in other mirrors.
Warranty and Support
STARLEAD is committed to your satisfaction. We ensure that your mirror is packaged securely to arrive in perfect condition. In the unlikely event that your mirror is damaged during transit or you experience any issues, please contact us immediately.
- 100% Satisfaction Guarantee: If the mirror arrives damaged, we offer a full refund or a free replacement.
- Customer Support: Our customer service team is available 24 hours a day to assist you with any questions or concerns.
Please refer to your purchase documentation for specific contact details or visit the STARLEAD official website for support information.
