1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Fennoral 982-0143A Skid Assembly. This component is designed to replace original parts and ensure optimal performance of your string trimmer or edger.
The skid assembly helps maintain the correct cutting height and allows for smooth gliding over various terrains, protecting the trimmer head from direct contact with the ground.
2. Safety Information
- Always turn off the engine and disconnect the spark plug wire before performing any maintenance or installation.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, when handling parts or working on machinery.
- Ensure all fasteners are securely tightened after installation to prevent parts from loosening during operation.
- Refer to your equipment's original owner's manual for specific safety precautions and procedures.
3. Product Specifications
- Brand: Fennoral
- Model Number: TMFO1-622 (Product identified as 982-0143A)
- Color: Black
- Item Weight: Approximately 1.1 pounds (0.5 Kilograms)
- Material: High-quality, durable materials
Figure 1: Product dimensions. The skid assembly measures approximately 5.28 inches in length and 0.28 inches in height.
4. Compatibility and Replacement Part Numbers
This skid assembly is compatible with a wide range of string trimmers and edgers from various brands. It is designed to replace the following part numbers:
- 982-0143A
- 770-1840A
- 782-0143
- 982-0143
- 782-0143A
It is compatible with equipment from brands such as Cub Cadet, Troy-Bilt, MTD, Yard-Machines, Yard-Man, Craftsman, Columbia, and Remington. Specific compatible models include:
- Cub Cadet: ST100, ST200, TM622
- Other Models: HWT-622, 25A-26R3B66, TB22TMB 2023, TB22TM, TB22TMB, 201G, 201H, 203L, 203N, 203M, 208, 253, 253N, RM1159, ST120, CST100, 260, 256, 258, 258L, ST120, WST22 5A-26R3B93 2023
Figure 2: Skid Assembly replacement part numbers.

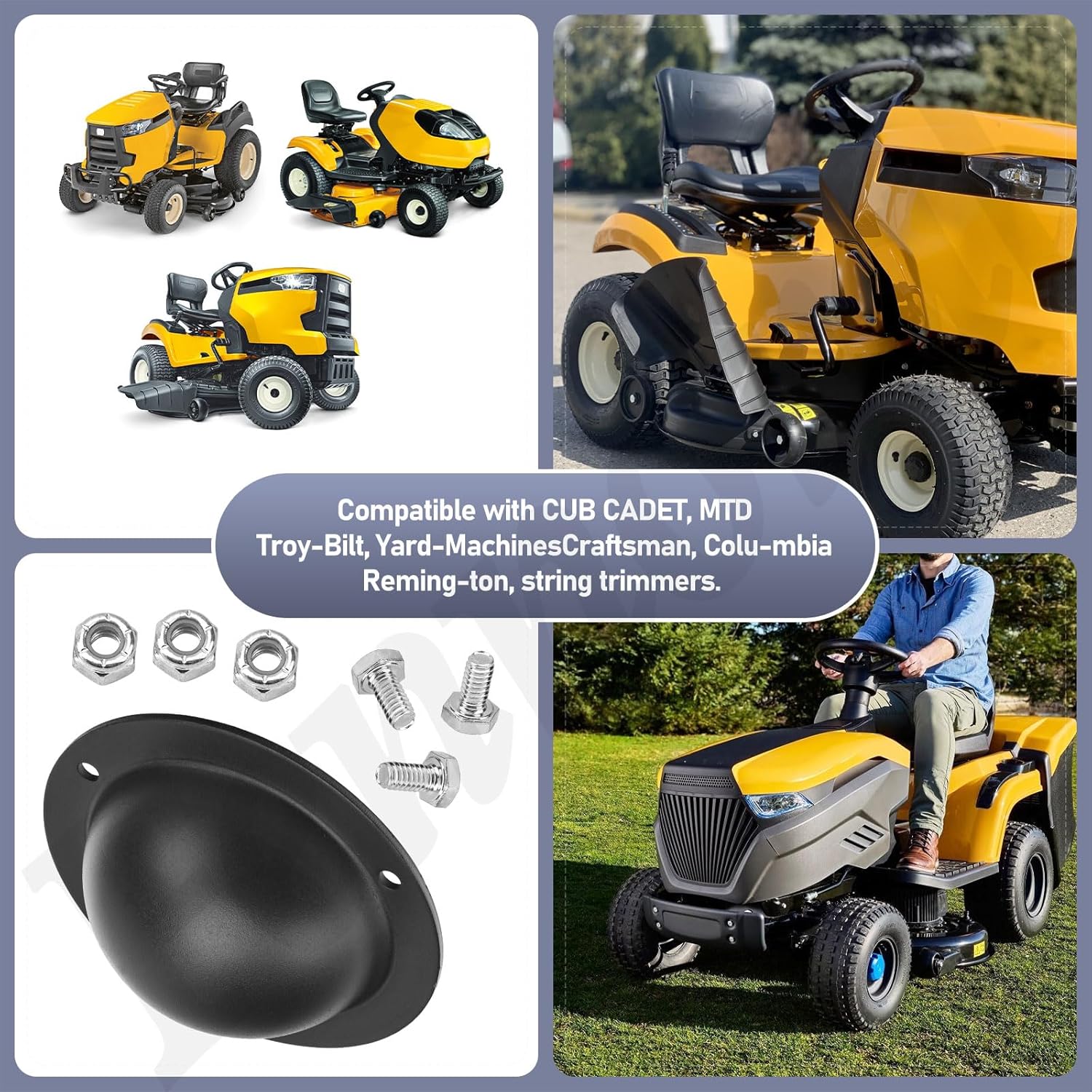

Figure 3: Compatibility with various trimmer brands and models.
5. Package Contents
Your package should contain the following items:
- 1 x Skid Assembly
- Mounting Screws
- Nuts

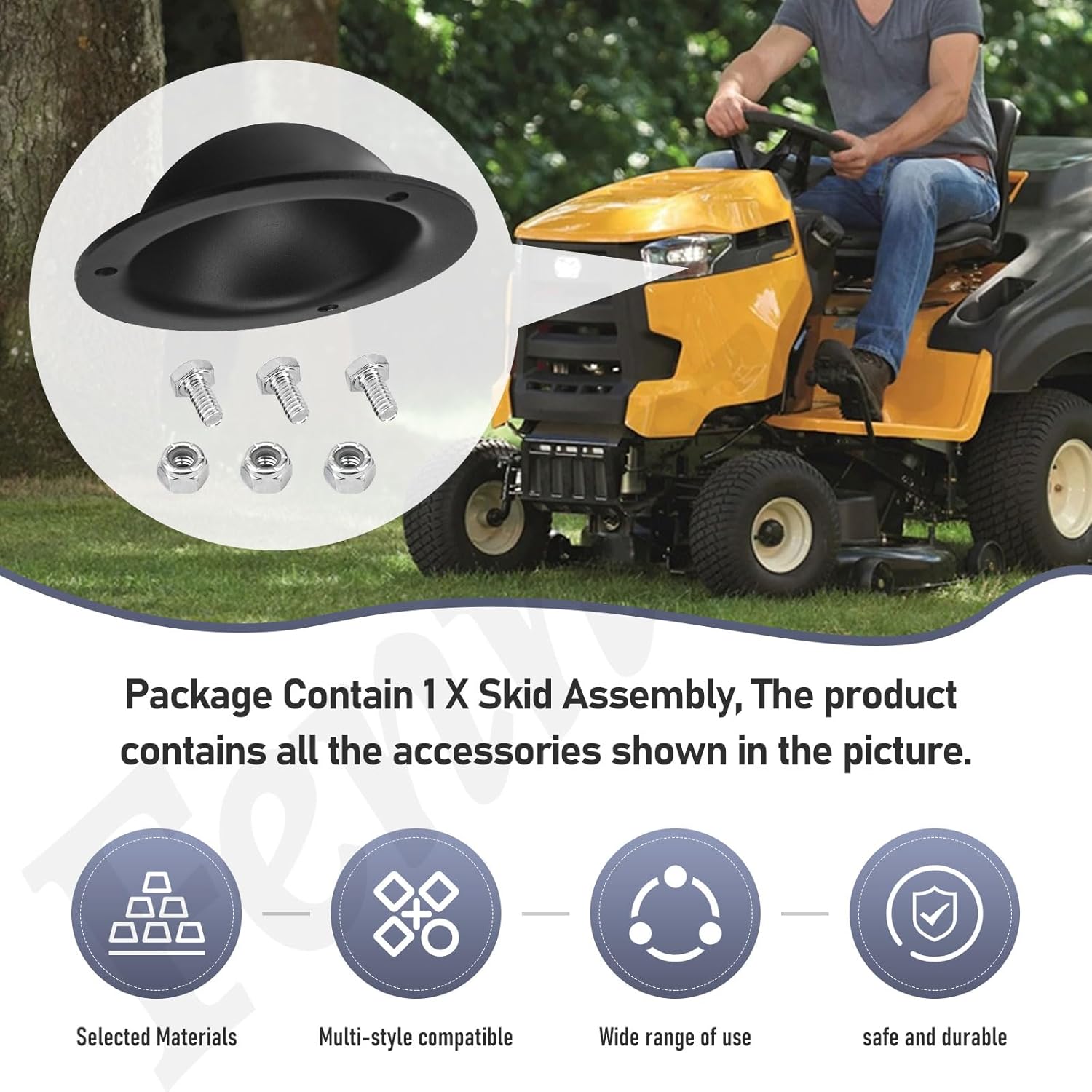

Figure 4: Package contents including the skid assembly and mounting hardware.
6. Setup and Installation
Follow these general steps to install the skid assembly. Always refer to your specific trimmer's owner's manual for detailed instructions and safety warnings.
- Prepare the Trimmer: Ensure the trimmer engine is off and cool. Disconnect the spark plug wire to prevent accidental starting.
- Locate Old Skid Assembly (if applicable): Identify the existing skid assembly or mounting location on your trimmer head.
- Remove Old Assembly: If replacing an old skid assembly, carefully remove any existing screws or fasteners holding it in place. Keep track of all parts.
- Position New Assembly: Place the new Fennoral 982-0143A Skid Assembly into position, aligning the mounting holes.
- Secure with Hardware: Use the provided mounting screws and nuts to securely fasten the skid assembly to the trimmer head. Hand-tighten first, then use appropriate tools to ensure a firm, but not overtightened, connection.
- Verify Installation: Gently tug on the installed skid assembly to ensure it is firmly attached and does not wobble.
- Reconnect Spark Plug: Once installation is complete, reconnect the spark plug wire.
7. Operating Considerations
The skid assembly is a passive component that enhances the functionality of your string trimmer or edger. Its primary role is to:
- Maintain Cutting Height: It helps keep the trimmer head at a consistent distance from the ground, resulting in a more even cut.
- Protect Trimmer Head: It acts as a buffer, preventing the trimmer head from directly scraping against hard surfaces, which can cause wear and damage.
- Facilitate Movement: The smooth surface of the skid assembly allows the trimmer to glide more easily over grass and uneven terrain.
No specific operational steps are required for the skid assembly itself beyond ensuring it is correctly installed before using your power equipment.
8. Maintenance
Regular maintenance of your skid assembly will prolong its lifespan and ensure consistent performance of your trimmer.
- Inspection: Before each use, inspect the skid assembly for signs of wear, cracks, or damage. Check that it is securely attached.
- Cleaning: After each use, clean any grass clippings, dirt, or debris from the skid assembly. A stiff brush or cloth can be used.
- Replacement: If the skid assembly shows significant wear, is cracked, or damaged, replace it promptly to maintain optimal cutting height and protect your trimmer head.
Figure 5: Detailed view of the skid assembly, showing its durable construction.
9. Troubleshooting
If you encounter issues related to the skid assembly, consider the following:
- Uneven Cutting Height: Ensure the skid assembly is installed correctly and securely. Check for excessive wear that might prevent it from maintaining a consistent height.
- Difficulty Gliding: Clean any accumulated debris from the skid assembly. Inspect for damage or rough spots that could impede smooth movement.
- Skid Assembly Loosens: Re-tighten the mounting screws and nuts. If the problem persists, inspect the mounting holes on both the assembly and the trimmer for damage.
If problems persist after troubleshooting, consult your trimmer's service manual or contact a qualified service technician.
10. Warranty and Support
For information regarding warranty coverage or technical support for your Fennoral 982-0143A Skid Assembly, please refer to the product packaging or contact Fennoral customer service directly. Contact details can typically be found on the manufacturer's website or through your point of purchase.
