Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your JFHID Stainless Steel Table with Shelves. Designed for versatility, this 48"x24" prep table is suitable for various environments, including commercial kitchens, home workshops, and laundry rooms. Please read these instructions carefully before assembly and use to ensure safe and efficient operation.
Image: The JFHID Stainless Steel Table with Shelves, showcasing its main countertop, two adjustable overshelves, a lower storage shelf, and side hooks.
Safety Information
- Weight Limit: Do not exceed the maximum weight capacity of 1460 lbs (662 kg). Distribute weight evenly across all surfaces.
- Stability: Ensure the table is stable and level before placing items on it. Adjust the feet as necessary, especially on uneven floors.
- Surface Maintenance: Keep the stainless steel surface clean and dry to prevent slipping hazards.
- Assembly: Follow all assembly instructions carefully. Ensure all fasteners are securely tightened.
Package Contents
Verify that all components are present before beginning assembly:
- Stainless Steel Tabletop (1)
- Adjustable Overshelves (2)
- Lower Storage Shelf (1)
- Legs with Adjustable Feet (4)
- Assembly Hardware (screws, bolts, washers)
- Assembly Tools (e.g., Allen wrench)
- Instruction Manual (this document)
Assembly Instructions
Assembly is straightforward and typically takes about 10-20 minutes. It is recommended to have a second person for easier assembly.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
- Attach Legs to Lower Shelf: Secure the four legs to the lower storage shelf using the provided hardware. Ensure all connections are firm but do not fully tighten yet.
- Attach Tabletop: Place the main stainless steel tabletop onto the leg assembly. Secure it to the top of the legs with the appropriate hardware.
- Install Overshelf Supports: Attach the vertical supports for the overshelves to the main tabletop.
- Position Overshelves: Slide the two adjustable overshelves onto the vertical supports. Adjust their height to your desired position and secure them.
- Tighten All Fasteners: Once all components are in place, systematically tighten all screws and bolts to ensure maximum stability.
- Adjust Feet: Turn the adjustable feet at the bottom of each leg to level the table on uneven surfaces. Adjust up to 0.8 inches.
Image: A diagram illustrating the adjustable nature of the overshelves and the 0-0.8 inch height adjustment capability of the table legs for stability on uneven floors.
Operating Instructions
Your JFHID Stainless Steel Table is designed for versatile use in various settings.
- Load Distribution: When placing items on the table or shelves, distribute the weight evenly to maintain stability and prevent stress on any single point. The total load capacity is 1460 lbs.
- Adjusting Overshelves: The two overshelves can be repositioned to accommodate items of different heights. Loosen the securing mechanisms, slide the shelf to the desired height, and re-tighten securely.
- Leveling: Periodically check the table's levelness. If necessary, adjust the feet by rotating them clockwise or counter-clockwise until the table is stable.
- Accessory Hooks: Utilize the integrated hooks on the side of the table for hanging tools, utensils, or other accessories.
Image: The stainless steel table in a home kitchen environment, demonstrating its use as a prep station with kitchen appliances, food items, and utensils stored on its multiple shelves.
Maintenance and Care
To ensure the longevity and appearance of your stainless steel table, follow these maintenance guidelines:
- Cleaning: Wipe the stainless steel surfaces with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain.
- Drying: After cleaning, dry the surface thoroughly with a clean, soft cloth to prevent water spots and streaks.
- Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or steel wool, as these can scratch the stainless steel finish.
- Corrosion Prevention: While the table is rust-resistant, prolonged exposure to harsh chemicals or standing water can affect the finish. Clean spills promptly.
- Regular Inspection: Periodically check all fasteners and connections to ensure they remain tight. Re-tighten if necessary.
Image: A cross-section diagram highlighting the construction of the stainless steel material, showing a thickened outer layer, reinforced middle layer, and anti-rust inner layer, indicating its durability and ease of cleaning.
Troubleshooting
- Table Wobbles:
- Ensure the table is on a flat, even surface.
- Adjust the individual feet at the bottom of each leg until the table is stable.
- Check that all assembly bolts and screws are fully tightened.
- Difficulty Adjusting Shelves:
- Loosen the securing mechanisms completely before attempting to slide the shelves.
- Ensure no debris is obstructing the shelf tracks.
- Surface Stains/Streaks:
- Use a mild stainless steel cleaner and a soft cloth. Wipe in the direction of the grain.
- Ensure the surface is thoroughly dried after cleaning to prevent water spots.
Specifications
| Feature | Detail |
|---|---|
| Model Number | SS16527SR |
| Product Dimensions | 48"W x 24"D x 54.5"H (121.9cm W x 60.9cm D x 138cm H) |
| Material | 201# Food Grade Stainless Steel |
| Maximum Weight Capacity | 1460 lbs (662 kg) |
| Adjustable Feet Range | Up to 0.8 inches (2 cm) |
| Color | Silver |

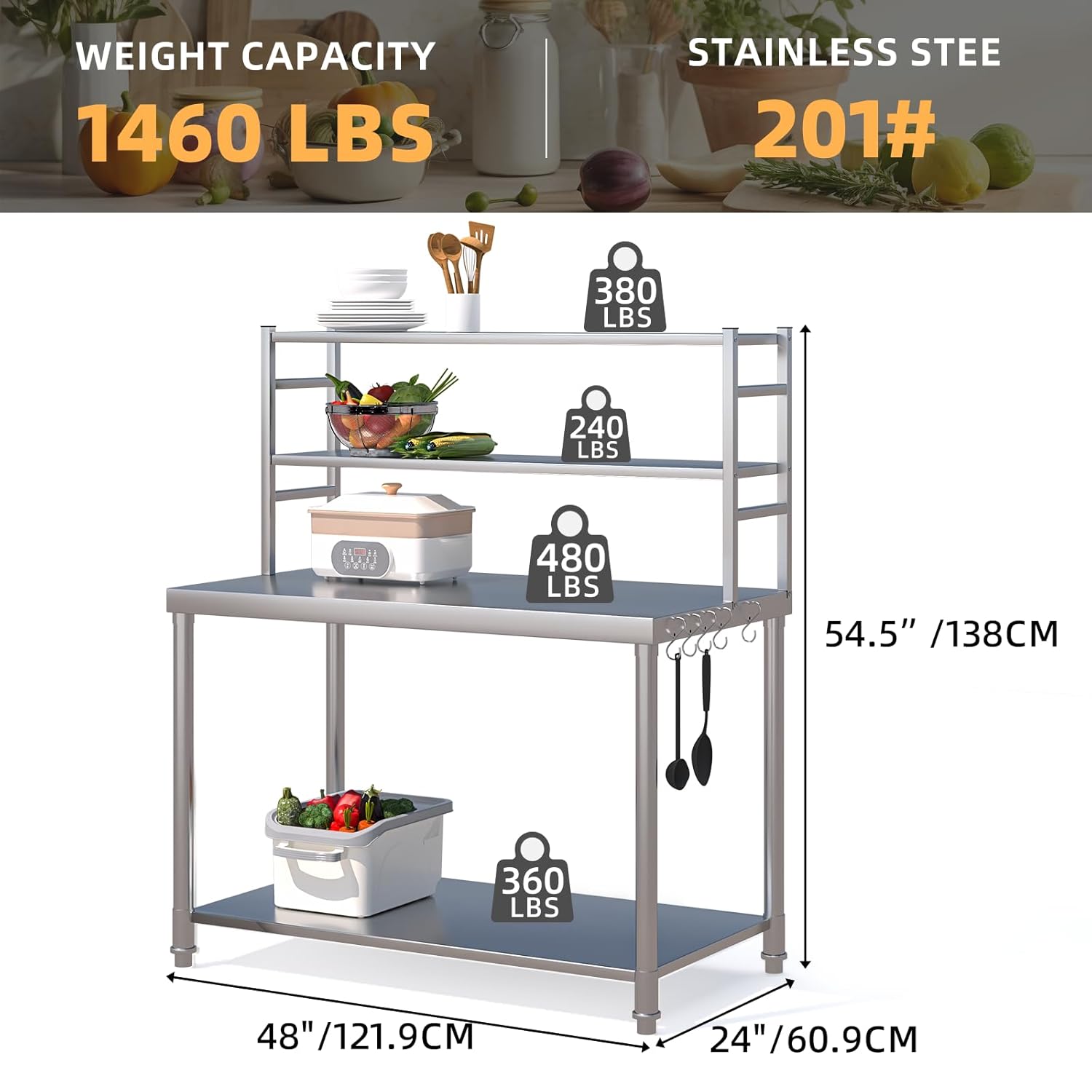

Image: A detailed diagram illustrating the overall dimensions of the table (48"W x 24"D x 54.5"H) and the individual weight capacities for each shelf, totaling 1460 lbs.
Warranty and Support
JFHID stands by the quality of its products. For any questions, concerns, or warranty claims, please contact JFHID customer support through the retailer where the product was purchased. Please have your model number (SS16527SR) and purchase date available when contacting support.
