1. Product Overview
The Woindo Bathtub Shower Faucet Set is a comprehensive system designed for a luxurious and functional bathing experience. It includes a 12-inch ceiling mount rain shower head, a multi-function handheld shower head, a pressure balance valve, and a tub spout. This system is engineered for durability and user comfort, featuring a pressure balance cartridge to prevent sudden temperature changes and self-cleaning silicone nozzles for easy maintenance.

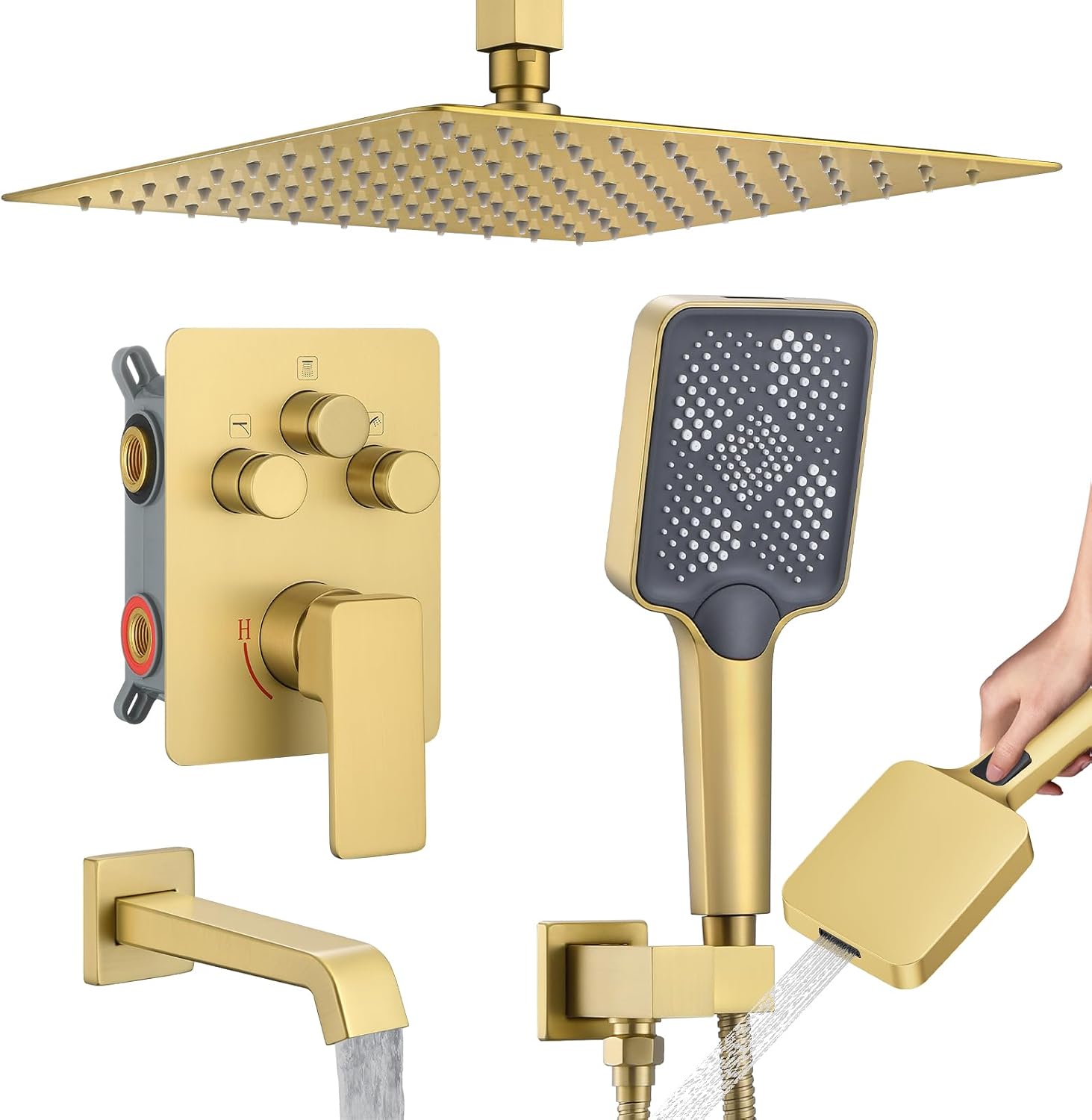

Figure 1: Complete Woindo Bathtub Shower Faucet Set components.
2. Product Components
The Woindo Bathtub Shower Faucet Set includes the following main components:
- 12-inch Ceiling Mount Rain Shower Head: Features air injection technology for enhanced water pressure and a natural rainfall feel.
- Multi-function Handheld Shower Head: Offers four spray settings (spray, rainfall, mixed, jets) and a convenient pause setting. Comes with a flexible stainless steel hose (4.92 ft).
- Pressure Balance Valve: Equipped with a cUPC certified cartridge to prevent scalding from sudden water pressure changes.
- Tub Spout: A 5.9-inch rectangular high-flow outlet design for efficient tub filling.
- Control Knobs/Diverter: Push-button diverter for easy switching between shower functions.
- Shower Arm: For the ceiling mount shower head.
- Mounting Hardware and Accessories: All necessary parts for installation.
Figure 2: Detailed view of the shower system components, including the rain shower head, handheld shower, control valve, and tub spout.
3. Setup and Installation
Professional installation is recommended. Ensure compliance with local plumbing codes and standards before beginning. The installation process involves preparing the wall, installing the valve body, connecting piping, and attaching the shower components.
3.1 Preparing the Installation Area
Before installation, ensure the shower space is prepped. This includes removing old piping if replacing an existing system and ensuring appropriate wall framing for secure mounting.
3.2 Installing the Valve Body
The valve body is the central control unit. Securely mount it within the wall, ensuring it is level and at the correct depth. Use Teflon tape on threaded connections to prevent leaks. Connect the hot and cold water lines (PEX piping is shown in the installation video) to the designated inlets on the valve body. Pay close attention to the indicators on the valve body for correct piping connections for each shower function.
Video 1: Woindo Shower System User Guide. This video provides an overview of the system and its features.
Video 2: Woindo Shower System Installation Guide. This video demonstrates the step-by-step installation process, including piping and valve body setup.
3.3 Connecting Shower Heads and Tub Spout
Connect the ceiling mount shower arm and head, the handheld shower hose and holder, and the tub spout to their respective outlets on the valve body. Ensure all connections are tight and secure. For the handheld shower, an eardrop piece is used to connect it to the valve body and provide a mounting point.
Figure 3: The shower system in operation, demonstrating the simultaneous use of the rain shower and handheld shower.
3.4 Leak Testing
Before closing the wall, perform a thorough leak test. Turn on the water supply and activate each shower component individually and in combination to check for any leaks at the connections. Address any leaks immediately before proceeding with drywall installation.
4. Operating Instructions
The Woindo Shower Faucet Set features a user-friendly control system with a single handle for temperature and flow, and push buttons for diverter functions.
4.1 Water Flow and Temperature Control
Use the main handle to turn the water on/off and adjust the temperature. The pressure balance valve ensures a consistent water temperature, preventing sudden hot or cold surges.
Figure 4: Diagram illustrating the function of the pressure balance valve, which maintains consistent water temperature.
4.2 Diverter Functions
The multi-function diverter allows you to easily switch between the ceiling mount rain shower, handheld shower, and tub spout. Simply press the corresponding button to activate your desired water outlet. The system also allows for simultaneous use of up to two shower modes.
Video 3: Comprehensive Shower System with Two Shower Heads. This video demonstrates the multi-functionality and simultaneous use of different shower modes.
4.3 Handheld Shower Spray Modes
The handheld showerhead offers four distinct spray patterns: Spray Mode, Rainfall Mode, Mixed Mode, and Jets Spray. A convenient pause setting is also available. Select your preferred mode by adjusting the settings on the handheld unit.
Figure 5: The handheld showerhead offering various spray modes for a customized experience.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your shower system.
5.1 Cleaning Silicone Nozzles
The 304 Stainless Steel Rain Shower Head and handheld showerhead feature silicone nozzles. To remove mineral deposits and prevent blockages, simply flick the nozzles with your finger when they are blocked.
Video 4: Install a silicone showerhead. This video demonstrates the flexibility and self-cleaning feature of the silicone nozzles.
5.2 General Cleaning
Clean the brushed gold finish with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. Regular cleaning will help maintain the aesthetic appeal of your faucet set.
6. Troubleshooting
If you encounter any issues with your Woindo Bathtub Shower Faucet Set, please refer to the following common troubleshooting tips:
- Low Water Pressure: Check if the water supply valves are fully open. Ensure showerhead nozzles are clear of mineral buildup (refer to Maintenance section).
- Water Leakage: Inspect all connections for tightness. Ensure Teflon tape was properly applied during installation. If leaks persist, contact customer support.
- Inconsistent Water Temperature: Verify that the hot and cold water supply lines are correctly connected to the valve body. The pressure balance cartridge should regulate temperature, but extreme fluctuations may indicate a supply issue.
- Diverter Malfunction: Ensure the push buttons are fully engaged. If a specific function is not activating, check for any obstructions or contact customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Woindo |
| Model Number | W0009G |
| Color | Brushed Gold |
| Material | Brass, Stainless Steel |
| Finish Type | Brushed |
| Number of Handles | 1 |
| Mounting Type | Ceiling Mount |
| Included Components | Shower Valve Body, Shower Arm, Handheld Showerhead, Rain Shower Head, Tub Spout, Shower Hose |
| Flow Rate | 1.78 GPM (6.8 L/min) |
| Head Size | 12 inches (Rain Shower), 6 inches (Handheld) |
| Tub Spout Reach | 5.9 Inches |
| Item Weight | 15.47 pounds |
| Product Dimensions | 17.3 x 13.1 x 6.9 inches |
8. Warranty and Support
Woindo offers a 5-year warranty and limited lifetime maintenance for this product. Our specialized technicians and professional after-sales team are available to provide support and assistance. If you encounter any product quality problems, shower system cartridges can be replaced free of charge, or replacement parts can be issued.
For further assistance, please contact Woindo customer support.
