SKBAK Dog Bark Collar User Manual

1. Introduction

Thank you for choosing the SKBAK Dog Bark Collar. This device is designed to assist in training your dog to reduce excessive barking through humane and effective methods. Please read this manual thoroughly before using the product to ensure proper operation and to maximize its effectiveness and your dog's comfort.

2. Package Contents

Please check the package contents upon unboxing. If any items are missing or damaged, please contact customer support.

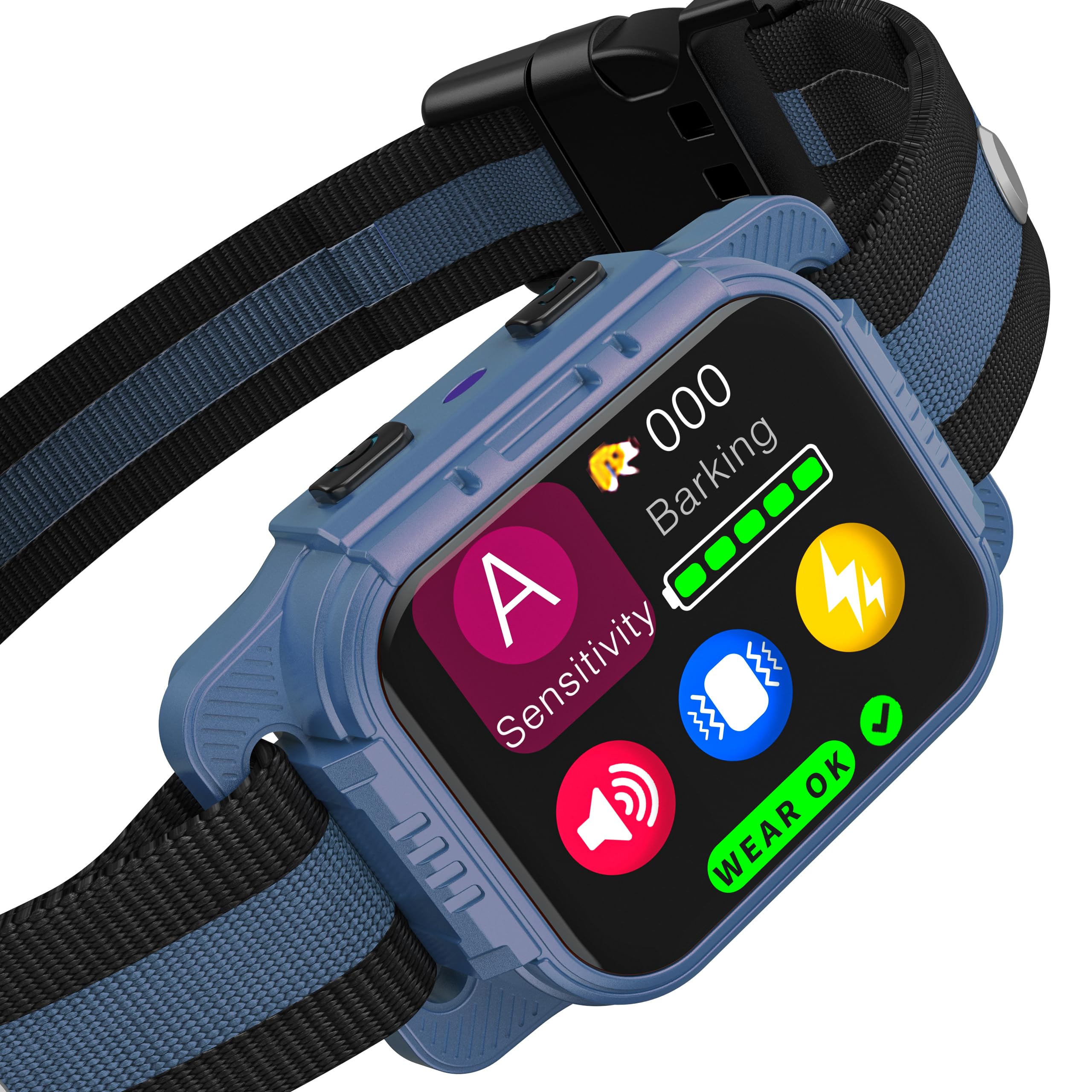

• SKBAK Bark Collar Unit
• Adjustable Nylon Collar Strap
• USB Charging Cable
• Short Contact Points (2 pcs)
• Long Contact Points (2 pcs)
• User Manual

3. Product Features

• Adjustable Sensitivity: Allows customization to your dog's barking level.
• Multiple Training Modes: Features sound and vibration modes for humane training.
• Rechargeable Battery: Built-in lithium battery for convenience.
• Water-Resistant Design: Suitable for various weather conditions (not for swimming).
• Compact and Lightweight: Comfortable for dogs of various sizes.

4. Setup

4.1 Charging the Collar

Before first use, fully charge the collar. Connect the USB charging cable to the collar's charging port and to a standard USB power adapter (not included). The indicator light will show charging status (e.g., red while charging, green when fully charged). Charging typically takes 2-3 hours.

4.2 Attaching the Collar Strap

Thread the adjustable nylon strap through the slots on the bark collar unit. Ensure the strap is securely fastened.

4.3 Selecting Contact Points

Choose the appropriate contact points based on your dog's coat length. Use short contact points for dogs with short coats and long contact points for dogs with thick or long coats. Screw the chosen contact points firmly onto the collar unit.

4.4 Fitting the Collar

Place the collar around your dog's neck, ensuring the collar unit is positioned centrally under the chin. The contact points must make direct contact with your dog's skin. Adjust the strap so that it is snug but not too tight; you should be able to fit one or two fingers comfortably between the collar and your dog's neck. A loose collar will not function correctly and may cause irritation due to rubbing.

Image: The SKBAK Dog Bark Collar properly fitted around a dog's neck. The collar unit is positioned under the chin, and the strap is snug enough for the contact points to touch the skin, but loose enough for two fingers to fit underneath.

5. Operating Instructions

5.1 Power On/Off

• To Power On: Press and hold the power button for 2 seconds. The indicator light will flash.
• To Power Off: Press and hold the power button for 2 seconds. The indicator light will turn off.

5.2 Adjusting Sensitivity

The collar features adjustable sensitivity levels to detect barking. Press the sensitivity button (often labeled 'S' or a similar icon) to cycle through levels. A higher sensitivity level means the collar will react to softer barks. Start with a lower sensitivity and increase if the collar is not activating when your dog barks.

5.3 Training Modes

The SKBAK Bark Collar typically operates with progressive training modes. It usually starts with a warning tone, followed by vibration if barking continues. Some models may include a static correction, but this manual focuses on sound and vibration for humane training.

• First Bark: A short warning tone.
• Second Bark (within a short period): A longer warning tone.
• Third Bark (within a short period): A vibration correction, increasing in intensity or duration with subsequent barks, up to a safe limit.

The collar will automatically reset after a period of no barking. If barking continues excessively, the collar may enter a safety sleep mode to prevent over-correction.

5.4 Indicator Lights

Refer to the collar's indicator lights for status information:

• Solid Green: Fully charged.
• Flashing Green: Operating mode, sufficient battery.
• Flashing Red: Low battery, needs charging.
• Solid Red (while charging): Charging in progress.
• No Light: Powered off or battery depleted.

6. Maintenance

6.1 Cleaning the Collar

Regularly clean the collar unit and strap with a damp cloth. Ensure the contact points are free of dirt, debris, or corrosion. Do not use harsh chemicals or abrasive cleaners.

6.2 Checking Contact Points

Periodically inspect the contact points for wear or damage. Ensure they are securely screwed into the collar unit. Replace if necessary.

6.3 Battery Care

To prolong battery life, avoid fully discharging the battery frequently. Charge the collar when the low battery indicator appears. If storing for an extended period, charge the collar to about 50% and recharge every few months.

6.4 Storage

Store the collar in a cool, dry place away from direct sunlight and extreme temperatures.

7. Troubleshooting

• Collar not activating when dog barks:
  • Ensure the collar is powered on.
  • Check battery level and charge if necessary.
  • Adjust sensitivity to a higher level.
  • Ensure contact points are making proper skin contact.
  • Check for obstructions between contact points and skin (e.g., thick fur, dirt).
• Collar activating unnecessarily (false triggers):
  • Adjust sensitivity to a lower level.
  • Ensure the collar is not too loose, allowing it to rub or move excessively.
  • Check for external noises that might be mistaken for barking.
• Collar not charging:
  • Ensure the USB cable is securely connected to both the collar and the power source.
  • Try a different USB cable or power adapter.
  • Clean the charging port for any debris.
• Dog shows signs of discomfort or skin irritation:
  • Remove the collar immediately.
  • Ensure the collar is not too tight.
  • Check for prolonged wear; the collar should not be worn for more than 12 hours a day.
  • Consult a veterinarian if irritation persists.

8. Specifications

9. Warranty and Support

SKBAK products are designed for quality and reliability. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the warranty card included in your package or contact SKBAK customer support.

If you encounter any issues or have questions regarding your SKBAK Dog Bark Collar, please do not hesitate to contact our customer support team. Our representatives are available to assist you with troubleshooting, product information, and any other inquiries.

Customer Support Contact: Please refer to the contact information provided on the product packaging or the official SKBAK website.
