Introduction
This instruction manual provides essential information for the proper installation, function, and maintenance of the Generic Replacement Bushings, Model R2MotS31030. These bushings are designed to fit Ventrac 85.B0027 applications, ensuring optimal performance and longevity of your equipment. Please read this manual thoroughly before installation and use to ensure safe and effective operation.
The bushings are engineered to reduce wear and tear and enhance operational efficiency, even under demanding conditions.
Product Features
- Vibration-Resistant: Built to resist vibrations and shocks, maintaining stability and performance in demanding situations.
- Enhanced Corrosion Resistance: Features advanced corrosion-resistant properties for extended use in harsh environments.
- Compact and Lightweight: Designed to be compact and lightweight without sacrificing strength, making it easier to handle and install.
- Trusted by Professionals: Preferred by automotive and industrial professionals for its reliability and performance.
- Detailed Instructions Included: Comes with clear, easy-to-follow instructions, ensuring a straightforward installation process.
Setup and Installation
Proper installation is crucial for the performance and lifespan of these replacement bushings. Always ensure the equipment is powered off and secured before beginning any installation work. Refer to your equipment's original service manual for specific disassembly and reassembly procedures.
Step-by-Step Installation Guide
- Preparation: Gather all necessary tools, including wrenches, a mallet (if needed for gentle tapping), and safety gear such as gloves and eye protection.
- Remove Old Bushings: Carefully remove the worn or damaged bushings from the Ventrac 85.B0027 component. Note the orientation and position of the old bushings.
- Clean Mounting Area: Thoroughly clean the mounting area to remove any debris, rust, or old lubricant. A clean surface ensures a proper fit and prevents premature wear.
- Inspect New Bushings: Before installation, inspect the new Generic replacement bushings for any manufacturing defects or damage.
- Install New Bushings: Carefully insert the new bushings into their designated positions. Ensure they are seated correctly and fully engaged. Gentle tapping with a rubber mallet may be necessary, but avoid excessive force.
- Reassemble Component: Reassemble the equipment component according to the manufacturer's specifications.
- Test Functionality: After reassembly, slowly test the movement of the component to ensure the bushings allow for smooth and unrestricted operation.

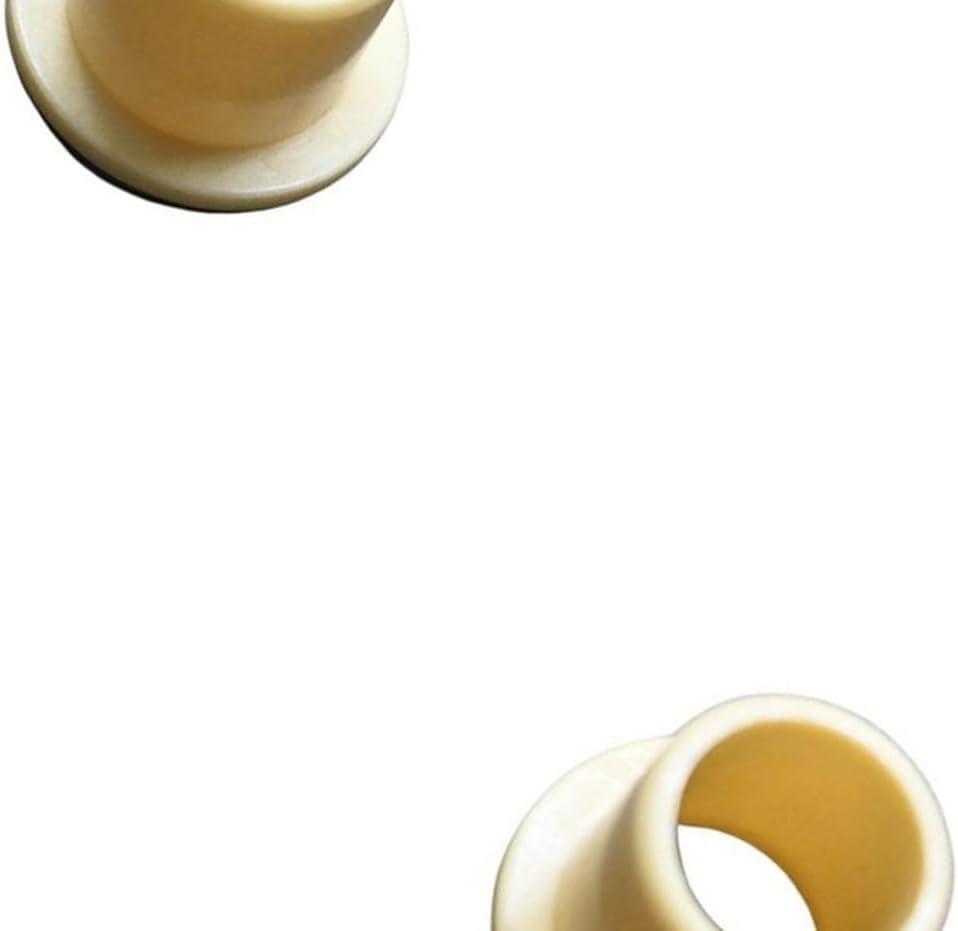

Figure 1: Two light-colored, cylindrical bushings, one positioned at the top left and the other at the bottom right, against a white background. Each bushing features a wider base and a narrower, hollow core, indicating their design for fitting into specific mechanical assemblies.
Function and Application
Bushings are critical components in mechanical systems, designed to reduce friction, provide a bearing surface, and absorb shock between moving parts. These Generic replacement bushings are specifically engineered for the Ventrac 85.B0027, ensuring a precise fit and restoring the intended operational dynamics of the equipment.
Their vibration-resistant and corrosion-resistant properties contribute to a stable and durable connection, extending the service life of the machinery by protecting more expensive components from wear.
Maintenance
Regular maintenance helps prolong the life of your bushings and the equipment they support.
- Regular Inspection: Periodically inspect the bushings for signs of wear, cracking, or deformation. Replace them if any damage is observed.
- Cleaning: Keep the area around the bushings clean from dirt, dust, and debris, which can accelerate wear.
- Lubrication: If the application requires lubrication, ensure appropriate lubricants are used as specified by the equipment manufacturer. These bushings are designed for low-maintenance operation, but specific equipment may have additional requirements.
- Avoid Overloading: Operating equipment within its specified load limits will prevent undue stress on the bushings and other components.
Troubleshooting
If you encounter issues after installing the replacement bushings, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Excessive Play or Looseness | Incorrect bushing size; improper installation; worn mating component. | Verify correct bushing dimensions. Reinstall ensuring proper seating. Inspect mating parts for wear. |
| Stiffness or Binding | Bushing not fully seated; debris in mounting area; misalignment. | Recheck installation for proper seating. Clean mounting area thoroughly. Ensure components are aligned correctly. |
| Unusual Noise (e.g., Squeaking) | Lack of lubrication (if required); debris; improper fit. | Apply appropriate lubricant if the application calls for it. Clean the area. Re-evaluate fit. |
Specifications
| Attribute | Detail |
|---|---|
| Part Number | R2MotS31030 |
| Manufacturer | Generic |
| Compatibility | Ventrac 85.B0027 |
| Inner Diameter (ID) | 1/2 inch |
| Outer Diameter (OD) | 5/8 inch |
| Length/Thickness | 5/8 inch |
| Quantity | 2 |
| Material Properties | Vibration-resistant, corrosion-resistant |
Warranty Information
Specific warranty details for this Generic replacement part are not provided in the product information. For any warranty-related inquiries, please refer to the retailer or the point of purchase.
Support
For further assistance, technical support, or questions regarding the Generic Replacement Bushings, Model R2MotS31030, please contact the seller or the platform from which the product was purchased. Always provide the model number (R2MotS31030) and any relevant purchase details when seeking support.
You may also consult the original equipment manufacturer's manual for the Ventrac 85.B0027 for broader maintenance and repair guidelines.
