1. Product Overview
The ZMISHIBO 72 Inch Ceiling Fan is designed for both indoor and covered outdoor environments, providing powerful yet quiet air circulation. It features a durable DC motor, 8 aluminum blades, and convenient remote control operation.
Image: The ZMISHIBO 72-inch ceiling fan, shown installed in a spacious living room, highlighting its large size and modern aesthetic. A remote control and various downrod lengths are displayed in the foreground.
Key Features:
- Strong Aluminum Blades: High-quality blades designed to resist bending, ensuring stability and reliability.
- Ultra-Quiet DC Motor: Operates at a low noise level (as low as 30 dB) for a peaceful environment.
- Convenient Remote Control: Allows easy adjustment of fan speed, direction, and timer settings.
- Multiple Downrod Options: Includes 6, 12, and 24-inch downrods to accommodate various ceiling heights.
- Reversible Motor: Supports multi-seasonal applications for both cooling and warming airflow.
2. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your ceiling fan. It is recommended that installation be performed by a qualified electrician.
Components and Dimensions:

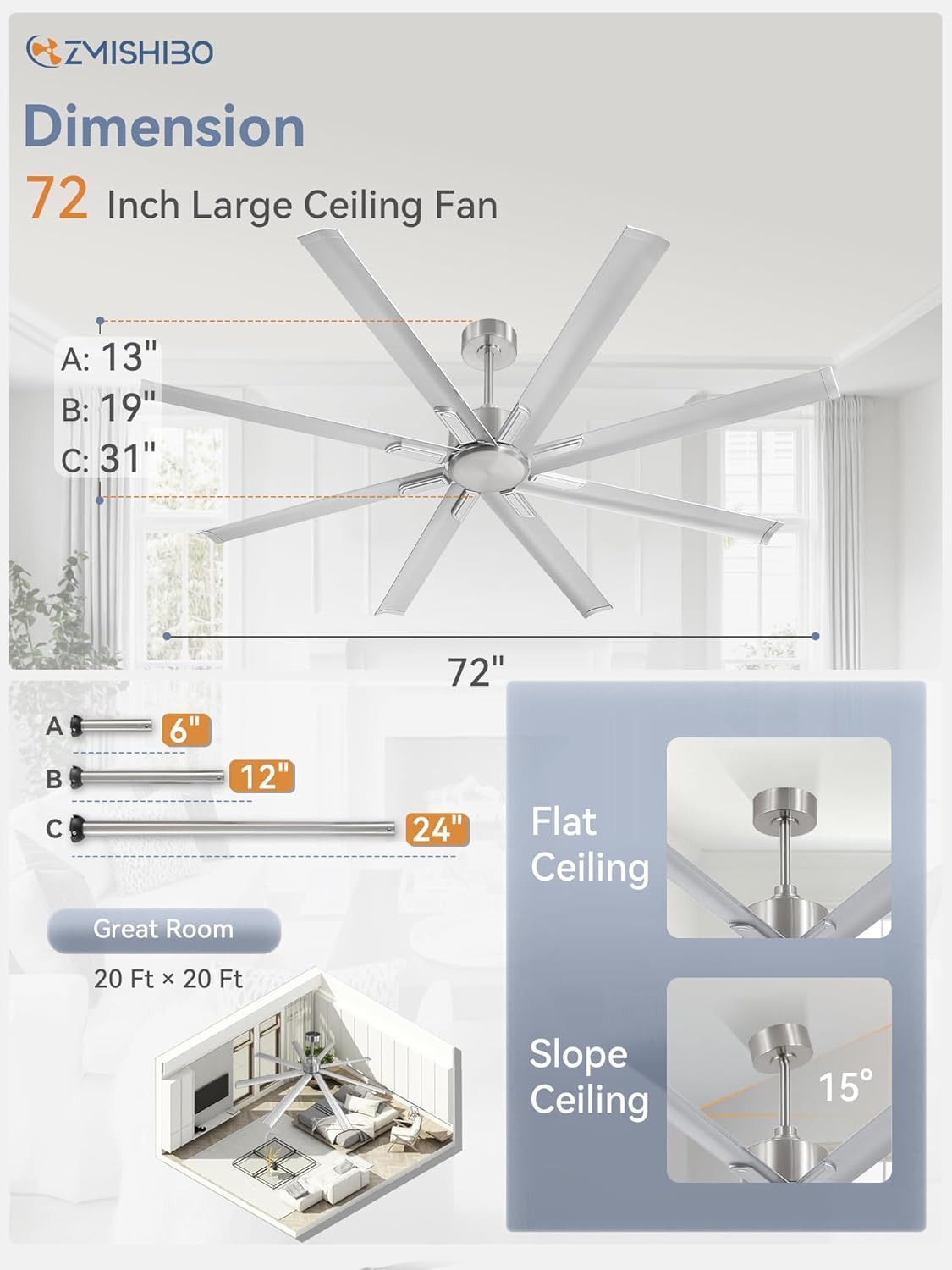

Image: A detailed diagram illustrating the overall dimensions of the 72-inch ceiling fan and the three available downrod lengths (6, 12, and 24 inches). It also shows how the fan can be mounted on flat or sloped ceilings.
The fan comes with three downrod options (6, 12, and 24 inches) to suit different ceiling heights. Ensure the chosen downrod provides adequate clearance from the floor and surrounding objects. The fan is suitable for both flat and sloped ceilings (up to 15 degrees).
Pre-Installation Checklist:
- Verify all components are present as per the packing list.
- Ensure the electrical supply is turned off at the circuit breaker.
- Confirm the mounting location can support the fan's weight (approximately 31.5 pounds).
Safety Features:
Image: Left: A close-up view of the fan's DC motor housing, emphasizing its robust construction and the integrated safety cord for secure installation. Right: A detailed shot of the thickened edge of an aluminum blade, illustrating its unbendable design for enhanced durability.
The fan is equipped with a safety cord for added security during installation and operation. The aluminum blades are designed to be unbendable, contributing to the fan's stability and longevity.
3. Operating Instructions
Your ZMISHIBO ceiling fan is operated via the included remote control, offering a range of functions for optimal comfort.
Remote Control Functions:
Image: An illustration of the remote control, detailing its various buttons and their corresponding functions, including fan speed, natural wind mode, forward/reverse rotation, sleep wind mode, timer settings (1, 4, 8 hours), and code matching.
- ALL OFF: Turns the fan off.
- Fan Speed (1-6): Adjusts the fan speed from low (1-2) to medium (3-4) to high (5-6).
- Natural Wind: Simulates a natural breeze by varying fan speed.
- Forward/Reverse Rotation: Changes the direction of blade rotation for seasonal use.
- Sleep Wind Mode: Provides a gentle, quiet airflow for sleeping.
- Cancel Timer: Deactivates any active timer setting.
- Code Match: Used to pair the remote control with the fan.
- 1/4/8H Timing: Sets the fan to operate for 1, 4, or 8 hours before automatically turning off.
Speed Settings and Airflow:
Image: A visual guide to the fan's 6-speed settings, suggesting 1-2 speeds for comfortable wind, 3-4 speeds for natural wind, and 5-6 speeds for cool wind, with corresponding lifestyle images.
The fan offers 6 distinct speed settings. Lower speeds (1-2) are ideal for comfortable, gentle airflow, while higher speeds (5-6) provide a strong, cooling breeze.
Reversible DC Motor:
Image: A diagram illustrating the reversible motor function, showing downward airflow for cooling in summer and upward airflow for circulating warm air in winter, making the fan suitable for multi-seasonal use.
The reversible DC motor allows you to change the direction of the fan blades. In summer, set the fan to rotate counter-clockwise for a downward airflow that creates a cooling effect. In winter, set it to rotate clockwise for an upward airflow that helps circulate warm air trapped near the ceiling, improving heat distribution.
Quiet Operation:
Image: A graphic illustrating the low noise levels of the fan, indicating that its maximum speed operates at or below 30 dB, which is significantly quieter than typical library (15 dB) or normal chat (70 dB) environments.
The upgraded DC motor ensures ultra-quiet operation, with noise levels as low as 30 dB at maximum speed. This allows for a peaceful atmosphere, whether in a living area, bedroom, or workspace.
4. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your ZMISHIBO ceiling fan.
Cleaning:
- Always turn off the power to the fan at the circuit breaker before cleaning.
- Use a soft, damp cloth to wipe down the blades and motor housing. Avoid using abrasive cleaners or solvents, as they may damage the finish.
- Do not immerse the fan in water.
Inspections:
- Periodically check all screws and connections to ensure they are secure. Loose connections can cause noise or wobble.
- Inspect the blades for any signs of damage or warping.
5. Troubleshooting
If you encounter issues with your ceiling fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start or operates intermittently. | No power supply; loose wiring; remote control not paired or battery low; motor issue. | Check circuit breaker and wall switch. Ensure all wiring connections are secure. Replace remote battery. Re-pair remote control (refer to remote section). If problem persists, contact customer support. |
| Fan makes grinding, clicking, or squeaking noises. | Loose screws on motor housing or blades; unbalanced blades; internal motor issue. | Tighten all visible screws. Ensure blades are securely attached. Check for any obstructions. If noise continues, contact customer support. |
| Excessive fan wobble. | Loose mounting bracket; unbalanced blades; bent downrod. | Ensure mounting bracket is securely fastened to the ceiling joist. Check that all blade screws are tight. Verify blades are not bent or damaged. Consider using a balancing kit if available. |
| Remote control not working. | Low battery; not paired with fan; signal interference. | Replace remote battery. Re-pair the remote control with the fan. Ensure no strong signal interference nearby. |
If you are unable to resolve an issue using the troubleshooting guide, please contact ZMISHIBO customer support for assistance.
6. Specifications
| Attribute | Detail |
|---|---|
| Brand | ZMISHIBO |
| Model Name | SY72 |
| Item Model Number | ZMF72SYNB12 |
| Color | Nickel |
| Electric Fan Design | Ceiling Fan |
| Power Source | AC120V |
| Voltage | 120 Volts (AC) |
| Style | Modern |
| Product Dimensions | 72"D x 72"W x 18.5"H |
| Room Type | Indoor/Outdoor (covered) |
| Recommended Uses For Product | Indoor/Outdoor (covered) |
| Special Feature | 3 downrods (6", 12", 24"), Remote Controlled, Reversible DC Motor, Timer |
| Finish Type | Matte |
| Included Components | Remote |
| Indoor/Outdoor Usage | Indoor |
| Control Method | Remote |
| Is Cordless? | No |
| Number of Power Levels | 6 |
| Size | 72inch |
| Item Weight | 31.5 pounds |
| Specification Met | CE, ETL, FCC |
7. Warranty and Customer Support
ZMISHIBO stands behind the quality of its products.
Warranty Information:
This product comes with 3 years of after-sales service. It is certified with FCC, UL, and CE standards, ensuring compliance with safety and quality regulations.
Customer Support:
Should you have any questions, concerns, or require assistance with your ZMISHIBO ceiling fan, our dedicated after-sales service team is available to assist you promptly. Please refer to your purchase documentation for contact details or visit the official ZMISHIBO store on Amazon.
Your satisfaction is our commitment.
