AZJSCNBE LED Backlight Strip Instruction Manual

Introduction

This manual provides essential information for the installation and maintenance of the AZJSCNBE LED Backlight Strip, model huxinxin. These strips are designed as replacement components for specific VESTEL television models, including 42FA5000, 42FA8000, 42 VNB Reduced A B-C, VOX LED-42880, VES420UNDL-3D-N02, and VES420UNDL-2D-N03. Please read all instructions carefully before proceeding with installation.

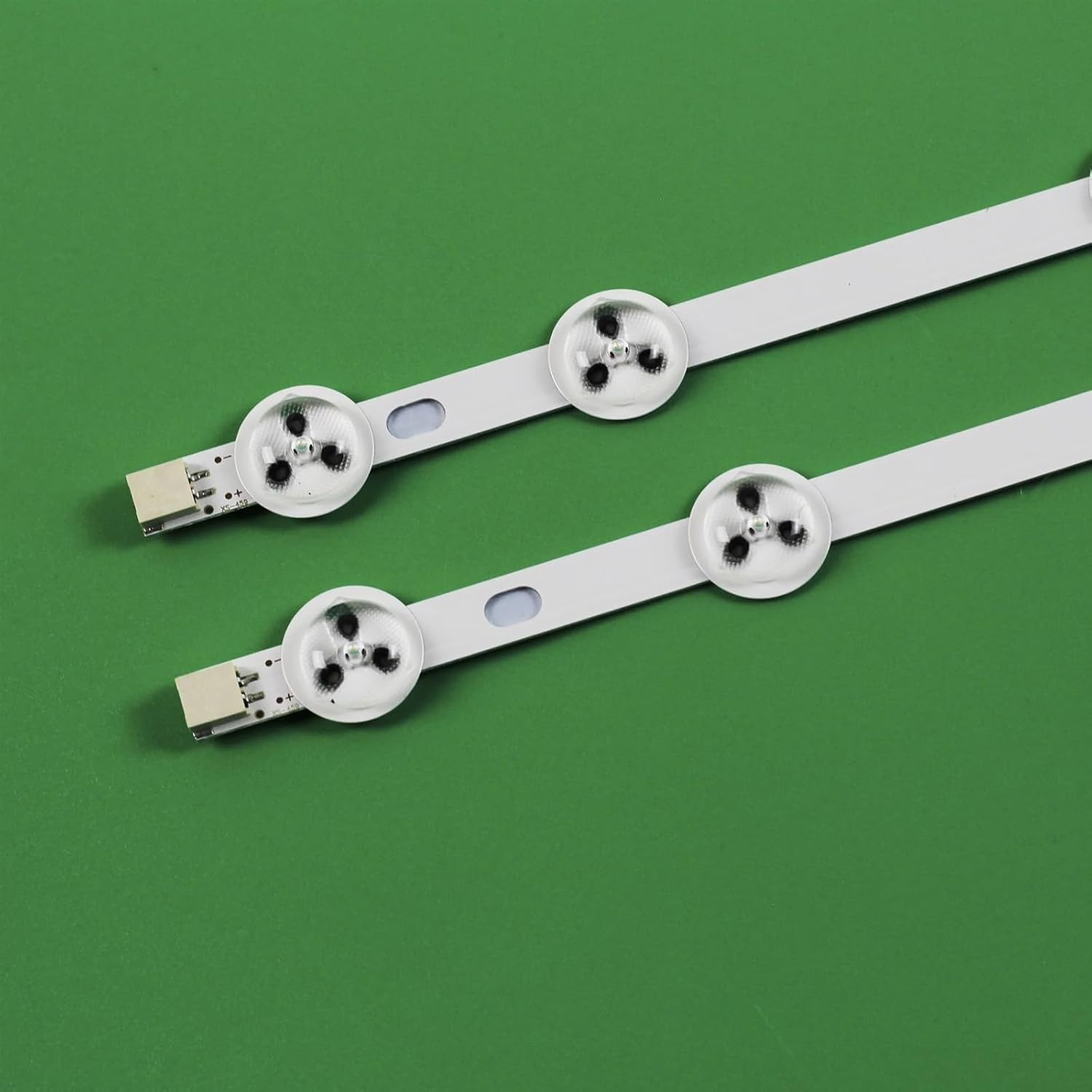

Image: A general view of two AZJSCNBE LED backlight strips, showcasing their design and individual LED components.

Product Specifications

• Length: 374mm
• Number of LED Beads per Strip: 6
• Individual LED Lamp Voltage: 3V
• Package Contents: 1 set = 6 pieces (4A + 2B-C) LED Strips
• Item Model Number: huxinxin
• Manufacturer: AZJSCNBE
• Item Weight: Approximately 50 Grams (1.76 ounces)
• Package Dimensions: 1.18 x 0.79 x 0.39 inches

Safety Information

Replacing LED backlight strips in a television requires technical expertise and involves working with electrical components. Improper installation can lead to electric shock, damage to the television, or personal injury. It is highly recommended that installation be performed by a qualified technician. Always disconnect the television from the power source before beginning any repair work.

Setup and Installation

This section outlines the general steps for replacing LED backlight strips. Specific disassembly and reassembly procedures may vary depending on your television model. Refer to your TV's service manual for detailed instructions.

1. Preparation: Ensure the television is unplugged from the power outlet. Place the TV face down on a soft, clean surface to prevent screen damage.
2. Disassembly: Carefully remove the TV's back cover, stand, and any internal shielding or components necessary to access the display panel. This typically involves removing numerous screws and disconnecting various cables.
3. Panel Removal: With extreme caution, remove the LCD panel and diffuser layers to expose the existing LED backlight strips. Handle the panel by its edges only to avoid fingerprints or damage.
4. Old Strip Removal: Disconnect the power connectors from the old LED strips. Gently peel off the old strips, noting their exact placement and orientation.
5. New Strip Installation: Align the new AZJSCNBE LED backlight strips (4A + 2B-C configuration) in the exact positions of the old ones. Ensure proper orientation and secure them firmly. Connect the power cables.

Image: Two LED backlight strips displaying "42 VNB Reduced A-TYPE REVO.1" and "42 VNB Reduced B-C TYPE REVO.2" markings, indicating their specific types.
6. Testing: Before reassembling the TV, temporarily connect the power cord and power on the TV to verify that all new LED strips illuminate correctly. Immediately unplug the TV after testing.
7. Reassembly: Carefully reassemble the diffuser layers, LCD panel, and all other components in reverse order of disassembly. Ensure all cables are properly connected and screws are tightened.

Image: Close-up of two LED backlight strips, clearly labeled "A" and "B-C" for correct placement during installation.

Image: A detailed view of two LED backlight strips, highlighting the individual LED beads that provide illumination.

Image: A single LED backlight strip with a blue protective film, which should be carefully removed before final installation.

Operating Instructions

Once correctly installed, the AZJSCNBE LED backlight strips operate automatically as part of your television's display system. No user interaction is required for their function. The strips will illuminate when the television is powered on and provide the necessary backlighting for the LCD panel.

Maintenance

The LED backlight strips are internal components and do not require routine user maintenance. To ensure longevity:

• Avoid exposing the television to extreme temperatures or humidity.
• Ensure proper ventilation around the television to prevent overheating, which can degrade LED performance over time.
• If the television requires internal cleaning, it should be performed by a qualified technician.

Troubleshooting

If the television display remains dark or exhibits uneven lighting after installing the new LED backlight strips, consider the following:

• No Backlight: Double-check all power connections to the LED strips. Ensure they are securely seated. Verify that the TV's power supply board is functioning correctly.
• Uneven Lighting or Dark Spots: This could indicate a faulty connection to one or more strips, or a damaged LED bead. Re-examine the installation of each strip.
• Incorrect Strip Type: Confirm that the installed strips are the correct type and configuration (4A + 2B-C) for your specific VESTEL TV model. Incompatible strips may not function or could cause damage.
• Professional Assistance: If issues persist after checking connections and compatibility, it is advisable to consult a professional television repair technician.

Warranty and Support

For warranty information or technical support regarding your AZJSCNBE LED Backlight Strips, please contact the manufacturer directly through their official channels or the retailer from whom the product was purchased. Keep your purchase receipt as proof of purchase.
