1. Introduction
Thank you for purchasing the Enbiawit Portable Bluetooth Speaker and Karaoke Machine. This device is designed to provide high-quality audio playback and an enjoyable karaoke experience with its integrated microphone and dynamic LED lighting. Please read this manual carefully before using the product to ensure proper operation and to maximize its lifespan.
2. Safety Information
- Do not expose the device to water, moisture, or extreme temperatures.
- Avoid dropping or subjecting the device to strong impacts.
- Do not attempt to disassemble, repair, or modify the device yourself. Refer all servicing to qualified personnel.
- Use only the provided charging cable or a certified equivalent.
- Keep the device away from heat sources and direct sunlight.
- Ensure proper ventilation when operating the speaker.
- Dispose of the battery and device according to local regulations.
3. Package Contents
Please check the package for the following items:
- 1 x Enbiawit Portable Bluetooth Speaker (Model: HY-3317)
- 1 x Wired Microphone
- 1 x USB Charging Cable (approx. 50cm)
- 1 x User Manual (this document)
Image: Contents of the package including the speaker, wired microphone, and USB charging cable.
4. Product Overview
4.1. Speaker Components

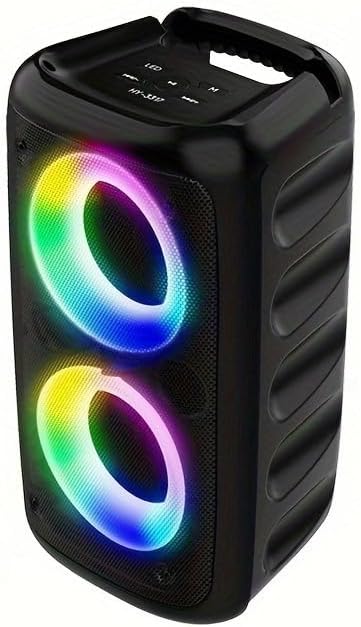

Image: Front view of the Enbiawit HY-3317 speaker, showcasing the dual speakers with integrated colorful LED lights.
- Front Panel: Two main speaker drivers with dynamic RGB LED lighting.
- Top Panel: Control buttons for power, mode, volume, track selection, and LED light control. Integrated carry handle.
- Rear Panel: Input ports for microphone, USB, TF card, AUX, and Type-C charging port.
4.2. Control Panel and Ports
Image: Front and rear views of the speaker, highlighting the control panel on top and the various input ports on the back.

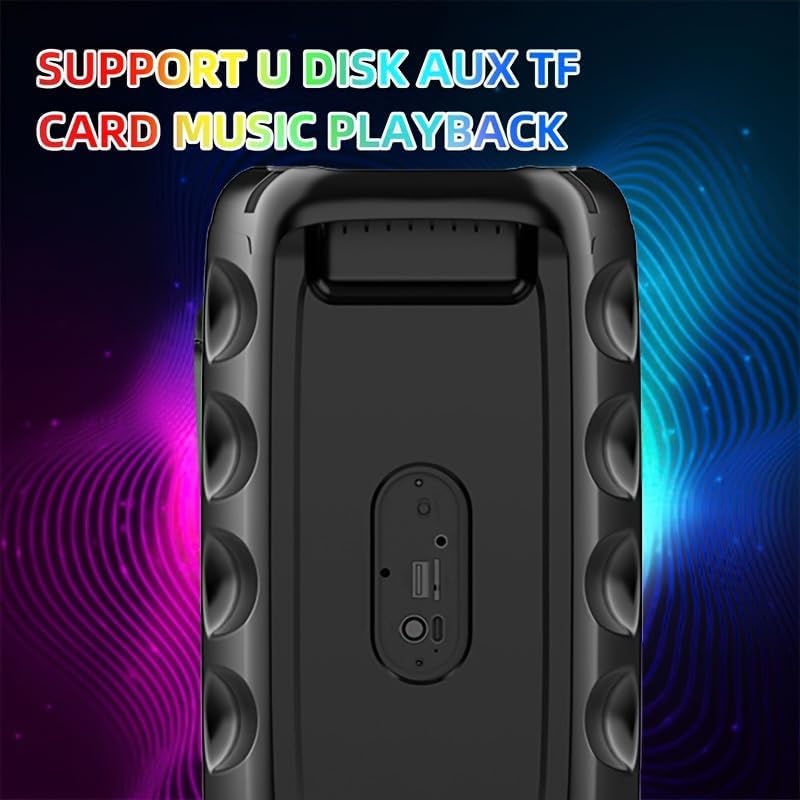

Image: Detailed view of the rear input panel, indicating support for USB disk, AUX, and TF card music playback.
The top panel features intuitive buttons for controlling playback, volume, and lighting. The rear panel provides versatile connectivity options:
- LED Button: Toggles LED light modes.
- Mode Button: Switches between Bluetooth, TF Card, USB, AUX, and FM Radio modes.
- Previous/Volume Down Button: Short press for previous track, long press to decrease volume.
- Play/Pause Button: Plays or pauses audio.
- Next/Volume Up Button: Short press for next track, long press to increase volume.
- TF Card Slot: For playing music from a MicroSD/TF card.
- USB Port: For playing music from a USB flash drive.
- AUX Input: For connecting external audio devices via a 3.5mm audio cable.
- MIC Input: For connecting the wired microphone.
- Type-C Charging Port: For charging the speaker's internal battery.
5. Setup
5.1. Charging the Speaker
- Connect the provided USB charging cable to the Type-C charging port on the rear of the speaker.
- Connect the other end of the USB cable to a standard USB power adapter (e.g., 5V/1A) or a computer's USB port.
- The charging indicator light will illuminate. The speaker is fully charged when the indicator light changes or turns off (refer to specific model behavior if available).
- A full charge typically takes approximately 3-4 hours.
Note: For optimal battery life, fully charge the speaker before first use.
5.2. Powering On/Off
- To power on, press and hold the Power button (usually integrated with the Mode button or a dedicated button on the top panel) for a few seconds until you hear an audible prompt.
- To power off, press and hold the Power button again until the speaker shuts down.
6. Operating Instructions
6.1. Bluetooth Mode
- Power on the speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing LED light or an audible prompt.
- On your mobile device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
- Select "HY-3317" or "Enbiawit Speaker" from the list of devices.
- Once paired, the speaker will confirm with an audible sound, and the LED light will stop flashing.
- You can now play audio from your device through the speaker.
Note: The speaker supports Bluetooth 5.0 for stable connection.
6.2. TF Card / USB Disk Playback
- Insert a TF (MicroSD) card or a USB flash drive into the corresponding slot on the rear panel. Ensure the card/drive contains MP3 audio files.
- The speaker will automatically switch to TF Card or USB mode and begin playing music. If not, press the "Mode" button to cycle through modes until you reach the desired input.
- Use the Previous/Next buttons to skip tracks and long press them to adjust volume.
6.3. AUX Input Mode
- Connect one end of a 3.5mm audio cable (not included) to the AUX input port on the speaker.
- Connect the other end of the audio cable to the headphone jack or audio output of your external device (e.g., MP3 player, computer).
- Press the "Mode" button on the speaker until it enters AUX mode.
- Audio from your external device will now play through the speaker. Volume can be controlled on both the speaker and the external device.
6.4. Karaoke Function (Microphone Use)
- Connect the wired microphone to the "MIC Input" port on the rear of the speaker.
- Ensure the speaker is powered on and playing music from your chosen source (Bluetooth, TF, USB, AUX).
- Speak or sing into the microphone. Your voice will be amplified through the speaker.
- The microphone may have a built-in echo effect. There is no direct control to turn off the echo effect on the speaker itself.
6.5. LED Light Control
Image: The speaker showcasing its built-in multiple color lamp modes, providing a vibrant LED light show.

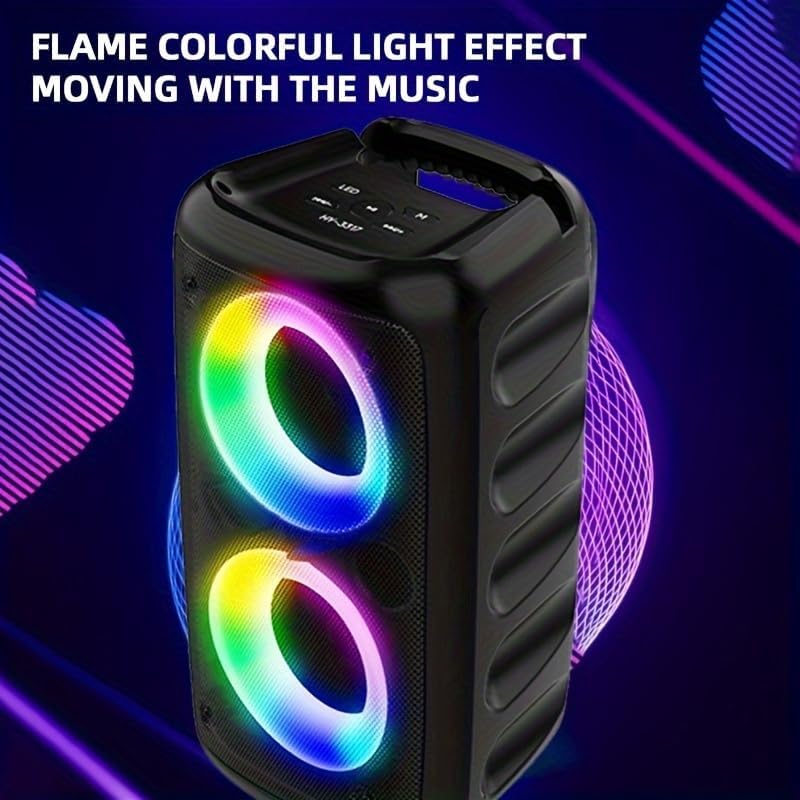

Image: The speaker's dynamic flame-like colorful light effect, which synchronizes with the music.
- Press the "LED" button on the top panel to cycle through different light modes.
- The lights can display various colors and patterns, often synchronizing with the music.
- Continue pressing the "LED" button to turn the lights off or select a desired mode.
6.6. TWS (True Wireless Stereo) Function (If Applicable)
The speaker supports TWS function, allowing two HY-3317 speakers to be paired together for a stereo sound experience. (Requires two HY-3317 units).
- Ensure both speakers are powered on and in Bluetooth mode, but not connected to any device.
- On one speaker, long press the "Mode" button (or a dedicated TWS button if present) until you hear a pairing sound.
- The two speakers will automatically connect to each other. Once connected, you will hear a confirmation sound.
- Now, connect your mobile device to one of the speakers via Bluetooth as described in section 6.1. Audio will play in stereo through both speakers.
7. Maintenance
- Cleaning: Use a soft, dry cloth to clean the speaker's surface. Do not use abrasive cleaners or solvents.
- Storage: Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. If storing for a long period, charge the battery to about 50% every few months.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker does not power on. | Battery is depleted. | Charge the speaker fully using the provided USB cable. |
| No sound from speaker. | Volume is too low; Incorrect mode selected; Device not connected properly. | Increase speaker and source device volume; Press "Mode" button to select correct input; Re-pair Bluetooth or re-insert cables. |
| Bluetooth connection unstable or fails. | Speaker too far from device; Interference; Device's Bluetooth is off. | Move speaker closer to device (within 10m); Avoid obstacles; Ensure Bluetooth is enabled on your device and try re-pairing. |
| Microphone not working. | Microphone not fully plugged in; Microphone faulty. | Ensure the microphone cable is securely inserted into the MIC input port. Test with another microphone if available. |
| "Battery low" warning even when charging. | Charging cable or adapter issue; Battery calibration issue. | Ensure the charging cable and adapter are working correctly. Try a different charging source. If the issue persists, contact customer support. |
9. Specifications
Image: Diagram showing the physical dimensions of the speaker.
| Feature | Detail |
|---|---|
| Model Number | HY-3317 |
| Brand | Enbiawit |
| Speaker Size | 3" x 2 (Dual Speakers) |
| Output Power | 10W |
| Battery Capacity | 2400mAh |
| Product Dimensions (L x W x H) | 6.29 x 5.88 x 11.48 inches (16 x 15.2 x 29.2 cm) |
| Item Weight | 3.89 pounds (1.77 kg) |
| Bluetooth Version | 5.0 |
| Audio Inputs | Bluetooth, TF Card, USB Disk, AUX, Wired Microphone |
| Power Source | Battery Powered (Rechargeable) |
| Special Features | RGB LED Lights, TWS Function, Karaoke Function |
10. Warranty and Support
Enbiawit products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your purchase or contact Enbiawit customer service through the retailer where the product was purchased.
Please retain your proof of purchase for any warranty claims.
