IMMERSTABLE Floating Bed Frame Queen with LED Light User Manual

1. Safety Information

Please read all instructions carefully before assembly and use. Retain this manual for future reference.

• Weight Limit: Do not exceed the recommended weight capacity for the bed frame. Refer to the specifications section for details.
• Assembly: Ensure all components are correctly assembled and tightened according to the instructions. Do not overtighten screws.
• Children: Keep small parts and packaging materials away from children during assembly. This product is not intended for infants or young children without appropriate bedding and supervision.
• Stability: Periodically check all connections to ensure they remain secure. Do not stand or jump on the bed frame.
• Electrical Safety (LED Lights): Ensure the LED light power supply is connected to a suitable power outlet. Do not attempt to modify the LED light system. Disconnect power before cleaning or maintenance of the LED components.

2. Product Overview

The IMMERSTABLE Floating Bed Frame Queen with LED Light offers a modern and elegant design for your bedroom. Its unique hidden feet create a floating illusion, complemented by integrated RGB LED lighting. The frame features a comfortable upholstered headboard and a sturdy, noise-free construction.

Image 2.1: The IMMERSTABLE Floating Bed Frame in white with LED lighting activated, showcasing its unique design.

Key Features:

• Unique Floating Design: Hidden bed feet create a modern, light aesthetic.
• Built-in RGB LED Lights: Integrated into the headboard and under the frame, offering over 60,000 colors, timing functions, brightness adjustment, and music/mic modes for customizable ambiance.
• Faux Leather Upholstery: Headboard and frame are upholstered in breathable faux leather, providing a soft touch and ergonomic support.
• Sturdy & Noise-Free Construction: Supported by a durable metal frame and solid wood slats, with a foam strip on the center pole to prevent noise.
• Easy Assembly: Designed for straightforward assembly with numbered components and detailed instructions.

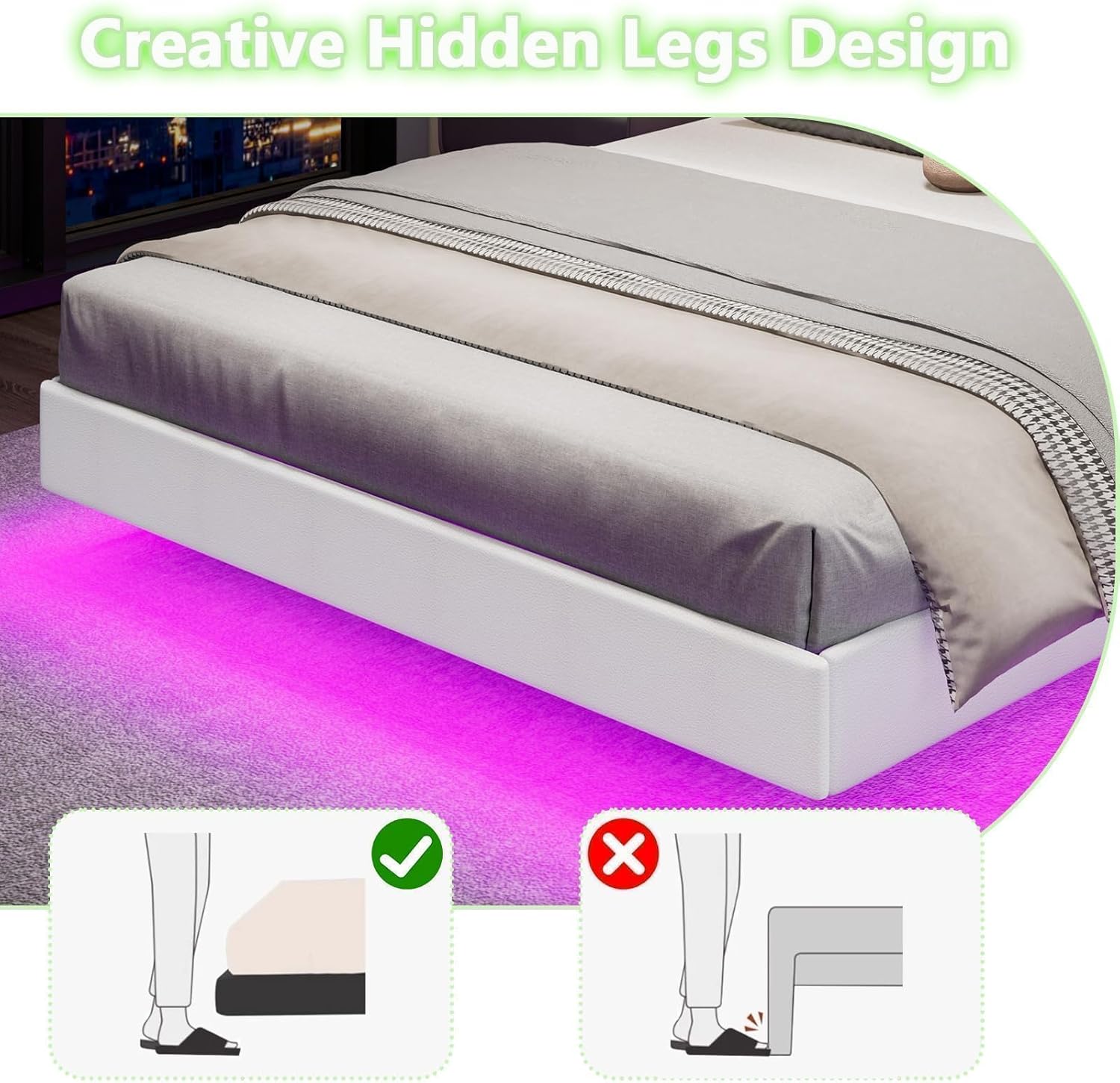

Image 2.2: Detail illustrating the creative hidden legs design, which gives the bed its floating appearance.

3. Setup and Assembly

The IMMERSTABLE Floating Bed Frame is designed for easy assembly. Please follow the steps below carefully.

Before You Begin:

• Clear a spacious area for assembly.
• Unpack all components and verify against the parts list provided in your package. Each component is numbered.
• Gather necessary tools (usually an Allen wrench is included, but a screwdriver might be helpful).

Assembly Steps:

1. Attach Headboard: Secure the headboard to the side rails using the provided hardware. Ensure the LED strip is facing the correct direction.
2. Assemble Frame: Connect the side rails and footboard to form the main bed frame. Ensure all connections are snug but do not overtighten until all parts are aligned.
3. Install Center Support: Place the center support beam and legs. Ensure the foam strip on the center pole is correctly positioned to prevent noise.
4. Place Slats: Lay the solid wood slats across the frame. Many slats are secured with Velcro straps for easy and convenient installation. Ensure they are evenly spaced and firmly seated.
5. Final Tightening: Once all components are in place and aligned, fully tighten all screws and bolts.
6. Connect LED Lights: Follow the specific instructions in your package for connecting the LED light power supply and controller.

Image 3.1: Visual representation of the bed frame's stable structure, noise-free design elements, and ease of assembly.

4. Operating the LED Lights

The integrated RGB LED lights offer a wide range of customization options to enhance your room's ambiance.

Features:

• Over 60,000 Colors: Choose from a vast spectrum of colors to match your mood or decor.
• App Control: Manage the LED lights conveniently via a dedicated mobile application. Download the app by scanning the QR code provided in your LED light kit or searching in your device's app store.
• Timing Function: Set schedules for the lights to turn on or off automatically.
• Brightness Adjustable: Dim or brighten the lights to your preferred intensity.
• Mic Mode: Lights can react to sounds and music detected by your device's microphone.
• Music Mode: Synchronize light patterns with your favorite music.

Basic Operation:

1. Power On/Off: Use the power button on the controller or within the app to turn the lights on or off.
2. Color Selection: Use the color wheel or preset color options in the app to select your desired color.
3. Mode Selection: Switch between various dynamic modes, including static colors, fading, jumping, and music synchronization modes, via the app.
4. Brightness Adjustment: Adjust the brightness slider in the app to achieve the desired light intensity.

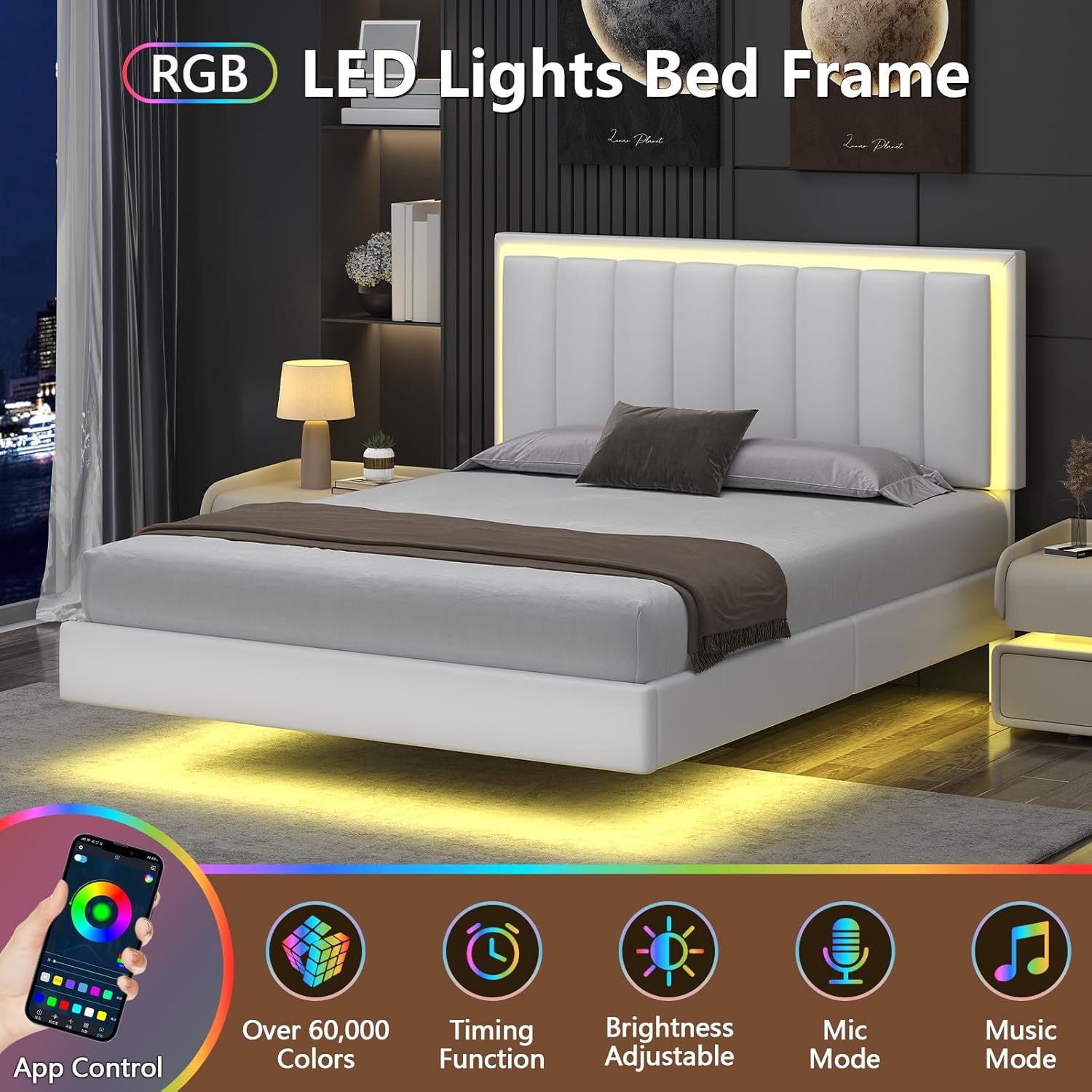

Image 4.1: Overview of the RGB LED lights feature, highlighting app control, color options, and various modes.

5. Maintenance

Proper care and maintenance will extend the life and appearance of your IMMERSTABLE bed frame.

• Upholstery Care: The faux leather upholstery is designed to be easy to clean. For general cleaning, wipe with a soft, damp cloth. For more stubborn stains, use a mild soap solution and wipe dry immediately. Avoid harsh chemicals or abrasive cleaners. While the product description mentions "Dry Clean Only" for product care instructions, this typically refers to specific fabric components; for faux leather, gentle wiping is appropriate.
• Frame Cleaning: Wipe the metal and wood components with a dry or slightly damp cloth to remove dust.
• Periodic Checks: Every few months, check all bolts and screws to ensure they are still tight. Re-tighten if necessary to maintain stability and prevent noise.
• LED Lights: Keep the LED strips and controller free of dust. Do not expose the electrical components to water.

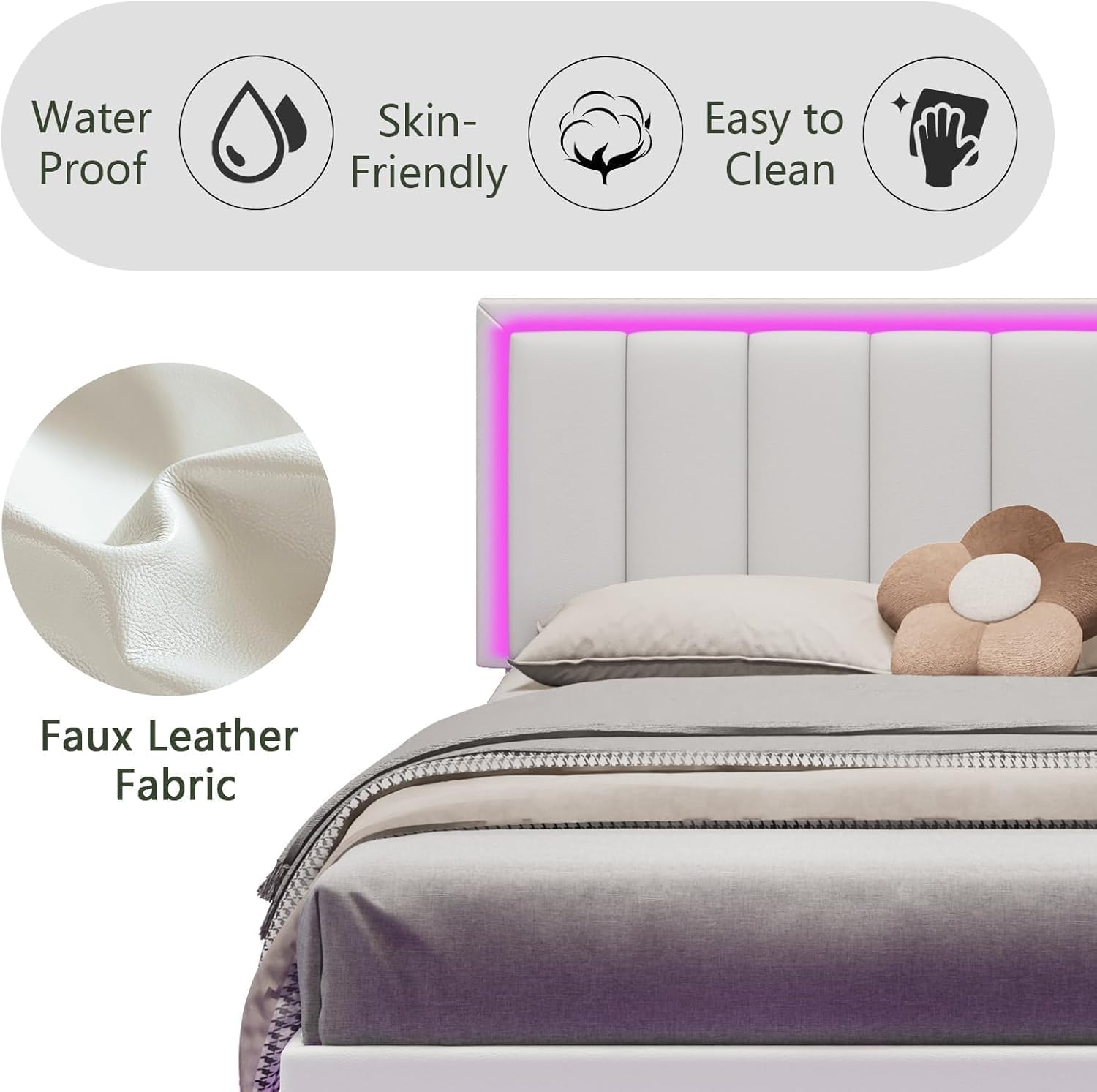

Image 5.1: Features of the faux leather upholstery, including its waterproof, skin-friendly, and easy-to-clean properties.

6. Troubleshooting

If you encounter any issues with your bed frame, refer to the following common problems and solutions:

• Bed Frame is Noisy/Squeaky:
  • Ensure all bolts and screws are securely tightened.
  • Check that the foam strip on the center pole is correctly positioned to absorb friction.
  • Verify that the wood slats are properly seated and not rubbing against the frame.
• LED Lights Not Working:
  • Check if the power adapter is securely plugged into both the wall outlet and the LED controller.
  • Ensure the LED controller is properly connected to the LED strips.
  • Verify that the power outlet is functional.
  • If using the app, ensure your device's Bluetooth is on and connected to the LED controller. Try restarting the app or your device.
• Bed Frame Feels Unstable:
  • Re-check all assembly steps to ensure no parts were missed or incorrectly installed.
  • Tighten all connections.
  • Ensure the bed frame is on a flat, level surface.

7. Specifications

Detailed specifications for the IMMERSTABLE Floating Bed Frame Queen with LED Light.

Image 7.1: Dimensional drawing for the Queen size bed frame, showing length, width, and headboard height.

Image 7.2: Recommendation for mattress height, suggesting 8"-12" for optimal fit and to prevent sliding.

8. Warranty and Support

For specific warranty details and customer support, please refer to the documentation included with your purchase or contact IMMERSTABLE directly.

• Manufacturer Contact: Please visit the official IMMERSTABLE website or refer to your purchase receipt for contact information.
• Proof of Purchase: Always retain your proof of purchase for any warranty claims or support inquiries.
