MAGIC SELECT T0769 Food Waste Disposer Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your MAGIC SELECT T0769 Food Waste Disposer. Please read this manual thoroughly before installation and use, and retain it for future reference.

The MAGIC SELECT T0769 is a compact household food waste disposer designed to simplify kitchen waste management. It features a 1.4-liter capacity and a powerful 2800 RPM motor, making it efficient for disposing of various food scraps.

Constructed from durable stainless steel, this unit offers robust corrosion protection. Its magnetic shredding system operates without traditional moving blades, enhancing safety during use. An external switch is included for convenient activation.

Equipped with a 7.5 HP motor (550 W) operating at 2800 RPM, the disposer processes food waste effectively while maintaining quiet operation. The unit is designed for self-cleaning with water, ensuring hygienic waste disposal. Its compact dimensions allow for straightforward under-sink installation.

2. Important Safety Instructions

WARNING: Failure to follow these safety instructions could result in electric shock, fire, or serious injury.

• Always use cold water when operating the disposer. Hot water can melt grease and cause clogs in your drain pipes.
• Never put your hands or fingers into the disposer opening. Use a stopper or a long utensil to push food into the disposer.
• Do not dispose of non-food items such as glass, metal, plastic, large bones, clam or oyster shells, corn husks, fibrous materials (e.g., celery stalks, artichokes), or harsh chemicals. These can damage the disposer or plumbing.
• Ensure the disposer is properly grounded to reduce the risk of electric shock.
• Unplug the disposer or turn off power at the circuit breaker before attempting to clear a jam, clean, or service the unit.
• Do not operate the disposer without the splash guard in place.
• Keep children away from the disposer and ensure they do not operate it.
• If the disposer stops operating, turn off the power immediately and refer to the troubleshooting section.

3. Package Contents

Verify that all components are present before beginning installation:

Image showing the various components included in the package, such as the power plug, hoses, switch, and sealing rubbers.

• Power Plug
• Single-prong Hose
• Switch (External)
• Sealing Rubbers (Multiple)
• Double-prong Hose
• T-Elbow
• Sealing Ring
• Transparent Tube

4. Installation (Setup)

The MAGIC SELECT T0769 Food Waste Disposer is designed for under-sink installation. It is compatible with sinks featuring an 80mm diameter drain opening. If your sink has a different size, an appropriate adapter will be required (not included).

4.1 Pre-Installation Considerations

• Ensure there is sufficient space under your sink for the disposer (dimensions: 32 x 27 x 18 cm).
• Confirm access to a grounded electrical outlet.
• Turn off the main power supply to the kitchen area at the circuit breaker before starting installation.
• Turn off the water supply to the sink.

4.2 Mounting Modes

The disposer supports two primary mounting configurations depending on your sink setup:

This image illustrates two common installation scenarios: one for a single sink with one water inlet, and another for a double sink with two water inlets, detailing the necessary plumbing and electrical connections.

Mode 1: For 1 Water Inlet Only

• Connect the disposer to the sink drain.
• Attach the drain outlet pipe from the disposer to your existing plumbing.
• Connect the power cable to a grounded electricity connection.

Mode 2: For 2 Water Inlets (Double Sink)

• Connect the disposer to one sink drain.
• Use the double tube and T-elbow to connect the disposer's water inlet outlet pipe to both sink drains.
• Attach the main drain outlet pipe from the disposer to your existing plumbing.
• Connect the power cable to a grounded electricity connection.

Note: Professional installation is recommended if you are unfamiliar with plumbing or electrical work.

5. Operating Instructions

Follow these steps for safe and effective operation of your food waste disposer:

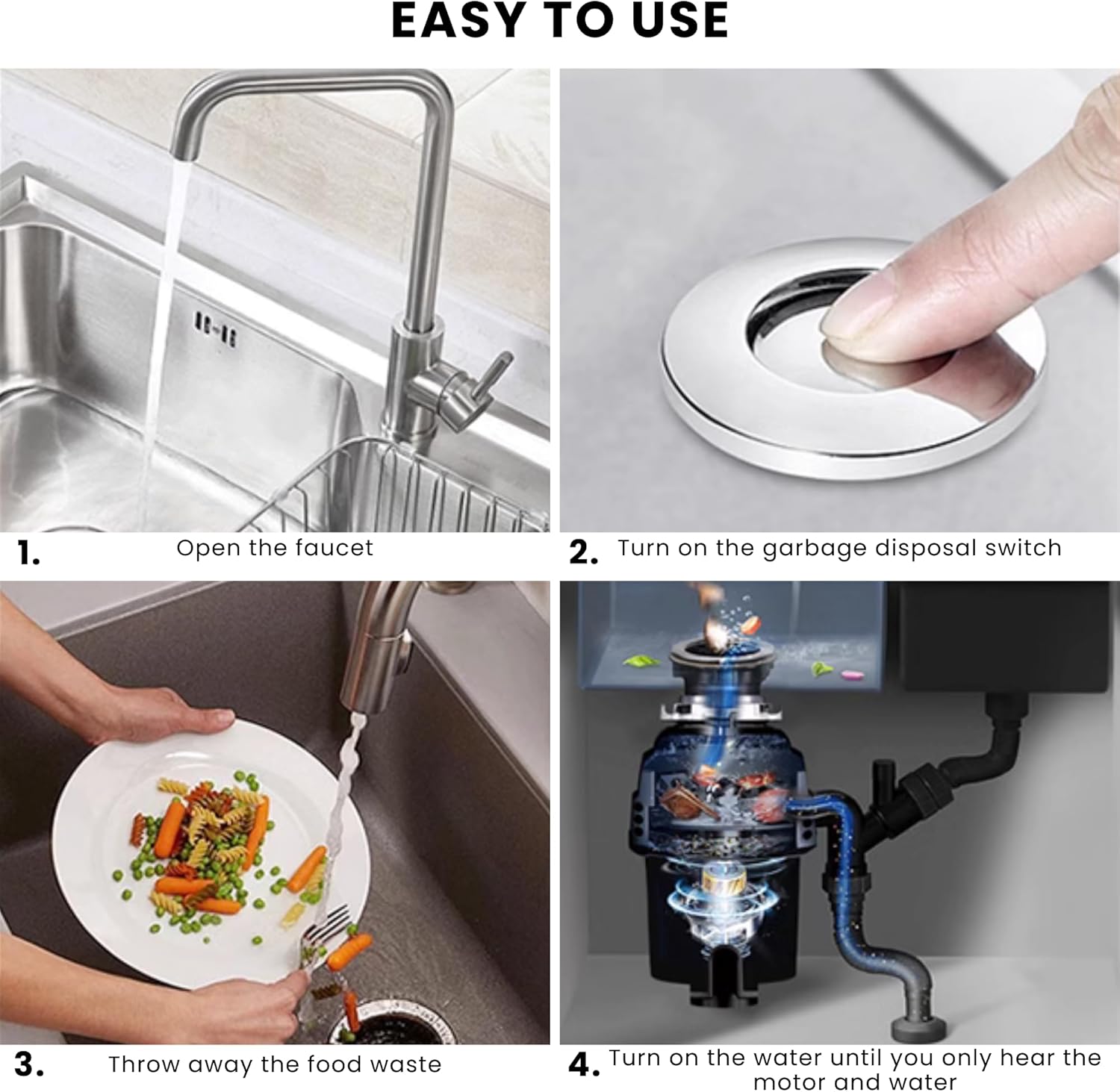

This image visually guides the user through the four simple steps of operating the disposer: turning on the water, activating the unit, adding food waste, and continuing to run water until grinding is complete.

1. Open the Faucet: Turn on the cold water faucet to a moderate flow. Cold water helps to solidify grease and food particles, allowing them to be flushed away more easily and preventing clogs.
2. Turn on the Disposer: Press the external switch to activate the food waste disposer. You should hear the motor start.
3. Add Food Waste: Gradually feed food waste into the sink opening. Avoid overloading the disposer. The magnetic shredding system will grind the waste into fine particles.
4. Continue Running Water: Keep the cold water running for at least 15-20 seconds after the grinding sound subsides. This ensures all food particles are thoroughly flushed through the drain pipes. You should only hear the sound of the motor and water.

Examples of suitable food waste: Vegetable peels, small chicken bones, fruit scraps, coffee grounds, small food remains.

This image demonstrates the ease of disposing of common kitchen waste, such as vegetable peels, small chicken bones, and general food remains, by simply activating the disposer with a button.

6. Maintenance

Regular maintenance ensures the longevity and efficient operation of your MAGIC SELECT T0769 Food Waste Disposer.

6.1 Cleaning the Disposer

• The disposer is designed to be self-cleaning with water. After each use, ensure cold water runs for an adequate period (15-20 seconds) to flush out all food particles.
• For odor control and deeper cleaning, periodically grind citrus peels (lemon, orange) with cold water. The natural oils help to clean the grinding chamber and freshen the drain.
• Do not use chemical drain cleaners, as they can damage the disposer and plumbing.

6.2 Preventing Jams

• Always run cold water before and after operating the disposer.
• Avoid putting large quantities of food waste into the disposer at once. Feed waste gradually.
• Do not dispose of items listed in the safety instructions (e.g., fibrous materials, large bones, non-food items).

7. Troubleshooting

If you encounter issues with your food waste disposer, refer to the following common problems and solutions:

If you are unable to resolve the issue using these steps, please contact customer support.

8. Product Specifications

This image provides a visual representation of the disposer's dimensions (32 cm height, 27 cm depth, 18 cm width) when installed under a kitchen sink, illustrating its compact fit.

9. Warranty and Support

For warranty information or technical support, please contact the retailer or the manufacturer, MAGIC SELECT. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, please refer to the contact information provided with your purchase or visit the official MAGIC SELECT website.
