Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your new BXParts Carburetor. Please read these instructions carefully before proceeding with installation or use to ensure proper function and longevity of the product.
Compatibility: This carburetor is designed to fit a range of models, including:
- Echo: SRM-1501, SRM-2100, SRM-2100SB, SRM-2305, SRM-2501, SRM-3000, SRM-3100, SRM-3100S, SRM-3110, SRM-3400
- Technic Tool: TT-24, TT-24A
- Replaces: Wt-344, Wt-418A
Included Components: Your package should contain the following items:
- 1 x Carburetor
- 2 x Gaskets
- 1 x Fuel Line Kit
- 1 x Spark Plug
- 2 x Primer Bulbs
- 1 x Grommet
Setup and Installation
Proper installation is crucial for the carburetor's performance. If you are unsure about any step, it is recommended to consult a qualified technician or refer to your equipment's original service manual.
Important: Before installation, carefully compare the new carburetor with your original part from all sides to ensure they are identical. Discrepancies may lead to improper fit or function.
- Safety First: Ensure the equipment is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting. Drain any fuel from the tank.
- Remove Old Carburetor: Carefully disconnect fuel lines, throttle linkage, and mounting bolts from the old carburetor. Note the routing of all connections.
- Clean Mounting Area: Thoroughly clean the engine's intake manifold and any surrounding areas to ensure a proper seal with the new gaskets.
- Install New Gaskets: Place the new gaskets in their correct positions. Gaskets are essential for preventing air leaks, which can affect engine performance.
- Mount New Carburetor: Position the new BXParts carburetor and secure it with the mounting bolts. Do not overtighten.
- Connect Fuel Lines: Attach the new fuel lines (if replacing) or reconnect existing ones to the carburetor. Ensure connections are secure and free of leaks.
- Connect Throttle Linkage: Reattach the throttle linkage and choke mechanism. Verify smooth operation.
- Install Spark Plug: Replace the old spark plug with the new one provided, if necessary.
- Prime the System: After refilling the fuel tank, press the primer bulb several times until fuel is visible and flows freely, indicating the carburetor is primed.

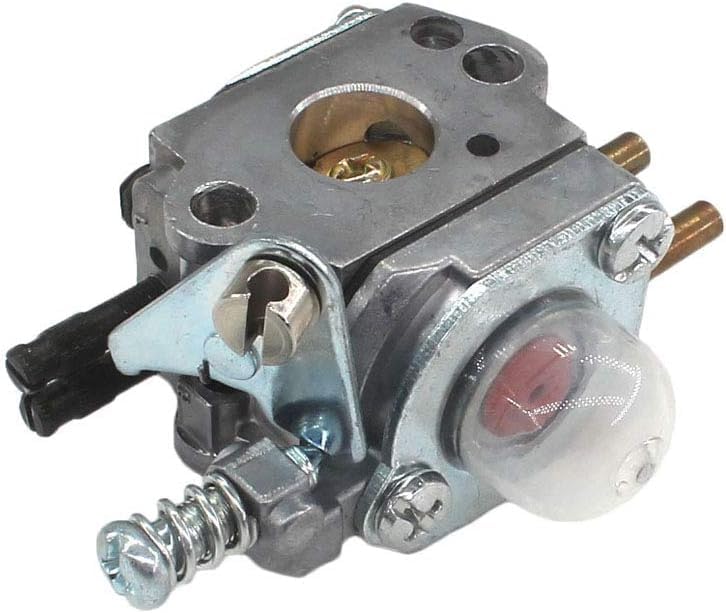

Figure 1: Side view of the BXParts Carburetor, showing the primer bulb and fuel line connections.

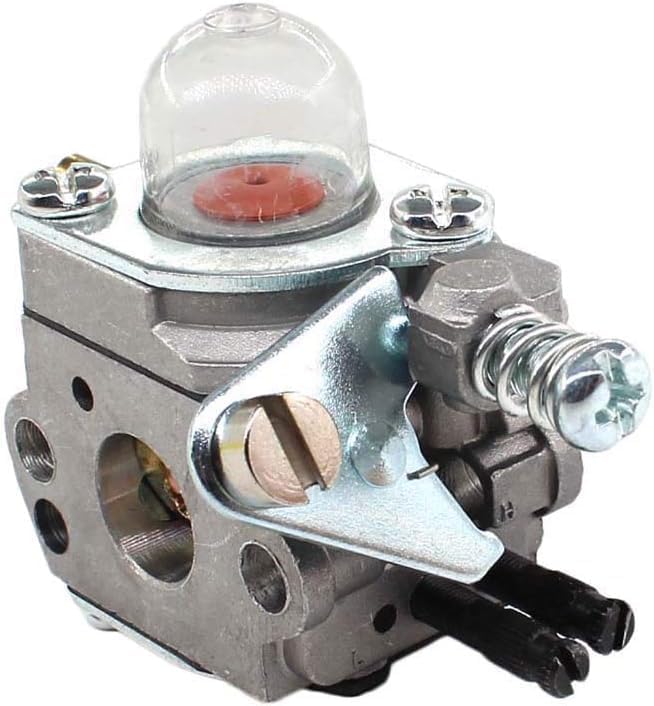

Figure 2: Another perspective of the carburetor, highlighting potential adjustment screws (if applicable to your model).
Figure 3: Bottom view of the carburetor, illustrating the intake port and mounting points.
Operating Principles
The carburetor is a vital component that mixes air and fuel in the correct ratio for combustion in your engine. Once installed, its operation is integrated with your equipment's engine system.
For specific starting procedures, throttle control, and general operation of your power tool, please refer to the original instruction manual provided with your Echo or Technic Tool equipment.
Maintenance
Regular maintenance helps ensure optimal performance and extends the life of your carburetor and equipment.
- Fuel Quality: Always use fresh, clean fuel mixed according to your equipment manufacturer's specifications. Stale or contaminated fuel is a leading cause of carburetor issues.
- Fuel Filter: Periodically inspect and replace the fuel filter in the fuel tank. A clogged filter can restrict fuel flow to the carburetor.
- Air Filter: Ensure the engine's air filter is clean and free of debris. A dirty air filter can cause the engine to run rich and affect carburetor performance.
- Carburetor Cleaning: If performance issues arise, the carburetor may require cleaning. This typically involves disassembling, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This task is best performed by experienced individuals or a service professional.
- Storage: Before long-term storage, run the engine until it runs out of fuel, or use a fuel stabilizer to prevent fuel degradation and gumming in the carburetor.
Troubleshooting Common Issues
If your equipment experiences problems after carburetor installation, consider the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, clogged fuel filter, incorrect priming, spark plug issue, air leak. | Check fuel level, replace fuel filter, ensure proper priming, inspect/replace spark plug, check all connections for air leaks. |
| Engine runs rough/stalls | Improper fuel/air mixture, dirty carburetor, air filter clogged, old fuel. | Ensure fresh fuel, clean/replace air filter, consider carburetor cleaning or adjustment (if applicable). |
| Fuel leaks | Loose fuel lines, damaged gaskets, cracked primer bulb. | Tighten fuel line clamps, replace damaged gaskets, replace primer bulb. |
If these steps do not resolve the issue, professional service may be required.
Product Specifications
| Specification | Detail |
|---|---|
| Manufacturer | BXParts |
| Brand | Generic |
| Model Type | Carburetor |
| Compatible Model Numbers | SRM-3100, SRM-3400, SRM-2305 (and others listed in compatibility) |
| Item Weight | 8 ounces |
| Package Dimensions | 6 x 4 x 4 inches |
| Exterior Material | Aluminum |
Warranty and Customer Support
This BXParts Carburetor is manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided with your purchase or contact the seller directly.
If you encounter any issues or have questions regarding the installation or performance of this carburetor, please reach out to your point of purchase or the manufacturer's customer support for assistance.
