BETA FPV SuperP 14CH PWM Diversity Receiver ELRS 2.4G/915MHz User Manual

1. Introduction

This manual provides comprehensive instructions for the BETA FPV SuperP 14CH PWM Diversity Receiver. Designed for various RC models including multi-rotors, fixed-wing aircraft, helicopters, cars, and boats, this receiver offers reliable control and advanced features. Please read this manual thoroughly before installation and operation to ensure proper functionality and safety.

Image 1.1: BETA FPV SuperP 14CH PWM Diversity Receiver with included accessories, including antennas, connection cables, and a small instruction sheet.

2. Product Features

• 14 PWM Channels: Supports up to 14 servos, enabling complex and precise control for various RC applications.
• True Diversity Reception: Features two complete RF receiver chains (based on dual SX1280/SX1281 or dual SX1276) for enhanced signal reliability.
• ExpressLRS V3.3 Firmware: Pre-installed with the latest official ExpressLRS firmware for optimal performance.
• Built-in TCXO: Includes a Temperature Compensated Crystal Oscillator for a super accurate clock source, ensuring stable frequency output even in extreme temperatures.
• Dual Antenna System: Two antennas generate an omnidirectional signal for improved signal transmission and reception.
• Failsafe Function: Integrated failsafe mechanism to protect RC models from loss of control.
• Type-C USB Port: Convenient for firmware flashing and configuration.
• Wide Voltage Detector Range: Supports 1-6S battery voltage detection.
• Telemetry Power: 20dBm/100mW (2.4Ghz / 915MHz) and 17dBm/50mW (868MHz/915MHz) for robust data transmission.
• Supported Protocols: PWM, CRSF, and SBUS serial output protocols.

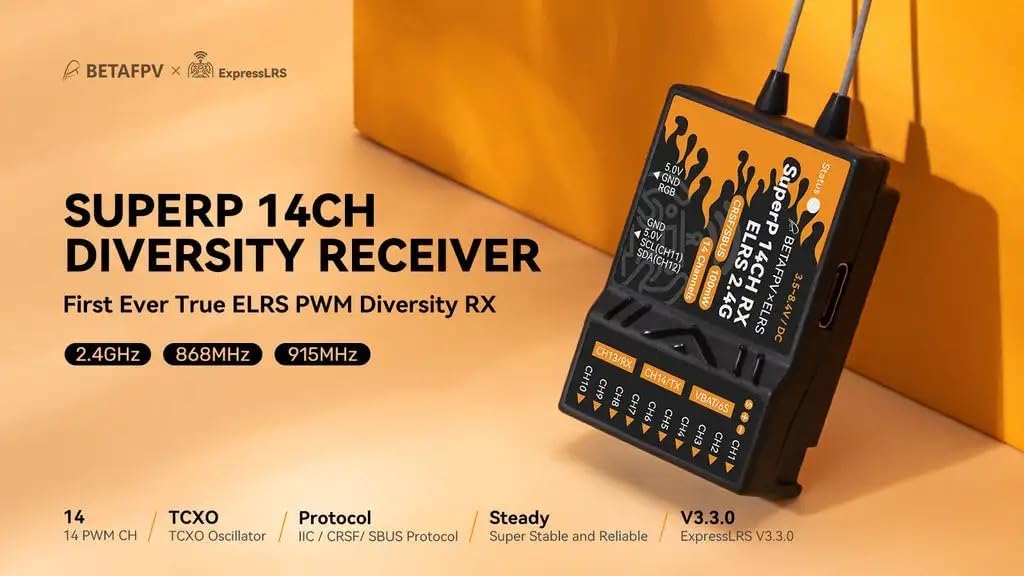

Image 2.1: Marketing image illustrating the key features of the SuperP 14CH Diversity Receiver, including 14 PWM channels, TCXO, multiple protocols, and ExpressLRS V3.3.

3. Components Overview

The BETA FPV SuperP receiver is designed with clearly labeled ports and indicators for easy setup and operation.

Image 3.1: A detailed view of the SuperP receiver, showing the dual antennas, PWM output pins, and USB-C port.

Image 3.2: Diagram illustrating the various ports and components of the receiver, including antennas, RGB LED, Type-C Port, GH2.0 3Pin Port, GH2.0 4Pin Port, and PWM channels CH1-CH14, along with GND, VCC, VBAT/6S, RX, and TX pins.

• Antennas: Two external antennas for diversity reception.
• RGB LED: Status indicator for binding and operational status.
• Type-C Port: Used for firmware updates and configuration.
• PWM Channels (CH1-CH14): Output pins for connecting servos and other PWM-controlled devices.
• GH2.0 3Pin Port: For specific connections (e.g., SCL/CH11, SDA/CH12).
• GH2.0 4Pin Port: For specific connections (e.g., CRSF/CH13, CRSF/CH14).
• GND/VCC: Power input and ground connections.
• VBAT/6S: Voltage detection input for up to 6S batteries.

4. Specifications

Detailed technical specifications for the BETA FPV SuperP 14CH PWM Diversity Receiver.

• MCU: ESP32 Pico D4 + 2*SX1280/SX1281 + 2*AT2401C (2.4GHz version) or ESP32 Pico D4 + 2*SX1276 (915MHz/868MHz version)
• Telemetry Power: 20dBm/100mW (2.4Ghz / 915MHz), 17dBm/50mW (868MHz/915MHz)
• Frequency Bands: 2.4GHz ISM, 915MHz FCC / 868MHz EU
• Rated Current: 180mA / 5V (2.4Ghz), 140mA / 5V (915MHz/868MHz)
• Weight: 15.5g (2.4GHz), 15.8g (915MHz/868MHz)
• Standard Firmware Version: ExpressLRS V3.3.0
• Serial Output Protocol: PWM/CRSF/SBUS
• Size: 46.9mm x 32.7mm x 14.6mm
• Voltage Detector Range: 1-6S
• Input Voltage: DC 3.5V~8.4V
• PWM Channels: 14 channels
• Customized RC Model Type: Multi-rotors, rigid wing aircraft, helicopters, RC cars, RC boats, etc.

Image 4.1: The SuperP receiver being weighed on a digital scale, indicating its lightweight design.

Comparison Table (SuperP RX vs. Other Models)

Image 4.2: A comparison table detailing specifications of the SuperP RX against Micro RX and Super D RX models, covering weight, antenna type, PWM channels, frequency, telemetry power, output protocol, input voltage, voltage detection range, supported sensors, and suitable model types.

5. Setup

5.1. Physical Installation

1. Mounting: Securely mount the receiver in your RC model using double-sided tape or other appropriate methods. Ensure it is protected from vibrations and moisture.
2. Antenna Placement: Position the two antennas separately and vertically, ideally at a 90-degree angle to each other, to achieve optimal omnidirectional signal reception. Avoid placing antennas near carbon fiber or large metal objects that can block the signal.
3. Power Connection: Connect the receiver to a stable power source within the specified input voltage range (DC 3.5V~8.4V). Observe correct polarity (GND and VCC).
4. PWM Connections: Connect your servos or other PWM-controlled devices to the corresponding CH1-CH14 pins. Refer to your flight controller or model's manual for specific channel assignments.
5. CRSF/SBUS Connections: If using CRSF or SBUS protocol, connect the appropriate pins (e.g., GH2.0 4Pin port for CRSF) to your flight controller.
6. Voltage Detection: For battery voltage monitoring, connect the VBAT/6S pin to your battery's positive terminal (up to 6S).

5.2. Firmware Flashing (Optional)

The receiver comes pre-installed with ExpressLRS V3.3.0 firmware. If you need to update or change the firmware:

1. Connect the receiver to your computer using a Type-C USB cable.
2. Use the ExpressLRS Configurator software to select the appropriate firmware target for the SuperP receiver.
3. Follow the on-screen instructions in the Configurator to flash the desired firmware.

5.3. Binding Procedure

To establish communication between your transmitter and the SuperP receiver, a binding process is required. Ensure your transmitter is also running ExpressLRS firmware.

1. Power Cycle Method: Power on the receiver three times consecutively. Each time, wait for the RGB LED to flash rapidly, then power off. On the third power-up, the LED should flash slowly, indicating it is in binding mode.
2. Transmitter Binding: On your ExpressLRS-enabled transmitter, navigate to the ELRS LUA script or menu and select "Bind".
3. Confirmation: Once bound, the receiver's RGB LED will turn solid, indicating a successful connection.
4. Binding Phrase: Alternatively, if your transmitter and receiver share the same binding phrase configured in the ExpressLRS Configurator, they will bind automatically upon power-up.

6. Operating Instructions

6.1. Power On and Pre-Flight Check

1. Ensure all connections are secure and correct.
2. Power on your transmitter first, then power on your RC model with the receiver.
3. Observe the receiver's RGB LED. It should be solid, indicating a successful link with the transmitter.
4. Perform a range check and verify all control surfaces and functions respond correctly to transmitter inputs before flight or operation.

6.2. Failsafe Configuration

The failsafe function is critical for safety. It defines the receiver's behavior in case of signal loss.

1. Access the ExpressLRS LUA script on your transmitter.
2. Navigate to the Failsafe settings.
3. Configure the desired failsafe behavior (e.g., "Hold" to maintain last known positions, "Cut" to stop motors, or "Custom" for specific channel outputs).
4. Test the failsafe by powering off your transmitter while the model is powered on (ensure propellers are removed or motors are disarmed for safety). Verify the model reacts as configured.

6.3. Telemetry

The SuperP receiver supports telemetry, allowing you to monitor real-time data from your model on your transmitter screen.

• Ensure telemetry is enabled in your transmitter's ExpressLRS settings.
• The receiver will automatically transmit data such as RSSI, Link Quality, and potentially battery voltage if connected to the VBAT pin.
• Refer to your transmitter's manual for how to display and utilize telemetry data.

7. Maintenance

• Regular Inspection: Periodically check all wiring and connections for signs of wear, damage, or loose contacts.
• Antenna Condition: Ensure antennas are not bent, cut, or damaged. Replace if necessary.
• Cleaning: Keep the receiver free from dust, dirt, and moisture. Use a soft, dry brush or compressed air for cleaning. Avoid using liquids.
• Firmware Updates: Check the official ExpressLRS website or BETA FPV resources for new firmware releases. Updating firmware can provide performance improvements, new features, and bug fixes.
• Storage: When not in use, store the receiver in a dry, cool environment, away from direct sunlight and extreme temperatures.

8. Troubleshooting

• Receiver LED Not Solid After Power On:
  • Ensure the receiver is correctly powered (3.5V~8.4V).
  • Verify the transmitter is powered on and transmitting.
  • Check if the receiver is bound to the transmitter. If not, perform the binding procedure (Section 5.3).
  • Confirm both transmitter and receiver are running compatible ExpressLRS firmware versions.
• No Control Response:
  • Ensure the receiver is successfully bound (solid LED).
  • Check all PWM/CRSF/SBUS connections between the receiver and flight controller/servos.
  • Verify channel mapping in your flight controller or model's configuration.
  • Check for any physical damage to the receiver or antennas.
• Short Range or Signal Loss:
  • Inspect antennas for damage or improper placement. Ensure they are positioned optimally (separated and vertical).
  • Avoid placing the receiver or antennas near noisy electronic components (ESCs, motors, video transmitters).
  • Check the transmitter's RF power setting.
  • Consider environmental factors (e.g., dense foliage, buildings, other 2.4GHz interference).
• Firmware Flashing Issues:
  • Ensure the correct COM port is selected in the ExpressLRS Configurator.
  • Try a different USB cable or USB port on your computer.
  • Ensure no other software is using the COM port.

9. Warranty and Support

For warranty claims, technical support, or further assistance, please contact the retailer or manufacturer directly. Keep your proof of purchase for warranty validation.

• Manufacturer: BETA FPV
• Product ASIN: B0DDT4XQJ5
• Refer to the official BETA FPV website or your purchase platform for the most up-to-date support information and contact details.
