1. Introduction

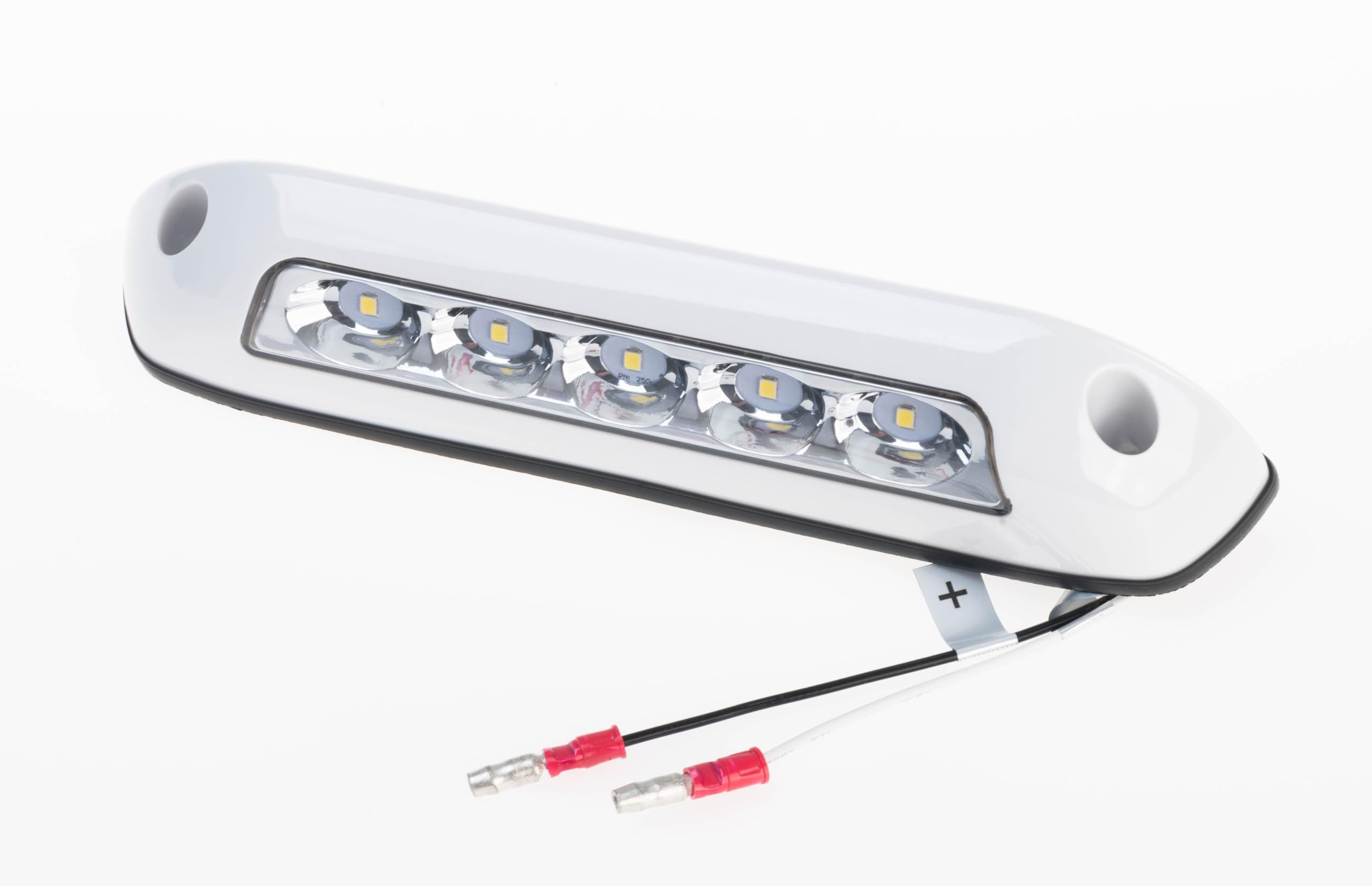

This manual provides instructions for the installation, operation, and maintenance of the Generic 69711-WH-6.5K-CON White Flood Lamp with Connector. This product is a rugged, high-output LED exterior light designed for commercial and recreational vehicles, providing bright 6,500K daylight-white illumination. It features a pre-installed connector for simplified installation and a weatherproof housing for reliable outdoor performance.
2. Safety Information
- Read all instructions before installation and use. Failure to follow instructions may result in electric shock, fire, or other hazards.
- Disconnect power before installing or servicing the lamp.
- This product is designed for 12V DC systems only. Do not connect to higher voltage systems.
- Ensure all electrical connections are secure and properly insulated to prevent short circuits and moisture ingress.
- Do not look directly into the LED light when it is illuminated, as it may cause eye strain or damage.
- Installation should be performed by a qualified individual if you are unsure about electrical wiring.
3. Package Contents
Verify that all components are present before proceeding with installation:
- 1x 69711-WH-6.5K-CON White Flood Lamp
- 1x Integrated Connector (pre-wired)
4. Specifications
| Feature | Specification |
|---|---|
| Model Number | 69711-WH-6.5K-CON |
| Voltage Input | 10-14V DC |
| LED Color Temperature | 6,500K (Daylight White) |
| Housing Color | White |
| Mount Type | Surface Mount |
| Power Consumption | 6.3W Max |
| Weather Resistance | Sealed Housing, Suitable for Wet Locations |
| Dimensions | Approximately 3"L x 2"W x 2"H |
5. Installation (Setup)
The 69711-WH-6.5K-CON flood lamp is designed for surface mounting and features a pre-wired connector for straightforward installation.
- Choose a Mounting Location: Select a flat, stable surface on your RV, trailer, or utility vehicle. Ensure the location allows for proper light dispersion and is free from obstructions.
- Prepare the Surface: Clean the mounting surface thoroughly to ensure a secure attachment.
- Mark Drilling Points: Use the lamp's mounting holes as a template to mark the drilling locations on the surface.
- Drill Pilot Holes: Carefully drill pilot holes at the marked locations. Ensure the drill bit size is appropriate for your mounting screws (not included).
- Secure the Lamp: Position the lamp over the pilot holes and secure it using appropriate screws. Do not overtighten.
- Connect Wiring: The lamp comes with a pre-installed connector. Connect this connector to your vehicle's existing 12V DC power supply. The white wire is typically positive (+), and the black wire is negative (-). Refer to your vehicle's wiring diagram if unsure.
Note: The lamp is designed for 10-14V DC input. Ensure your power source is within this range. The integrated connector simplifies wiring, eliminating the need for splicing if a compatible receptacle is available.
6. Operation
Once properly installed and connected to a 12V DC power source, the 69711-WH-6.5K-CON flood lamp operates by activating the connected electrical circuit. This is typically controlled by a switch within your vehicle's electrical system.
- To Turn On: Activate the switch connected to the lamp's power circuit.
- To Turn Off: Deactivate the switch connected to the lamp's power circuit.
The LED light will provide bright 6,500K daylight-white illumination for your desired area.
7. Maintenance
The 69711-WH-6.5K-CON flood lamp is designed for low maintenance. Follow these guidelines to ensure optimal performance and longevity:
- Cleaning: Periodically clean the lamp's lens and housing with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the plastic.
- Connection Check: Annually inspect the electrical connections for any signs of corrosion, looseness, or damage. Ensure the connector remains securely seated.
- Housing Inspection: Check the lamp housing for any cracks or damage that could compromise its weatherproof seal.
- No User-Serviceable Parts: The LED components are sealed and not user-serviceable. Do not attempt to open the lamp housing.
8. Troubleshooting
If the flood lamp is not functioning as expected, refer to the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not illuminate | No power to the lamp | Check the vehicle's fuse for the circuit. Ensure the power switch is ON. Verify the 12V DC power source is active. |
| Lamp flickers or is dim | Loose or corroded electrical connection | Inspect the connector and wiring for secure contact and signs of corrosion. Clean or re-secure connections as needed. |
| Water inside the lamp housing | Compromised weatherproof seal | If the housing is damaged, the unit may need replacement. Ensure mounting screws are tight but not overtightened. |
9. Warranty and Support
For warranty information or technical support regarding your Generic 69711-WH-6.5K-CON White Flood Lamp, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.
Manufacturer: ITC Incorporated
Website: www.itc-us.com
