1. Product Overview
The Budora WR17X33825 Bypass Filter Plug is an essential accessory for GE refrigerators equipped with a water filter system that utilizes a chip. This plug allows the refrigerator to dispense water without a filter installed, providing a continuous flow of unfiltered water. It is ideal for situations where filtered water is not required or when the water filter needs to be removed for maintenance or replacement, ensuring the refrigerator's water dispenser remains operational.

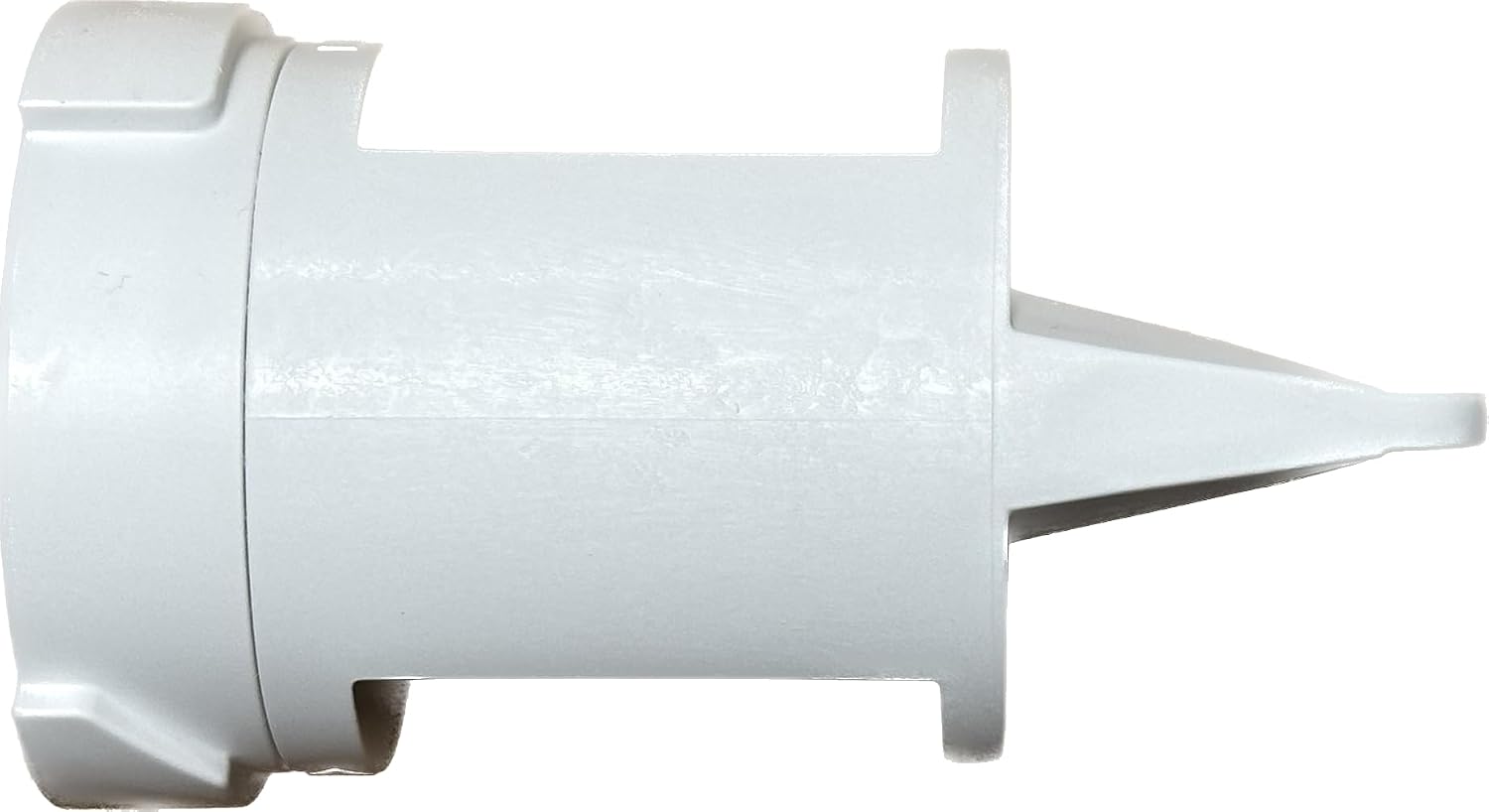

Image 1.1: Budora WR17X33825 Bypass Filter Plug.
Image 1.2: Top view of the bypass filter plug, showing the 'USE FOR UNFILTERED WATER' inscription.
2. Safety Information
- Always disconnect power to the refrigerator before attempting any installation or maintenance.
- Ensure the water supply valve to the refrigerator is turned off before removing the existing filter or installing the bypass plug.
- Keep small parts away from children.
- If you are unsure about any step, consult a qualified technician.
3. Setup and Installation
Follow these steps to install the WR17X33825 Bypass Filter Plug:
- Turn off Water Supply and Power: Locate the water supply valve for your refrigerator and turn it off. Unplug the refrigerator from the power outlet to prevent accidental activation.
- Locate Filter Housing: Open your refrigerator and locate the water filter housing. This is typically found in the upper right corner of the fresh food compartment or in the grille at the bottom of the refrigerator.
- Remove Existing Water Filter: If a water filter is currently installed, slowly turn it counter-clockwise until it disengages from the housing. Pull the filter straight out. Be prepared for a small amount of water to drip from the housing.
- Insert Bypass Filter Plug: Align the new bypass filter plug with the filter housing. Push the plug straight into the housing until it is fully seated.
- Secure the Plug: Turn the bypass filter plug clockwise until it locks into place. You should feel a click or resistance indicating it is securely installed.
- Restore Water Supply and Power: Turn the water supply valve back on. Plug the refrigerator back into the power outlet.
- Flush the System: Dispense approximately 2-3 gallons of water through the dispenser to flush any air from the system.
Image 3.1: Example of a refrigerator water filter installed in its housing.
Image 3.2: Inserting the bypass filter plug into the refrigerator's filter housing.
Image 3.3: The bypass filter plug fully installed and secured in the housing.
4. Operating Instructions
Once the Budora WR17X33825 Bypass Filter Plug is correctly installed, your refrigerator's water dispenser will provide unfiltered water. The refrigerator will operate as normal, and the water dispenser will function without requiring a water filter. This plug is designed to maintain the water flow when a filter is not present, preventing error messages or water dispensing issues that might occur if the filter housing is left empty.
5. Maintenance
The bypass filter plug itself requires no specific maintenance. However, it is recommended to periodically inspect the filter housing for any debris or buildup and clean it as necessary to ensure optimal water flow and hygiene. If you decide to re-install a water filter, simply reverse the installation steps to remove the bypass plug and insert the new filter.
6. Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| No water dispensing after installation. | Water supply valve is off; plug not fully seated; air in system. | Ensure water supply is on. Re-install plug, ensuring it clicks into place. Flush system by dispensing water for 2-3 minutes. |
| Water leaks from housing. | Plug not properly installed or damaged. | Turn off water supply and power. Remove and re-install the plug, ensuring it is securely locked. Inspect plug for any visible damage. |
| Refrigerator displays a filter error. | Bypass plug not recognized or refrigerator model requires a specific chip interaction. | Ensure the bypass plug is compatible with your specific GE refrigerator model with a chip. Some models may require a filter with a chip to clear the error. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | PL-WR17X33825 |
| Cross Reference Part Numbers | WR17X33825, AP6989494, WR17X30044 |
| Compatible Brands | General Electric, Hotpoint, RCA, Kenmore/Sears |
| Item Weight | 2.64 ounces |
| Product Dimensions | 4 x 3 x 3 inches |
| Included Components | Bypass Filter Plug |
| Batteries Required | No |
8. Warranty and Support
This Budora Bypass Filter Plug comes with a 1 Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For technical support, warranty claims, or any questions regarding your Budora product, please contact our customer service team. Refer to your purchase documentation for specific contact details or visit the official Budora website.
